Product Application

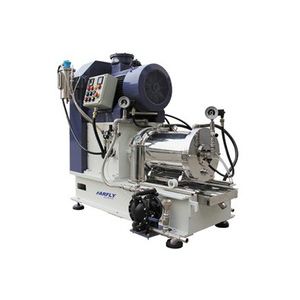

FARFLY FWE Bead Grinding Machine, Pin Mill, Micronizer Machine
Wet process milling equipment which can produce continuously, the working principle is the power delivered form high-speed rotor to milling medium and liquid material, through mutual colliding and laminating, ultrafine result can be achieved.
Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical, pharmaceutical,etc
Specification
| TYpe | Motor (KW) | Capacity(L) | Pump Flux(L/min） | Coolant(m3/h) | Production(L/h) | Milling Medium(mm) | Overall Size (LxWxH) (mm) |
| FWE-5 | 5.5 | 5 | 2-12 | 0.8-1 | 20-100 | 1.2-2.0 | 1080x760x1300 |
| FWE-20 | 18.5 | 20 | 2-12 | 1-1.5 | 30-100 | 1.2-2.0 | 1450x885x1650 |
| FWE-30 | 22 | 30 | 2-12 | 1-1.5 | 50-600 | 1.2-2.0 | 1620x930x1700 |
| FWE-50 | 30 | 50 | 3-18 | 2-2.5 | 100-1000 | 1.2-2.0 | 1780x930x1780 |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Pre-sale service
Professional sales engineer with design and manufacturing knowledge for consulting.
Factory visit before purchasing.
Professional technical support
After sales service
Engineers available for installtion onsite if needed.
Spare parts available from factory by express courier.
