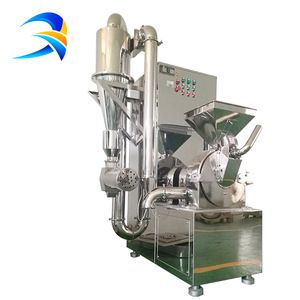

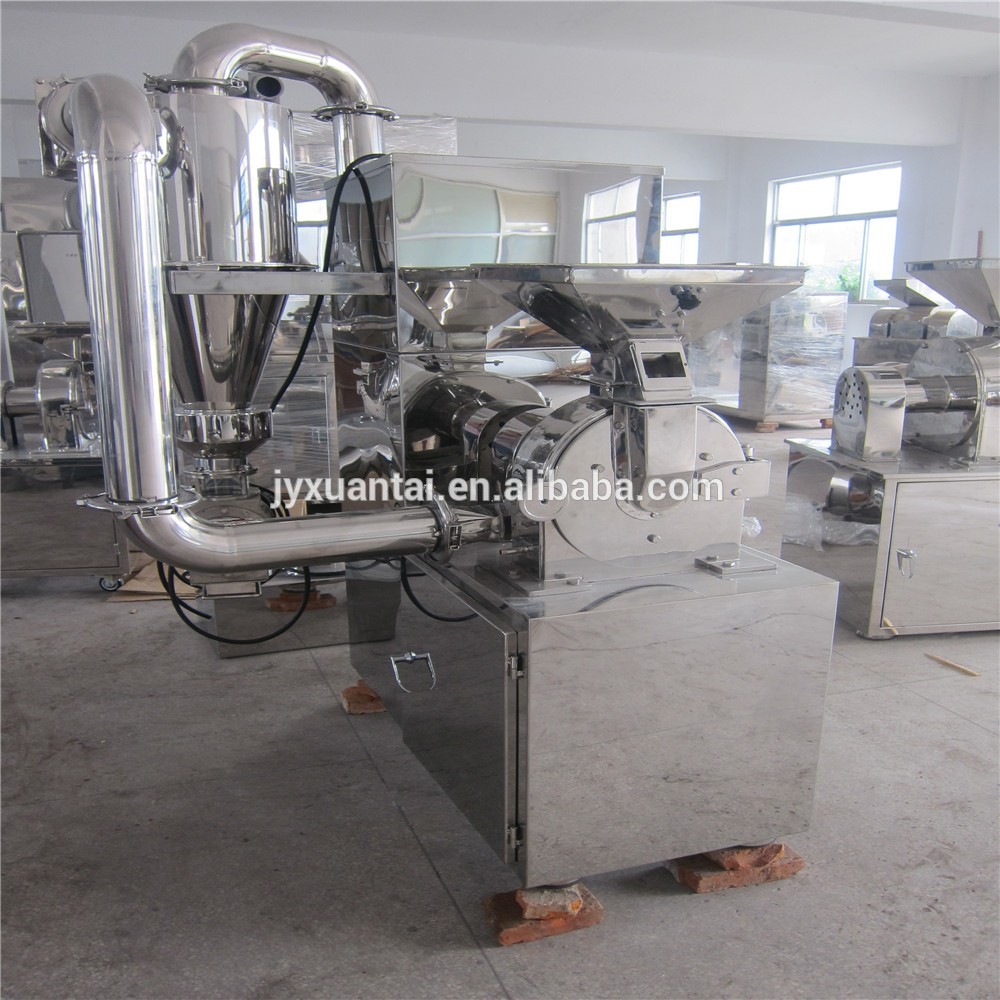

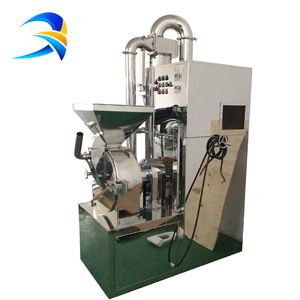

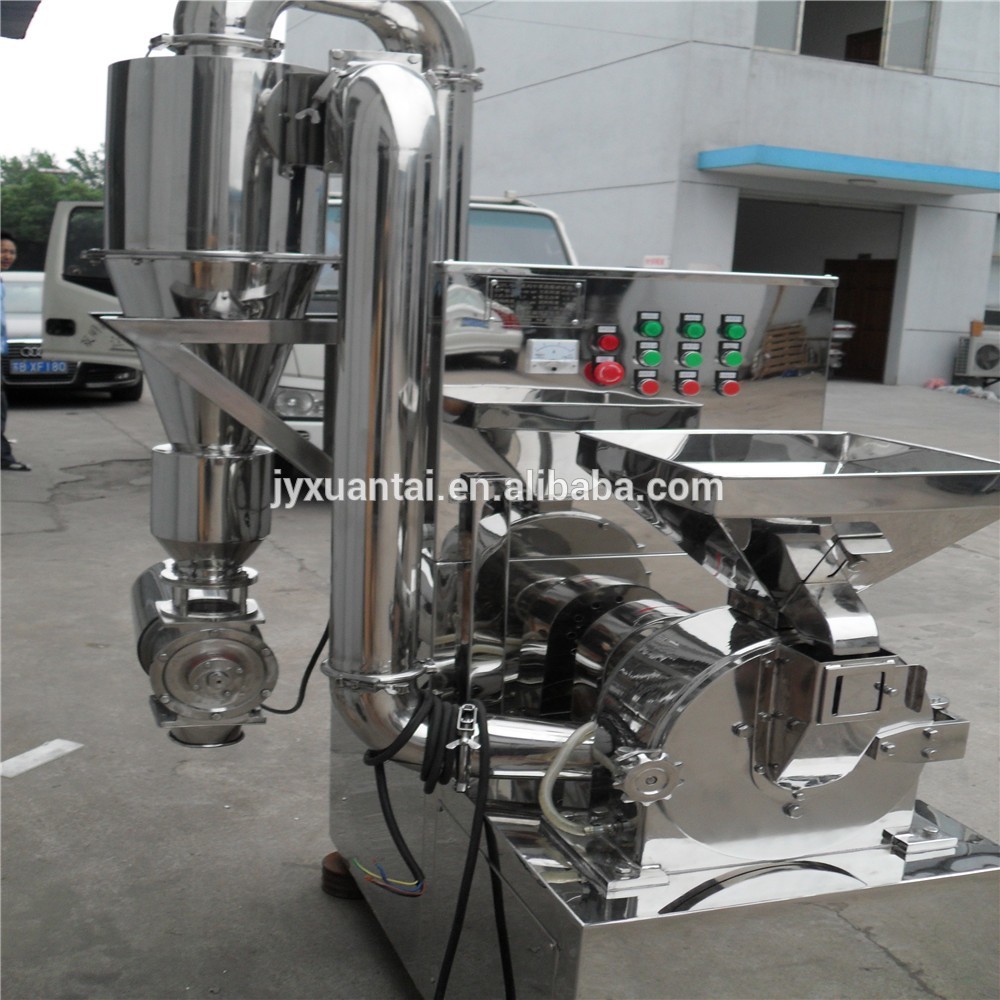

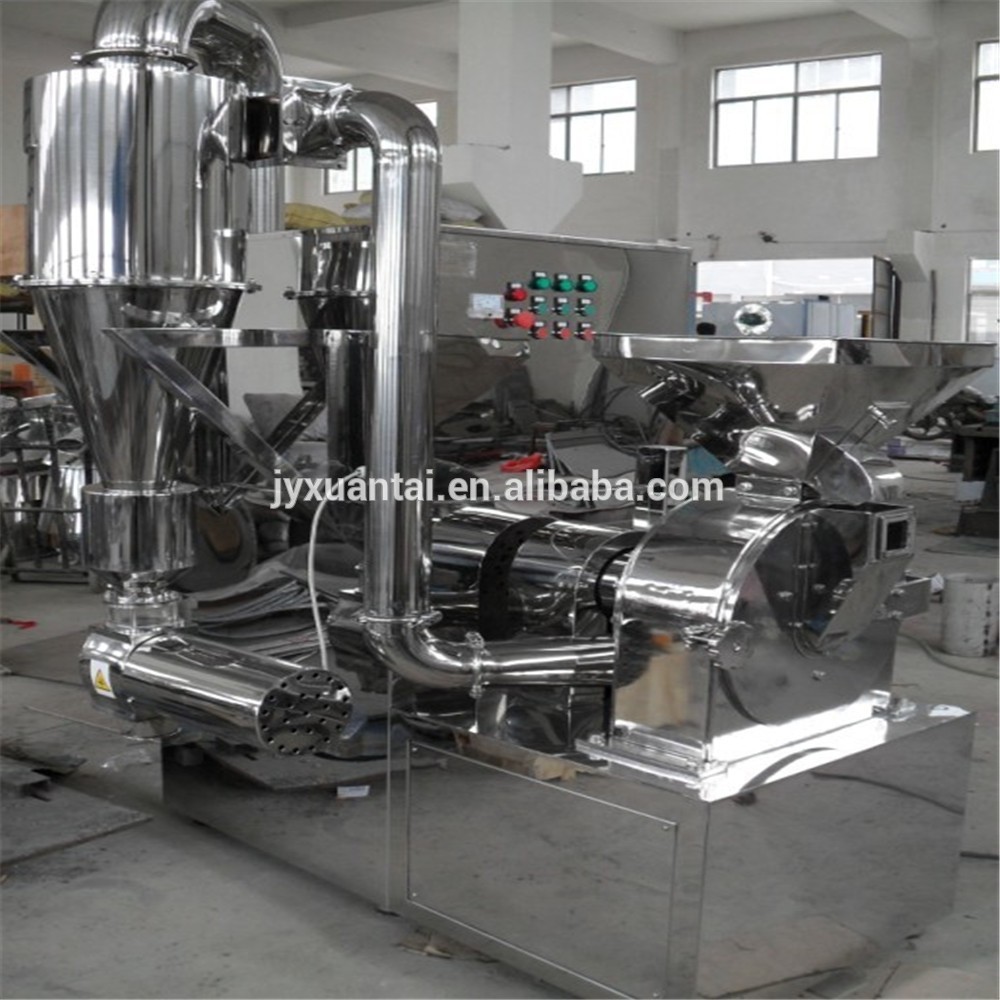

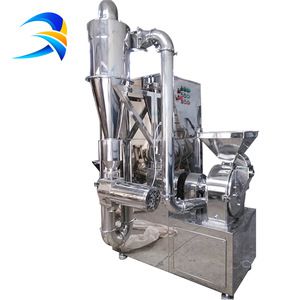

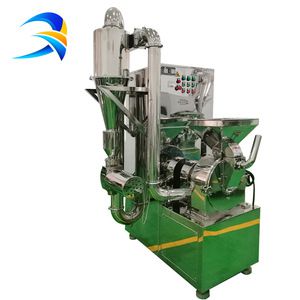

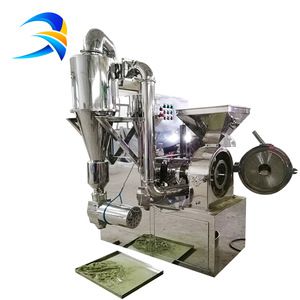

ZFJ-200 Sugar mill Pin Mill Grinding Mill
Application
The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness ,softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.
Advantages
1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating :just press button
Easy to clean,usually use water cooling and air compressor is ok .

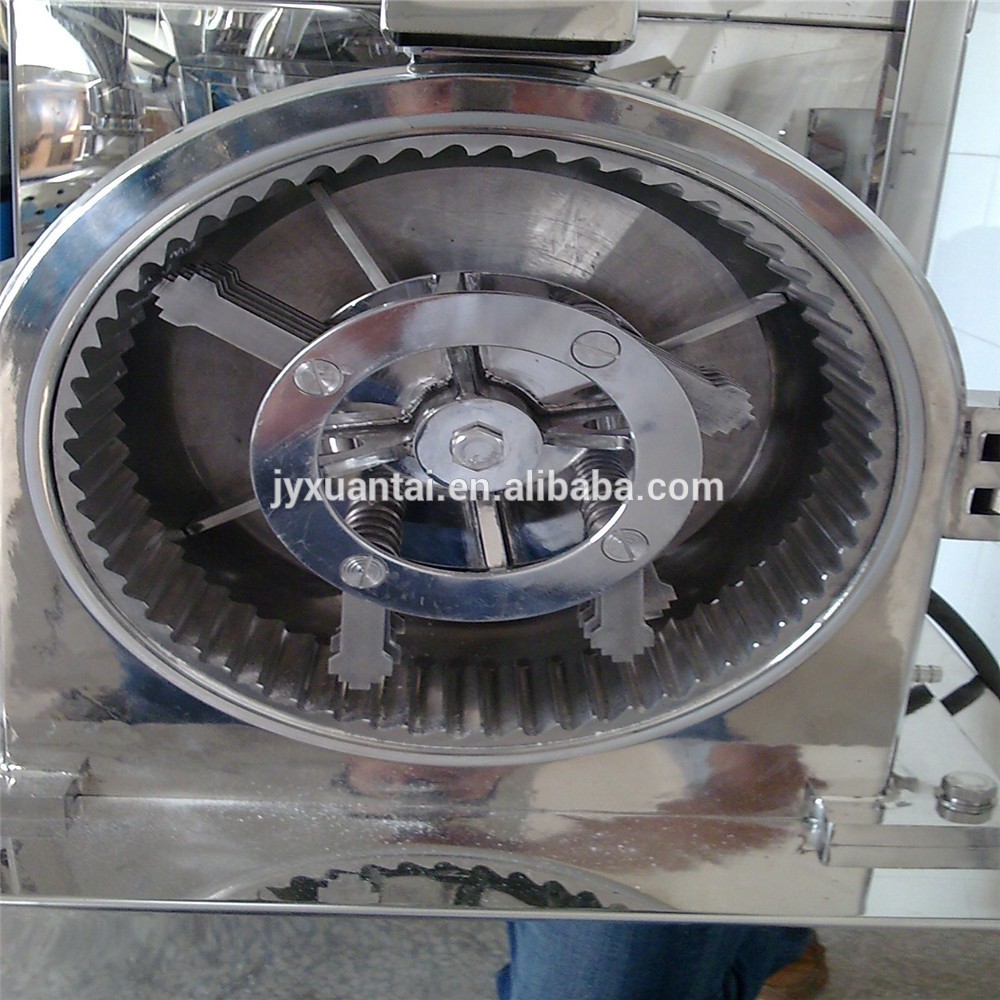

3 Final powder size range from 20mesh -250mesh,just adjust the gap between knives.
4 Machine has water cooling system to reduce working temperature,so can working long hours.
| ZFJ Series Herbal Medicine Pulverizer | |||
| Model | 200 | 300 | 400 |
| Capacity(kg/h) | 10-150 | 20-300 | 50-500 |
| Size of input granules(mm) | ≤10 | ≤12 | ≤15 |
| Speed of principal axis(r/min) | 4200 | 3800 | 3000 |
| Fineness of products(Mesh) | 20-250 | ||
| Grinding power(kw) | 5.5 | 7.5 | 11 |

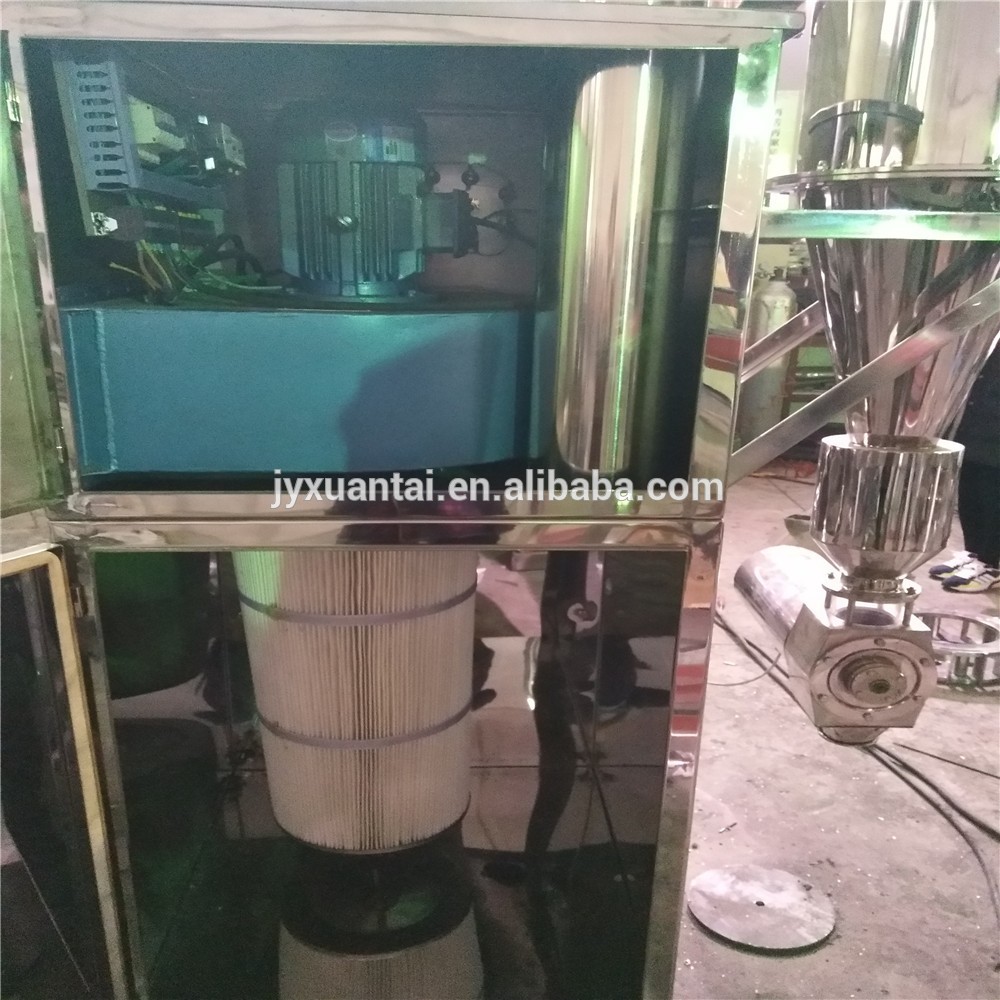

| Dust absorption power(kw) | 1.5 | 2.2 | 3 |
| Weight(kg) | 320 | 550 | 750 |
| Overall Size(L×W×H)mm | 1350×920×800 | 1400×1050×2050 | 1600×1150×2100 |
1) Professional advice and rich experience help to choose machine.
2) Lifelong maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) Any problem before or after delivery, you could find and talk with us anytime.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine.
1. What material do you want to grind?is it dry, what is the size of raw material ?
2. What capacity you expect ? (kg/h) What mesh or mm or micron(size) of the powder you want?
The more meshes ,the lower capacity.
3. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
