Product Description
Applications o Impact Pin Mill:
1. Fine grinding of soft to medium hard, brittle and crystalline materials;
2. Particle size of output product: 20-150 mesh ( adjustable by changing sieves ) ;
3. Capacity: 60-800 kg/h
4. GMP design

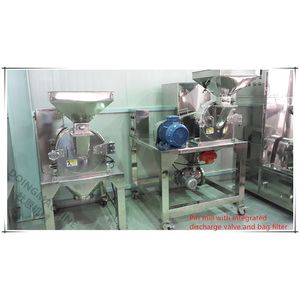

5. Different type of dust collector can be equipped.

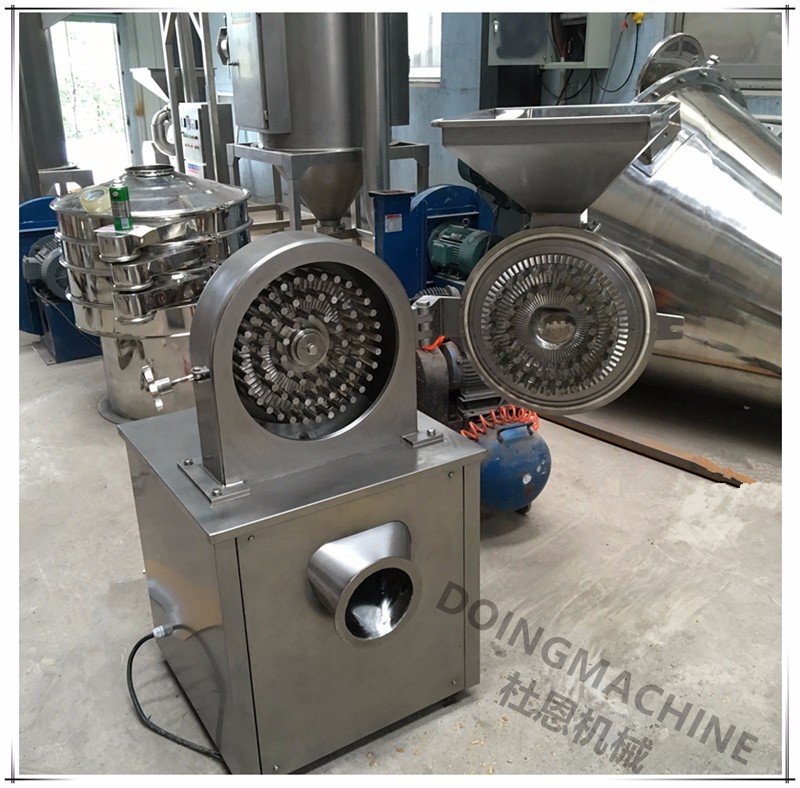

Working principle of Impact pin mill:

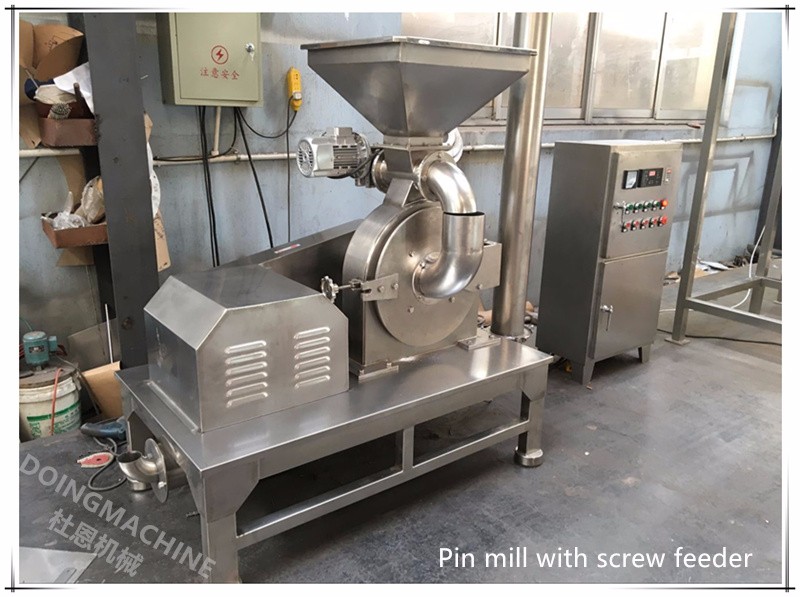

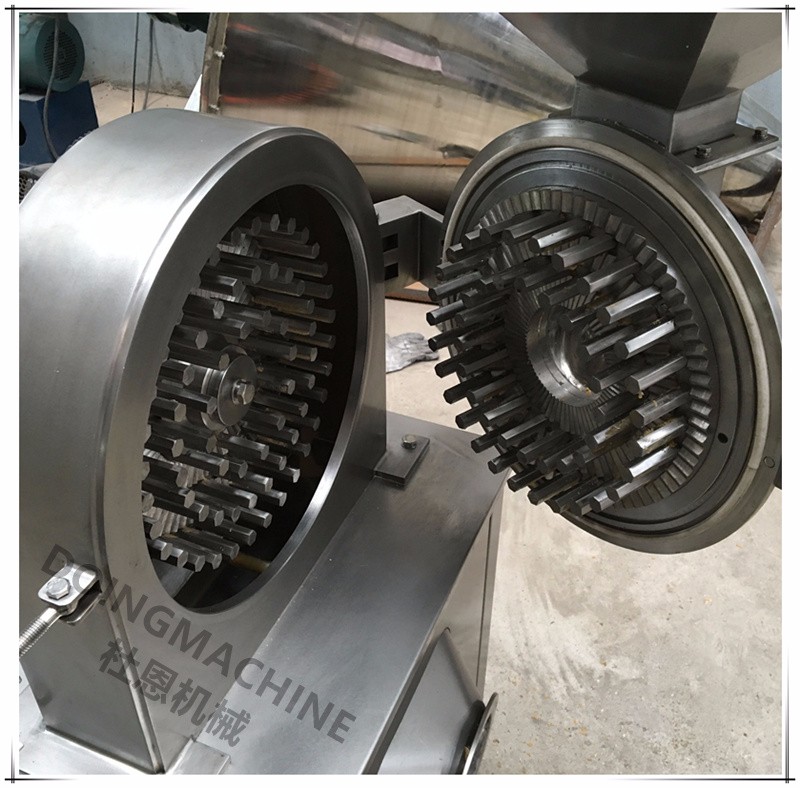

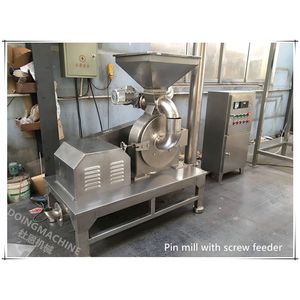

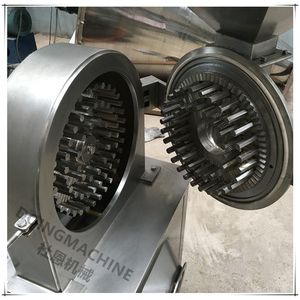

Material is fed into the milling chamber by gravity or screw conveyor. Grinding is done by impact and shearing between the concentrically mounted pin rows of the rotating and the stationary discs.The centrifugal force pushes the product through a filteing screen which is around the grinding chamber to get required particle size. Different particle size is determined by the speed, number, type of pins and screen hole size.
Impact pin mill has been widely used for fine grinding of soft to medium hard, brittle and crystalline materials in food, chemical and pharmaceutical industry.
Technical advantages of Impact pin mill:
1. Alloy steel cutter head pins;
2. GMP and food grade design;
3. High efficiency and low noise;
4. Different granule size can be achieved by changing filtering screen ;

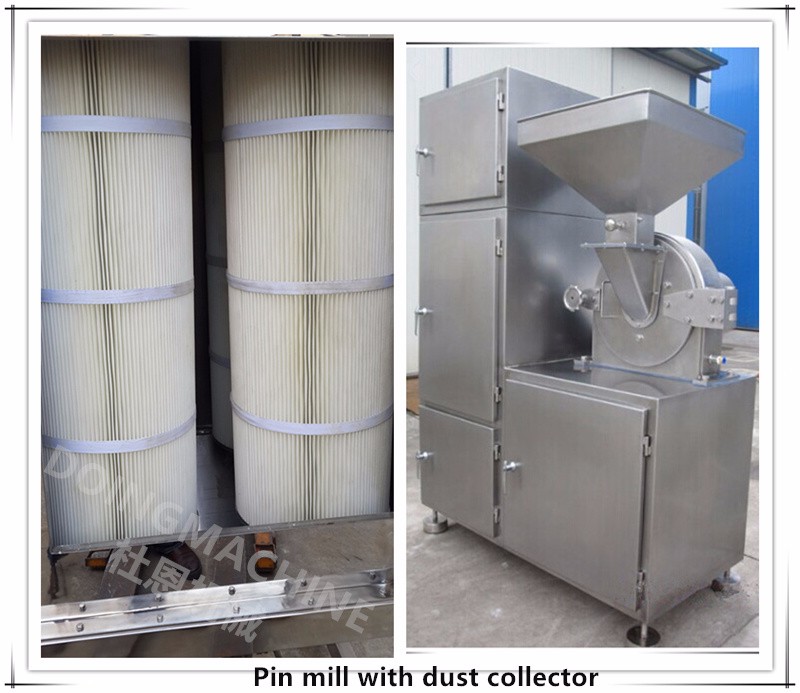

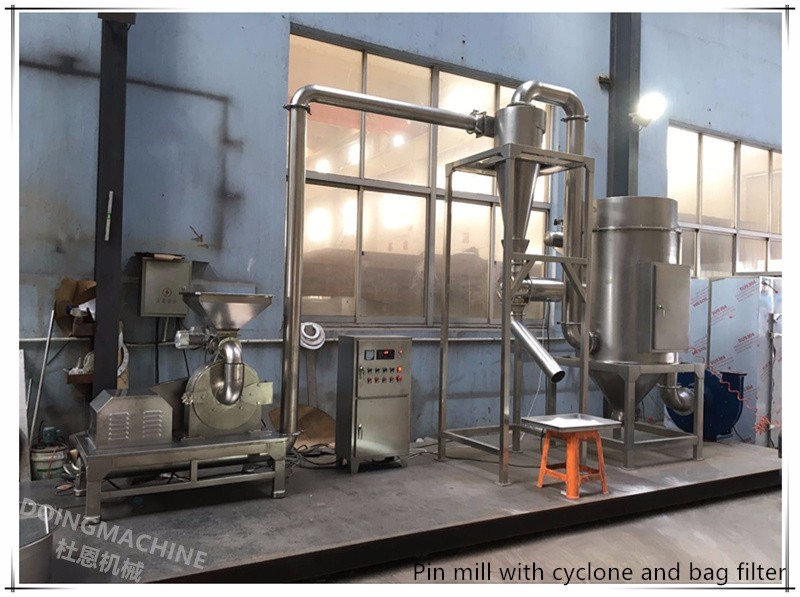

5. Different types of dust collector can be equipped to prevent dusting;
6. Air cooling and water cooling can be equipped.

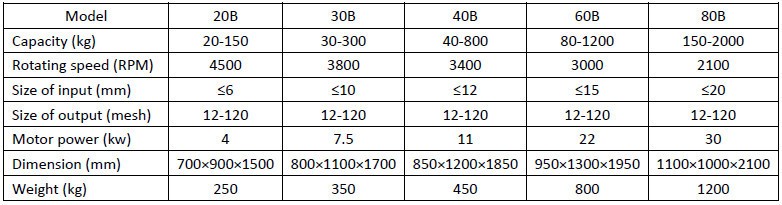

Standard Models of impact pin mill:
