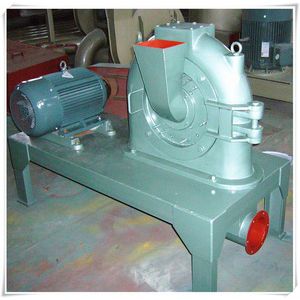

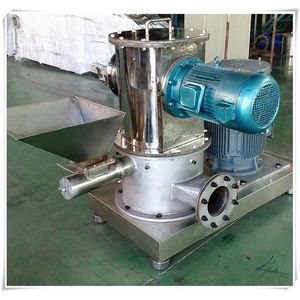

MJL-P: Pin Mill; MJL-B: Blast Mill; MJL-H: Hammer Mill.
Impact Mill Application:
We have developed various types of impact mills. They have been used for so many different materials in so many industries, and then they are also called Universal Mill. Therefore, almost all the materials are suitable for impact mill.
Impact Mill Working Principle:
Depending on the application and product, the mill is equipped with differing rotor and stator variations and can be operated as any of the following mill types: Pin Mill, Blast Mill and Hammer Mill.
Impact Mill Features:
- Suitable for various kinds of raw materials
- Low operation cost
- Small location size
- High quality and capicity
Mill Type | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1250 | |
MJL-P | Rotor Diameter (mm) | 160 | 260 | 360 | 520 | 630 | 730/800 | 1000 | 1250 |
Motor (KW) | 4/5.5 | 7.5/11 | 22/37 | 37/45 | 55/75 | 75/90 | 110/132 | 200/250 | |
MJL-B | Rotor Diameter (mm) | 150 | 250 | 350 | 500 | 600 | 720 | 1000 | 1250 |
Motor (KW) | 2.2/4 | 5.5/18.5 | 7.5/22 | 11/37 | 15/75 | 30/90 | 55/110 | 75/200 | |
MJL-H | Rotor Diameter (mm) | 150 | 300 | 400 | 500 | 600 | 800 | 1000 | 600 |
Motor (KW) | 2.2/4 | 5.5/11 | 7.5/22 | 11/37 | 15/45 | 22/55 | 37/75 | 90/110 | |
Capacity Factor | 0.4 | 1 | 2 | 3 | 6 | 7.5 | 9 | 11 |
Note: The data in this list are just for your reference. Please contact us, and we will make tailored design for your specific situation.
- Project Definition:
- Feasibility and concept study
- Cost and Profitability calculations
- Timescale and resource planning
- Turnkey solution, plant upgrade and modernization solutions
- Project Design
- Knowledgable engineers
- Using the latest technologies
- Exploiting the knowledge gained from hundreds of applications across any industries.
- Leverage expertise from our experienced engineers and partners
- Plant Engineering
- Plant design
- Process monitoring, control and automation
- Software development and real time application programming
- Engineering
- Machinery manufacturing
- Project Management
- Project planning
- Construction site supervision and management
- Installation and testing of instrumentation and control systems
- Machinery and plant commissioning
- Employee training
- Support throughout production
Ⅰ. EPC Contracting | |||
i. | Technology | Hosokawa Alpine technology and Omya technology | |
ii. | Experts/Consultant | Mr. H. Horlamus -- former engineer-- Hosokawa Alpine | |
Mr. Victor Evele -- former engineer-- Omya | |||
iii. | Experience | over 20 years | |
iv. | Application | Minerals, Chemicals, New Materials, Pharmaceutical Materials, Food/Health Care Products, Recycled Materials | |
v. | Supply | consultancy, testing, project design, machines, commissioning and training service. | |
Ⅱ.Machine Supplier | |||
i. | Fluidized Bed Jet Mill | ix. | Turbo Classifier |
ii. | Spiral Jet Mill | x. | Multi-wheel Classifier |

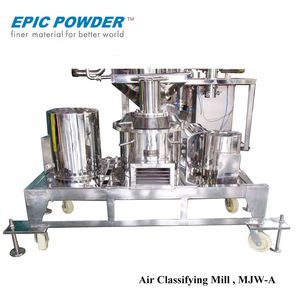

iii. | Air Classifier Mill | xi. | Dynamic Classifier |
iv. | Impact Mill | xii. | Jet Classifier |
v. | Vibration Mill | xiii. | Particle Surface Coating Machines |
vi. | Ball Mill | xiv. | Particle Shape Modification System |
vii. | Grinding System | xv. | Waste PCB Recycling System |
viii. | Wet Stir Mill System | xvi. | Waste Tire Recycling System |
1) What are our main products?
- We design and manufacture various powder grinding mills, classifiers, coating machines, mixing machines, etc.
2) What service do we supply?
- We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
- We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
- We supply project engineering, automation engineering and civil engineering.
- We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
3) How long time is our delivery?
- 60 to 90 days after the down payment received.
4) What payment terms do we offer?
- 30% by T/T as down payment;
- 70% by T/T before shipment or irrevocable L/C at sight.
5) What kind of shipment can we do?
- For complete machines, standard containers or frame containers by sea.
- For spare parts, wooden Case and pallet for delivery by air.
6) What service can we supply for machine installation and test run?
- We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
7) What is our warranty policy?
- We offer warranty of 12 months after installation or 18 months after the delivery.
- We offer lifetime service for our machine products after the delivery, and will follow up the machine status with our clients after the successful machine installation in our clients’ factories.
For details, please contact our project consultants, thank you.
