Description of dewatering screw press:
1.The development of modern livestock farming, the rise of intensification and factory farming industry has enriched people's
material needs. However, it also brought the flooding of livestock sewage which caused the water, air and environment pollution.
2.This animal manure solid liquid separator will separate the original livestock manure to liquid and solid organic fertilizer: the
liquid organic fertilizer can be directly used for crops; the solid organic fertilizer can be shipped to regions that lack of fertilizer to
improve the soil structure. What's more, after fermentation, the solid organicfertilizer can be made into organic compound fertilizer.
Features:
1.This animal manure solid liquid separator can reduec the CODcr content of waster water;
2.The solid content of separated solid materials can reach up to 50%;
3.Low energy consumption, small investment, high efficiency;
4.Compact structure, raw material of animal manure solid liquid separator is iron stell, the raw material of main shaft and screen
is stainless steel;
5.Easy operate and maintenance;
6.ast investment return, no need to add any flocculating agent.
Application Scope of dewatering screw press:
1.Animal wastes, such as pig manure, cow dung, poultry dung, horse excrement and other kinds of animal manure;
2.Biogas slurry, sludge gas and biogas fermentative residue;
3.Maniocwaste, tea slag, sweet potato waste, maize pulp, bagasse, medicine dregs, wppd pulp fiber, paper pulp fiber,
bean dregs, coffee grounds and so on;
4.Any kinds of solid liquid separation.
The main technical parameters:
Model | TZMD-180 | TZMD-260 |
Motor power | 4kw | 5.5kw |
pump power | 3kw | 3kw |
Rotary speed | 45r/min | 45r/min |
Voltage | 380v | 380v |
Working capacity | 5-7m3/h | 7-10m3/h |
pump speed | 1450r/min | 1450r/min |
Cow muck (cubic/h) | 4-6 | 4-6 |
pig muck (cubic/h) | 5-12 | 5-12 |
Chicken muck (cubic/h) | 2-4 | 2-4 |

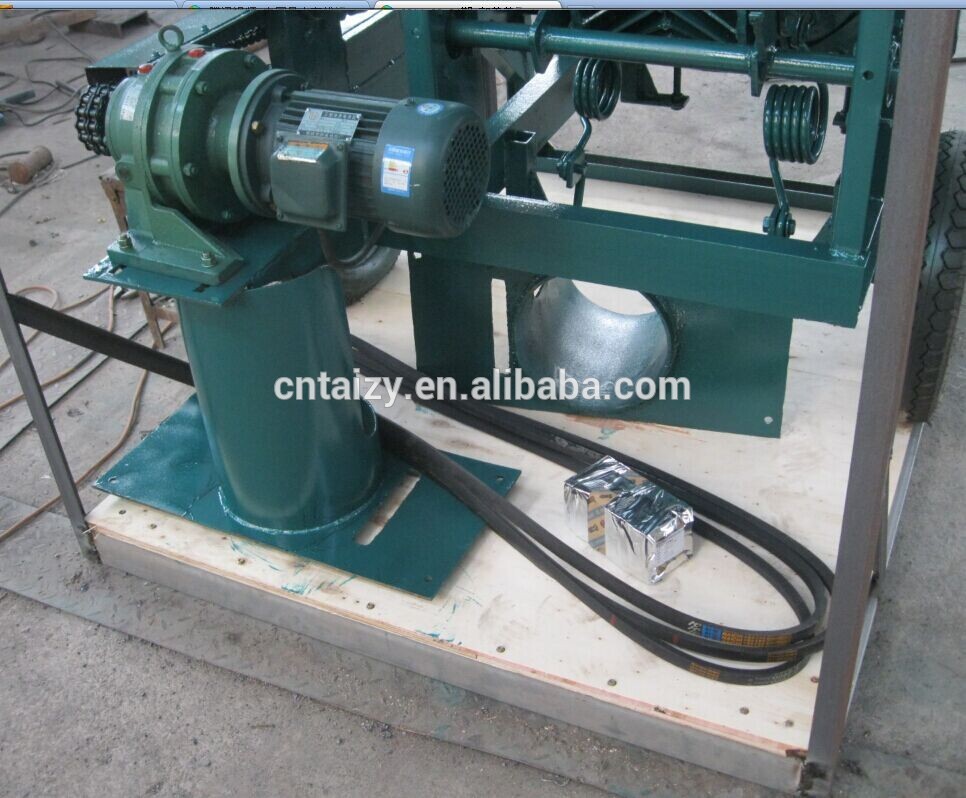

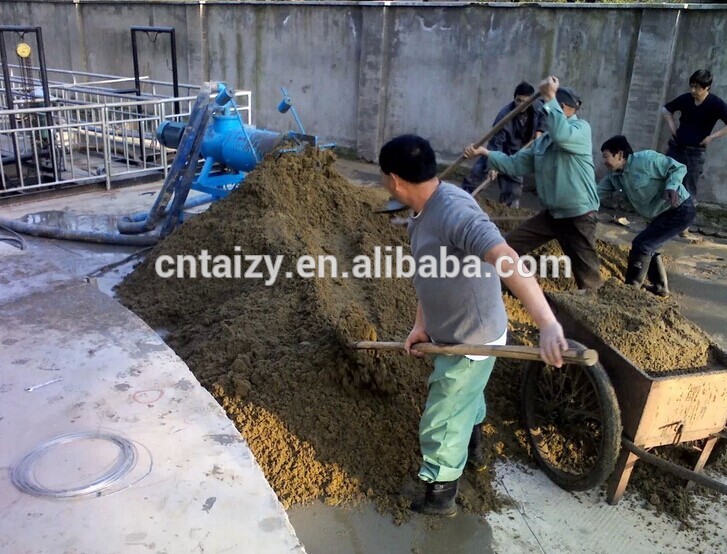

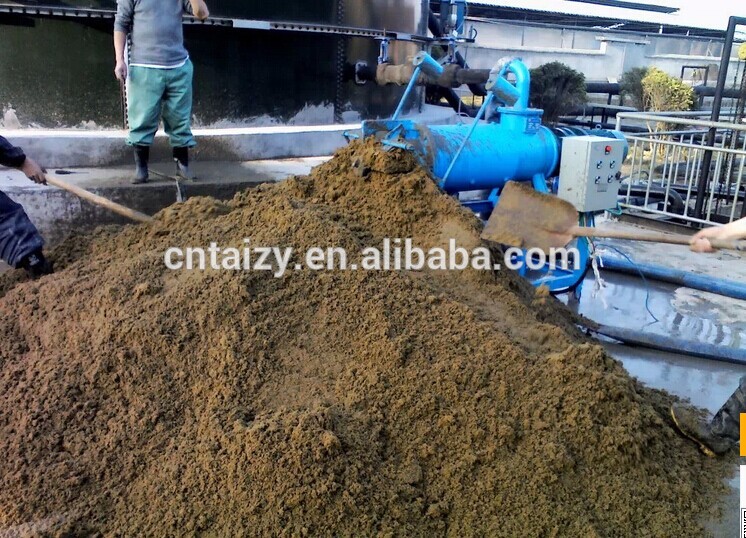

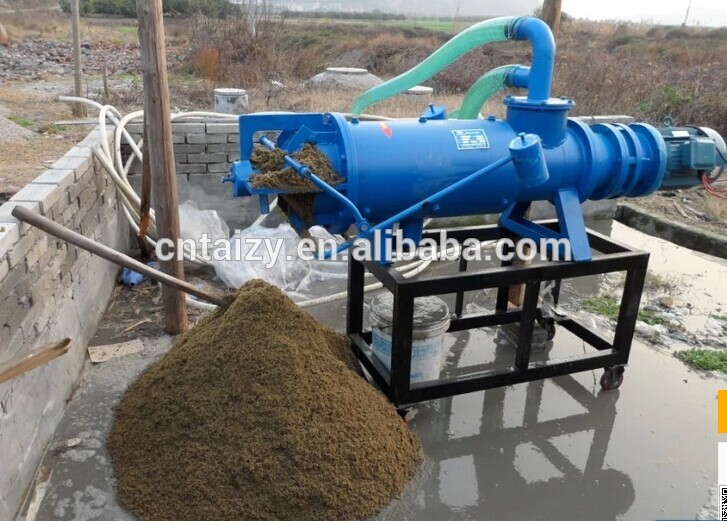

Pictures of our machines:
Our company
