Sludge Drying Sludge Dewatering Machine

• This Belt Filter Press is used for soild & liquid separation process, particularly the sludge dewatering in chemical industry, paper mill, printing and dyeing mill, mining and water treatment field.

• Dewatering process is primarily obtained by passing a pair of filtering cloths and belt through a system of rollers,the system takes sludge or slurry as a feed ,and separates it into a filtrate and a soild cake.

 Sludge Drying Sludge Dewatering Machine

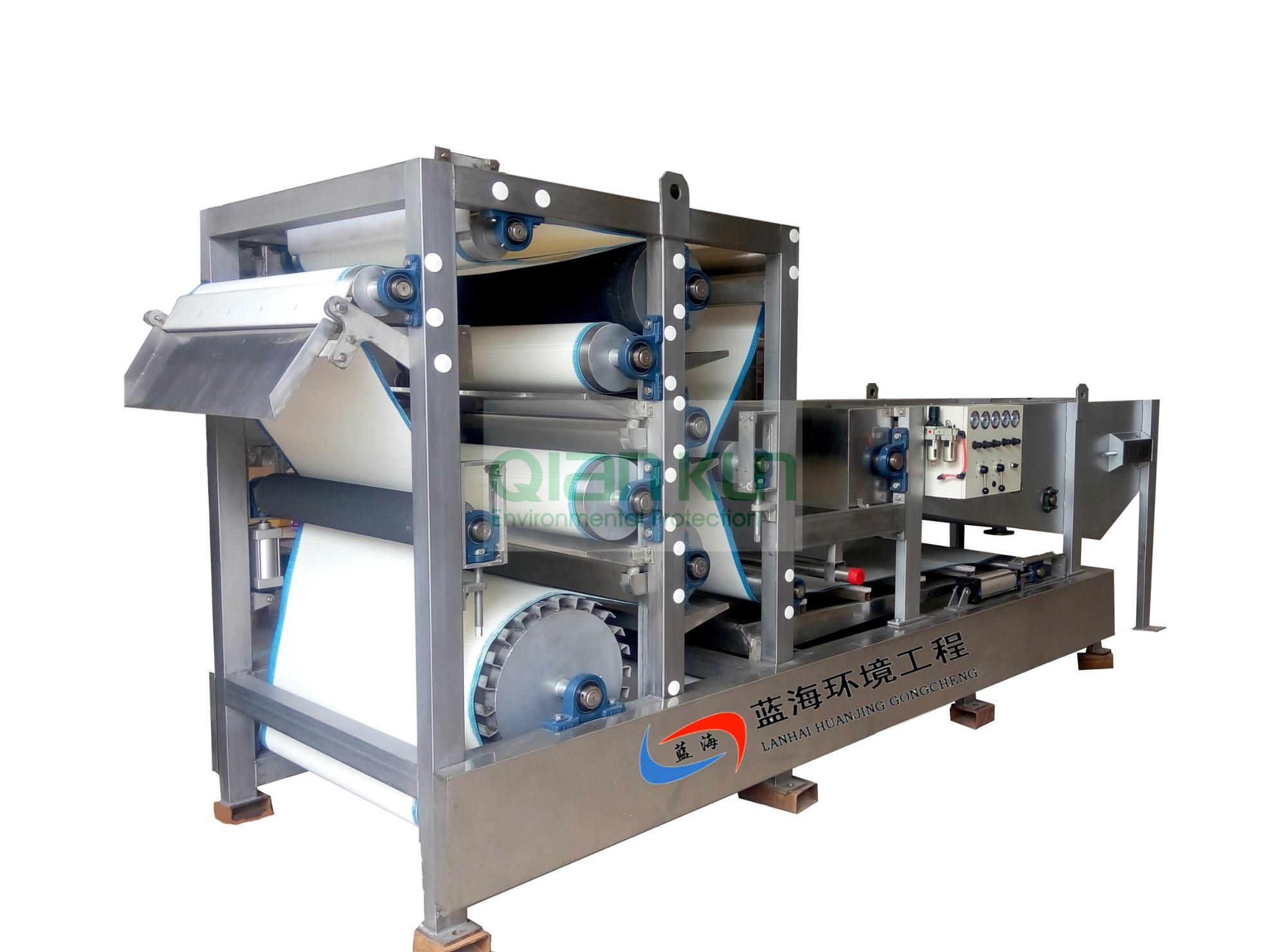

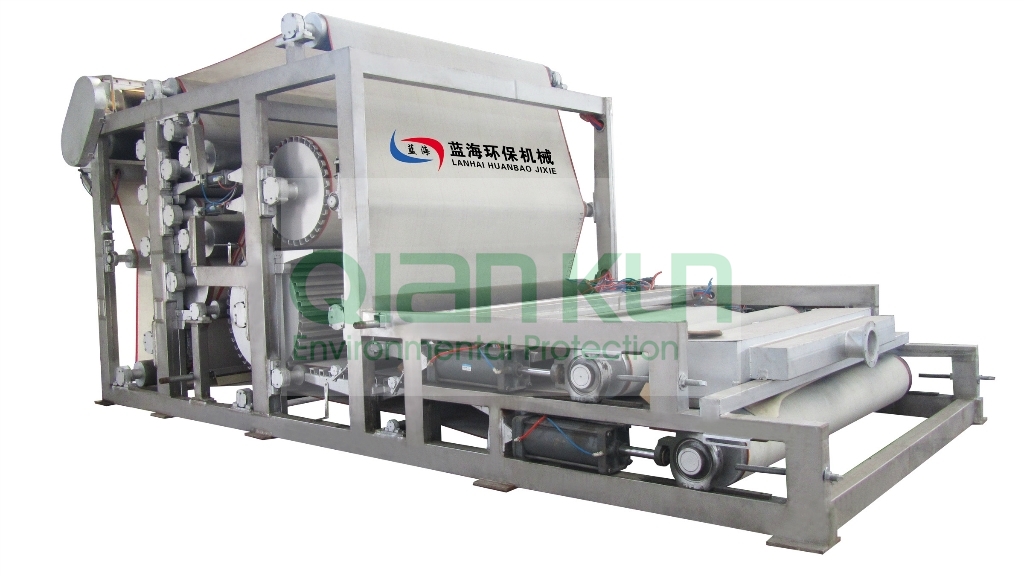

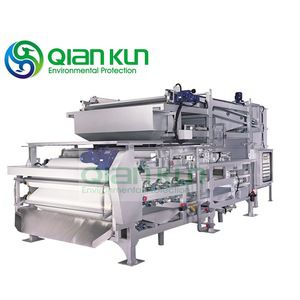

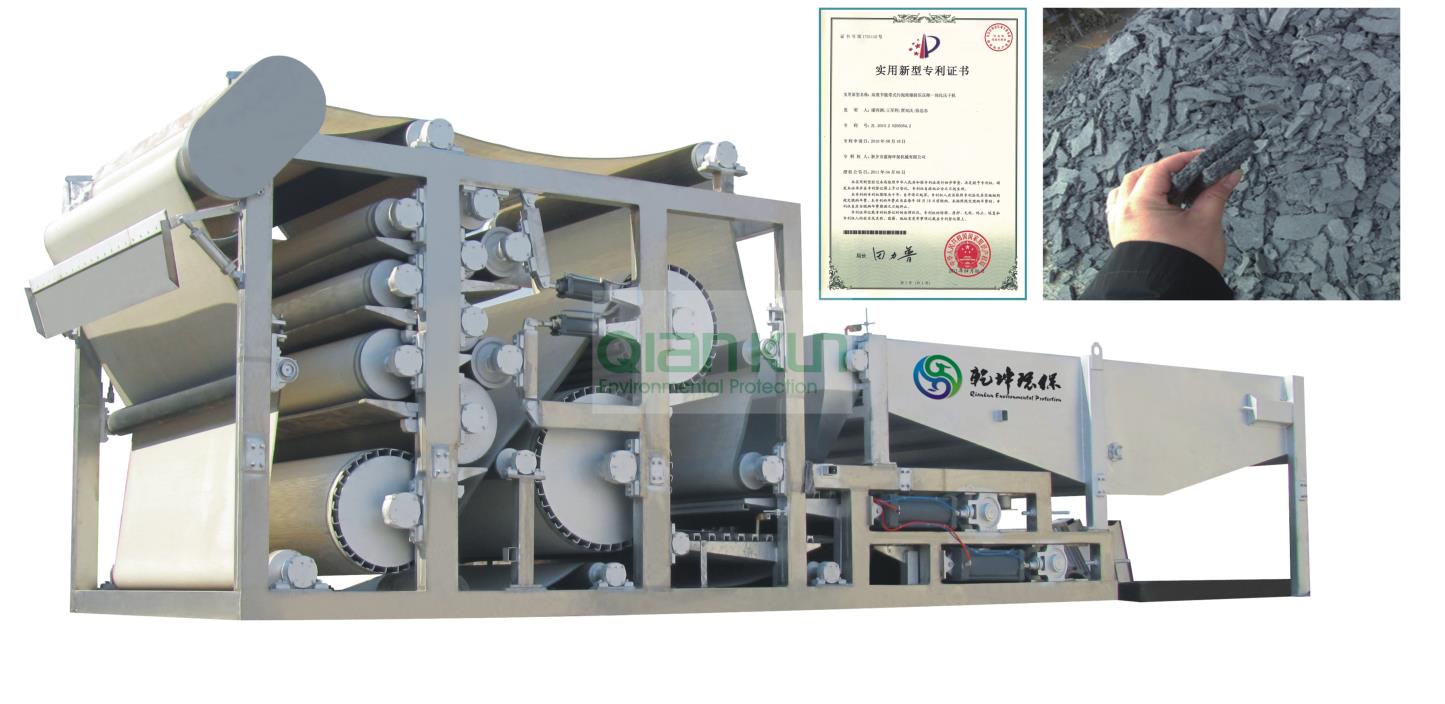

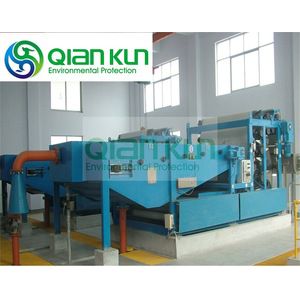

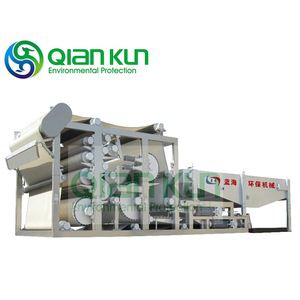

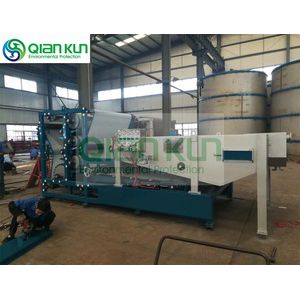

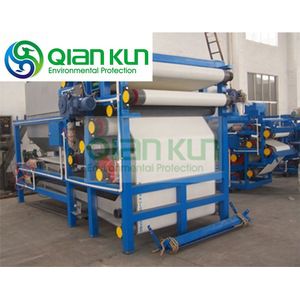

•  Belt Filter Press is a Biosolids/sludge dewatering device, that applies mechanical pressure to a chemically conditioned slurry;

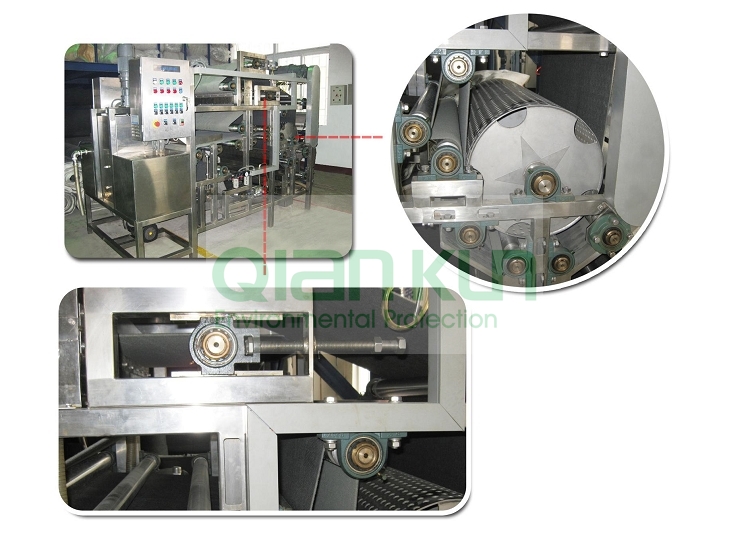

• Slurry is sandwiched between two tensioned belts, by passing those belts through a serpentine of decreasing diameter rolls. The machine can actually be divided into three zones: gravity zone, where free draining water is drained   by gravity through a porous belt; wedge zone, where the solids are prepared for pressure application; and pressure     zone, where medium, then high pressure is applied to the conditioned solids.
• Typically, a belt filter press receives a slurry ranging from 1-4% feed solids and produces a final product of 25% cake solids. Performance depends on the nature of the solids being processed.

 Sludge Drying Sludge Dewatering Machine

• Automatic control and continuous working;
• Low energy cost and long service life;


• High dewatering efficiency and high solid containing rate of mud cake;

• Easy maintenance and management;

• Low noise and less chemicals;

• Lower Maintenance Cost;

• Economical and reliable, wide application.

 Sludge Drying Sludge Dewatering Machine

 Sludge Drying Sludge Dewatering Machine

 Sludge Drying Sludge Dewatering Machine

 Sludge Drying Sludge Dewatering Machine

 Sludge Drying Sludge Dewatering Machine

 Sludge Drying Sludge Dewatering Machine

• We located in Central Plain of China, with 15 years experience in environmental protection field, and have accumulated hundreds of references in pulp&paper, printing&dyeing, chemical fiber, chemicals, leather, breeding,etc various kinds of industries and municipal sewage treatment projects. We also gained a global sales network reaching Iran , India, Egypt, Thailand , Malaysia , Vietnam,etc.


• Besides, we also integrating R&D, engineering, manufacturing, installation, marketing and after-sale service, owns the certifications of qualification as general contractor of environmental engineering, municipal utilities construction and urban landscaping.

 Sludge Drying Sludge Dewatering Machine

According to our 15 years experience in waste water & Sludge treatment system, you may also interested in following machines:

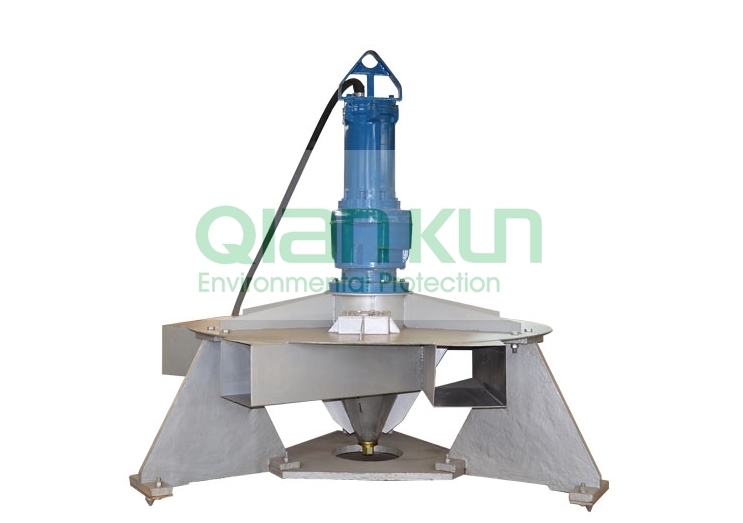

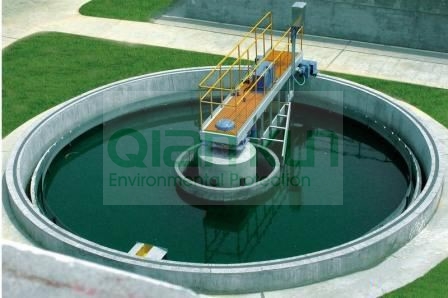

Submersible aerator:	Dissolved Air Flotation:	Sludge thickener:
used in waste water to diffuse  oxygen.	also called DAF, used to separate Ss and heavy particles.	used for solid-liquid separation, after it we get the pure water.
