Sludge concentration & drum rotary dewatering belt filter press (FTB-500)

is a professional manufacturer and designer of belt filter press and polymer preparation unit based on customer's requirements.

Technical Feature

  • China (Mainland)
  • SFC, SFC
  • FTB-500
  • Stainless Steel 304,
  • CE Certificate,ISO9001
  • Sludge dewatering
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$27~32

PRIMARY PARAMETERS

Place of Origin
China (Mainland)
Brand Name
SFC, SFC
Model Number
FTB-500
Material
Stainless Steel 304,
Certification
CE Certificate,ISO9001
Usage
Sludge dewatering
Function
filtering suspended matter
Application
Municipal and industry waste
motor brand
SITI , NORD , SEW
Life time
20 years
Model number
FTB-1500L
Product name
Belt press

DETAIL DESCRIPTION

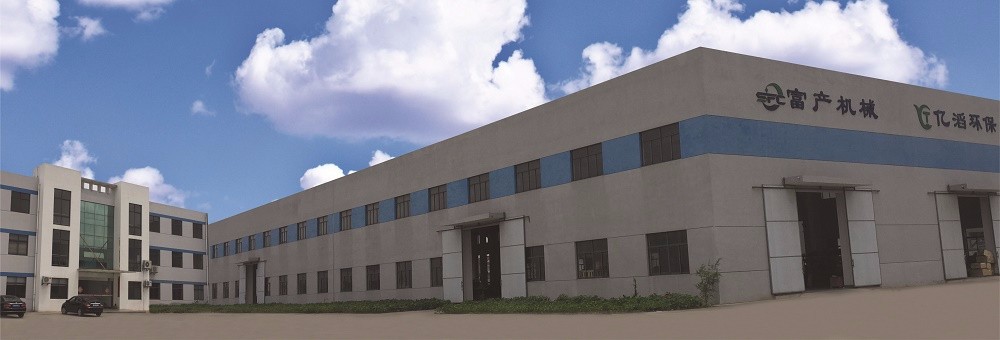

Company introduction

      Shanghai Fuchan Machine is a professional manufacturer and designer of belt filter press and polymer preparation unit based on customer's requirements. We have kinds of machines with different treating capacity and different inlet sludge consistancy. In order to provide you suitable solution and best service, please do refer to below details and contact us for further information.

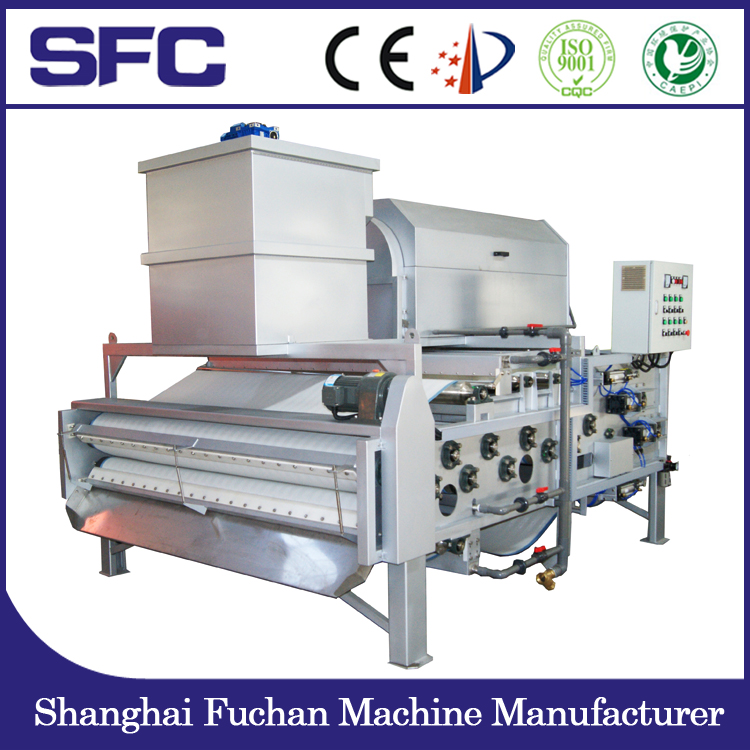

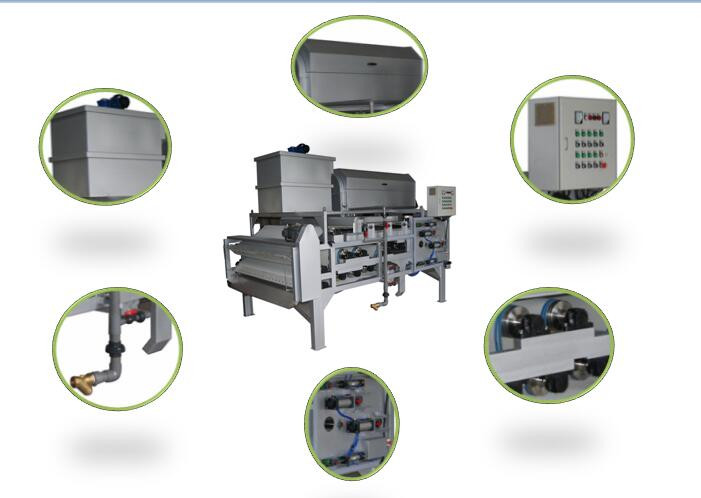

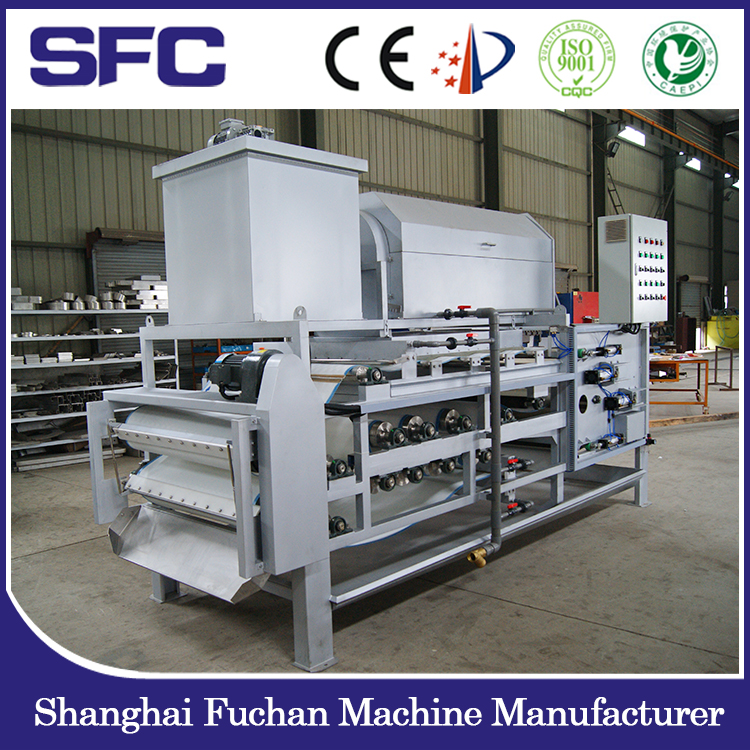

SFC Beltpress Detail

Belt  filter press specification

1.automatic filter cloth washing

2.long life belt cloth

3.save energy

4.High capacity


5.PLC control

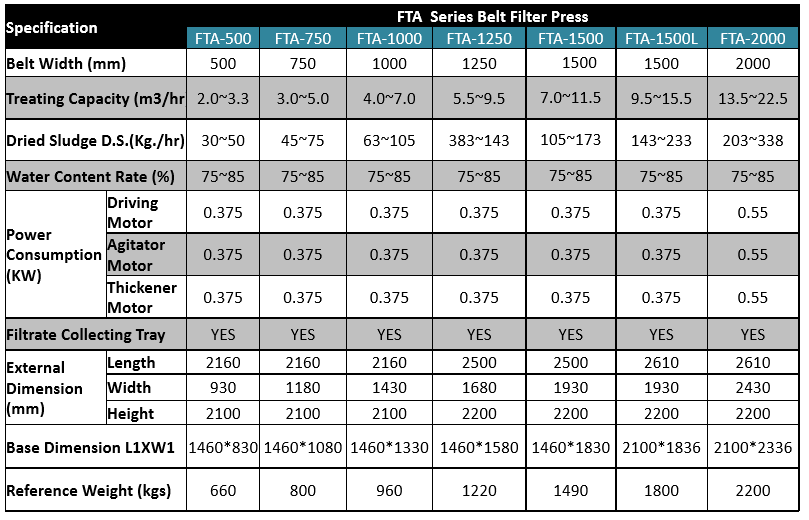

SFC Beltproduct data

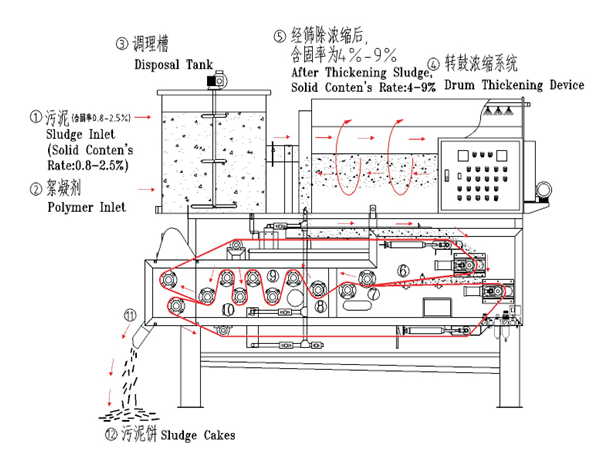

SFC Workingprinciple

     Mainly used to treat sludge which is ready to be concentrated through rotating and concentrating(e.g. residual sludge in Method A/O). This equipment has double functions of sludge concentrating and dewatering,and its treating capacity increase more than that of old press filter.

SFC Application

1. Sludge dewatering of industry waste water

2. Separation of liquid and solid in food, chemical and mining industries

3. Sludge dewatering in butching and animal husbandry

SFC Relation product

FTB-2000.


FTE-1250.


FTB3-1000.


SFC Certification

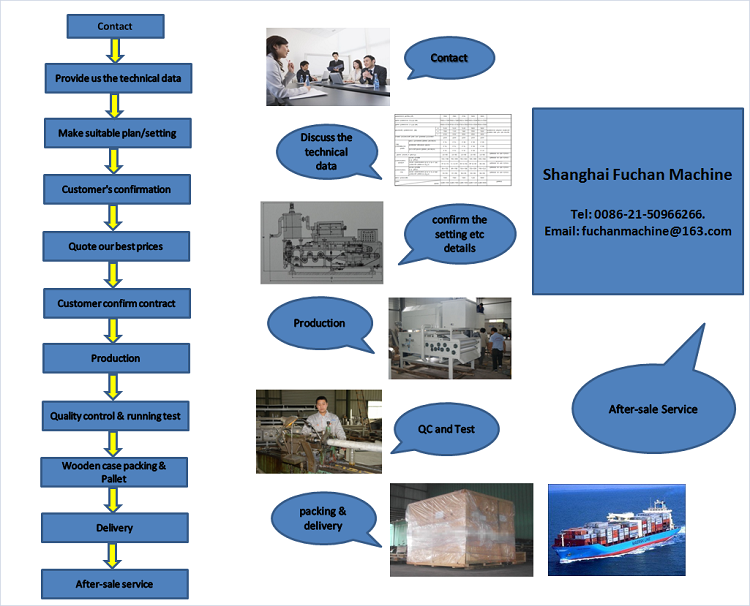

How to order

Warmly welcome to contact us!!

My telephone number :+0086 18774678745

My wechat account :wmazq1314

My facebook :stevenwang4900

My What'sapp account :+86 18774678745
