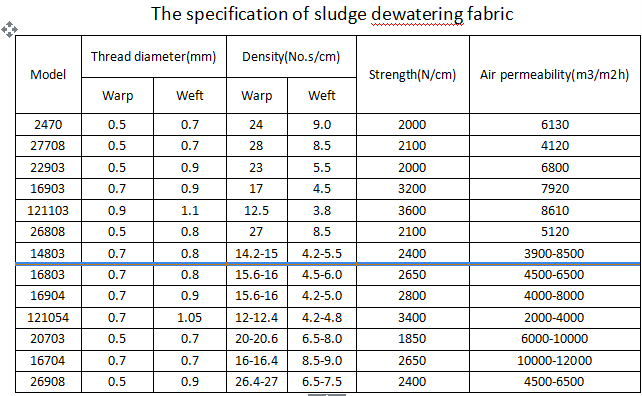

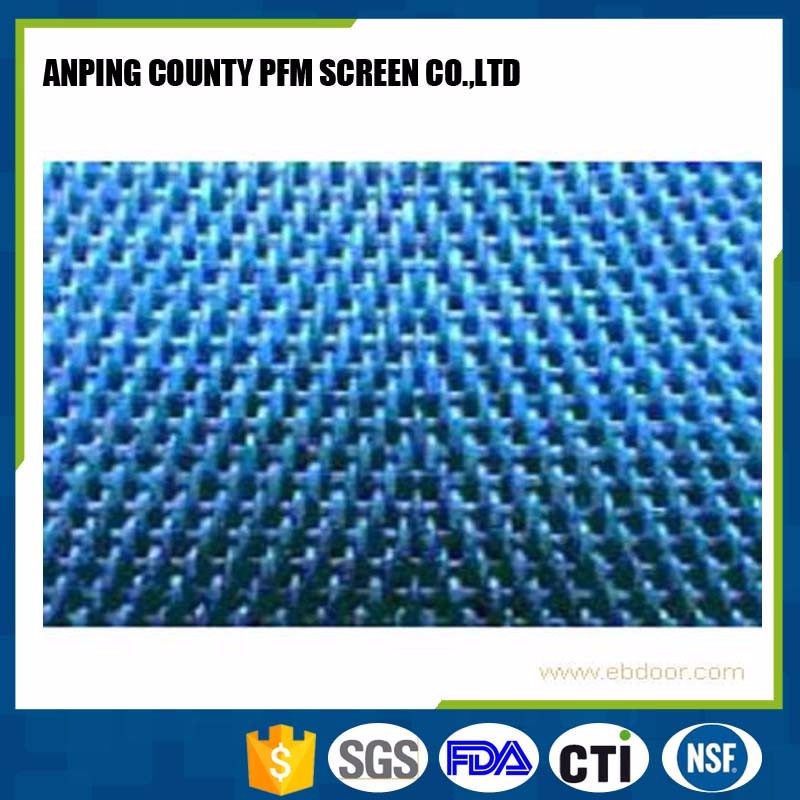

Sludge dewatering fabric

Sludge dewatering fabric is widely applied in sludge dewatering in sewage treatment factories with the characteristics of good water permeability,air permeability and non-revealed sludge,acid-resistance,alkali resistance,heat resistance under 180 degrees.Due to its unique designing structure,the sludge can be get off easily after filtration,the fabric is cleaned easily and has a long service  life.

Advantages

1:Filter with tensile strength,folding resistance is strong,with monofilament surface evenly,with flexbility.

2:Belt joint agglutination well-made,using imported latex,frivolous,net easily to fall off.Joint need is fine,strength,wear-resistance.Interface thickness thin not easy to injury scraper.

3:Belt on both side of the glue used to imported latex,soft and even,not easy to fall off

4:Belt surface smooth,mud cake is easy to peel,filter with easy to wash

Application

1:Municipal domestic sludge

2:Juice squeezing

3:Paper pulp squeezing

4:The smelter and mine tailing dry line filter industry,etc

Mainly with belt filter press,rubber belt type vacuum filter,horizontal belt type vacuum filter systems.

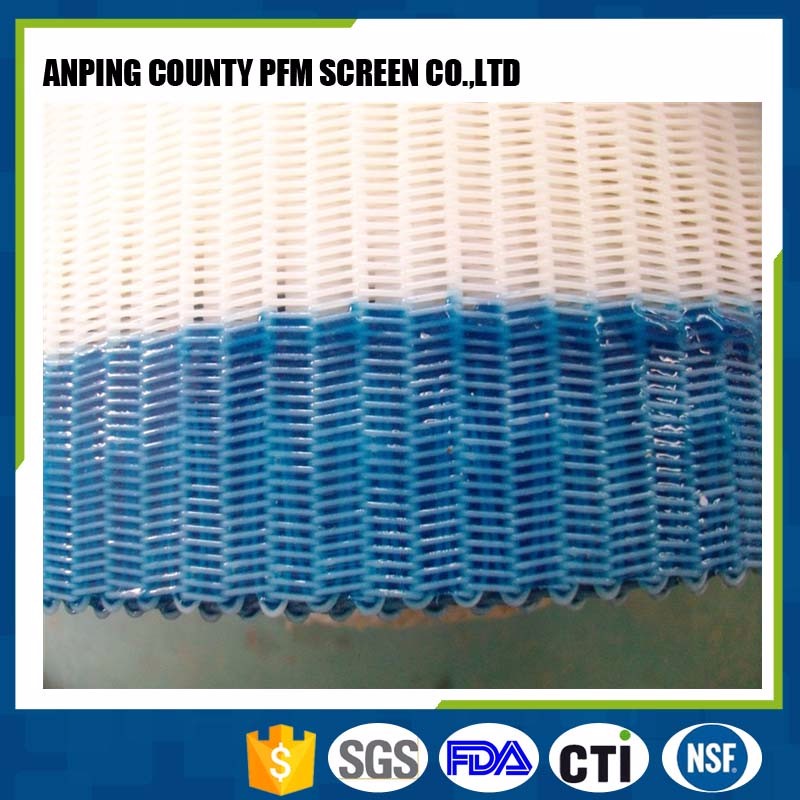

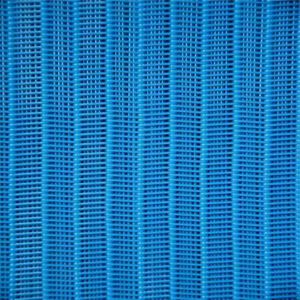

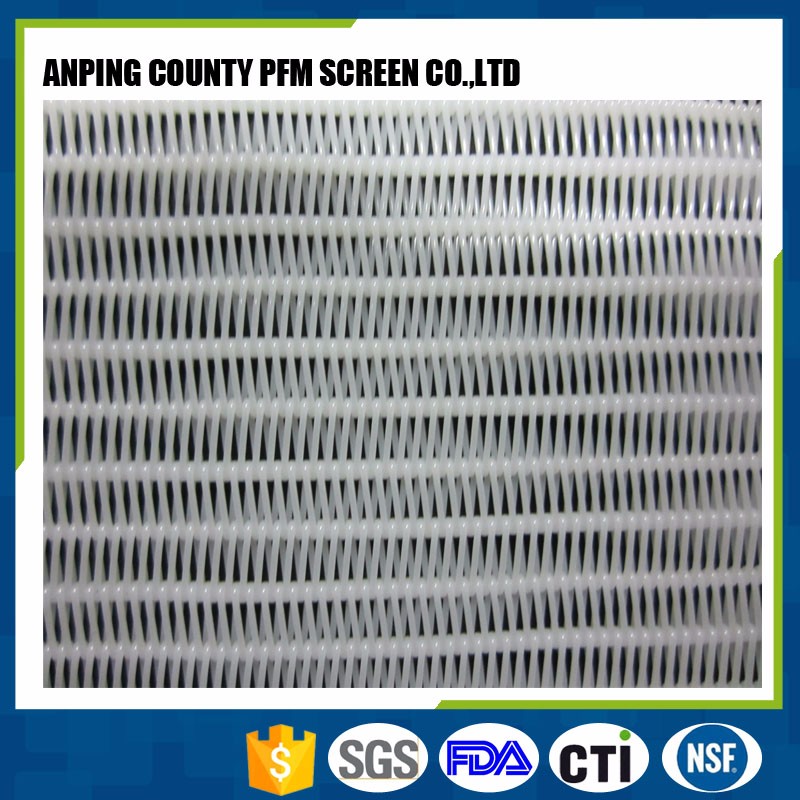

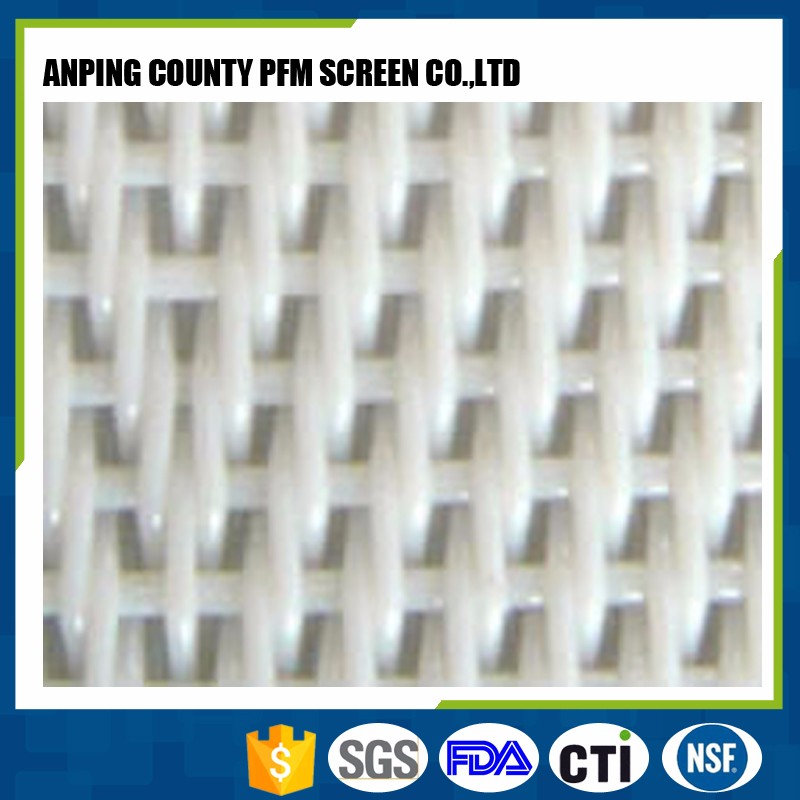

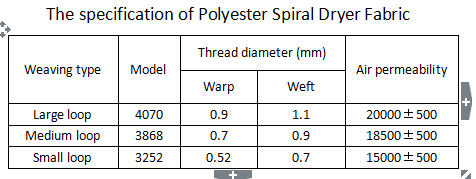

Polyester spiral dryer fabric

Introduction:

 Polyester sprial net adopts the advantanges of high viscosity polyester chip wire,after forming,neaving,finishing,finalize the design.With a fine and uniform mesh,can stop leakage of small objects.

Features

1:Acid and Alkali resistance,high temperature resistance,long work time,non-toxic,is woven carpet canvas and general network several times

2:With smooth surface,the tensile strength,good permeability,high heat transfer efficiency,for the user to save energy.

3:Install easy to use,unterface,without stain,strength can reach 100% normal metwork

4:Adopts imported rubber,adhesive side of the net body hard high temperature is constant,not easy to fold,the characteristics of can adapt to the mevits of different temperature changes.

Application

1:Dry.Drying the quantitative large wrapping paper culture paper and board paper and pulp board

2:Widely used in paper-making,coal mining,food,pharmaceutical,printing and dyng,rubber industry

3:Conveyor belt and composite machine mesh belt filter

The range of application

1:Filtering slymilk liquid→100-150mesh

2:Filtering milk juice→within 250mesh

3:Filtering wire-100→200mesh

4:Filtering drinking water→300-400mesh

5:Filtering paint water→80-100mesh

6:Filtering paint finish→50-200mesh

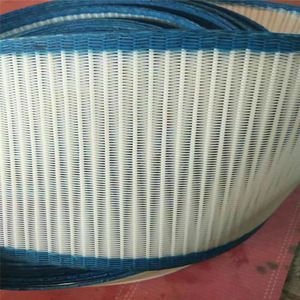

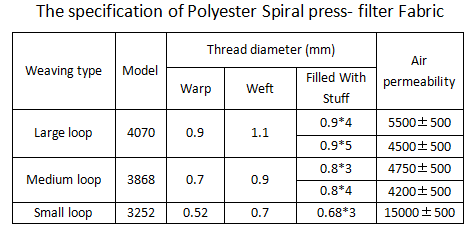

Spiral press filter belt

Advanages

1:Resistant to wire range of acids and organic solvents

2:Safe for food processing applications(USFDA approval)

3:Exceptional strength and dimensional stabilty

4:Working temperature:+150 degree to -75 degree in dry conditions.70degree + in wet conditions
