copper sludgec and sludge dewatering press or sludge dewatering machine
Application in Various Industry
Exclusive pre-concentration design, applicable for sludge of concentration from 2000mg/L to 50000mg/L. Besides, Due to the innovation of the structure design, it is highly suitable to oil sludge
Mulit-Disk Screw Press

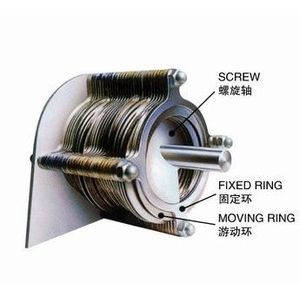

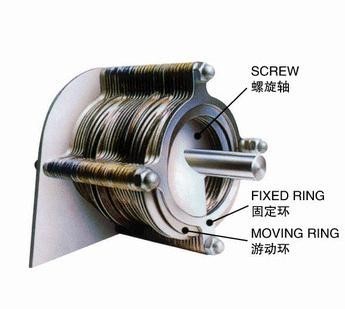

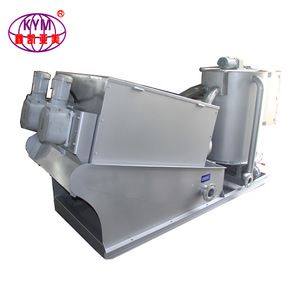

Stainless steel screw type sludge dewatering machine( Hereinafter referred as ES ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. ES using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
| Specifications of ES Sludge dewatering machine | |||
| Main Parameters | Capacity | DS-kg/hr | 1-100 DS-kg/hr |
| Size | mm | L3455*W1295*H1600 | |
| Power | kW | 1.55 | |
| Motor | Gearbox | Brand | NISSEI |

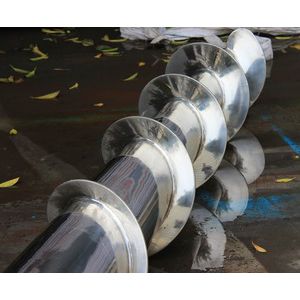

| Screw Shaft | Treatment | SUS304, Tungsten carbide coating | |
| Control Cabinet | Electrical Components | Brand | Siemens |
| Solenoid Valve | Brand | US,ASCO | |
| Spray System | Brand | Self-design, KYM |

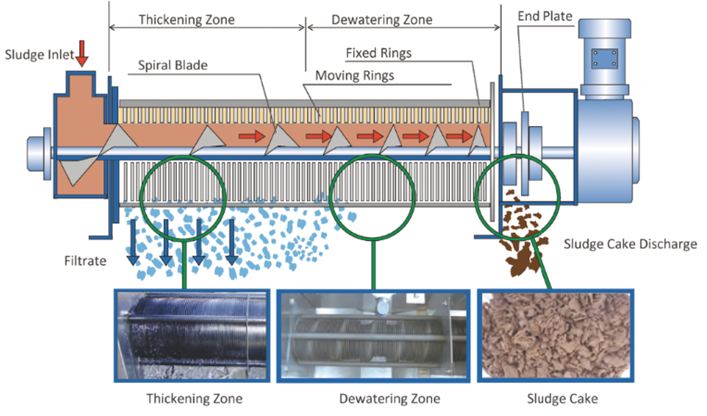

The initial section of dewatering drum is the Thickening Zone, where the solid-liquid separating process takes place and where the filtrate will also be discharged. The pitch of the screw and the gaps between the rings decrease at the end of dewatering drum, hence increasing its internal pressure. At the end, the End Plate further increases the pressure, so as to discharge dry sludge cake.

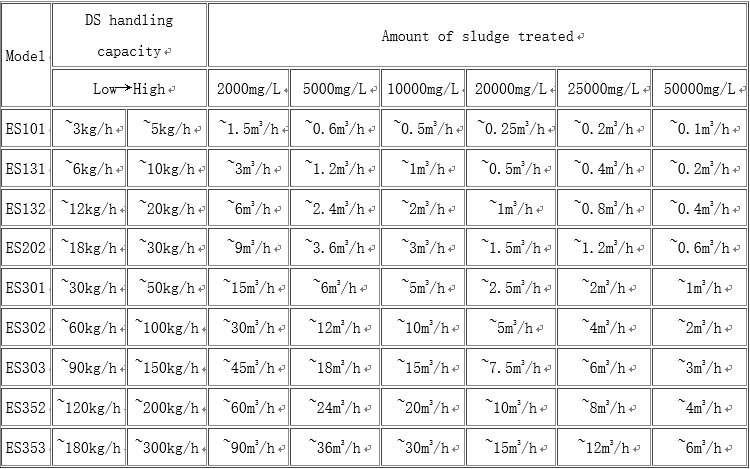

●Amount of sludge treated =DS handling capacity÷sludge concentration（DS is the absolute dry sludge）

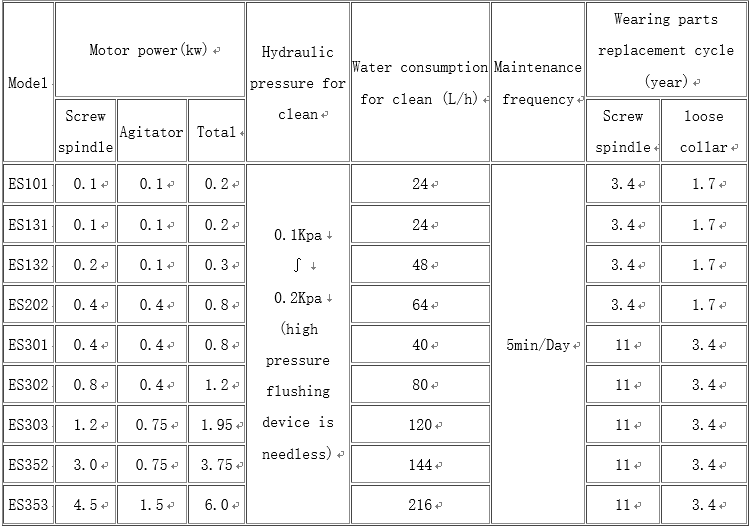

● Wearing parts replacement cycle is an approximate number，In the actual running process，the types of sludge, methods of treatment, operating adjustment condition and the running time of each day，all of them will affect the replacement cycle of the vulnerable parts.（The replacement cycle of the vulnerable parts is calculated by the operating time of 365 days/year, 8 hours/day.）
Product Advantages
1. Low energy consumption.
2. Minimal maintenance and operational cost.
3. Minimal water consumption.
4. Minimal noise
5. Achieve a dry matter content of 15%-17%
6. Low polymer consumption.
7. No need for proceeding sludge thicking.
8. Capable for working 24H*7Day
9. Suitable for any type of sludge even suitable for dewatering oil/grease rich sluge
| Packaging | |
| Size | 3470 (L) * 1310 (W) * 1620 (H) |
| Weight | 1370KG |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
