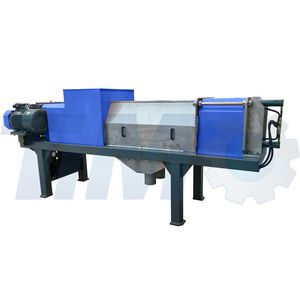

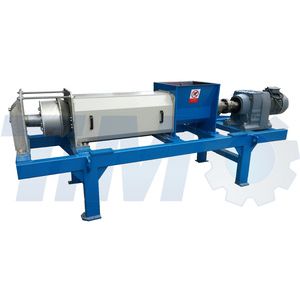

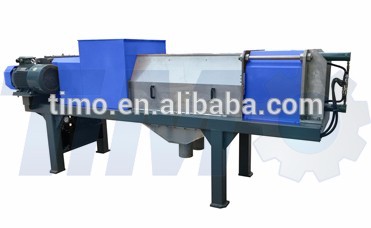

Dewatering Screw Press
Timo specializes in the design, engineering and manufacture of dewatering screw presses. These are machines that squeeze liquid out of food waste material, operating in a continuous (not batch) mode.
Dewatering screw press can be used in an extremely wide variety of liquid-solid separation.High-capacity, sanitary press for continuous dehydration and juicing of organic and food products,independently driven rotor and regulated cone section provides instantaneous pressure regulation to give just the right squeeze to the material.We offer small screw press with Φ240 mm on up to big model 6 tons/hr with screws that are Φ 400 mm in diameter.
Dewatering Working Principle
| Model | MSD240 | MSD320 | MSD400 |
| Machine Power KW | 7.5+0.75 | 11+0.75 | 18.5+1.5 |
| Screw Diameter mm | Φ180 | Φ320 | Φ400 |
| Shaft Speed rpm | 16~25 | 16~25 | 10~20 |
| Inlet size mm | 400x400 | 600x600 | 650x750 |
| Outlet size mm | Φ240 | Φ240 | Φ400 |
| Machine size mm | 3100x800x1400 | 3600x950x1450 | 4300x1300x1650 |
| Capacity Kg | 1000~2000 | 2000~4000 | 4000~6000 |
| Machine Weight kg | 1200 | 2000 | 3200 |
Dewatering Screw Press Feature:
♦ Stainless steel wetted parts for abrasive waste and residues.
♦ Peak values in dry matter content.
♦ Heavy duty construction.
♦ Hydraulic backpressure cone devise

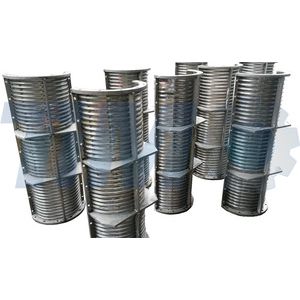

♦ Two-piece screen design allow for easy cleaning and maintenance
♦ Can accept widely varying flow rates
♦ Custom Designed for Every Application
♦ Easy to install and operate.
Food Waste
Food waste shredding and dewatering to make compost.
Organic Waste
Fruit & Vegetable from supermarket shredding and dewatering.
Vegetables dehydration
Stainless steel wetted parts for abrasive vegetable residues.
