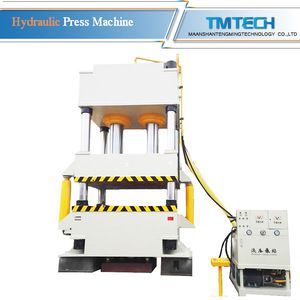

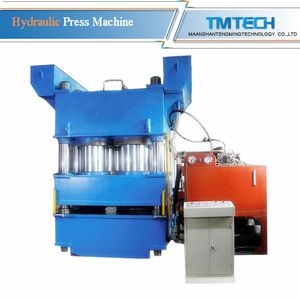

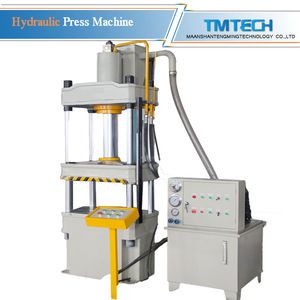

hydraulic press machine and hydraulic cold press machine hydraulic oil extraction machine

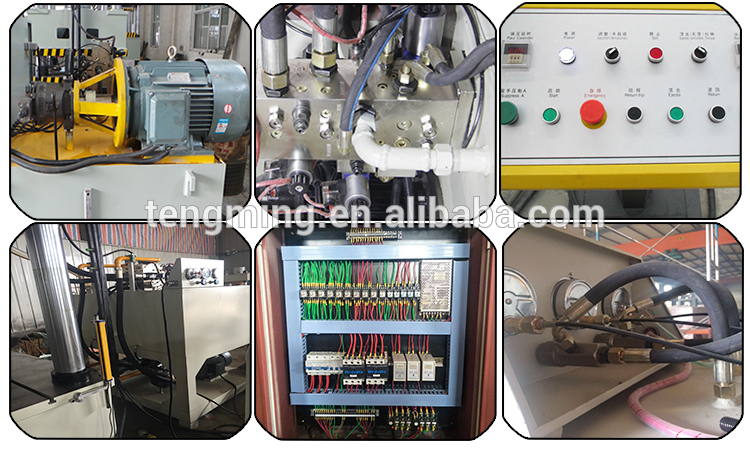

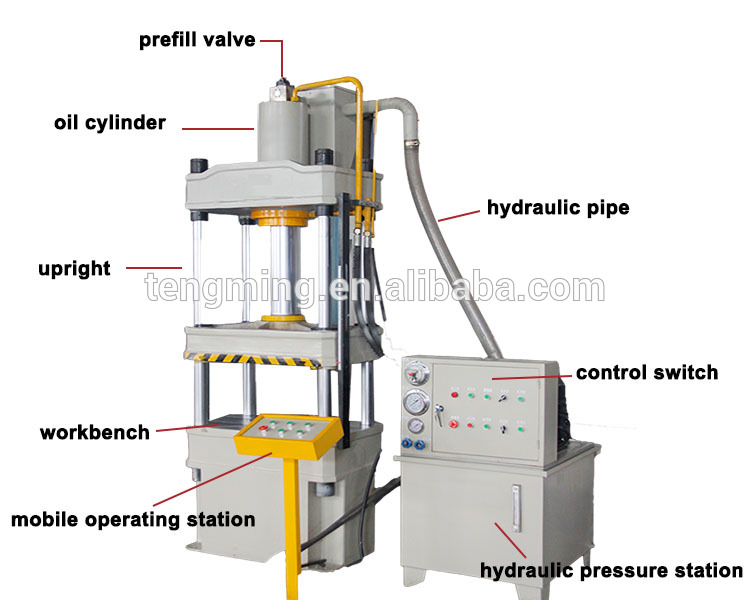

| Main structure of machine |
| 1 hydraulic power part - manual and electric |
| 2. Mechanical control |
| 3. Working oil cylinder part |
| 4. The hydraulic power part consists of hydraulic oil pump, motor with elastic coupling and connecting plunger pump |
| 5.The mechanical control part is controlled by the distribution box and the combination button switch |
| 6 tubing is connected by the high pressure seamless steel tube |
| The hydraulic system |
| The hydraulic system is composed of energy conversion device, energy regulation control device and hydraulic accessories, and through the control of electrical system, the circulation of various actions is completed.The tubing of the hydraulic system is connected by high pressure flange. |
| Electrical control system |
| Electrical control system is divided into dynamic system and control system part of electric control system of the press used in PLC programmable controller and the black silk ribbon touch screens and centralized control temperature module, which can realize machine all kinds of craft operating cycle. |
| Mode of operation |
| The equipment has adjustment (point move), semi-automatic two kinds of process action selection. The mode of work is selected by the switching switch, and the buttons are controlled by centralized control. |
| Parameter | Unit | Y32-100 | |
| Nominal Force | kN | 1000 | |
| Max. hydraulic pressure | MPa | 26.3 | |
| Max. Open height | mm | 700 | |
| throat depth(mm) | mm | 320 | |
| Stroke of slide | mm | 400 | |
| Speed of slide | Idle Stroke Down | mm/s | 180 |
| Working Speed | mm/s | Adjust range 7-15 | |
| Return speed | mm/s | 160 | |
| Lower-table size | F.B | mm | 600 |
| L.R | mm | 800 | |
| Motor power | Kw | 4 |
Characteristics
The product has the black-white control and PLC controls two kinds of electrical control system. The theadjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide theregulation two sreft ways.
When constant pressure formation, after suppression has gurantees when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece's formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulatin scope.
Technical Performance
1.Low energy consumption, high speed, low noise, high efficiency
2.Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch.
3.Activity crossbeam has safety limiter in both up and down directions
4.Equipped with photoelectric protection device, could guarantee the safety of the operation
5.Equipped with photoelectric protection device, could guarantee the safety of the operation
6.Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.
Usage
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.
Pre Sale service
Support twice operating training:first one is at my factory during the processing time,second one at the buyer’s factory during the re-insallation/testing period.We’ll send our engineers go to buyer's factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
After Sale service
1.after finished the producing of the mchine,we will inform the buyer to inspect the machine in the manufacture’s factory;
2.We provide some documents and foundation drawing within 7days after contract date.
3.If need seller to guidance the installation, adjustment and trail, the seller will be responseble for the charges within home, and other charges on board should be paid by the buyer;
4.The machine's warranty period is two years. The supplier will take responsible for the machine if there comes any quality problem. During warranty period, the buyer should handle small problems which are easy to overcome. The seller will give a clear reply in one day after the serious problems occur.

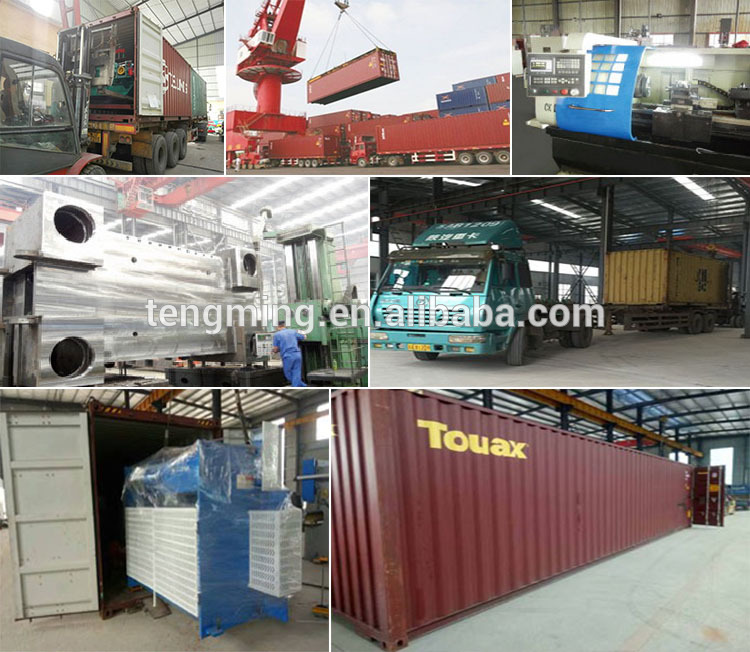

About shipping
1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
3)after loading,our professional documentary staff will follow the order till the product departs from port.
4)Delivery Detail: 30 days
