PRIMARY PARAMETERS

Condition

New

Usage

palm kernel, walnut and more

Type

Cold & Hot Pressing Machine

Automatic Grade

Automatic

Production Capacity

98%-100%

Place of Origin

Henan, China (Mainland)

Brand Name

ABC Machinery palm kernel oil extraction machine

Model Number

YZS-100A palm kernel oil extraction machine

Voltage

220V/380V/440V

Power(W)

7.5kw + 1.5kw

Dimension(L*W*H)

2270*750*1820mm3

Weight

900kg

Certification

ISO9001

After-sales Service Provided

Engineers available to service machinery overseas

Color

Silver or customized

Warranty

1 Year

Supply type

OEM support

Function

Oil Press + Drum Filter

Application

Edible oil production

Capacity

5 tons per day palm kernel oil extraction machine

Advantage

Small oil press machine with filters

Raw material

Palm kernel, soybean, peanut, mustard seeds, sunflower and more

Machinery type

Automatic screw palm kernel oil extraction machine

Final product

Pure crude vegetable oils

DETAIL DESCRIPTION

Top selling small portable vegetable corn wheat germ sunflower seed walnut palm kernel oil extraction machine

ABC Machinery has been engaged in manufacturing, designing, supplying and installing a wide rage of oil extraction machine and oil press machine. We uses high quality materail in the manufacturing process to ensure every set of oil extraction equipment is also high in utility and performance. Apart from that, we have all the latest technology to help us manufacturing high quality unit in complying with the international standards. We offer a variety of oil extraction machinery, like palm kernel oil extraction machine, walnut oil extraction machine and more, for the world oil making market.

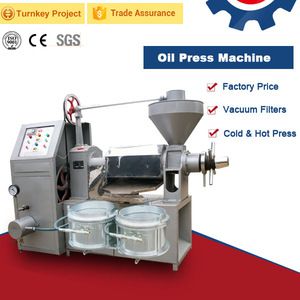

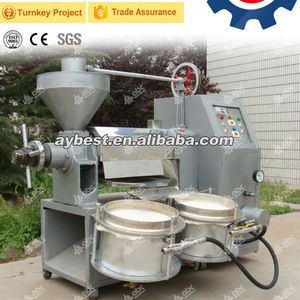

Portable palm kernel oil extraction machine

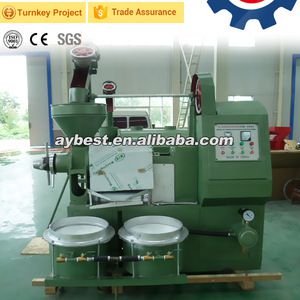

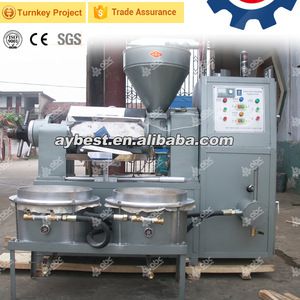

YZS-100A integrated palm kernel oil extraction machine is advanced oil press model that developed from single screw oil press machine. Different from single screw oil press machine, it is designed with vacuum filters and electrical control cabinet to make sure the highest oil output. This small palm kernel oil extraction machine is mainly composed of oil pressing cage, hopper, vacuum filters, electrical control cabinet. This type of small palm kernel oil extraction machine can save labor efforts and simplify the oil extraction process!

Click Now for Catalogs & Factory Price!

Techincal data of palm kernel oil extraction machine

Model	Capacity(T/24H)	Power(KW)	Dimensions(MM)	Weight(KG)
YZS-68A	1	5.5	9405701170	260
YZS-80A	3-4	5.5+0.75	18606701680 1060590600	780
YZS-90A	3-4	5.5+0.75	18606701680 1060590600	780
YZS-95A	5	7.5+1.5	22508901820 1230640570	900
YZS-100A	5	7.5+1.5	22707501820 1220590600	900
YZS-120A	6	15+1.1	22808901775 1350700600	1000
YZS-130A	10	18.5+1.5	23508102000 1350700570	1000

ABC Machinery provide you with different models of palm kernel oil extraction machine, so that you can choose the most suitable one. All of our palm kernel oil extraction machine is passed with ISO9001:2015 and CE certifications. They are totally guaranteed with high quality and stable performances!

Click Now for Catalogs & Factory Price!

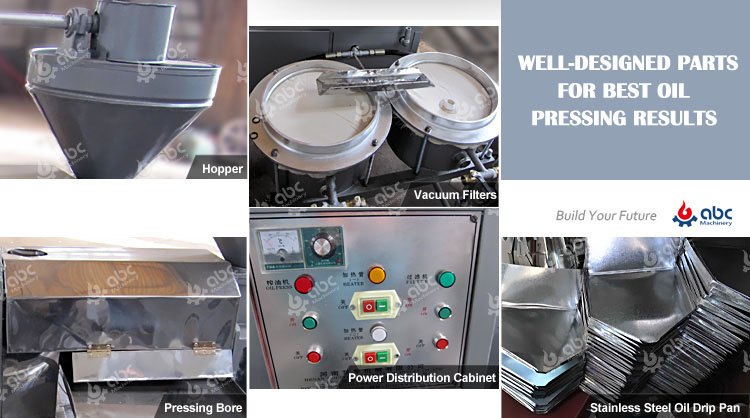

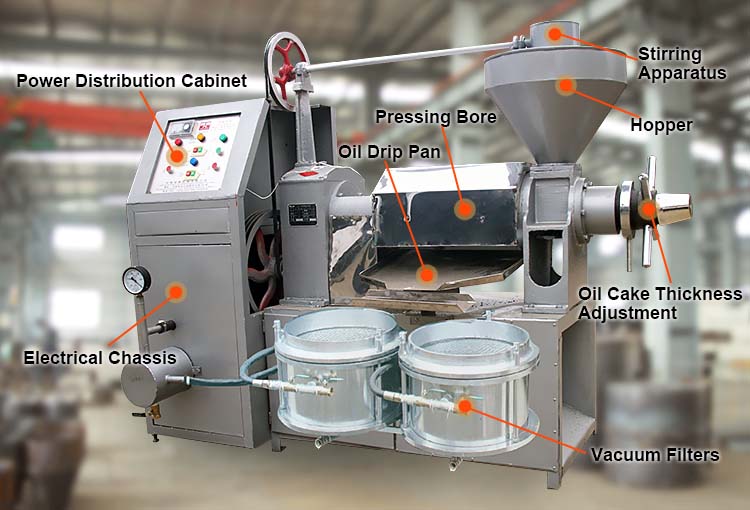

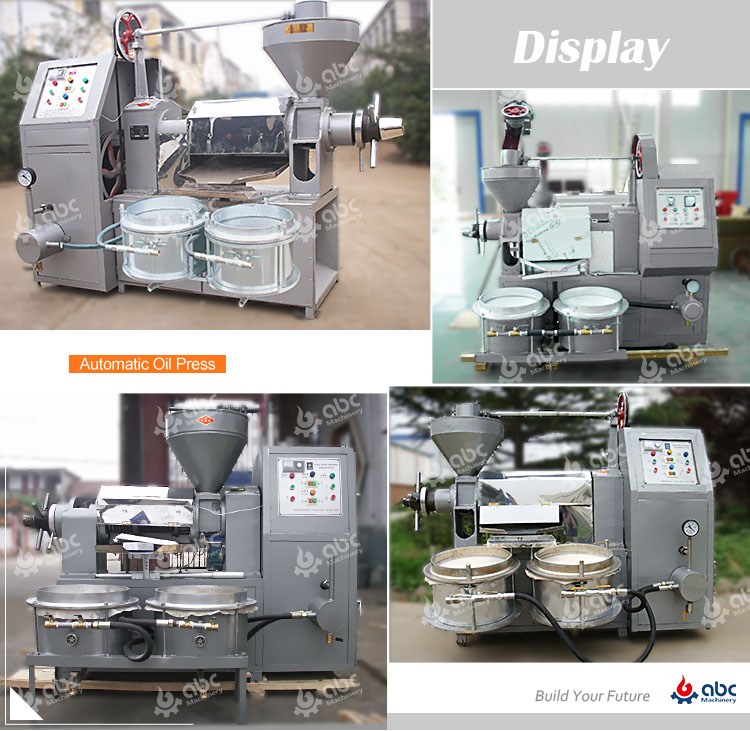

Details of palm kernel oil extraction machine

Every part of palm kernel oil extraction machine is well designed for highest oil output. It has many outstanding features that make it popular with customers, especially those who deal with small oil production business.

Continuous working performance and low noises

Wide application for various vegetable oil seeds such as peanuts, soybeans, sunflower seeds, sesame seeds, cottonseed, rapeseeds, palm kernels and so on.

Covering small space and easier to operate.

Electric control cabinet makes the operating safer and easier. More efficient and labor-saving.

High rate of oil yield with purer oil and good condition oil cakes. Vacuum filters in the machine help cleaning oils.

Be able to do both cold and hot pressing with automatic temperature rising and oil-cleaning system.

Click Now for Catalogs & Factory Price!

How to operate palm kernel oil extraction machine

Get your raw material ready

Adjusting the machine, such as, electricity, heating (if you cold pressing, do not need open heating)

Open the machine, putting seeds into the feeder.

Seed into the screw bolt , beginning of pressing.

The crude oil is out of the squeezing bolt, then flowing into the board.

Then into the vacuum filter, using it for filtration.

After filtration, the oil is out of the bottom of pipe.

Click Now for Catalogs & Factory Price!

Setup palm kernel oil extraction machine

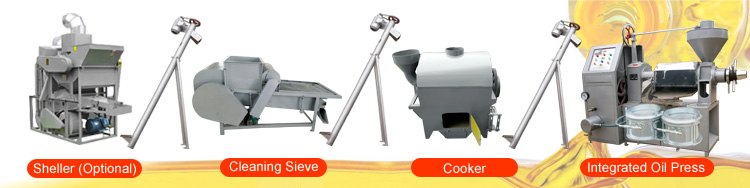

It is very easy to set up a small scale oil mill plant with palm kernel oil extraction machine. In order to improve the oil yield, it is neccessary to get the raw material pretreated, which may involves dehusking, cleaning, cooking or other. Different material has different treatments, but most are the three typical process. Then, the oil extraction process is achieved by palm kernel oil extraction machine. After that the purer and clean oil can be obtained.

Raw materials suitable for palm kernel oil extraction machine

YZS-100A Integrated palm kernel oil extraction machine can process a very wide range of oil-bearing seeds, including palm kernel, walnut, copra, corn germ, soybean, peanut, tea seed and more.

Click Now for Catalogs & Factory Price!

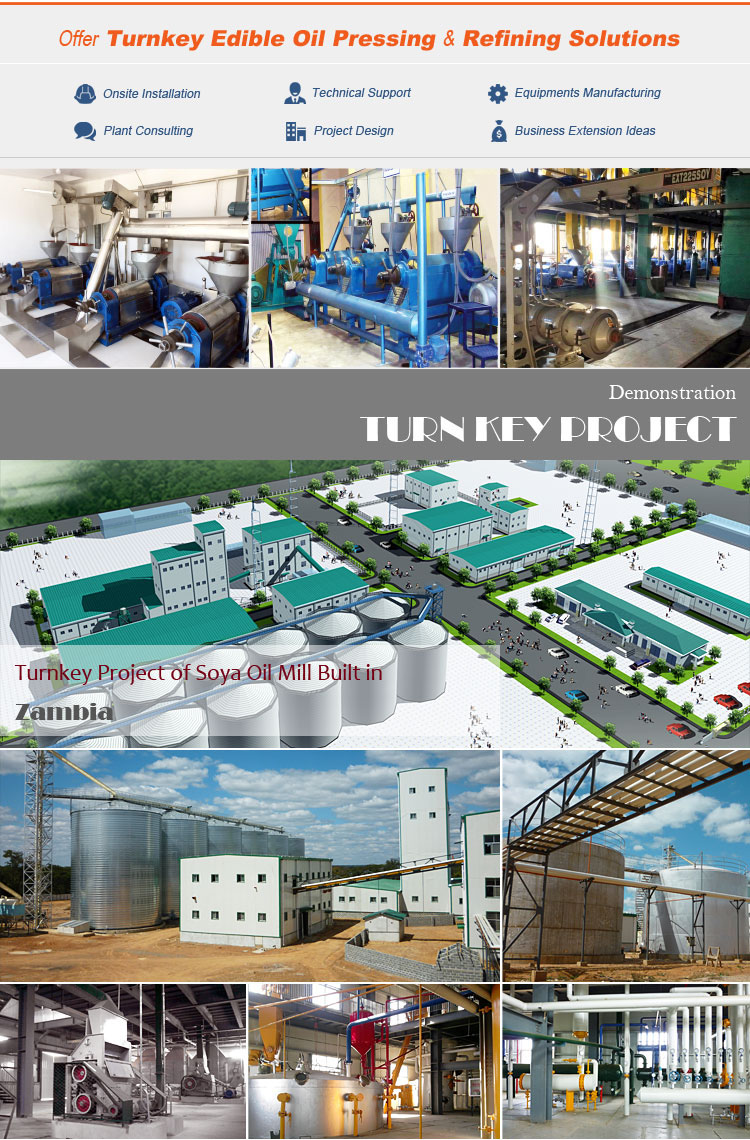

Turnkey project of palm kernel oil extraction machine

We are expert of palm kernel oil extraction machine and various palm oil extraction machines. We have rich experience of manufacturing and exporting large selection of various palm kernel oil extraction machine for different using purposes and our clients are very satisfied with our machines. We give the best service and we offer the most competitive prices. If you prefer to know more info about our palm kernel oil extraction machine, please don't hesitate to contact us, we are always at your service!

Click Now for Catalogs & Factory Price!

Reliabe palm kernel oil extraction machine supplier

Factory price oil extraction machine

ABC Machinery is your reliable palm kernel oil extraction machine, walnut oil extraction machine supplier. We can offer the most competitive factory price and we are the original manufacturer of every set of palm kernel oil extraction machine, walnut oil extraction machine we sell.
