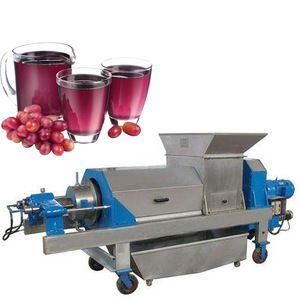

High effiency fruit press juicer commercial cold press juicer double screw extrude machine
vegetable juice machine, ginger press machine, stainless steel hydraulic double screw extractor, vinasse press machine, double screw extractor
Continuous Double Screw Extractor Description
Continuous screw extractor for juice contains a certain fibrous materials, and dehydration operations, such as fresh Grape (broken after the separation by the juice) and the fermentation of grape pomace, sea buckthorn fruit, aloe, ginger and other fruits and vegetables juice; lees after fermentation, dehydration and cassava residue wood, wheat straw, rice straw, reeds, etc. as raw materials and semi-chemical pulping all chemical pulping black liquor extraction and dehydration after washing. At the same time the sludge dewatering, waste also has wider application.
Machine Structure
There are machine rack, feed section, press section, transmission parts, electric parts.
Our machine has high strength, high load pressure, no deformation, clogging, corrosion
resistance,wear resistance, non-skid, easy maintenance, long service life characteristics.
Machine Features
1.Double screws design, high efficiency in extracting.
2.High stainless steel material, all food touch parts are made of stainless steel
3.Manual or hydraulic system
4.Four trundles, easy to move
5.Stainless steel juice collect container
Machine Specification
Model | MST-JLY1.5 | MST-JLY5 | MST-JLY10 | MST-JLY30 |
Treatment Capacity | 1-1.5ton/h | 5ton/h | 10ton/h | 30Tonne/H |
Main Parts Material | All main parts are made of high quality Stainless Stell 304 | |||
Motor Power | 5.5Kw | 7.5Kw+0.37Kw | 11Kw+0.37Kw | 18.5Kw + 1.5Kw |
Discharge Pressure | Manual Adjustment | Manual Adjustment / Hydraulic System Adjustment | ||
Sieve Diameter | 270mm | 420mm | 510mm | 590mm |
Weight | 800kg | 2000kg | 2950kg | 5000kg |
Dimension | 2200*900*600mm | 3580*1000*1470mm | 3740*1100*1650mm | 5500*1200*1650mm |

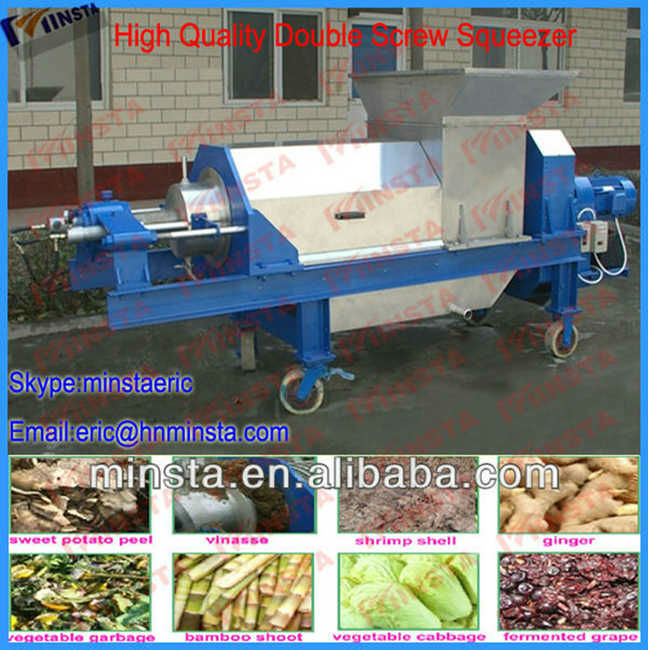

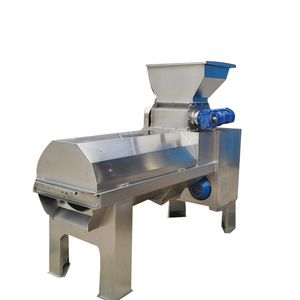

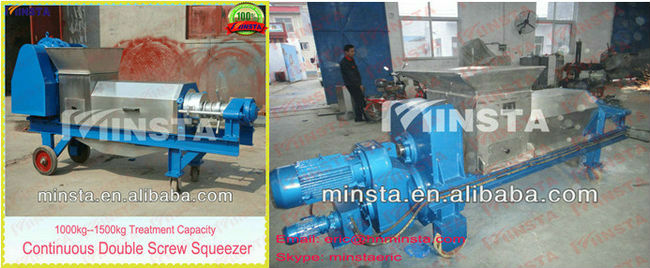

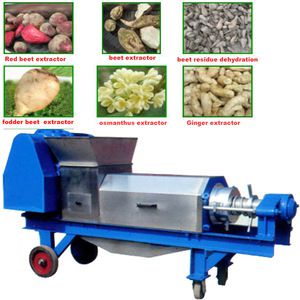

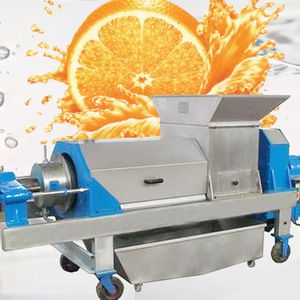

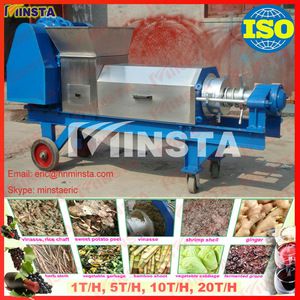

Machine Pictures

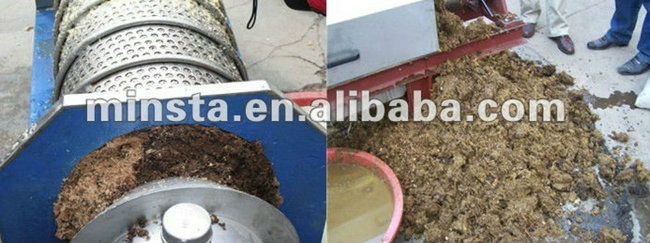

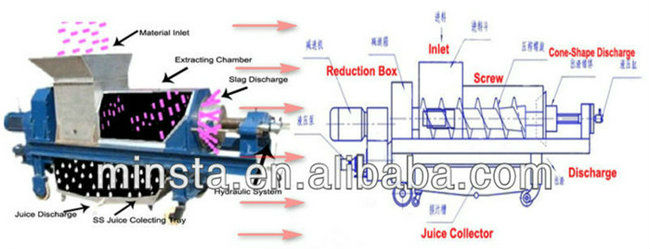

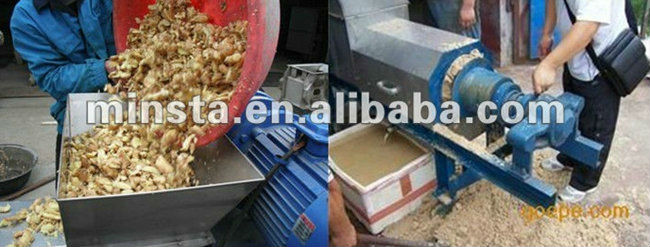

Machine working diagram
Suitable to many materials, like fruit, vegetable, leaivs, grass, herb, straw and so on.

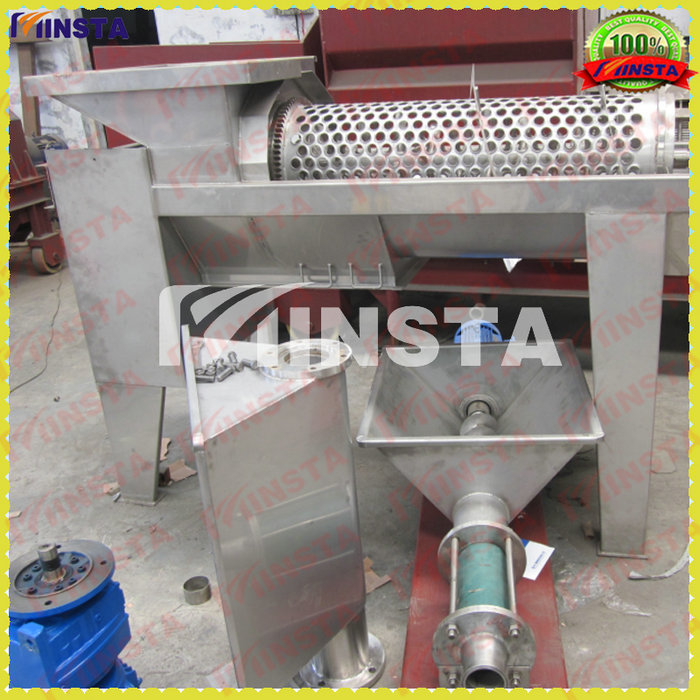

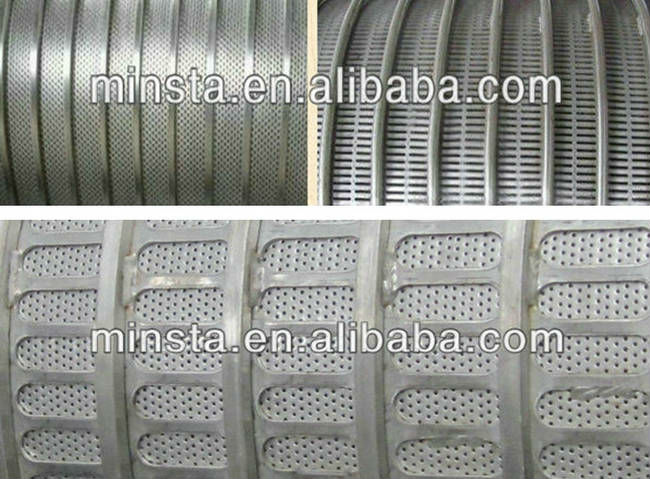

Screw and Sieve

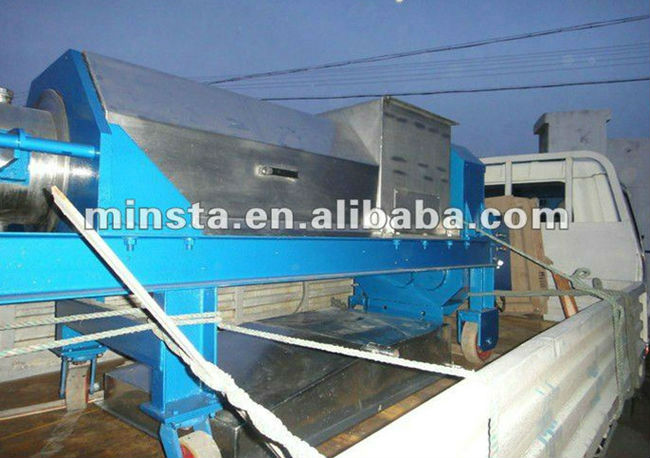

Machine Package
Other Grape Processing Machine--Grape Destemmer
5T/H, 10T/H, 15T/H, 20T/H, 30T/H, 40T/H

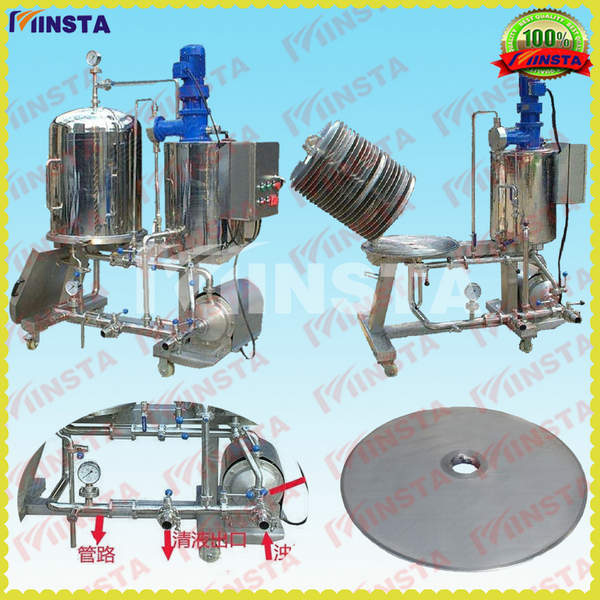

Grape Filter
We also have other wine making machines
If you have interesting, please contact with me, will reply you in 12 hours.
In order to save your time and offer you better service,
please tell me your quantity, destination seaport, then will calculate total cost.
Delivery time: 25-30 days after received deposit.
Payment: T/T payment, 50% advance payment, 50% balance before shipment.
Shipping Term: FOB, CFR, CIF ( As customer's request)
