Cold press automatic rice bran oil extraction machine price
This is screw spiral oil press machine, which is suitable for both cold press and hot pressing. It is widely used at home and abroad. It has many advantages, such as large output of continuous processing, short dynamic pressing time, higher oil output ratio, low manual labor intensity, etc.
The oil making machine can process various raw materials into oil, such as sesame, peanut/groundnut, soybean, rapeseed, cottonseed, coconut, mustard, avocado, sunflower seed, rice bran, castor seed, nuts, walnut, corn germ, camellia seed, flaxseed, etc.
| Item | Oil yield | Item | Oil yield |
| Sesame | 45-55% | Soybean | 12-18% |
| Peanut | 40-50% | Cotton seed | 11-25% |
| Rapeseed | 30-45% | Walnut | 42-52% |
| Sunflower seed | 32-42% | Camellia seed | 26-38% |
| Castor seed | 35-42% | Maize germ | 25-35% |

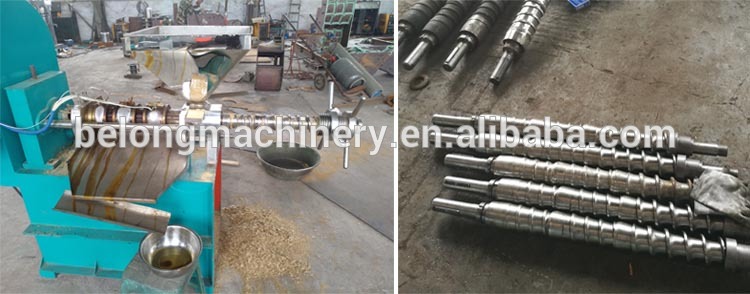

The main part of the screw press is the squeezing barrel. The squeezing barrel is composed of the squeezing cage and the screw shaft rotating in the squeezing cage.The oil is squeezed out from the gap of the press cage. At the same time, the residues are pressed into crumb cakes and discharged from the end of the pressing shaft of the automatic oil press. It adopts multi-stage gradual compression to increase the pressure in the barrel quickly to maximize the oil put. It separates oil and oil cake rapidly to avoid oil absorbed by dry meal.
Made of high-carbon steel, which is processed under high-frequency quenching, heat-resistant treatment. With high hardness, high strength, good wear resistance, adapts to high temperature and high pressure continuous operation, improve the life of the oil expeller, the use of time up to several decades Long.
Adopting the principle of multistage progressive pressurization, the pressure of squeezing smash is rapidly increased, so that the oil is fissile and separated at a time.
Features
- large capacity with high oil yield.

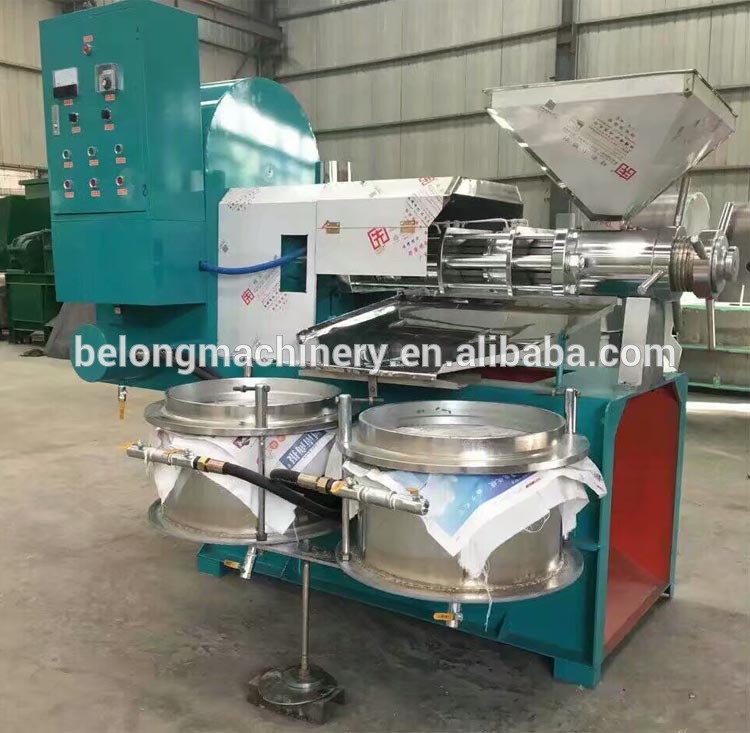

- Equipped with electric control cabinet, which makes the whole process safe, convenient, and easy to operate.
- Energy saving, and wide application. An ideal oil extraction machine for both small business and large oil processing plants.
- There are oil filter drums, which make the oil purer; And matched pre-treatment machine like conveyor, cooker, etc.
| Model | Power | Handling Capacity | Size | Weight | Voltage |
| 60A | 2.2kw | 30kg/h | 1200*800*1160mm | 230kg | 220V, single phase |
| 70A | 3kw | 60kg/h | 1400*950*1250mm | 280kg | |
| 80A | 5.5kw | 100kg/h | 1650*1500*1600mm | 570kg | 380V, three phase |
| 100A | 7.5kw | 200kg/h | 2000*1500*1750mm | 760kg | |
| 125A | 11kw | 300kg/h | 2100*1500*1750mm | 920kg | |
| 130A | 18.5kw | 400kg/h | 1850*1700*1700mm | 1100kg | |
| 150A | 22kW | 500kg/h | 2600*2100*1730mm | 1200kg |

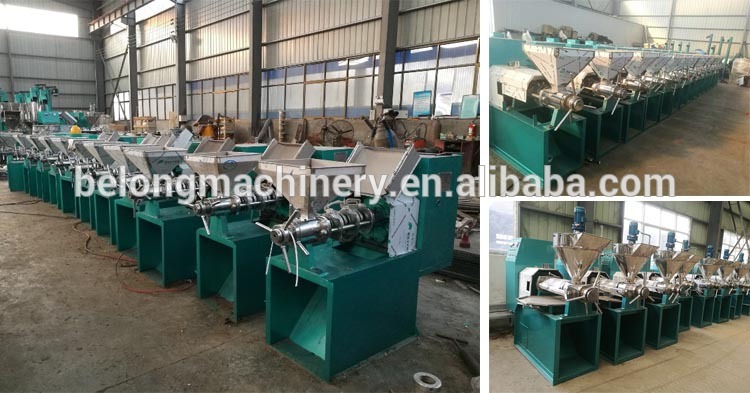

Oil press in stock

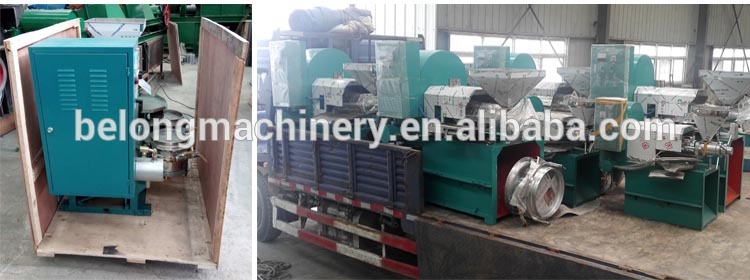

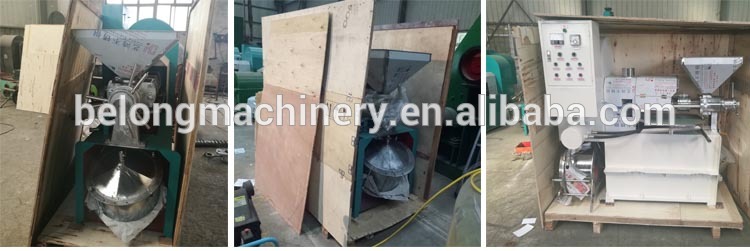

Packing of oil press machine for shipping
