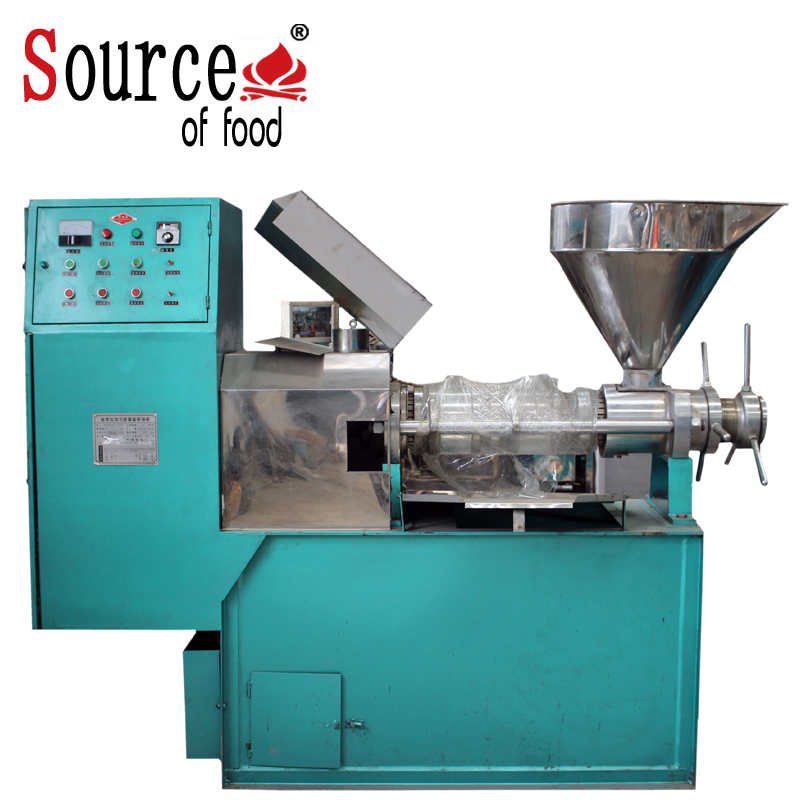

Small coconut wheat germ screw hydraulic press oil seal extraction machine
The wheat germ oil which made by our small coconut wheat germ screw hydraulic press oil seal extraction machine:
When the wheat germ is in the pressed chamber of the oil press, the pressure increases as the pressure is rotated. The seed material is squeezed by the extrusion of the oil, and the pressure of the pressed particles directly exposed to each other causes the plastic deformation of the seed material, especially in the oil film fracture and adhesion. In this way, after being extruded, the extract is not a loose body, but a plastic body is formed, called the oil cake.
Main features of small coconut wheat germ screw hydraulic press oil seal extraction machine:
2. Energy saving -- the same output reduces the electrical power by 40%, and the average hourly energy saving is about 6 kilowatt-hours, and the daily production can save up to 30 RMB.
3. Province workers -- the same output can save 60% of the labor force; 1 to 2 people can organize the production, and the labor efficiency savings will be about 40 RMB.
4. Widely use - -one machine multi-purpose, can squeeze peanuts, flax, sesame, rapeseed, oil anemones, cottonseed, soybean and more than 30 kinds of oil crops. Multiple pressing, one squeeze.
5. Oil pure - -vacuum filter residue, ensure the purity of oil, meet the health quarantine standard.
6. Small space -- it takes 10-20 square meters to satisfy the use.
Widely use
Small space
Principle of small coconut wheat germ screw hydraulic press oil seal extraction machine:
Small coconut wheat germ screw hydraulic press oil seal extraction machine is a new multi-function screw prepress, which is composed of the presser, feeding device, spiral head, check cake mechanism, gearbox and motor.
Pre-press expeller spiral is characterized by, horizontal vertical ground dragon synchronous work, pressing chamber for axial split, chamber shell with single bolt dovetail groove center of briquetting fixed, chamber shell opening and closing the hinge structure, and using cold - warm cooling structure.
Application of small coconut wheat germ screw hydraulic press oil seal extraction machine:
Now mainly grape seed oil press machine, mainly divides into four, 80, 100, 120, 160， production in the 100 kg to 300 kg. Can processing sesame seed, soybean, rapeseed, sunflower, cottonseed, and so on many kinds of almost all 20 particles oil crops.
| Small coconut wheat germ screw hydraulic press oil seal extraction machine | ||||
| parameter | SZY-80type | SZY-100type | SZY-120type | SZY-160type |
| Power | Main engine | 5.5KW(Y132M-4) | 7.5KW(132M-4) | 11KW(Y132M-4) |
| Vacuum pump | 0.55KW(Y801-4) | 0.75KW(Y802-4) | 0.75KW(Y802-4) | |
| The heater | 2.2KW | 2.2KW | 2.2KW | |
| Spiral diameter | φ 81mm | φ 101mm | φ 120mm | φ 160mm |
| Screw rotation speed | 47r/min | 38r/min | 37r/min | 32r/min |
| processing | 65-130Kg/h | 140-280Kg/h | 250-400Kg/h | 300-550Kg/h |
| The weight | 880Kg | 1250Kg | 1500Kg | 1800Kg |
| Dimensions mm | 1500×1200×1750 | 1700×1300×1850 | 2000×1300×1500 | 2100×1300×1600 |

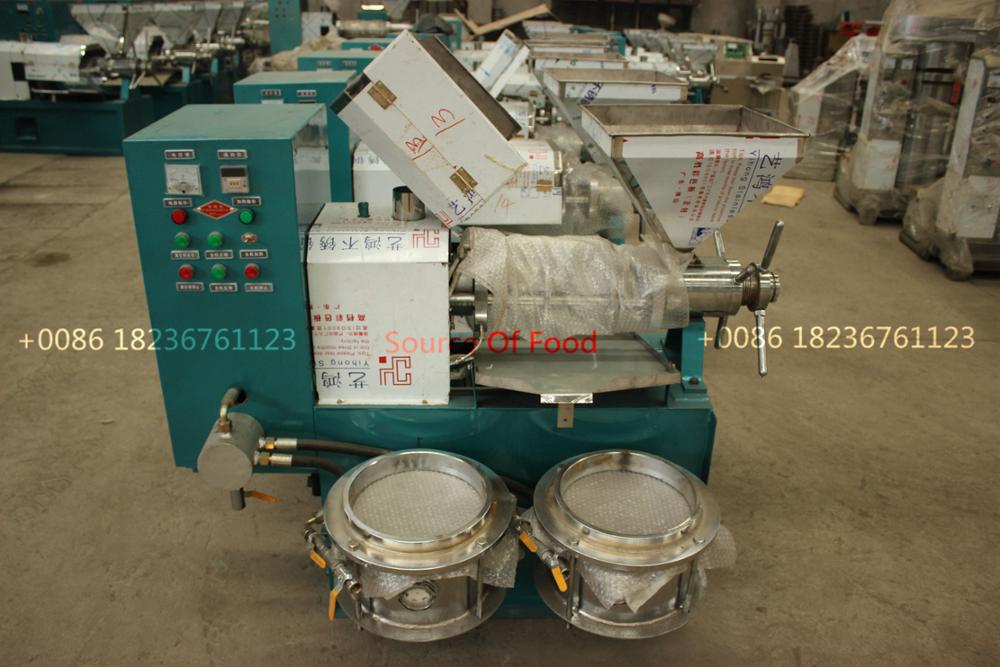

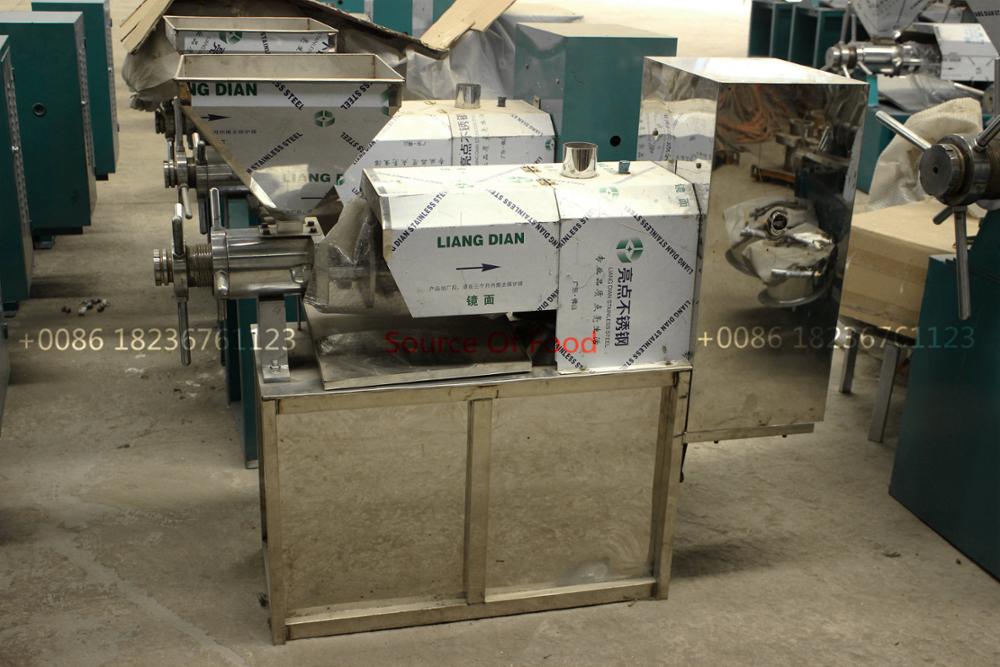

Detaile images of small coconut wheat germ screw hydraulic press oil seal extraction machine
Small coconut wheat germ screw hydraulic press oil seal extraction machine is never add chemical additives during the production of the equipment. and our machine is simple operation, high oil yield and low press cost, oil products are pure and nutritious. The fully automatic oil mill design is advanced, reliable, easy to maintain, and has the characteristics of energy saving, high oil discharge rate, provincial labor, wide use, pure oil, and small occupation.

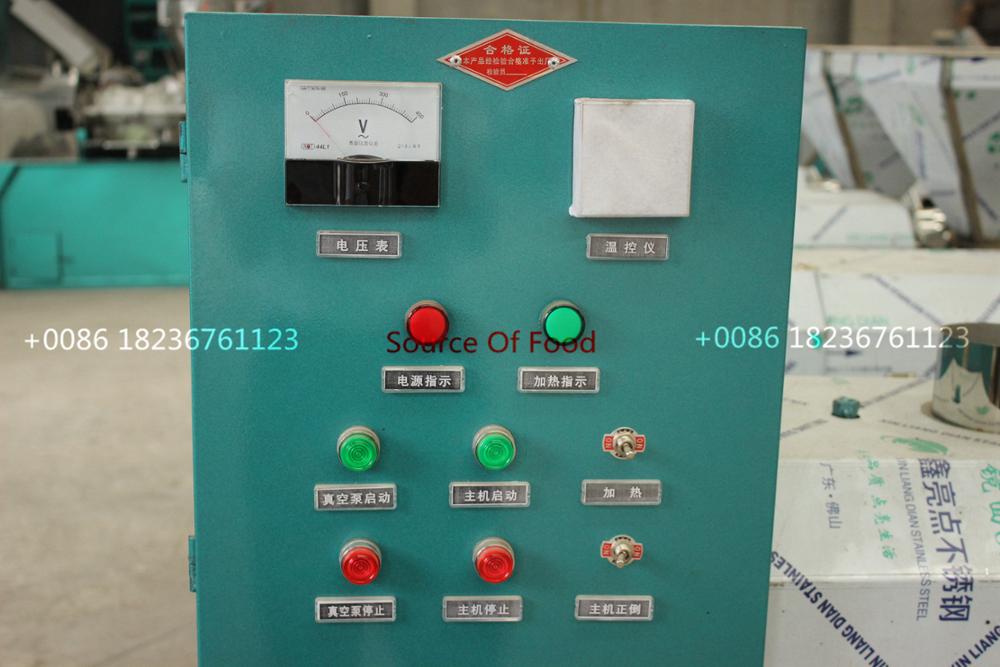

Electric control part

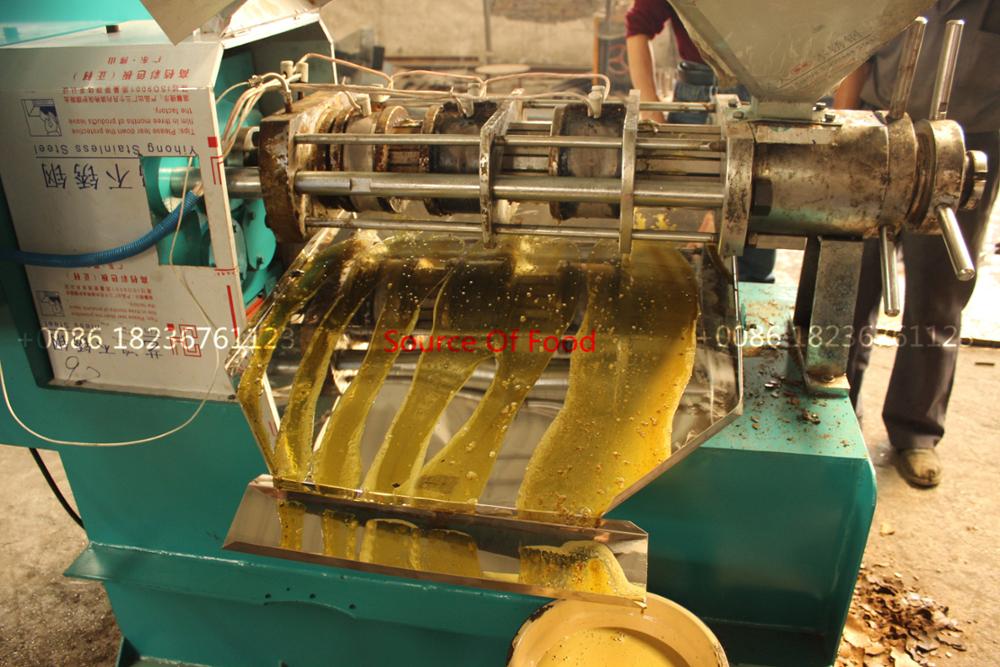

Heating and pressing part
The heating and pressing part of small coconut wheat germ screw hydraulic press oil seal extraction machine is composed of a heater,a pressing screw, a machine body device, etc..

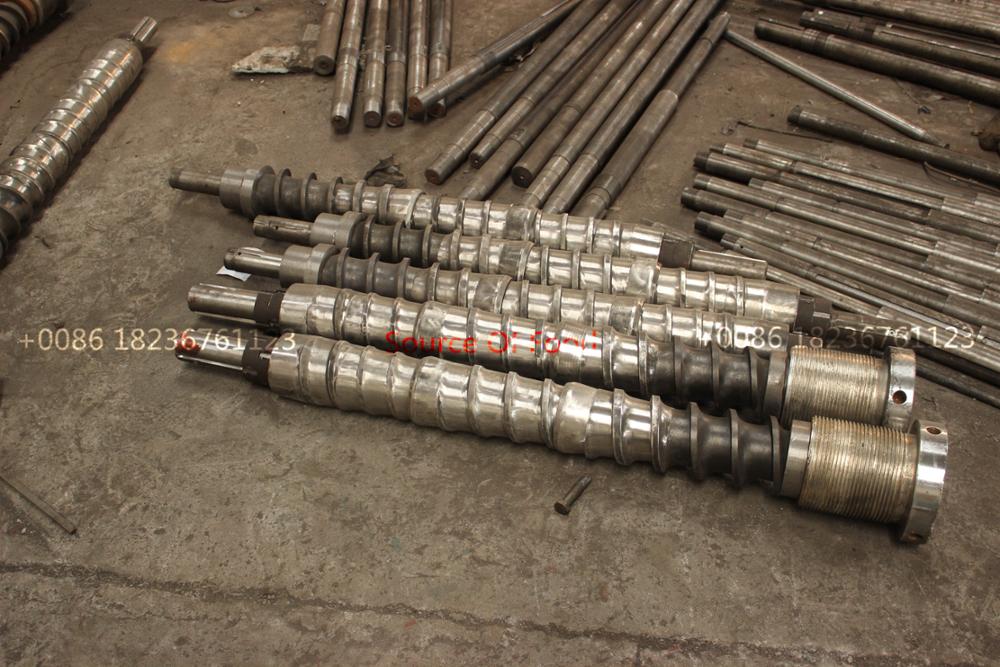

Pressing screw
High strength material, long service life and suitable for crushing various materials.

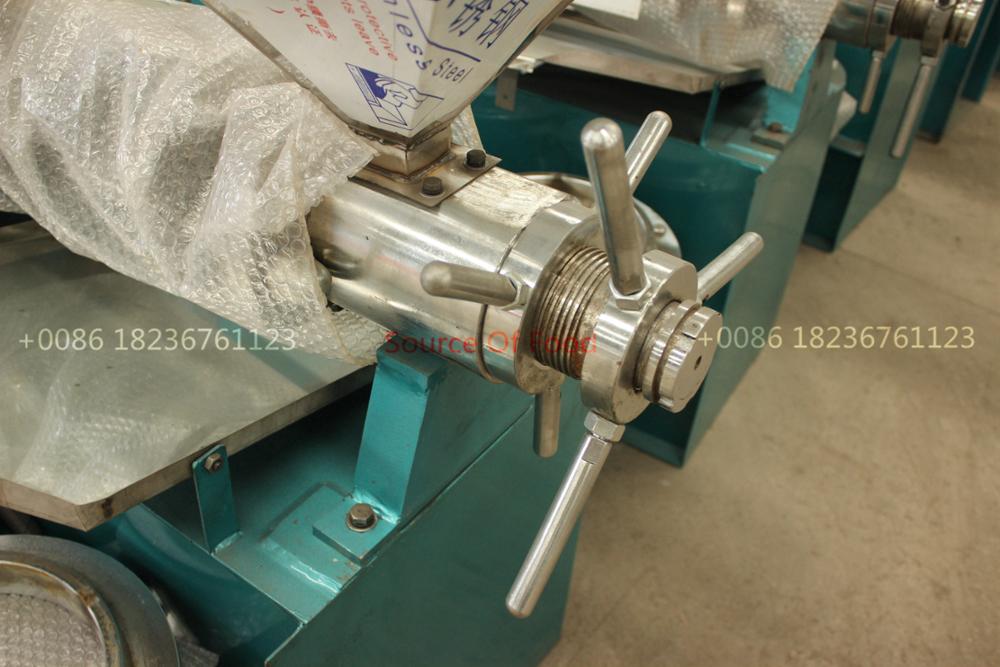

Speed adjusting part
The speed adjusting part is composed of an adjusting screw, a regulating nut, ahandle and a locking nut etc..

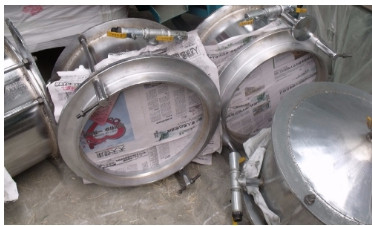

Vacuum filter oil part
The vacuum filter oil part is composed of the vacuum pump,oil filter tube line and other assembly components.

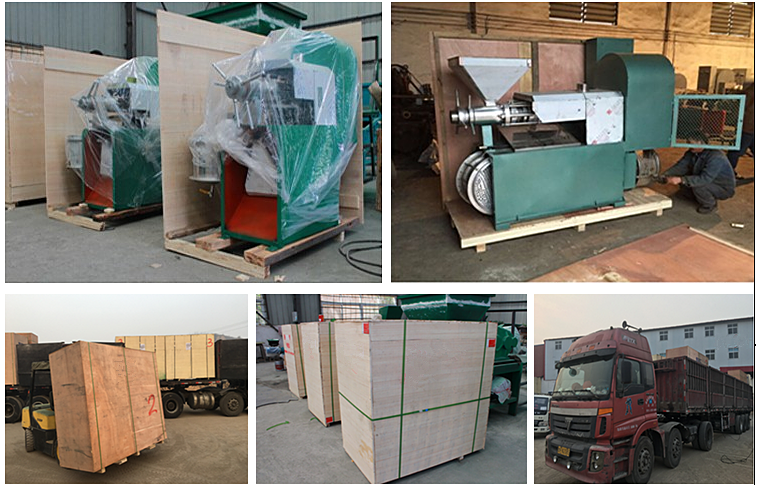

Packing and delivery of Small coconut wheat germ screw hydraulic press oil seal extraction machine:

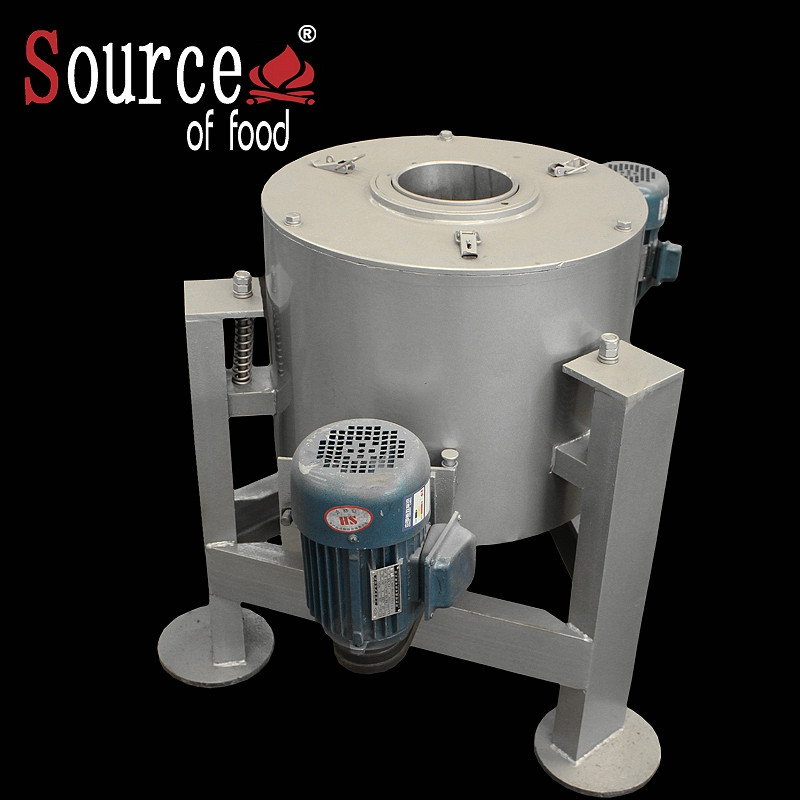

Centrifugal oil filter
91.8% Response Rate

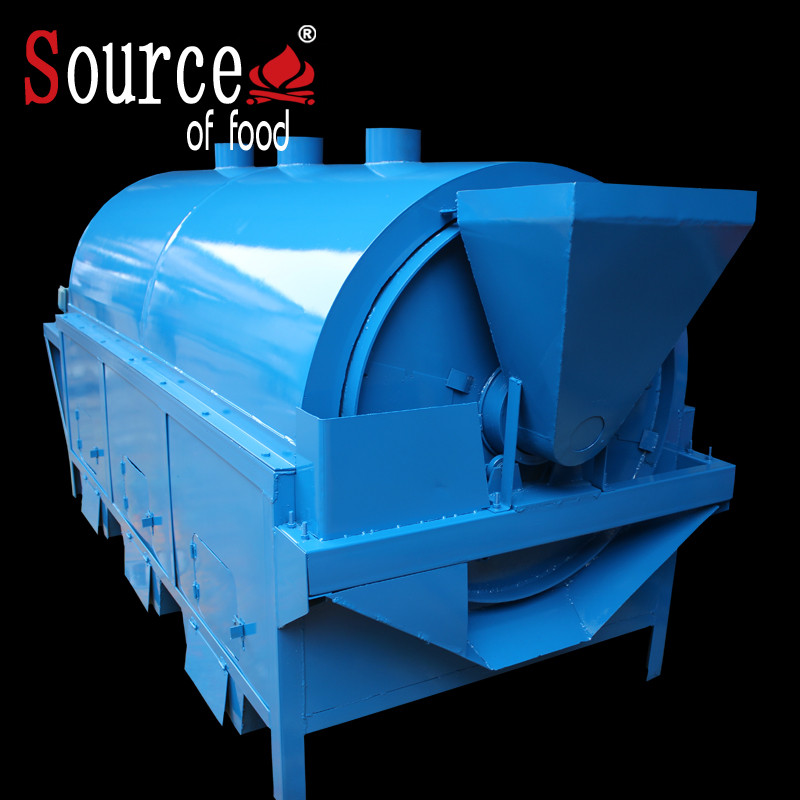

Frying machine
91.8% Response Rate

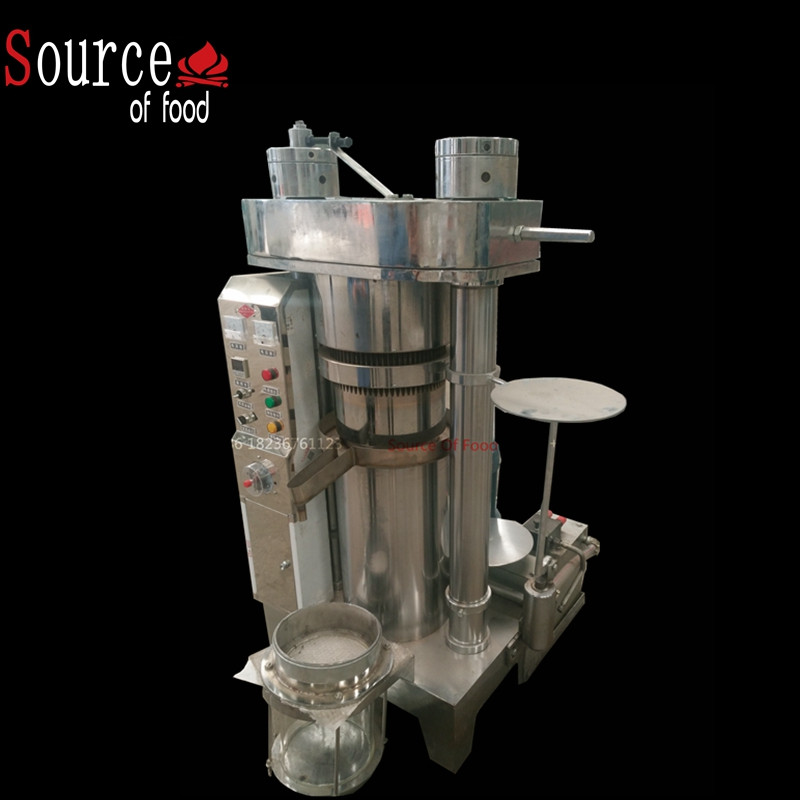

Hydraulic oil press machine
