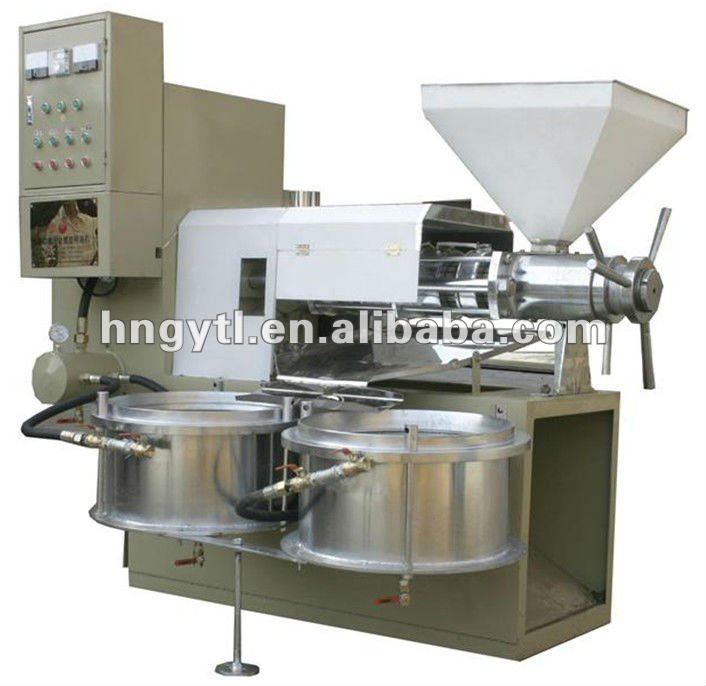

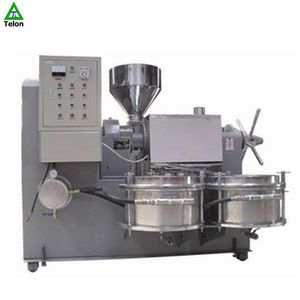

Oil press oil expeller :
This kind of Oil Machine utilizes the screw shaft which is setup with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
Rawmaterials:

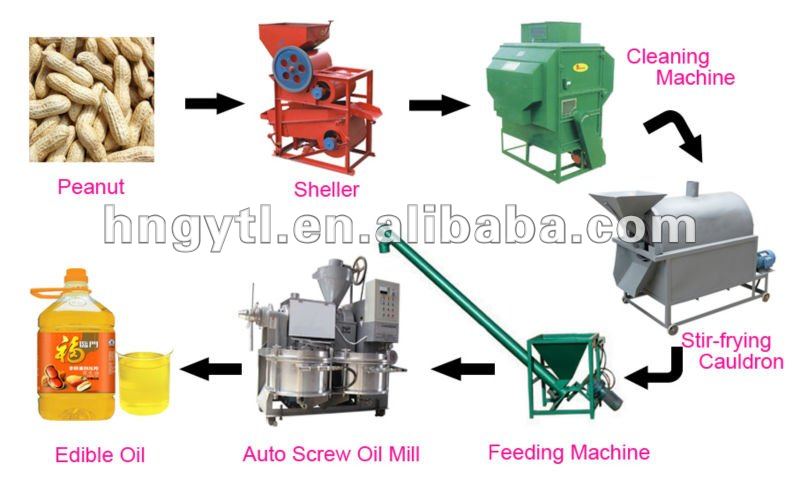

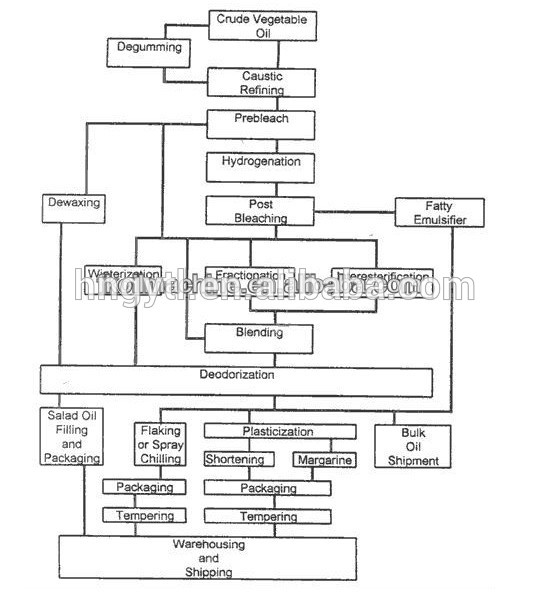

Process:
Data:
Technical parameter/ Model | TL-80 | TL-100 | TL-120 | TL-150 | |
Diameter of worm section | 80mm | 100mm | 120mm | 150mm | |
Rotary speed of worm section | 50-60 r/min | 40 r/min | 36 r/min | 45 r/min | |
Diameter of inscribed circle of press boring | 82mm | 102mm | 122mm | 152mm | |
Equipped force | Main frame | 5.5 KW | 7.5 KW | 11 KW | 15 KW |
Vacuum pump | 0.55 KW | 0.75 KW | 1.1 KW | 1.1KW | |
heater | 3 KW | 3.5 KW | 4 KW | 6KW | |
Capacity | 80-150kg/h | 150-250kg/h | 260-400kg/h | 230-500kg/h | |
Weight | 780kg | 1100kg | 1500kg | 1800kg | |
Overall dimension (L*W*H) | 1800*1300*1750 | 1980*1450*1800 | 2100*1680*1750 | 2300*1700*1800 |
Materials/ Parameter | Oil productivity(%) | Material bread thick | Residual oil rate(%) |
Sesame | 45-55 | 1.0-1.5 | ≤6 |
Peanut | 40-50 | 0.5-2.0 | ≤6 |
Rapeseed | 30-45 | 0.8-1.8 | ≤6 |
Sunflower seed | 32-42 | 1.0-1.5 | ≤6 |
Soybean | 12-18 | 0.8-1.5 | ≤6 |
Cotton seed | 11-25 | 1.0-2.0 | ≤6 |
Walnut | 42-52 | 0.8-1.5 | ≤6 |
Flax | 32-38 | 1.0-1.8 | ≤6 |
Tea seed | 26-38 | 1.0-2.0 | ≤6 |
Pictures:
