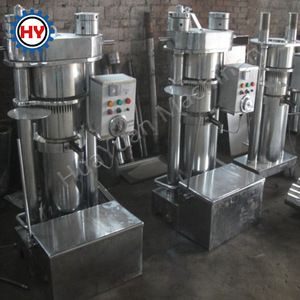

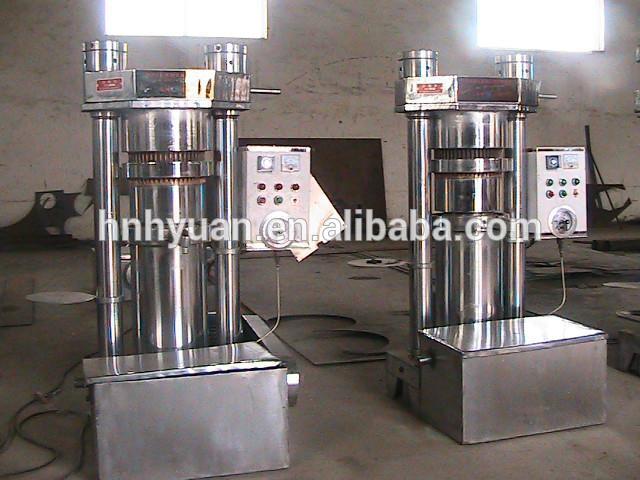

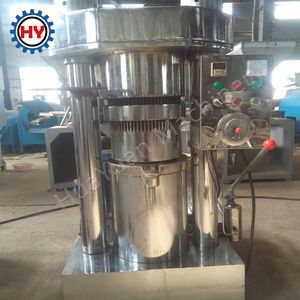

Automatic hydraulic small scale low price olive oil screw press
Automatic hydraulic oil pressing machine is the most advanced equipment and it is a best choice to instead of handoperated worker cuttingly. Automatic hydraulic oil press is the easiest to operate. Having the highest oil yield, the least to replace wearing parts among all the range of machines, as it can press less amount per time (2-3.5kg/time), and processing shorter time (8-12 minutes/time), particularly suitable for people from large cities to spend less money to buy real goods, rural towns can ensure fast processing of incoming (get their own fuel oil), known as assured oil. The main processing oil crops are: sesame, walnut, olive, pine nuts (peeled is best), almond and other high oil crops.

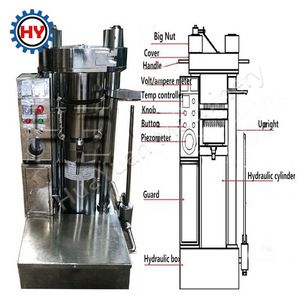

Structure of Hydraulic Oil Press Machine
Main components: the piston, hydraulic cylinder, pillar, pedestal, oil pump, cylinder, electric heating circle, and automatic temperature control device, etc.Material adopt high quality metal materials, and improve the machine performance, ensure the service life of parts.
Features of Hydraulic Oil Press Machine
This machine is used to press oil from the roasted seed, nuts, etc. A step of simple, fast, direct outflow pure fragrance oils to leave no bleeding. User witnessed about 5-7 minutes to processed oil products. Users called "rest assured oil." Especially suitable for sesame, rapeseed, peanut and other areas for users.
Advantage of Flax Seed Hydraulic Oil Press Machine
1. High oil extraction rate--Compared with the old equipment, normal yield efficiency can be higher than 2 to 3 locations, each processing hundred kg peanuts, on average, can get more than 3kg oil.
2. Energy saving
3. Labor saving: one worker is ok to operate the machine.
4.Widely use---Can squeeze peanut, sesame, sesame, rapeseed, canopy, cottonseed, soybean, almond, and so on more than 30 oil crops.
5. Oil pure---- keep oil pure
6. Save a space----machine with small area.
Application
1.Hot oil material classes: sesame seeds, flax, peanut, wheat germ, corn germ, etc;
2.Cold oil material classes: pine seeds, almonds, olive, walnuts, camellia seed, macadamia nuts, etc
3.Spices and traditional Chinese medicine,pepper, mustard seed, purple perilla, etc
4.Good quality oil,pure physical squeeze, high oil, does not destroy the organic components of oil.
Operating steps of Flax Seed Hydraulic Oil Press Machine:
Clean the oil tank, and add the hydraulic oil. Check each parts bolt looseness. Check the electric circuit right
1,Before working, preheating temperature, summer, autumn is 50 degrees - 70 degrees, winter and spring for the 70-90 degrees. Preheating system automatic control, do not have to shut down the temperature control switch.
2,Open the top plate, put tye felt pad on the charging barrel bottom,Decline the piston.
3,Empty machine run 1 to 2 times before working.Hydraulic oil thickening in winter and spring, should be an empty machine running 5-10 minutes, make the oil diluted and easy operation
4,Feeding
5,Pull the hand shank, press the oil.
6,When press oil, need the worker beside, Main motor will stop working when pressure gauge of 55 million mpa, Otherwise should immediately shut off the power, check pressure gauge damage or malfunction, if there is any damage should be replaced immediately, if all is ok, can continue working.
7,When the pressure gauge rose to 55 million mpa, electric control system will automatic stop. when squeeze pressure drop to 45 million mpa, electric control system automatically open, so, between 45 and 55 million mpa, 2-3 times back and forth, All oil has been squeezed out.
8,Shutdown, pull-down hand shank,,when the barrel is 10 mm to the top plate, lift up the hand shank,open the top plate.
9,Take out the cake.( waste residue, can do animal feed, or fertilizer)
10,Finish
Material | Oil press rate(%) | Cookie thickness | Residual oil rete(%) |
Sesame | 42-55 | Adjustable | <=7 |
Peanut | 40-50 | <=8 | |
Rapeseed | 28-38 | <=8 | |
Oil sunflower | 28-35 | <=8 | |
Soybean | 10-16 | <=7 | |
Flax | 33-40 | <=7 | |
Cotton seed | 11-25 | <=6 | |
Walnut | 42-52 | <=6 | |
Camellia seed | 26-38 | <=6 |
Package:
For those equipment which can be loaded in containers will be transported by containers, and for those which are larger than container will be transported by bulk goods.
Delivery Time:
3~60days after we get the advance payment.
|
|
Pre-Sales Service * We given client the details technician offer. | After-Sales Service* We arrange engineer to install the machinery and training the workers for client abroad if clients required. |
