Both Hot And Cold Pressing Screw Macadamia Nut Oil Press

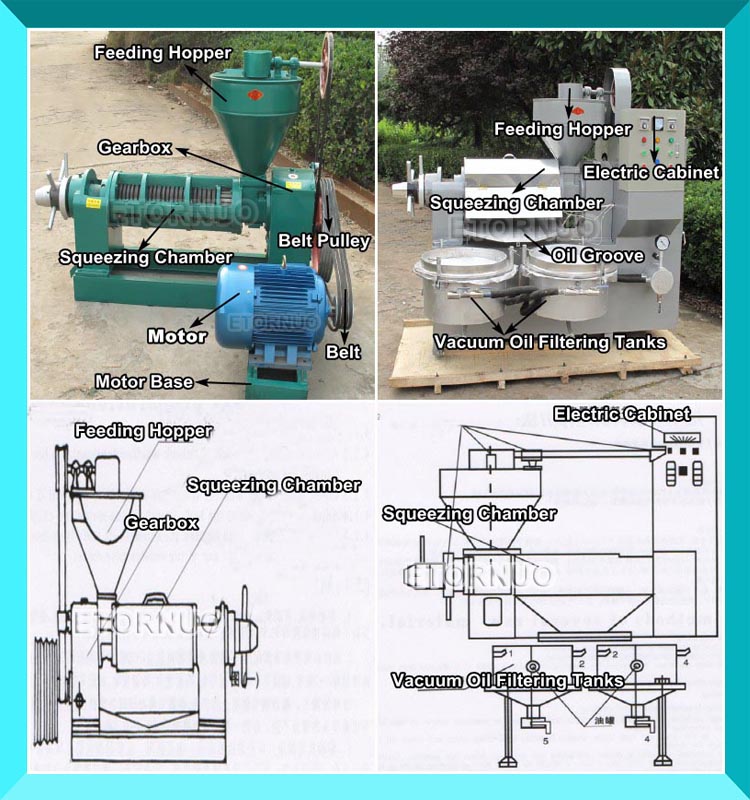

Structure of Macadamia Nut Oil Press:
1.Characteried by simple design, easy to operate and maintenance
2.Cast iron machine base
3.High productivity,energy saving and labour saving
4.Special gear box structure make the rotating speed averagely
5.Compact structure, stable functions
6.Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
7.Compact structure, stable function.
Introduction of Macadamia Nut Oil Press:

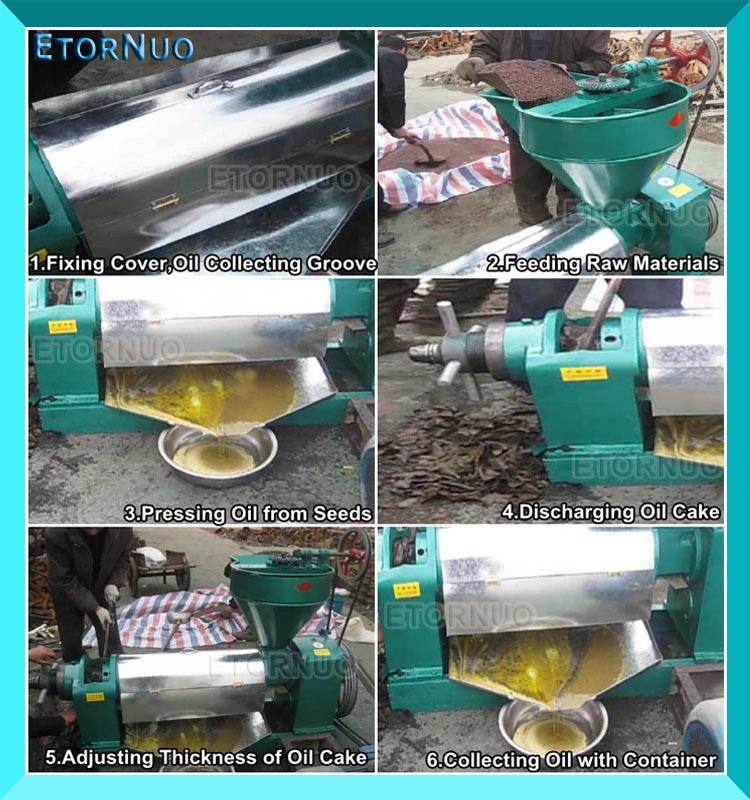

1. Working Principle

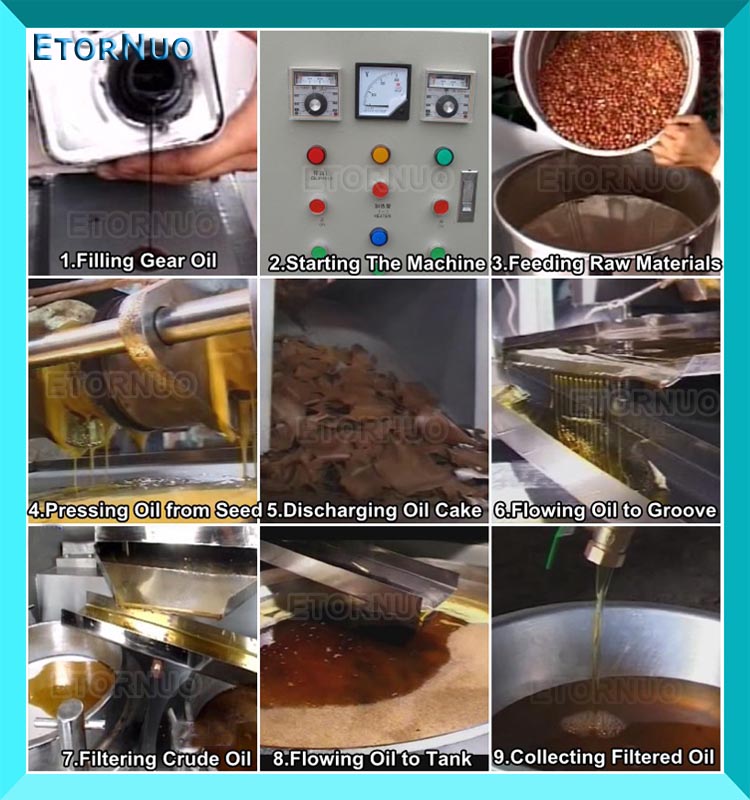

When the raw materials have been sent to the hopper of oil press machine and then been moved forward by the rotating pressing screw for pressing. Under the high-pressure condition in the chamber, friction between material and screw, chamber will be created, which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw caries larger from one end to the other, hence. When rotating, it not only pushes particles to move forward,but also turns them outwards as well. Meanwhile,particles adjacent the scew will rotate along with screw‘s rotating, causing every particle inside the chamber to possess different speed. Therefore, relative movement among particle creates heat which is necessary during manufacturing becasue of helping protein change property,damage colloid,increase plasticity, decrease oil’s elasticity, resulting in high oil productivity.
2. Wide Application

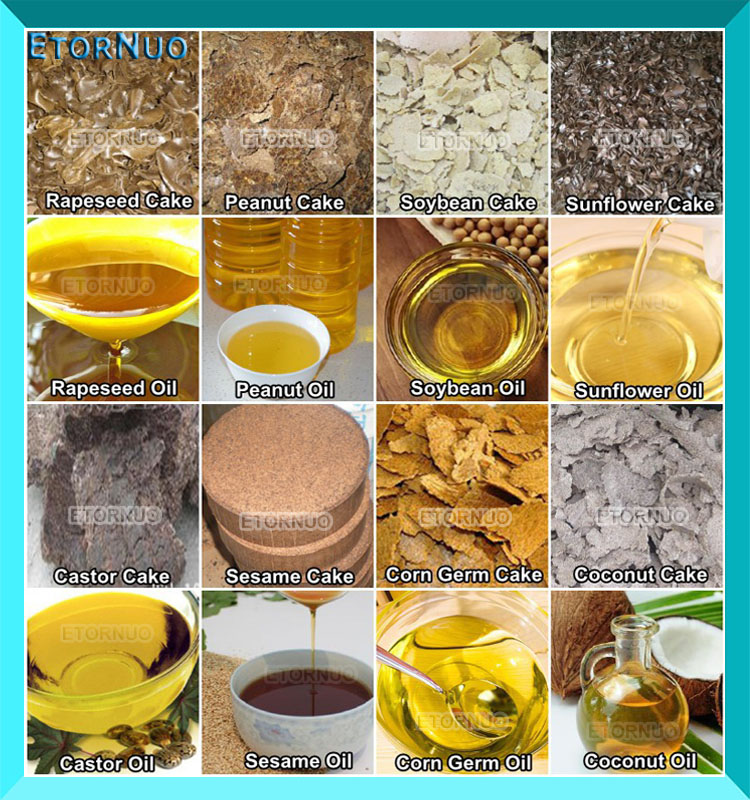

The screw type oil press machine has wide application, which can be applied to many kinds of oil crops such as the peanuts,sunflower seeds,ricino,coconut, almond, canola seed,walnut, copra,palm kernels, rapeseed, flaxseed,coconut, cotton seeds, sesame,soybeans,flax seed,etc.
3. High Oil Yield And Low Dry Cake Residual Oil Rate
Theseasame oil machine press produce clear oil and superior grade oil cake.

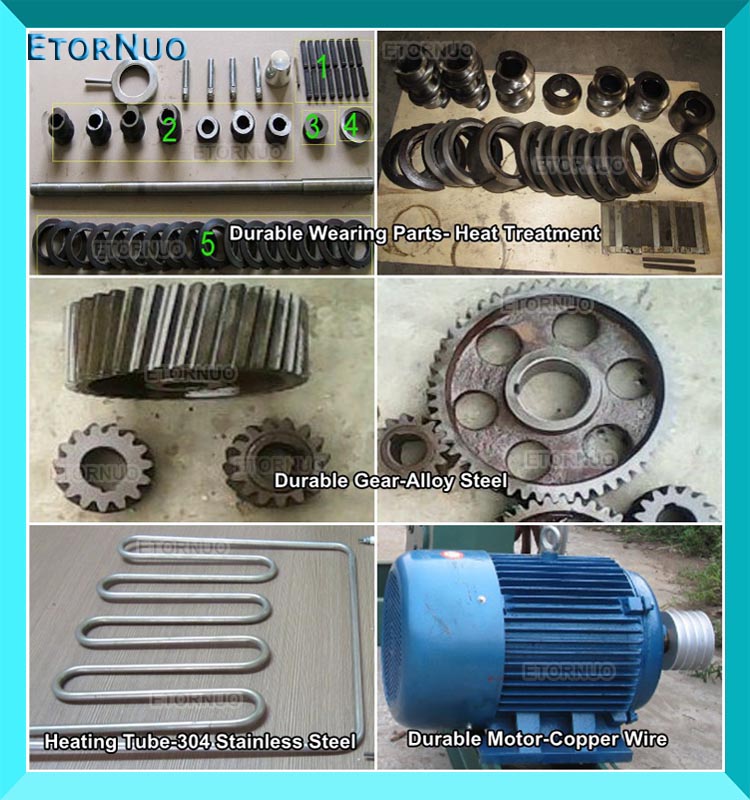

4. Durable Spare Parts,Gears,Heating Tube and Motor

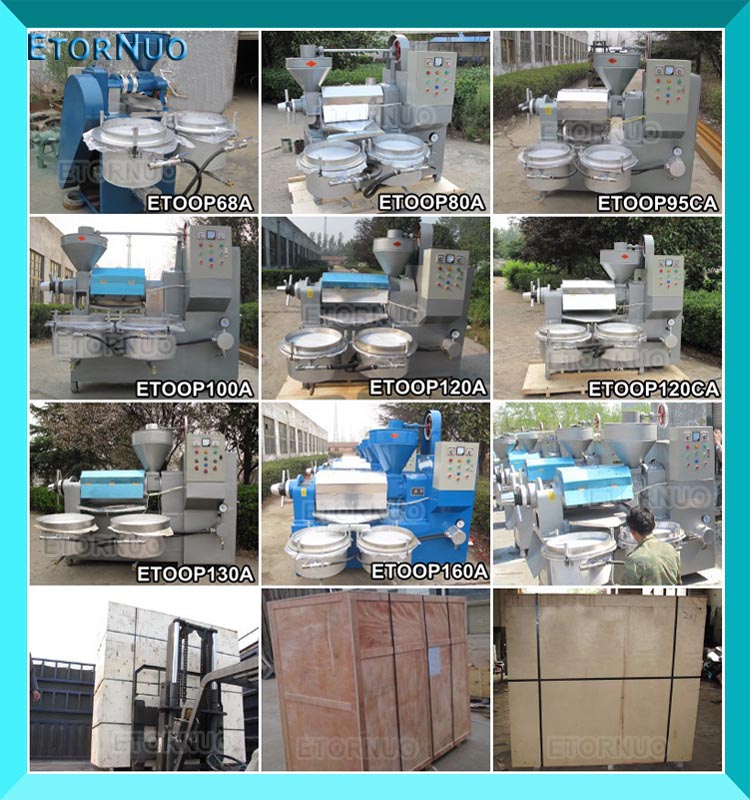

1. Full-Automatic Macadamia Nut Oil Press
Model | Power | Capacity | Packing Size | Gross Weight |
ETOOP68A | 5.5KW | 55-60KG/H | 1420x840x1320MM | 390KG |
ETOOP80A | 5.5KW | 100-130KG/H | 1950x1000x1700MM | 720KG |
ETOOP95CA | 7.5KW | 230-250KG/H | 2200x990x1800MM | 910KG |
ETOOP100A | 7.5KW | 260-280KG/H | 2200x1000x1820MM | 950KG |
ETOOP120A | 11KW | 300-320KG/H | 2300x1100x1800MM | 1080KG |
ETOOP120CA | 15KW | 350-380KG/H | 2310x1150x1900MM | 1160KG |
ETOOP130A | 18.5KW | 450-500KG/H | 2500x1200x1900MM | 1290KG |
ETOOP160A | 22KW | 750-800KG/H | 2600x1300x1950MM | 1590KG |

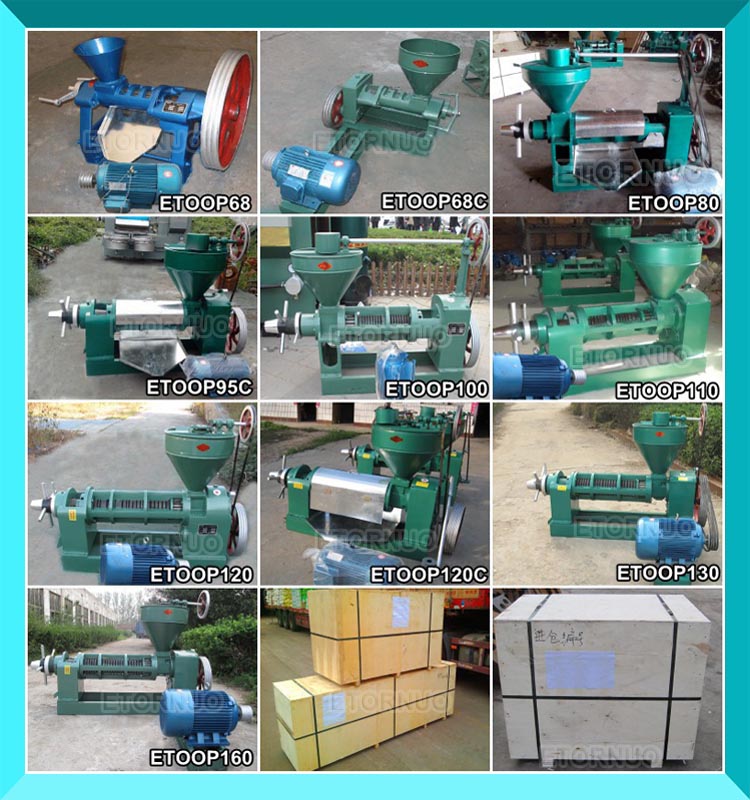

2. Semi-Automatic Macadamia Nut Oil Press
Model | Power | Capacity | Packing Size | Gross Weight |
ETOOP68 | 5.5KW | 40-50KG/H | 930x530x790MM | 210KG |
ETOOP68C | 5.5KW | 55-60KG/H | 950x540x790MM | 225KG |
ETOOP80 | 5.5KW | 100-130KG/H | 1820x580x760MM | 420KG |
ETOOP95C | 7.5KW | 180-210KG/H | 2140x620x790MM | 540KG |
ETOOP100 | 7.5KW | 230-250KG/H | 2150x620x810MM | 560KG |
ETOOP110 | 11KW | 260-280KG/H | 2170x630x820MM | 680KG |
ETOOP120 | 11KW | 300-320KG/H | 2180x635x830MM | 720KG |
ETOOP120C | 15KW | 350-380KG/H | 2190x800x820MM | 750KG |
ETOOP130 | 18.5KW | 450-500KG/H | 2490x750x1000MM | 1050KG |
ETOOP160 | 22KW | 750-800KG/H | 2600x750x1080MM | 1250KG |

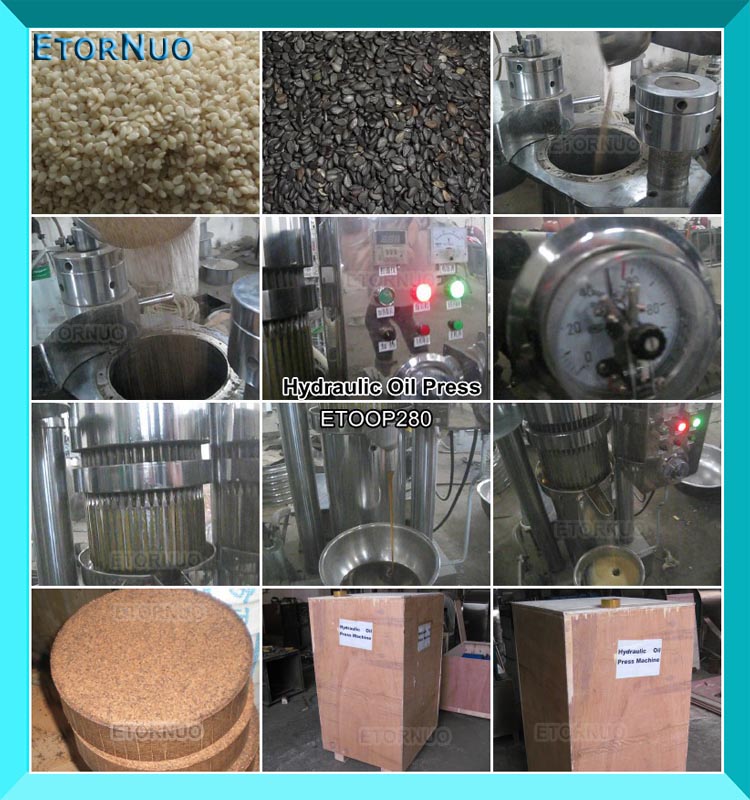

3. Hydraulic Oil Press Machine
Type | ETOOP280 |
Motor Power | 1.5KW |
KN Pressure | 1900KN |
Max Work Pressure | 55Mpa |
Heating Ring Power | 2KW |
Heating Ring Control Temperature | 70-100℃ |
Sesame Feeding / Time(10min) | 7-8kg (raw material) |
Packing Size | 960×940×1350mm |
Gross Weight | 950KG |

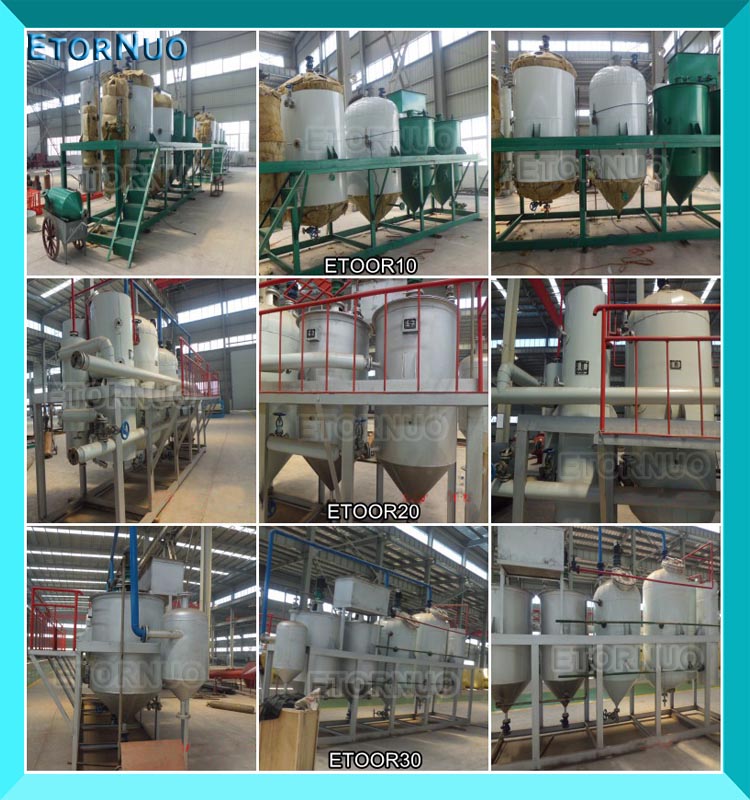

4. Crude Oil Refinery Equipment
The purpose of refining the crude oil is to remove free fatty acids,phospholipids, pigments, off-flavor, and other impurities. The whole oil refining line includes Degumming / Neutralization, Bleaching, Deoderization, and Winterization(optional).
1.Neutralization pot: For acid refining, alkali refining and water washing.
2.Decolorization pot: Bleach oil and remove pigment from oil.
3.Deodorization pot: Removing odor from oil (Made of 304 stainless steel).
4.Transfer oil furnace: Providing heat energy for production,the temperature can reach 280°C.
5.Vacuum pump: Provide vacuum degree for decolorization,deodorization,up to above 755mgHg.
6.Air compressor: Dry decolorization bleaching clay.
7.Filter press: Filter bleaching clay.
8.Steam generator: Provide steam for deodorization & distillation.
This system belongs to batch type refining, the capacity could be 1~20Ton per day.It not only refine the salad oil, high cooking oil, first grade oil and second grade oil, but also refine animal oil, such as the lard oil, fish oil. it's the idea choice of Medium and small scale oil refinery plant.

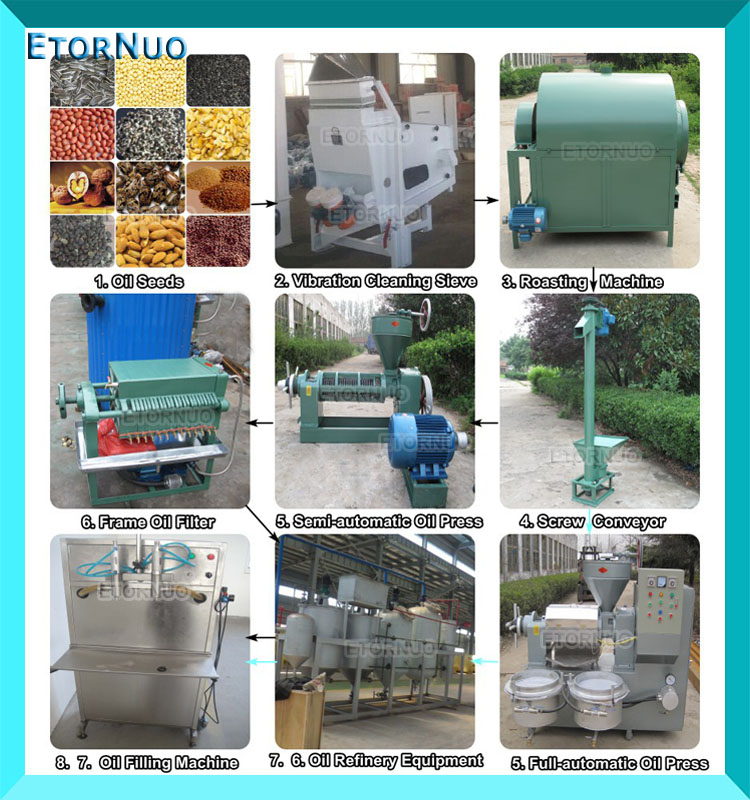

5.Oil Production Line

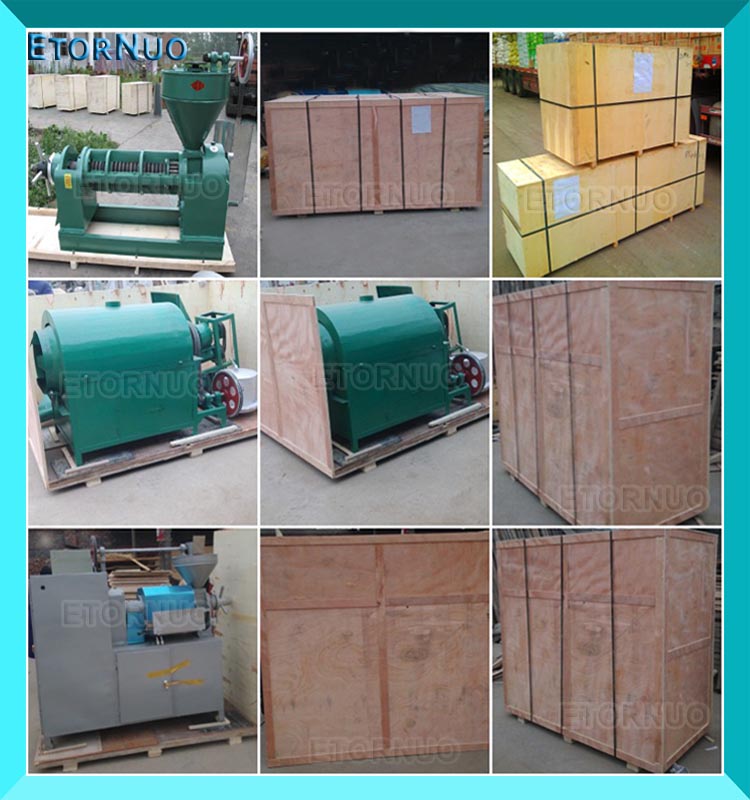

Packing Materials
Mode of Transportation
1.The screw oil press machine will be sent to you by sea, by air,by car according to the volume and weight of cargo.
1.Quality warranty period is two years. Equipment must be 100% brand new when leaving factory. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
2. Whole lifetime maintenance free of charges.
3. Free training course at our plant.
4.Free technical support online or by phone communications&emails.
5.Our engineer can be assigned to your country for testing and training as per your requirement.
1.Q: What’s the payment terms?
A: T/T,Trade Assurance,Western Union, MoneyGram,L/C, Cash etc.
2.Q: What kind of seeds that the machine can press?
A:The screw oil press machine can press the peanuts,sunflower,ricino,coconut, almond, canola seed,walnut, copra,palm kernels, rapeseed, flaxseed,coconut, cotton seeds, sesame,soybeans,flax seed,etc.
