Main Technical Parameters and Performance
| Model No. | D-1685 | D-1688 | ZL-120 | ZL-150 |
| Diameter of squeezing bolt | Φ 80mm | Φ 100mm | Φ 120mm | Φ 148mm |
| Speed of squeezing bolt | 60r/min | 40r/min | 36r/min | 36r/min |
| Power of main motor | Y112M-6 5.5KW | Y132M-6 7.5KW | Y160M-6 11KW | Y30KW-4 |
| Power of heater motor | 3KW | 3.5KW | 4KW | 5KW |
| Capacity | 80-160kg/h | 150-260kg/h | 260-400kg/h | 400-500kg/h |
| Weight | 780kg | 1100kg | 1500kg | 1800kg |
| Size | 1700*1300*1600mm | 2000*1400*1750mm | 2050*1550*1800mm | 2200*1460*1750mm |
Oil Press Performance
| Item | Oil yield (%) | Cake thickness (mm) | dry cake residual oil rate (%) |
| Sesame | 42-55 | 1.0-1.5 | ≤6 |
| Peanut | 40-50 | 0.8-2 | ≤6 |
| Vegetable seed | 30-40 | 1.0-1.5 | ≤6 |
| Sunflower seed | 32-40 | 1.2-1.5 | ≤6 |
| Soyabean | 11-16 | 0.8-1.5 | ≤5 |
| Tea seed | 26-38 | 1.0-2.0 | ≤6 |
Note: as the varieties of raw material and oil content is different, adding technical and operating conditions and difference of raw material pretreatment. Above datas for reference only.

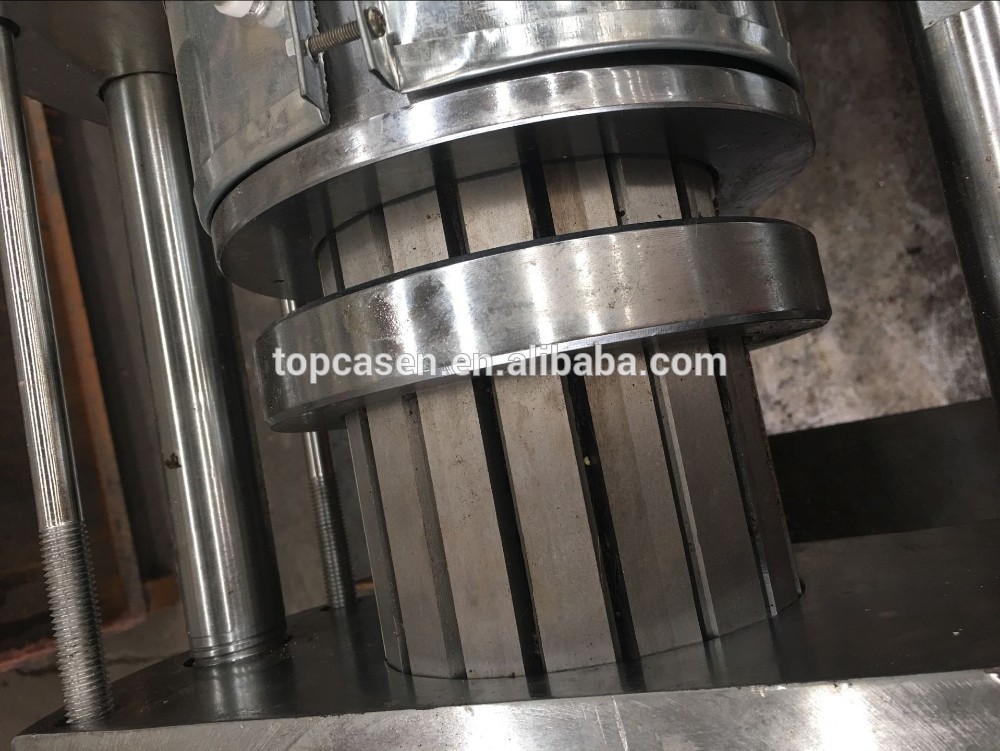

Main Core Part Squeezing bar
Advantage: Inner with squeezing bar, the main advantage is when machine stucked, can be reversed, not to need to unload machine, little residual oil rate.

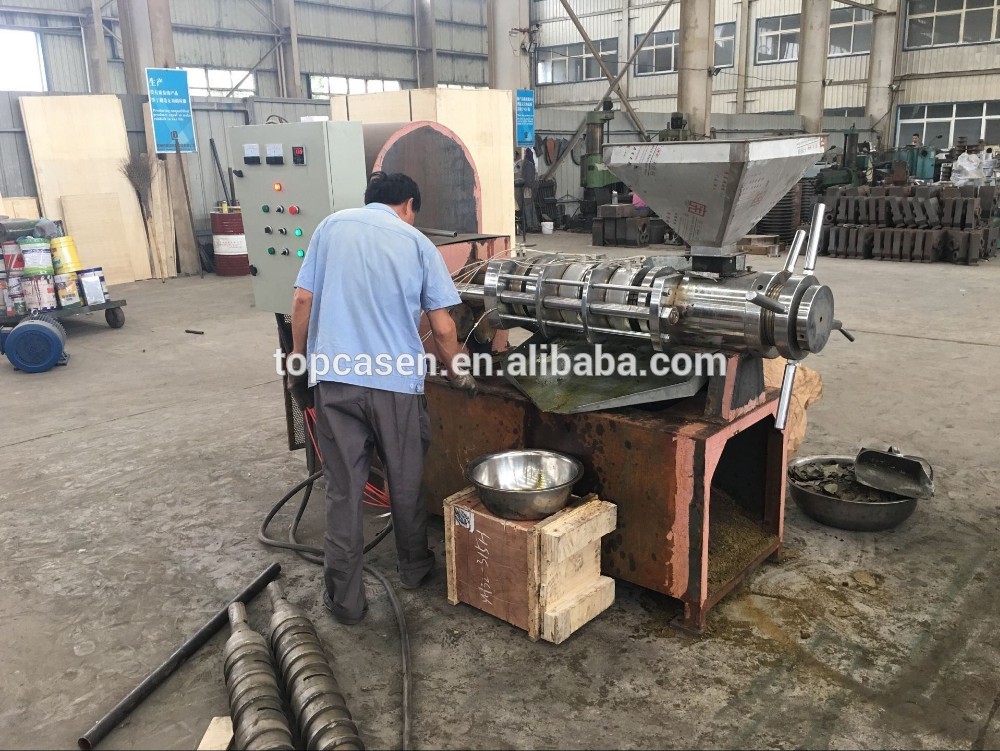

Testing machine

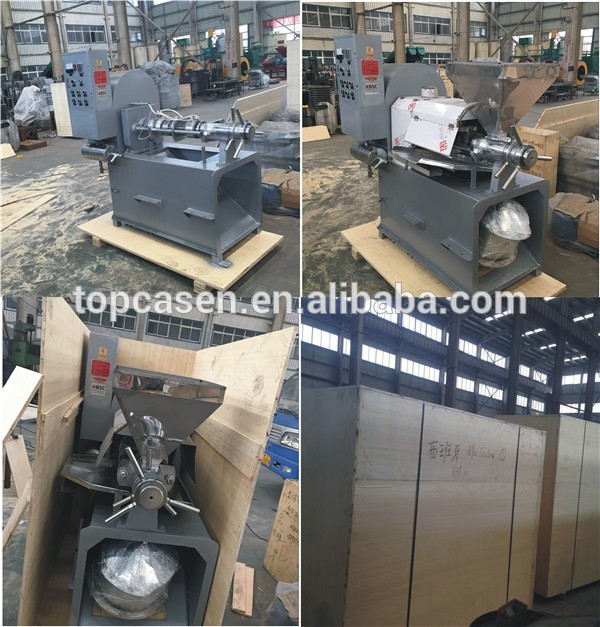

Packing

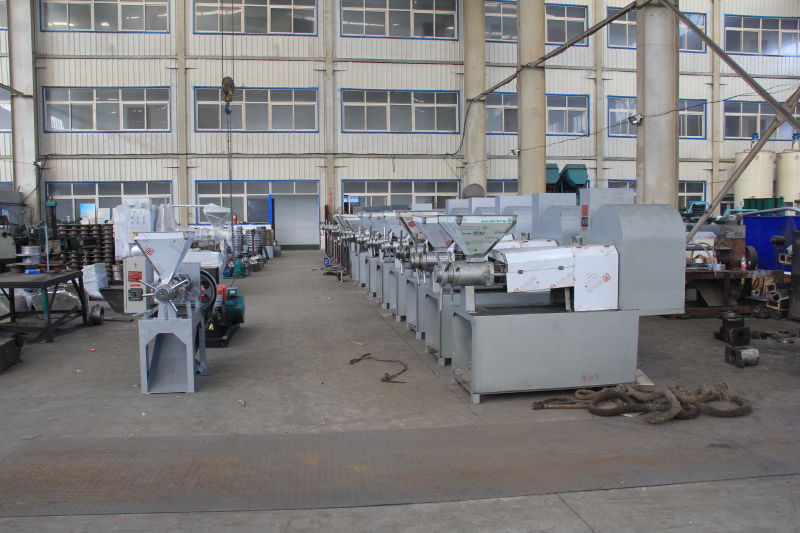

Workshop
Testing video for reference
https://youtu.be/rwAyxLQ8baY (peanut oil press)
https://youtu.be/z_2szxqyYK0 (soybean oil press)
