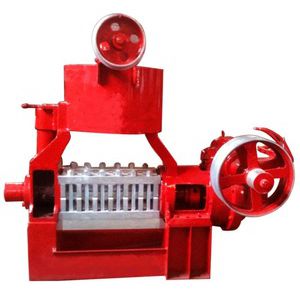

OIL EXPELLER / OIL SCREW PRESS
MODEL : VK-100
( Input Capacity of Seeds to be processed Per Day/24 Hours : 8 Tons )
- Gear Box : Double reduction Gear box
- Kettle / Cooker : Multi stage cooker for the conditioning of seeds,
size 42″ Diameter - Compressing : Crammer Shaft gives extra Cramming of the seed or cake in the Feed
- Chamber:Vertical Hinged and can very easily be opened for replacement of worms
or cage bars. This saves a lot of time and labour. - Steel Fabricated Chamber: Reduces time and labour for relining of Cage Bars.
- Bearings : Heavy duty Ball and Roller bearings are fitted for maximum life and low noise operation
- Shaft Withdrawal : The main Worm Shaft can be withdrawn very easily without disturbing the gear
section in any way. Pressing worms and collars can be changed without disturbing the main shaft. The thrust
of the pressure worms is taken upon large spherical roller thrust bearings. - Cast Iron Bodies : For perfect alignment and stability.
- Easy to install, high yield at low operating cost, capable of extracting oil from all known oil seeds.
- Reduced internal wear and tear
- Best Quality of Oil & Cake.
- Maintenance is less & easy
- Hardened Worm Assembly
- Steel Fabricated Base
-
Model of Expeller SHREEJI VK-100 Chamber Fabricated chamber HP 3 Phase 30 HP Motor Capacity 8 TON / 24 Hour
