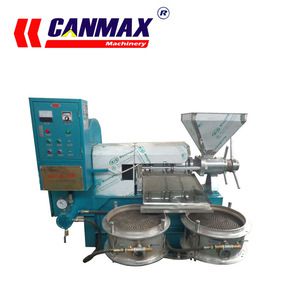

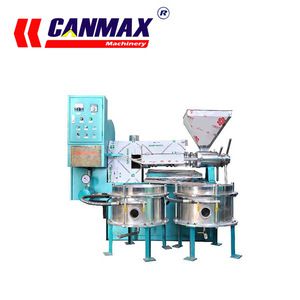

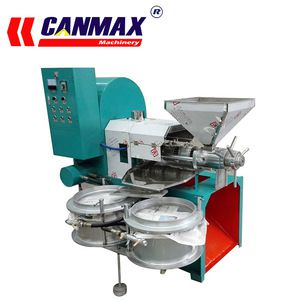

hot and cold hemp oll press machine/big capacity oil making machine/oil presser

Payment accepted: After confirming all the details with our sales, we will make contract for you to make deposit first and the balance need to be cleared against shipping.

Technical Feature

  • New
  • Ssunflower soybean peanut coconut oil
  • Cold & Hot Pressing Machine
  • Automatic
  • 150-300kg/h
  • Henan, China (Mainland)
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~5

PRIMARY PARAMETERS

Condition
New
Usage
Ssunflower soybean peanut coconut oil
Type
Cold & Hot Pressing Machine
Automatic Grade
Automatic
Production Capacity
150-300kg/h
Place of Origin
Henan, China (Mainland)
Brand Name
CANMAX
Model Number
H6YL-100
Voltage
220V/380V
Power(W)
7.5kw
Dimension(L*W*H)
1900*1200*1600mm
Weight
1200kg
Certification
ISO CE SGS
After-sales Service Provided
Engineers available to service machinery overseas
Name
oil presser
Function
Making Edible Oil
Advantage
Energy Saving Low Residual
Material
316 Stainless Steel
Level
4
Screw Dia
100mm
Cake oil rate
6%
Oil filter
2
Movable
yes
Multi-purpose
yes

DETAIL DESCRIPTION

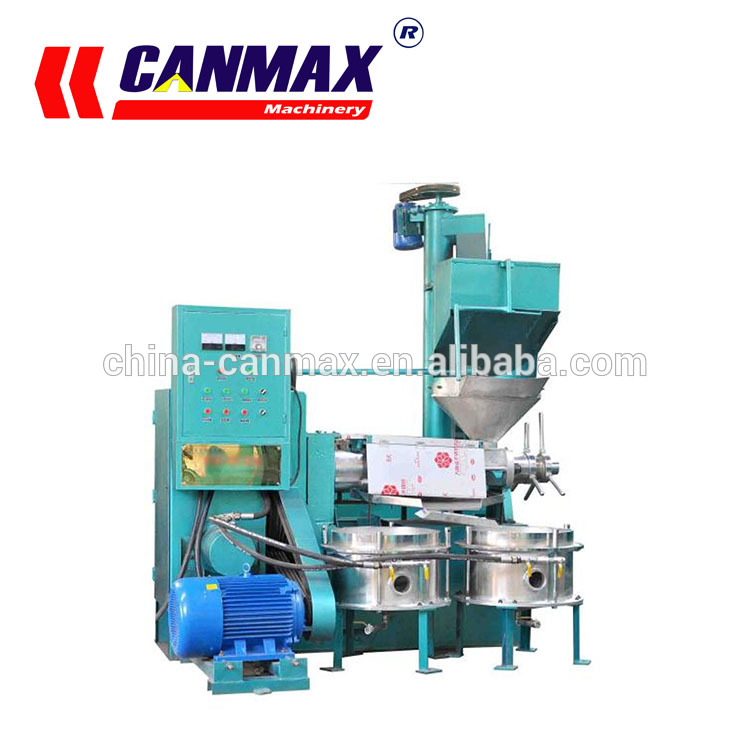

High Efficiency  oil extraction machine,oil presser

Product Description
Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings.

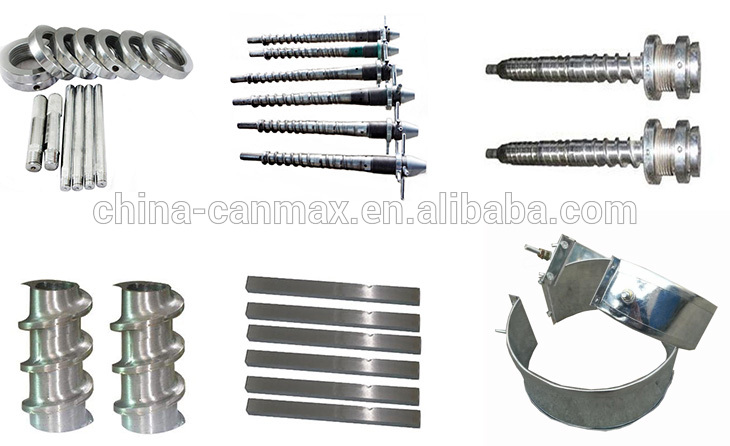

Spare parts:





Features of screw oil press :
* Cast iron machine base
* Special gear box structure make the rotating speed averagely
* High Manganese steel
* vegetable oil seeds, soybeans, peanuts, cotton seeds, sesame seeds, palm kernel, coconut etc
* Compact structure, stable function, simple maintenance







Working Process



Working flowchart:

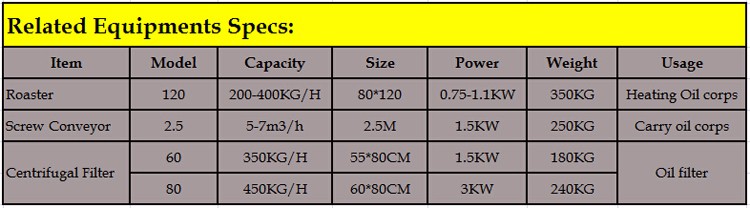

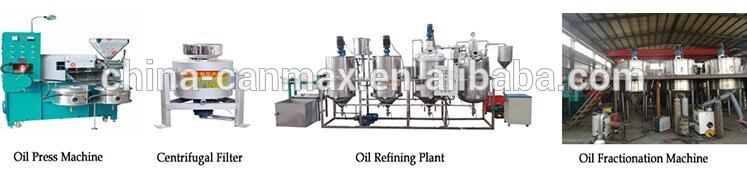

Related Products





Roaster(heating) => Screw conveyor =>oil presser =>Centrifugal Oil filter

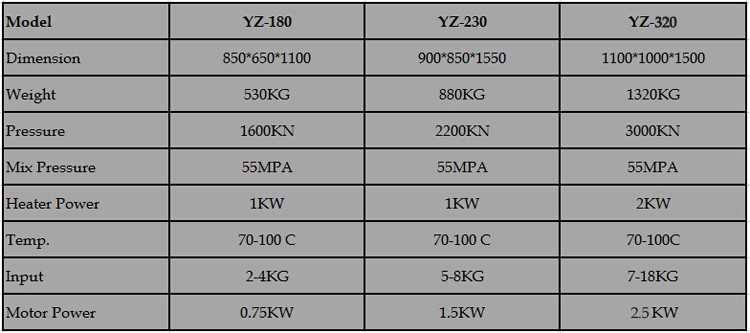

Hydraulicoil presser

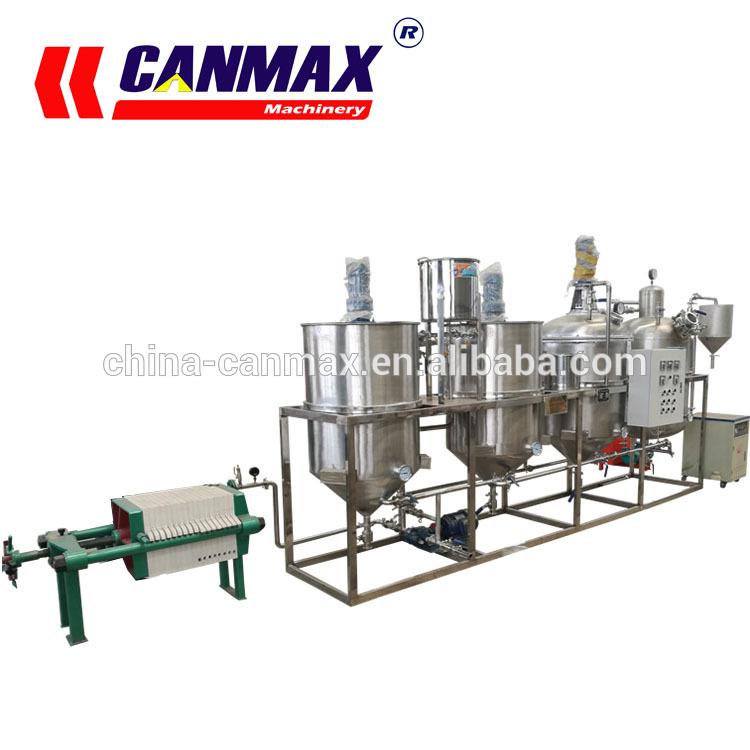

Oil refining machine:







Specification
Items JLP-300JLP-500JLP-1500JLP-4000
Volume per Tank(L)30050015004000
Total Power(KW)30.9537.453846
Pump Power5.355.352226
Voltage(V)220/380220/380220/380220/380
Material304 S/S220/380220/380220/380
Weight(KG)18003000700020000
Flatform Size(MM)3000*15006500*15009500*220013000*2600

Process Range:

First Tank:Dephosphorization and Degumming,

Secend Tank:Deacidification

Third Tank:Decolorization

Fourth Tank:Deodorization



Clients Visiting



Clients Visiting:

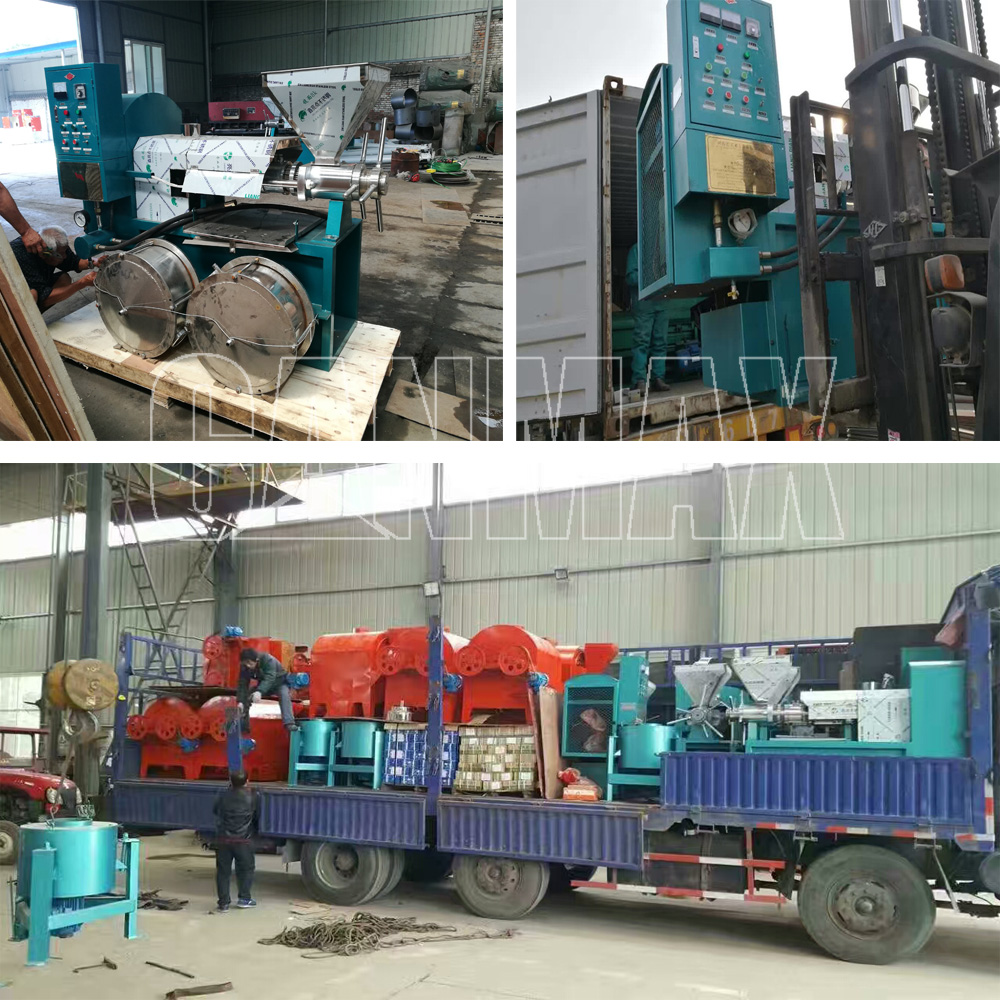

Packaging & Shipping

Package:

FAQ

FAQ:


1. Payment accepted: After confirming all the details with our sales, we will make contract for you to make deposit first and the balance need to be cleared against shipping. Generally we accept most of the payment methods like TT, L/C, PayPal, West union, Moneygram.
2. Lead time: 7 working days against your deposit.
3. What about the quality: We use the national certified steel and top brand e-parts
4. Warranty: 12 months warranty and life time service.
5. Certificate: ISO, CE, CCC
6. How can I get to your company: We are located in Gongyi City. You can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick you up there.

7. Raw Material: It is multifunctional, all the oil corps on the market can be processed.

About CANMAX

About CANMAX:



We are a professional manufacturer of various machines for 14 years. Our products has been exported to more than 55 countries in the world. We have good faith in working with you and we are sure CANMAX team is one of your best Choices in China.
