Product Description
Product Application

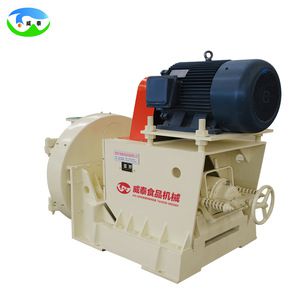

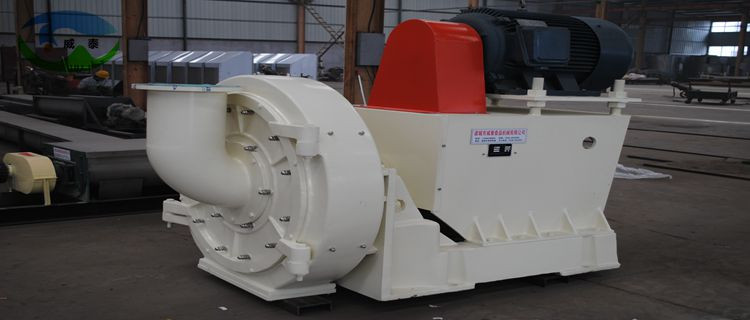

DTMT convex tooth germination equipment is a coarse crushing equipment. It is mainly used to grind corn after steeping and working together with germ cyclone to separate corn germ from germ milk. In order to increase recovery rate of corn germ, two-stage crumbing process is adopted. By adjusting the gap between the moving and fixed discs to reduces breakage rate of corn germs.
| Technical parameter | |||||||
| Type | Diameter of disc(mm) | Rotary speed (r/min) | Thruput(T/h) | Motor power(kw) | Size（mm） | Weight(kg) | |
| Primary crushing | Secondary crushing | ||||||
| DTMT800 | 800 | 970 | 4-8 | 6-12 | 37 | 2510×1100×1125 | 1540 |
| DTMT920 | 920 | 820 | 20-25 | 20-26 | 75 | 2060×1270×1400 | 1800 |
| DTMT1200 | 1200 | 880 | 20-30 | 20-30 | 75 | 2600×1500×1800 | 3000 |
Company profile
Detailed Images
Machine Parts

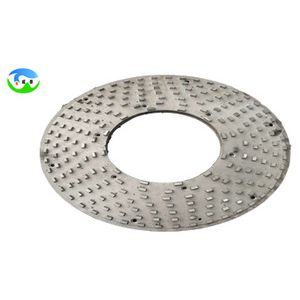

Name: refiner plate
Original: China
Material: nodular cast iron
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| Packaging | seaworthy packing |
China
