YTZF-28-40 Super Fine Maize Meal Machine

40 Super Fine Maize Meal Machine is our newly developed corn processing equipment based on African market demand and the local diet tradition, especially the demand in white corn flour milling.

Technical Feature

  • New
  • Henan, China (Mainland)
  • Win Tone
  • YTZF-28-40
  • 600-700kg/h
  • 380V 50Hz
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~3

PRIMARY PARAMETERS

Condition
New
Place of Origin
Henan, China (Mainland)
Brand Name
Win Tone
Model Number
YTZF-28-40
Production Capacity
600-700kg/h
Voltage
380V 50Hz
Power(W)
7.5 kw
Weight
230kg
Dimension(L*W*H)
1600*1150*1800mm
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
YTZF-28-40 Super Fine Maize Meal Machine
Raw Grain
corn, paddy, bean
corn
600-700 t 30-60mesh
paddy
350-450 40-60mesh
bean
250-350 40-60mesh
Air Volume (m3/h)
2200-2600
Bran Rate (%)
19-30
Function
corn peeling, corn polishing, corn degerming, corn flour milling
Final products
corn, paddy, bean flour
demand
African market

DETAIL DESCRIPTION

Product Description

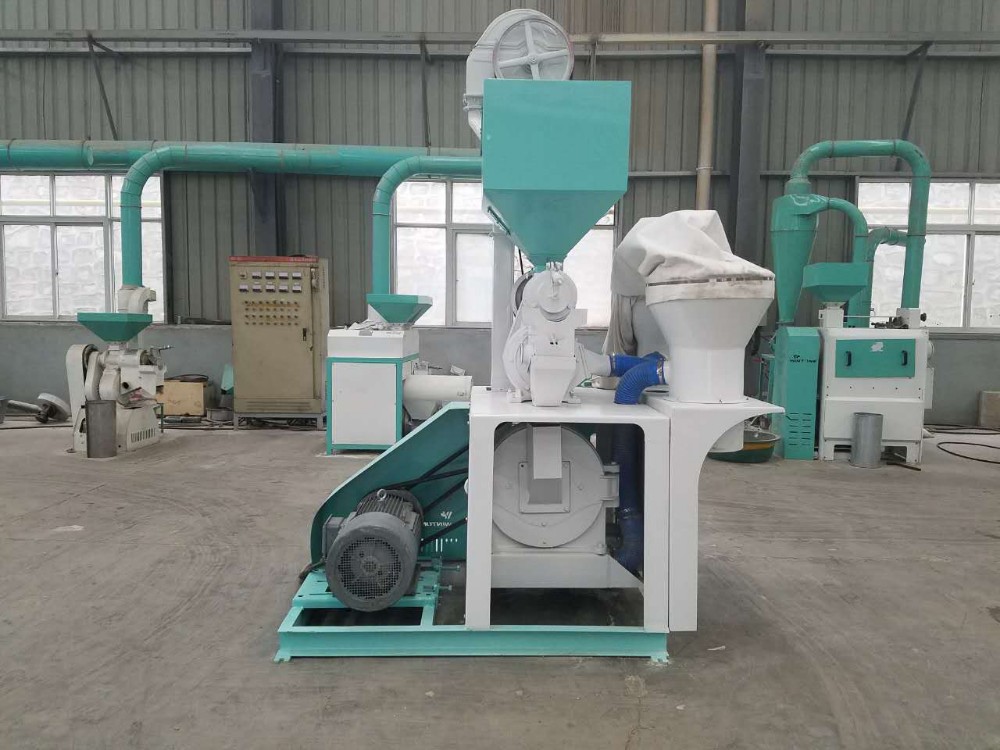

YTZF-28-40 Super Fine Maize Meal Machine


YTZF-28-40 Corn Meal Machine Technical Parameter:

Model
Raw Grain
Yield
(kg/h)
Air Volume
(m³/h)
Weight
(kg)
Power
(kW)
Bran Rate
(%)
Powder Fineness
(mesh)
Boundary
Dimension
(mm)
YTZF-28-40
corn
600-700
2200-2600
230
7.5
19-30
30-60
1600×1150×1800
paddy
350-450
40-60
bean
250-350
40-60

YTZF-28-40 Super Fine Maize Meal Machine Main Features:

YTZF-28-40 Super Fine Maize Meal Machine is our newly developed corn processing equipment based on African market demand and the local diet tradition, especially the demand in white corn flour milling.

YTZF-28-40 Super Fine Maize Meal Machine consists of different functions together: corn peeling, polishing, degerming, cleaning and flour milling and can produce corn flour directly used in cooking. It is the ideal equipment for large quantity of corn processing enterprises and individual users for its multi-functions, compact structure, high efficiency and low energy consumption.

YTZF-28-40 Super Fine Maize Meal Machine Structure and Working Principle:

1.It is mainly composed of the following parts: conveying, peeling, air blowing, flour milling, dedusting, transmission and machine frame.

2.After cleaning, corn is blended with a small quantity of water(≤3%), and then is conveyed to the moistening barn for 7-10 minutes. Then it is sent into the peeling chamber for peeling. The mutual friction among corn, high-speed rotation iron roller and sieve plate damages the bonding strength among the corn endosperm, corn bran and corn germ and makes them separated.

After peeling, corn kernels are sent into the grinding chamber and are milled under the force of high-speed rotation, impacting and shearing. The granules smaller than the sieve plate mesh are discharged out of the machine. And the larger ones are processed repeatedly.

Then the mixing material is sent into the filtration fabric for air exhausting. At last, the flour is collected and packaged.

Certifications
Company Profile
Exhibition

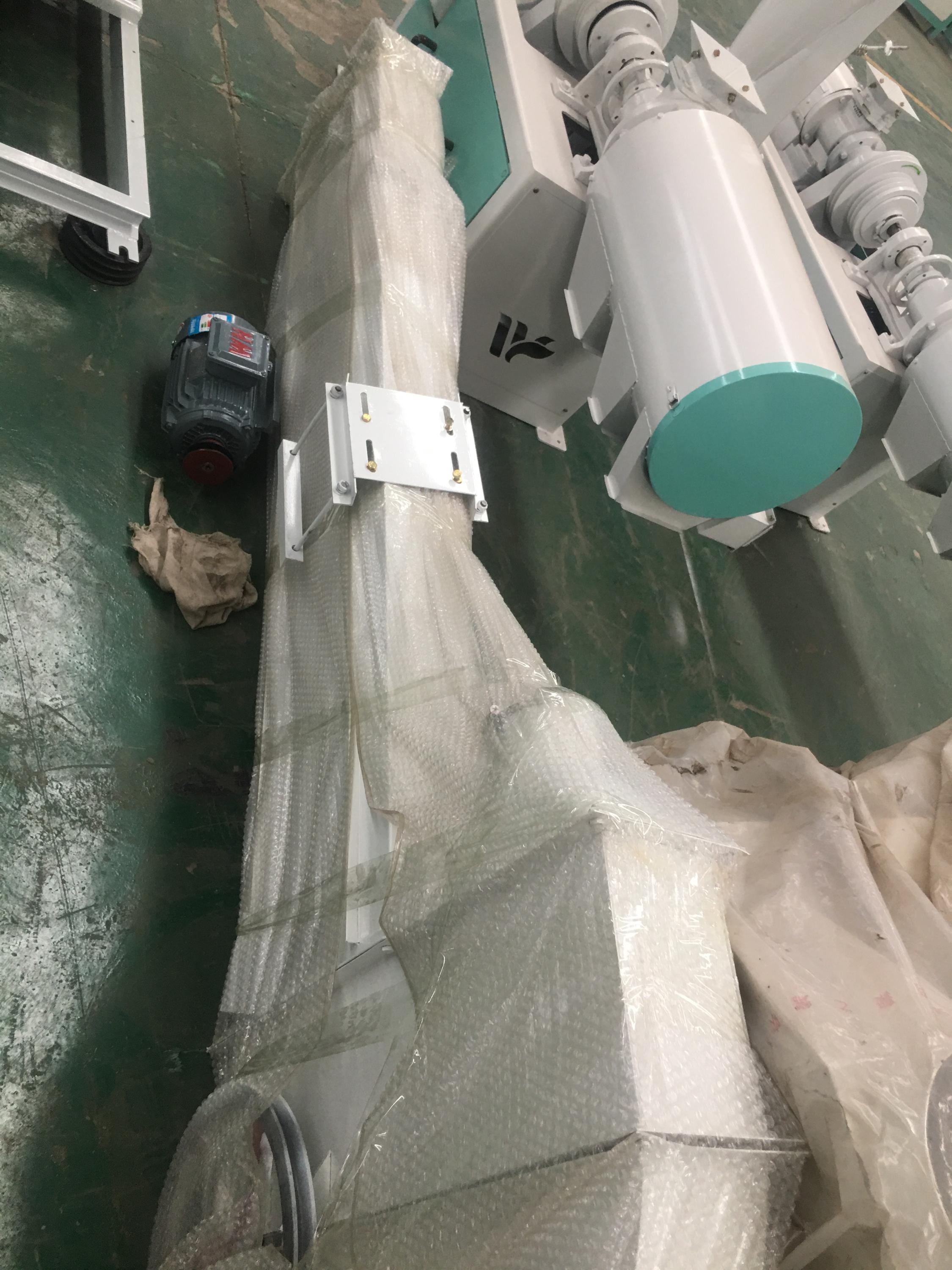

Packing & Delivery
