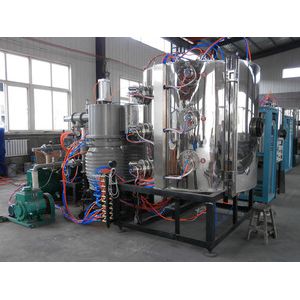

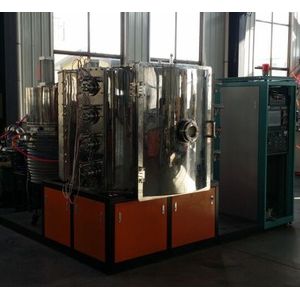

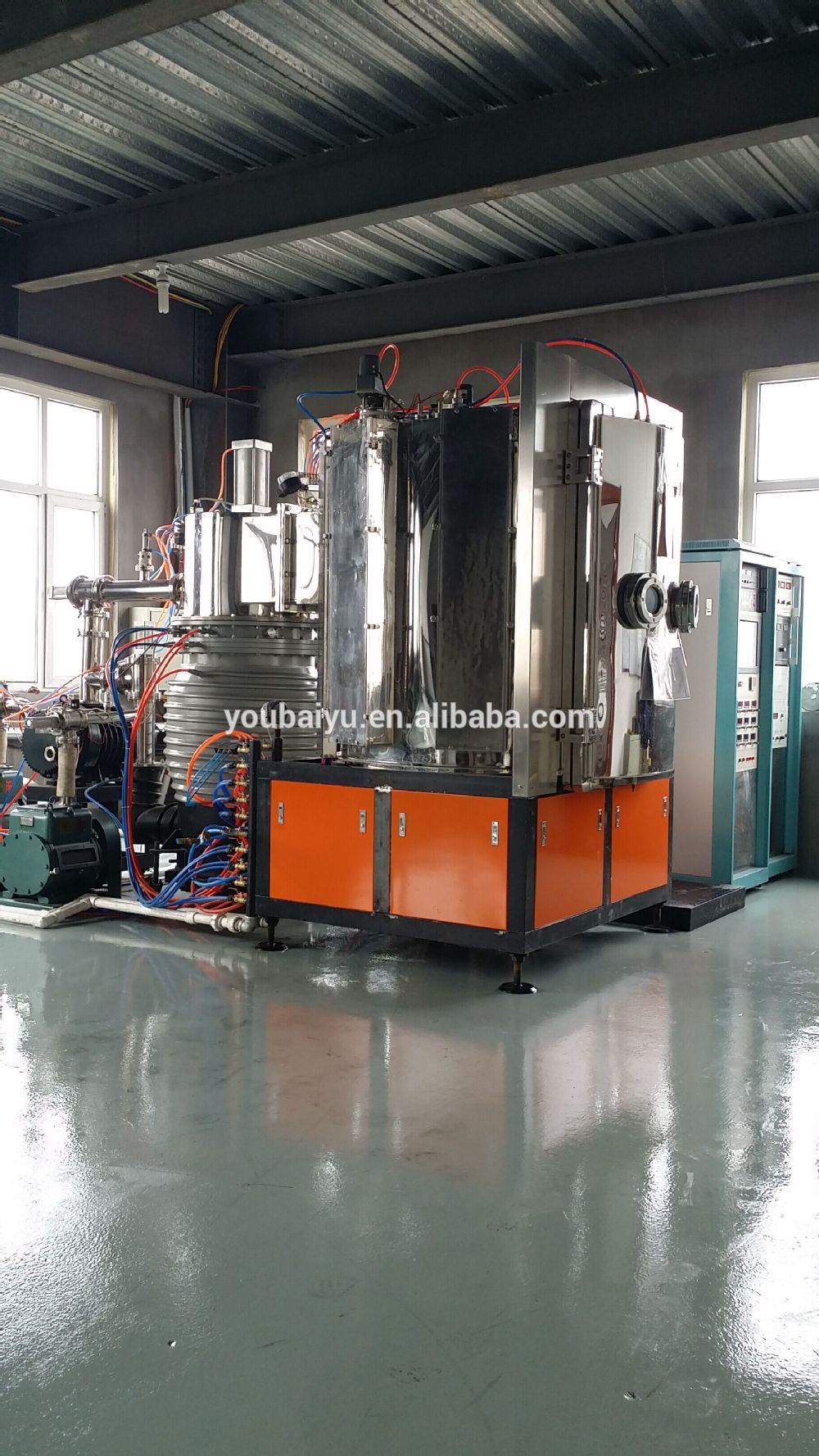

Stainless steel rose red color PVD vacuum coating equipment / machine
Stainless steel rose red color PVD vacuum coating equipment / machine which is applied to coating metal,glass,jewellery,and ceramic products, is mainly used for coating
stainless steel or metal plates.By using the PVD technology, the stainless steel plates can
be much efficiently and stably.
Coating: TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN

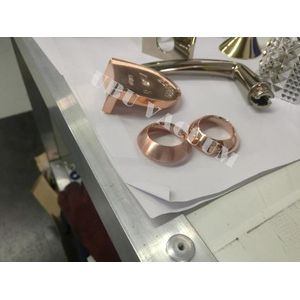

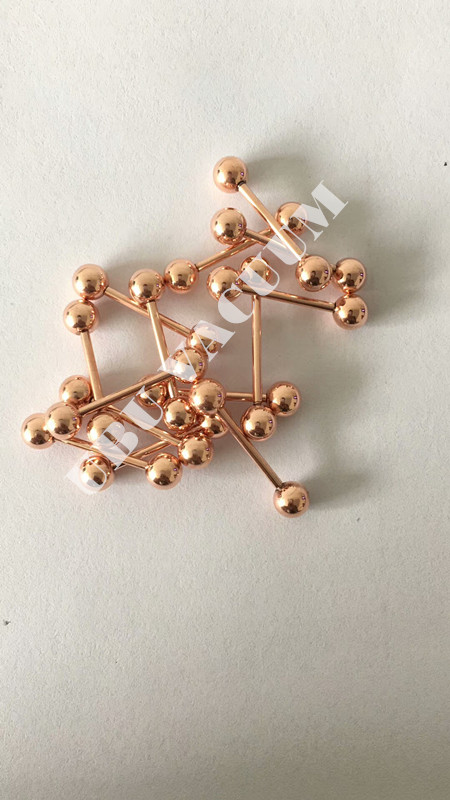

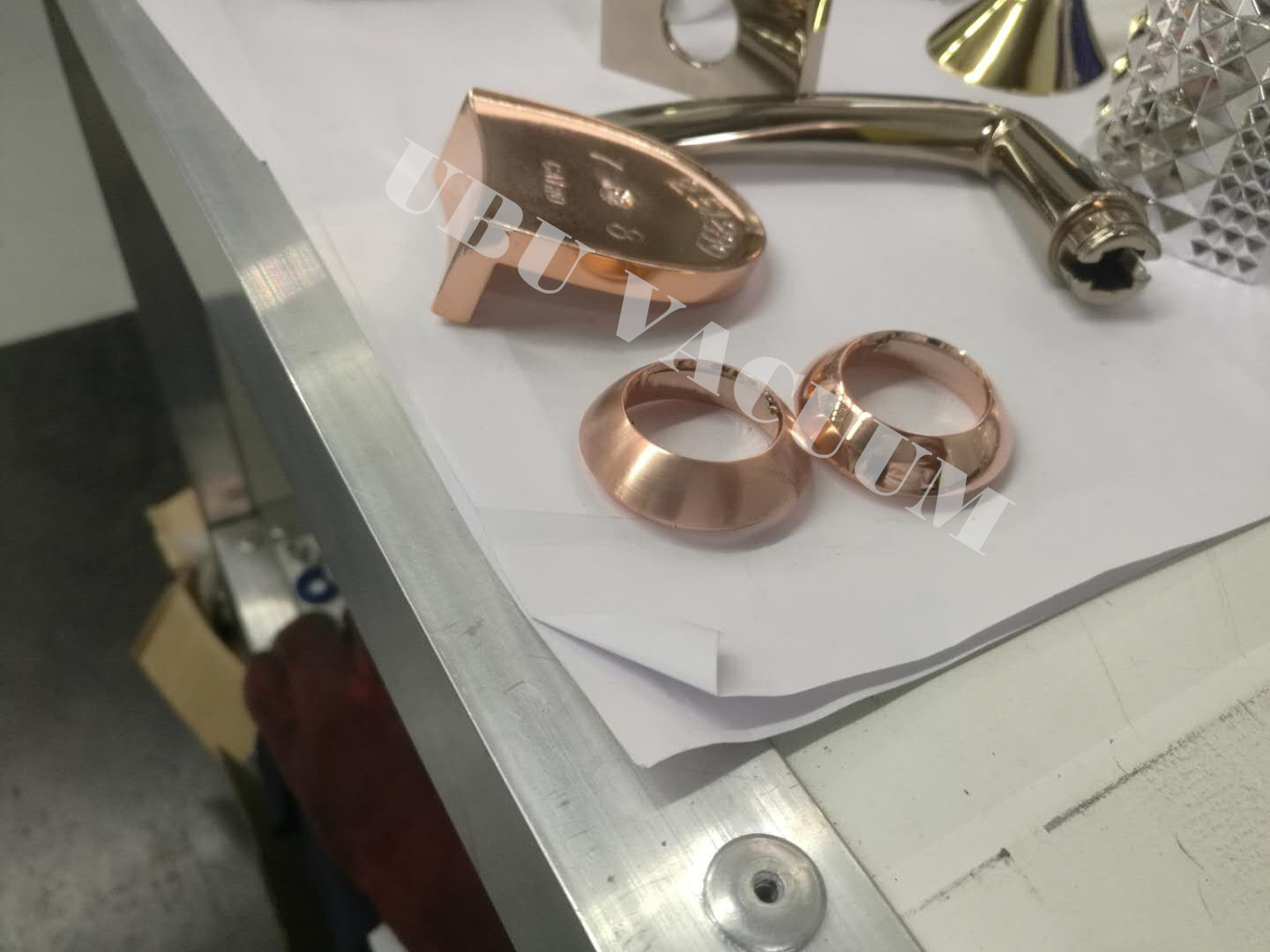

Color: gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc.
Model | LZ-1000 | LZ-1200 | LZ-1300 | LZ-1600 | LZ-2100 | LZ-2300 |
Vacuum chamber size | D1000×H 1000mm | D1200×H 1300mm | D1300×H 1300mm | D1600×H 1800mm | D2100×H 3600mm | D2300×H 4500mm |
Power supply | Pulse bias power supply; arc power supply (can be equipped with different power supply according to customer requirements) | |||||
Vacuum chamber structure | Vertical single/double door, back vacuum acquisition system | |||||
Vacuum chamber material | SS304 superior stainless steel | |||||
Ultimate vacuum | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa | 8.0×10-4Pa |
Pumping speed | From atmosphere to 6.7×10-3Pa spend 8~15min (no-load) | |||||
Vacuum system | Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted) | |||||
Number of multi-arc | 4 | 8 | 8 | 16 | 36 | 45 |

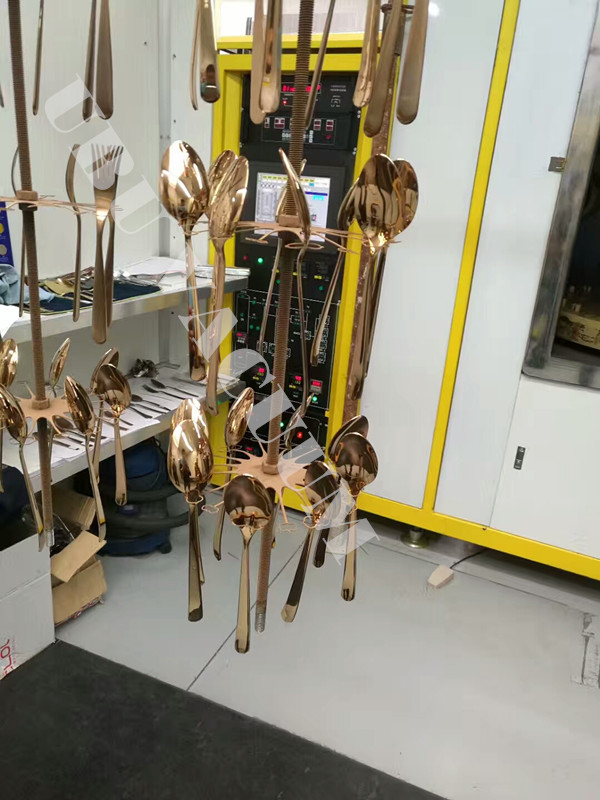

Rotation mode | Planetary revolution and rotation and frequency conversion speed regulation (controlled and adjustable, up-down rotation shelves, axes number is determined by actual situation) | |||||
Process gas | Mass flow controller (3-4 road), manual or automatic filling system | |||||
Cooling system | Water-cooling circulatory system,cooling water tower or industrial cooling water machine is also needed (supplied by customer) | |||||
Control mode | Manual or PLC + touch screen | |||||
Alarm and protection | Water pressure alarm, atmosphere pressure alarm, over current protection, related protective measures and electrical interlock functions. | |||||
Other data | Water pressure≥0.2MPa, water temperature≤25℃, atmosphere pressure 0.5-0.8MPa | |||||
Remark | Specific configuration size can be designed according to customer requirements. Another power supply can be equipped such as DC magnetron power supply and IF power supply to meet the different requirements. Customizable vacuum chamber size range is D 500-3000mm, H: 500-7000mm. |
PVD coating technology
PVD coating is a plasma coating deposition technology which the materials are vaporized under vacuum conditions ,so as to avoid the reaction between the vaporized material and air. PVD coating is used to add new features as improve the workpieces' hardness,wear resisitance,corrosion resisitance ect..
coating thickness 0.5-10μm
hardness 1000-4000 HV
temperature resisitance 300-1150°c
deposition temperature 200-600°c

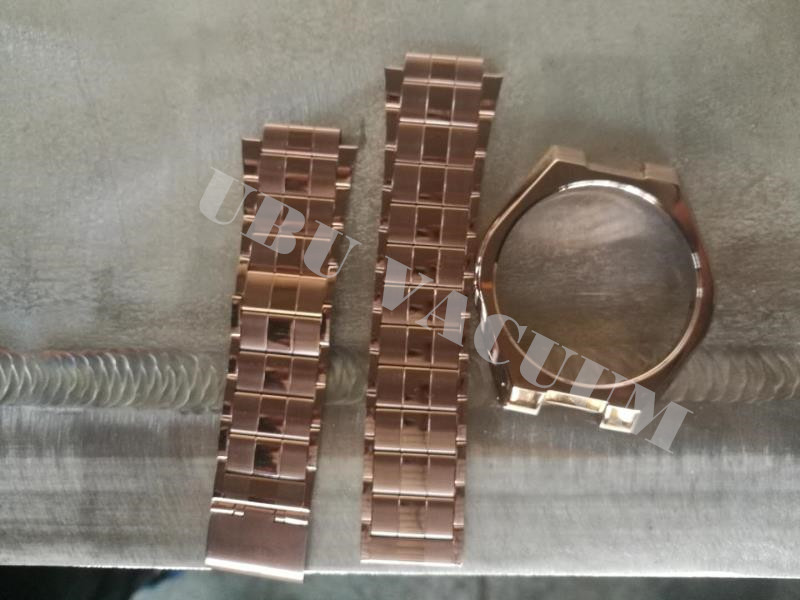

Watch industry (strap, case, dial)
Automotive industry (piston, piston rings, alloy wheels)
Hardware industry (sanitary ware, door knobs, locks)

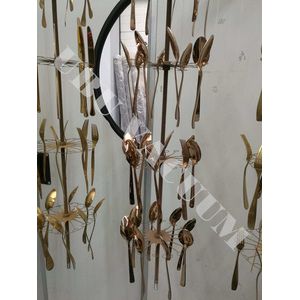

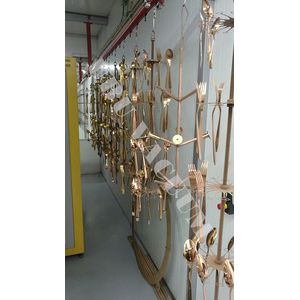

Glass ceramics industry (glass tableware, ceramic crafts)
Architecture industry (stainless steel plate, stair railings, columns)
Tools industry (drill bits, carbide cutters, broaches, shaving heads)
Precision mold industry (standard punch mold, forming mold)
As well as pens and glasses etc..
1 common package : standard wooden case
2 under customer's request
Warranty: 1 year
Engineers available to service machinery overseas
Answer in 24 hours, online technical support by skype or other messager

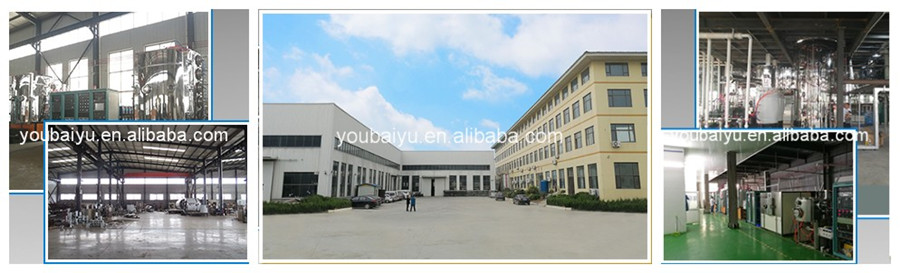

Qingdao UBU Vacuum Equipment Co.,Ltd. is a high-tech enterprise which is specialized in engaging in researching, manufacturing and marketing various kinds of vacuum coating equipment, and these vacuum application equipment provide a powerful technical support and after-sales service for all kinds of famous enterprises both at home and abroad.
Our company has had 9 main coating equipment up to now, including Multiple arc plasma vacuum coating machine, Magnetic sputtering vacuum coating machine, Multiple functional intermediate frequency vacuum coating machine, Evaporation vacuum coating machine, Automatic optical coating equipment, Vacuum roll coating machine, DLC vacuum coating machine, UV lacquer curing system and Continuous magnetic sputtering vacuum coating line. In addition, we also provide services of professional PVD coating services according to customer’s different requirements, supplying related accessories and old machine’s updating, helping solving customer’s various questions and making all the customers satisfied.
Our company is founded on the idea of "The user is supreme, strives for perfection" , adhering to the "high quality, high efficiency, low energy consumption" development strategy. No matter the turn-key project, or one-to-one professional service policy will provide the omni bearing, multilevel and high field for the general customers high quality service. Our company will continue to make contributions to advancing the world standard of vacuum application equipment, hoping to cooperate with all customers to create new brilliant future.

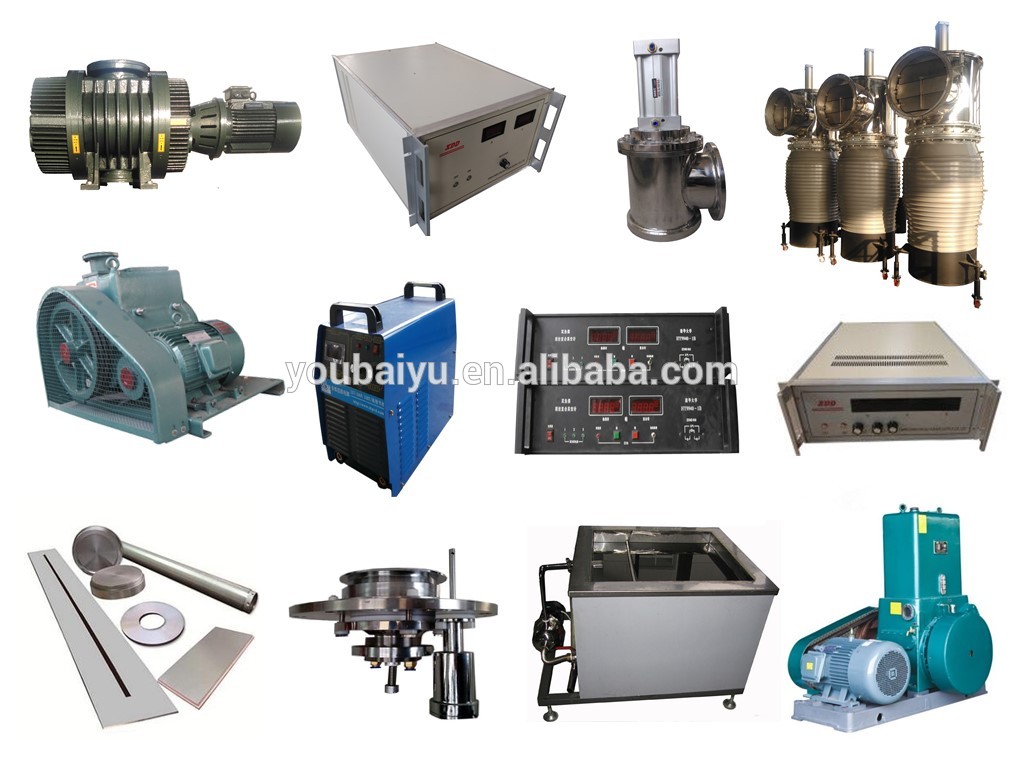

Diffusion pump, rotary vane pump, roots pump, holding pump, pulse magnetron sputtering
power, unipolar pulse power, frequency magnetron power, DC magnetron power, vacuum
gauge, flange.
Remark
In order to provide you suitable machine ,pls tell us some information ,thank you
1, what is your products ? size ? material ?
2,how many products do you need to coating per day ?
3, What material
