high wear resistance steel plate used in Pressure Frame Wear Plate and Crusher Screen Plate
Wear resistance plates information
Model | Wear size/mm | Supply size | Wear layer thickness | Kg/m2 | Area(m2)/ton |
WRP-B303 | 3+3 | 1.4m×3m | 3mm | 46.8 | 21.37 |
WRP-B503 | 5+3 | 1.4m×3m | 3mm | 62.4 | 16.03 |
WRP-B604 | 6+4 | 1.4m×3m | 4mm | 78.0 | 12.82 |
WRP-B606 | 6+6 | 1.4m×3m | 6mm | 93.6 | 10.68 |
WRP-B804 | 8+4 | 1.4m×3m | 4mm | 93.6 | 10.68 |
WRP-B806 | 8+6 | 1.4m×3m | 6mm | 109.2 | 9.16 |
WRP-B1010 | 10+10 | 1.4m×3m | 10mm | 156.0 | 6.41 |
Base plate of our wear resistance plates , can be customized
Grade | Mechanical Property | Chemical Composition | ||||||||
Yield Strength | Tensile Strength | Elongation % | C | Si | Mn | S | P | |||
MPa | Kg/mm2 | MPa | Kg/mm2 | ≤ |
|
|
|
|
| |
Q235A | 235 | 24 | 375-460 | 38-47 | 26 | 0.14-0.22 | ≤0.3 | 0.3-0.65 | ≤0.05 | ≤0.045 |
Q235B | 0.12-0.20 | 0.3-0.7 | ≤0.045 | ≤0.045 | ||||||
Q235C | ≤0.18 | 0.35-0.8 | ≤0.04 | ≤0.04 | ||||||
Q235D | ≤0.18 | 0.35-0.8 | ≤0.035 | ≤0.035 |
Flux-cored wires on the Overlay of our wear resistance plates , can be customized.
Composition | C | Mn | Si | Cr | Fe | Other |
HD161 | 3-5 | 0.5-2.5 | 0.5-2.5 | 22-27 | Bal. | 2 |
Application of our wear resistance plates:

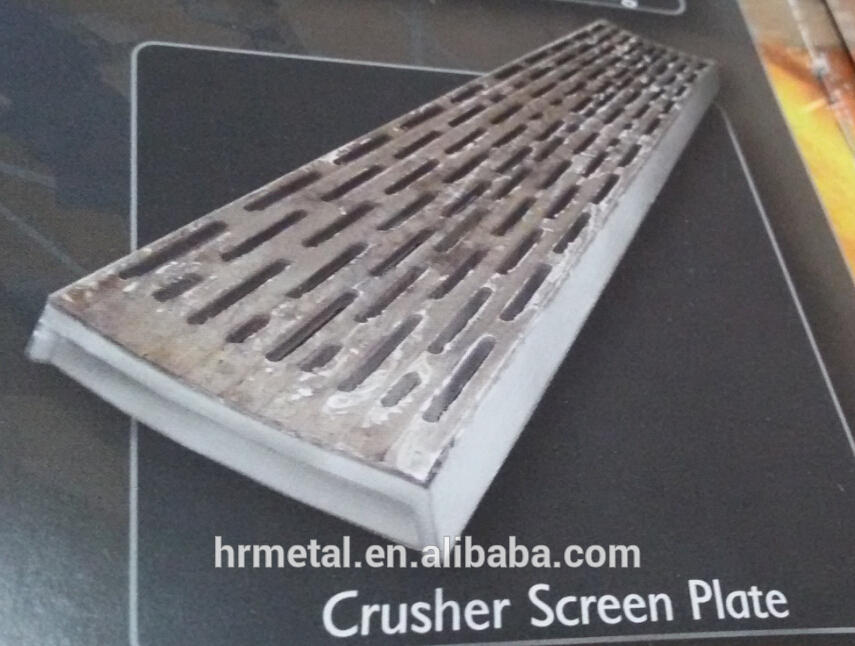

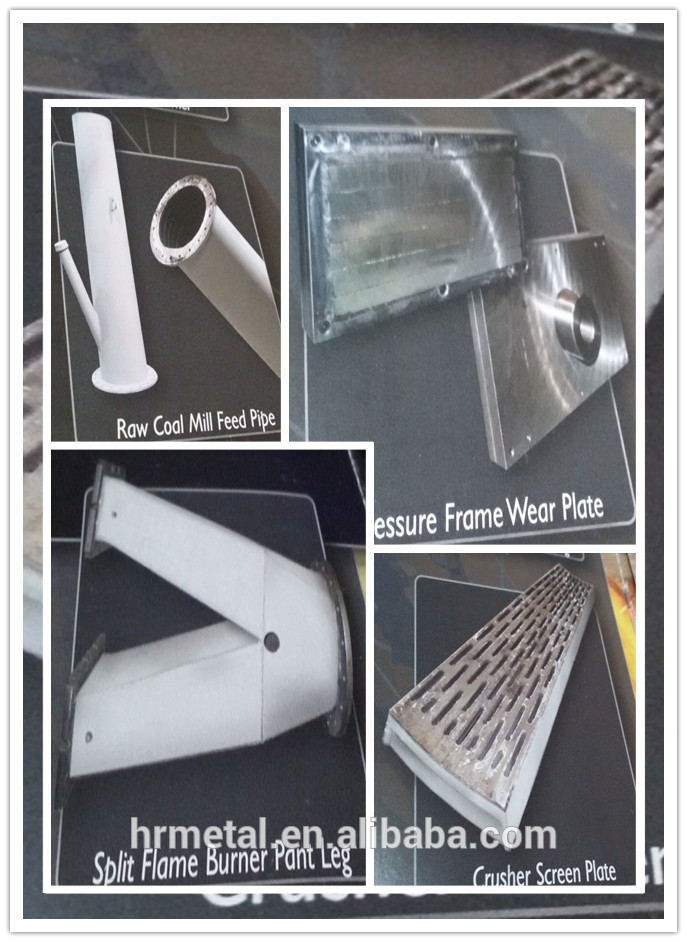

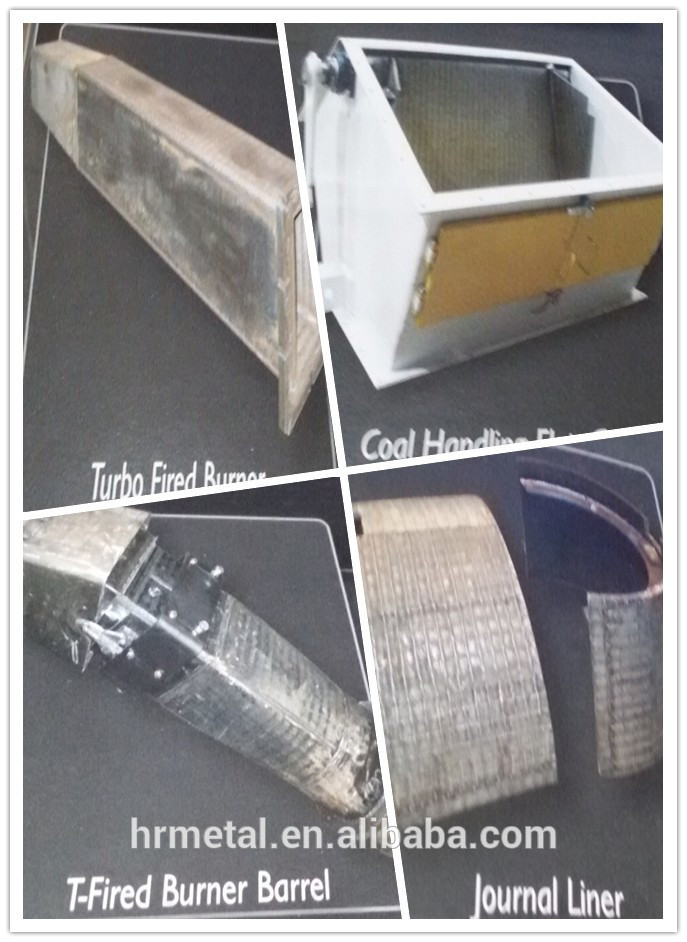

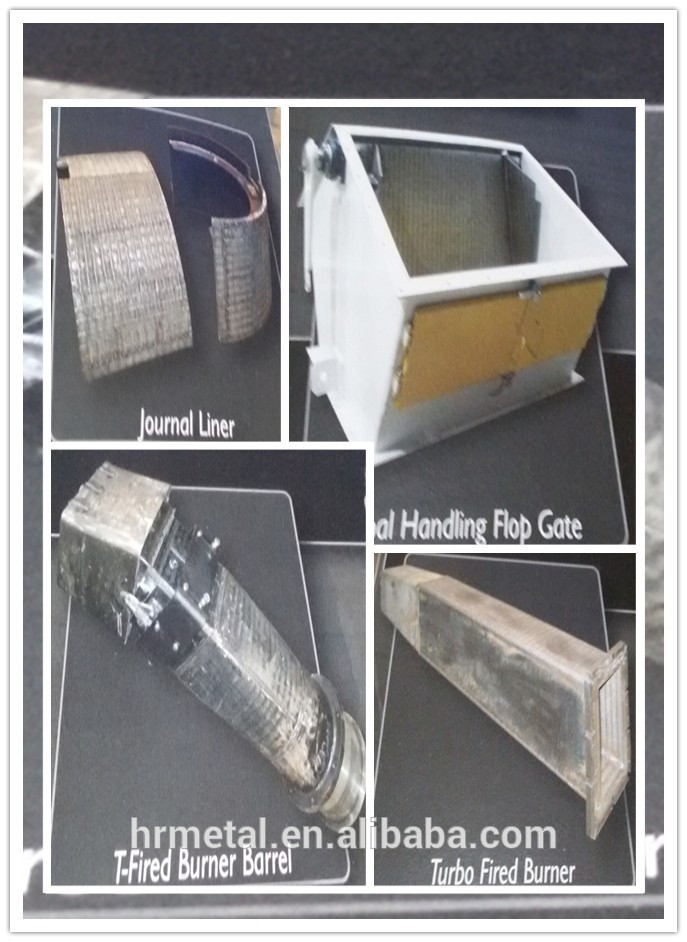

1. Power Industry: Frozen Coal Cracker, Cyclone Burner Door, Square to Round Transition, Segmented Classifier Cone, Coal Handling Flop Gate, Journal Liner, Turbo Fired Burner, T-Fired Burner Barrel, Split Flame Burner Pant Leg, Raw Coal Mill Feed Pipe, Pressure Frame Wear Plate, Crusher Screen Plate.
2. Mining Industry: Dragline Bucket Liners, Truck Bed Liner Systems, Dozer Blade Liner Systems, Shovel Bucket Liners, Front End Loader Liner Systems, Raw Material Chute, Grader Blade Liner Systems, Rock Crusher Housing, Raw Material Funnel, Square to Round Transition, Classifier Blades, Wheel Loader Liner Systems.
3. Cement Industry: Stationary Classifier Blades, Raw Mill Nozzle, Raw Mill Roller Sweeps, Raw Mill Paddle, Raw Mill Feed Pipe, Raw Mill Classifier Cone, Raw Mill Wall Liners, ID Fan Blade Liners, Replaceable Bucket Liners, Augers, Slurry Transport Pipes, Elevator Bucket Liners.
4. Steel Industry: Coke Injection Line Elbows, Alloy Hopper, Reverse Fan Box, Dust Handling System, High Blast Furnace Coke Screens, Replaceable ID Fan Housing Liners, Wood Pulp Transfer Line, Log Stacker Fork Liners, Auger Flighting, 1/2’’ on 1’’ Mill Feed Chute Liner, Flat Back Elbows, Blow Tank Digester Target Plate

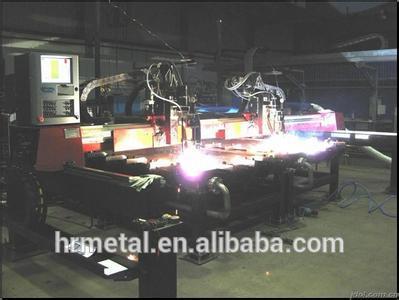

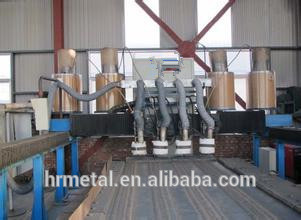

Arc surfacing method

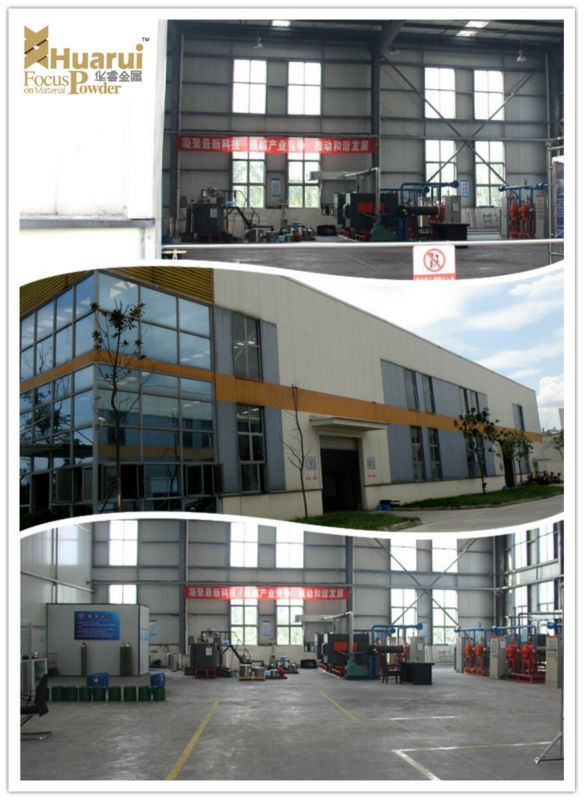

About us:
Why us
1) High wear performance: the property of wear resistance is much higher than the heat resistant steel and casting wear-resistant cast iron, abrasion resistance is also significantly higher than the wearing layer that relying on spray welding or thermal spraying to produce.
2) Strong Shock Resistance: strong shock resistance and crack resistance, that suitable for vibration, hard shock working conditions.
3) Easy Processing: made in standard sizes, which had light weight, convenient and flexible processing.
4) Better Cost Performance: a better cost performance 2-3 times than ordinary materials, the per unit area cost only the a half of using the same kind of ingredients by hand electrode surfacing.
5) Strict Quality Control: No matter what thickness of the wear plates, the wear resistant layers are uniformly straight. Could be processed the wear resistant composite plates with thinness of 4mm (2mm +2 mm)
