TDR Power cable fault cable testing locator, for localcable, HF communication cable and aerial cable, checking different kind cable faults.
cable testing locator| cable testing locator| cable testing locator| cable testing locator|cable testing locator
Main components of cable testing locator
| High configuration | Economic configuration | |
| 1 | Cable fault test system | Cable fault tester |
| 2 | Cable fault tester | Multi pulse processing unit |
| 3 | Cable fault accurate locator | Cable fault accurate locator |
| 4 | Path instrument | HV generator |
| 5 | Dry pulse capacitor |
Work flow of cable fault locator

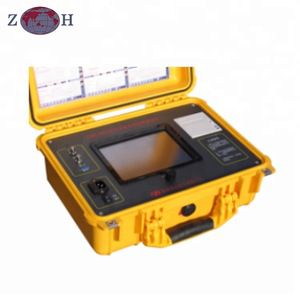

I Cable fault testing system and cable fault tester

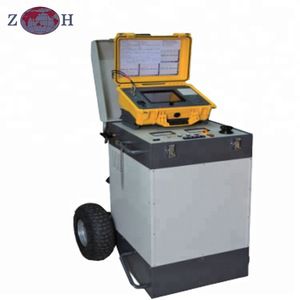

Introduction of cable fault locator
- Integrated trolley structure, suiatble for site work
- No need to connect the complex wires when site work, all testing modes and voltage classes could change by inside HV switch.
- Could locate fast for all 220V-220KV voltage classes cable faults
Main technical data of cable fault locator
- Test mode: Arc refection/multiple pulse, DC arc reflection, voltage sampling, current sampling, DC output.
- Sampling signal type: Arc refection/multiple pulse, DC arc reflection, voltage sampling, current sampling, low-voltage pulse
- DC high voltage output
0-32KV Negative polarity, maximum output current: 76mA
0-16KV Negative polarity, maximum output current: 152mA
0-8KV Negative polarity, maximum output current: 304mA
- Impact capacitance
0-32KV 4μF, maximum output energy: 2048J
0-16KV 16μF, maximum output energy: 2048J
0-8KV 64μF, maximum output energy: 2048J
- Ball gap impact discharge: weak control solenoid valve air gap, discharge cycle 3-12 seconds adjustable, and specially designed muffler device to meet the initial cable fault mute requirements.
- Protection
Zero voltage position protection, to protect operator and cable from wrong operation
cable testing locator|cable testing locator| cable testing locator| cable testing locator| cable testing locator
II Cable fault path instrutment
Main technical data of cable fault path locator
- Sensitivity: 6E-15 Tesla, 5μA 1 meter (33Hz)
- Dynamic range: 140dB rms / √Hz
- Selectivity: 120dB / Hz
- Depth accuracy: Direct: 0.1-3 m error of ± 2.5 Probe: 0.1-7 m error of 2.5%
- Maximum depth *: 6 meters for pipelines and 18 meters for probes
- Positioning accuracy: ± 2.5%
- Fault Finding (FF): Detects cable sheaths up to 2MΩ with A-frame malfunction
- Current fault finding: 220 HZ to 4KHZ
- Battery: Receiver: 2 x D-cells (LR20) Transmitter: 8 x D-cells (LR20)
- Battery life: Receiver: 30 hours Transmitter: 15 hours, and signal status
- Guarantee: one year
- Dynamic overload protection: 30dB (automatic)
- Standard: FCC, RSS 310 RoHS, WEEE
- Certification standards: CE, Bluetooth
- Weight: Transmitter = 2.84 kg (with battery)) received machine = 1.87 kg (with battery)
- Environmental Waterproof: IP54 * Depth of detection is far more than 6 meters, but reduced accuracy.
III Accurate point meter/ cable fault accurate locator
Main technical data of cable fault locator
1) Test mode: electromagnetic direction method, electromagnetic strength method, sound listening method, sound and electromagnetic synchronization method
2) Distance measurement: 0.0-25ms,
3) Synchronizing measurement: magnetic field/ sound wave
4) Filter: 100Hz-1.5kHz (sound wave)
270Hz-1.5kHz (sound wave)
150Hz-1.0kHz (sound wave)
270Hz-1.0kHz (sound wave)
5) Measurement of sound/ magnetic field/ audio signal: 1. wave shape 2. Amplitude bar 3. Digital display
6) Adjustment of sound/ magnetic field/ audio signal: press button
7) Amplification range: sound channel > 95dB (with maximum volume control), magnetic field channel >80dB
8) Test precision: 0.1m
9) Display mode: 320 x 240 high resolution, large LCD backlit displayer
10) Probe length: 480-800mm, adjustable
11) Working temperature: -20 - 50°
12) Power supply: 4 x 1.5V battery, 24hours

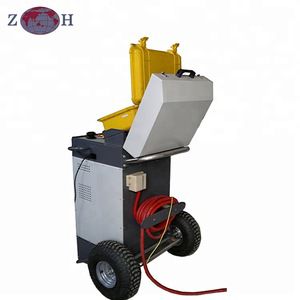

Cable fault locator system in working condition
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
1. Professional and patient consulting service to help you find the suitable solution.
3. Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4.Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6. For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7.For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that
We Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit. We can provide you not only good quality cable testing locator but also good after-sale service. And we have 12 years experience in trading machine.
