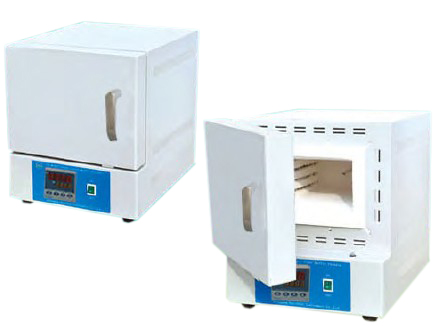

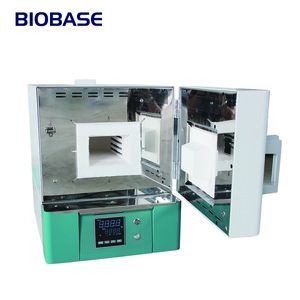

Professional Ceramic Fiber Muffle Furnace with Automatic Aarallel Pressure Door
Features of Professional Ceramic Fiber Muffle Furnace (MC2.5-12):
1. External material: cold-rolled steel with anti-bacterial powder coating and internal material: imported high density ceramic fiber.
2.Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Heating rate is about 60℃/min.
3.Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.
4. PID micro digital screen controller/programmable controller,with functions of timing(0~9999min), fixing temperature, over-temperature alarming and auto-stop.
5.Safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.
Technical Parameters of Professional Ceramic Fiber Muffle Furnace (MC2.5-12):
Model | MC2.5-12 | MC5-12 | MC10-12 |
Rated Temp.(℃) | 1200 | ||
Temp. Rising Time (Empty/min) | 20 | ||
Temp. Accuracy(℃) | ±1 | ||
Timing(min) | 0~9999 | ||
Consumption(KW) | 2.5 | 5 | 10 |
Power Supply(V) | AC220V±10%,50/60Hz | 380V/50HZ 380V/60HZ | |
Internal Size(W*D*H)mm | 200*120*80 | 300*200*120 | 400*250*160 |
External Size(W*D*H)mm | 580*412*570 | 680*522*650 | 780*584*700 |
Package Size(W*D*H)mm | 630*455*630 | 730*565*710 | 820*625*760 |
Gross Weight(Kg) | 45 | 60 | 98 |
Established in 1999
Our mission is to enable our customers to make the world healthier,cleanerand safer.
BIOBASE group invests in science and technology researches,aims to keep improving products
performance and quality as well as develops new products to meet customers'wide requirement.
We satisfy our customers by offering comprehensive support,purchase convenience and we are ready to
serve more and more BIOBASE users.
BIOBASE group,serving global distributors and its loyal end users,is becoming one of the most
important scientific services supplier.
Add: NO.51 South Gongye Road,Jinan250101,Shandong,China.
Website: www.biobase.cc www.meihuatrade.com www.labproject.cn

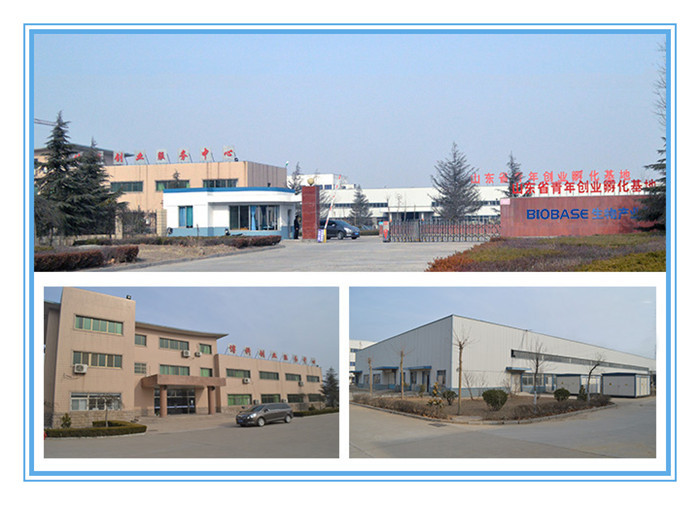

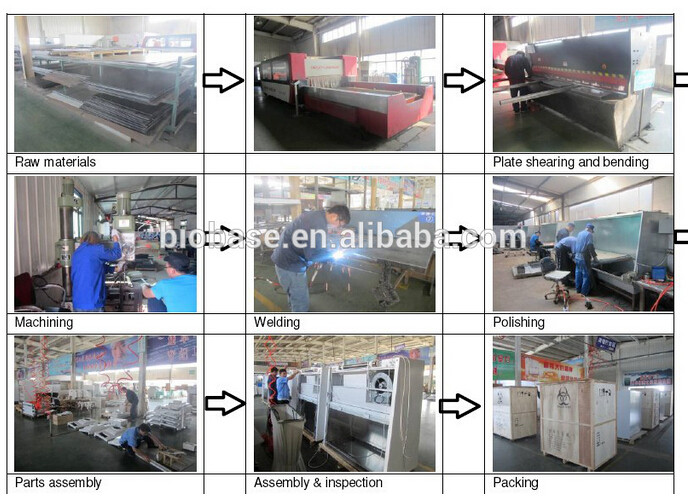

Production line:

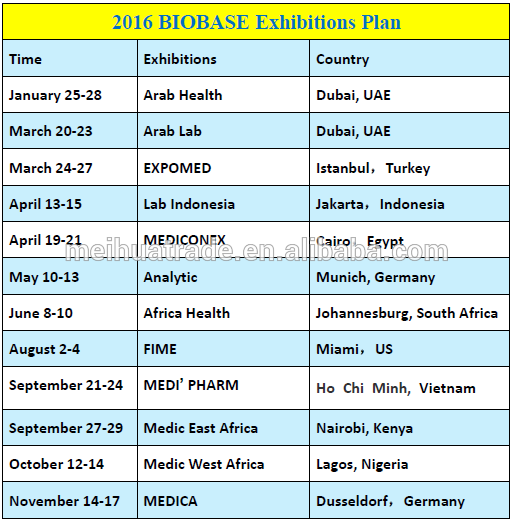

BIOBASE Exhibition:

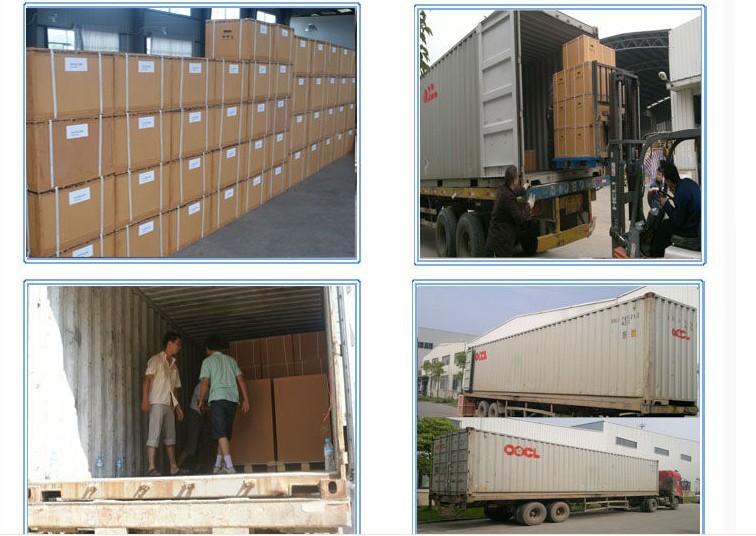

Packaging Details:
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
Delivery Detail:
Shipped in 7~20 days after payment confirmed.
