MKAS-600 High-effective Pressure Arc Screen.
Application
Dewatering and filtering.
Description
Gravity arc screen is applied on corn and germ dewatering while pressure arc screen is mainly used for fiber washing before starch refining. Arc screen is equipped with screens of different meshes on the basis of process requests. Moreover, it can be connected in series and parallel, which could not only improve the separation and washing effects but also increase the production capacity.
Specifications and parameters of Gravity Arc Screen
| MGS-400 | MGS-600 | MGS-800 | MGS-1000 | MGS-1200 | MGS-1500 | |
| Radian | 50 | 50 | 50 | 50 | 50 | 50 |
| Screen Area(m2) | 0.32 | 0.48 | 0.64 | 0.80 | 0.96 | 1.20 |
| Overflow Heitht(mm) | 520 | 520 | 520 | 520 | 520 | 520 |
| Corn dewatering Screen(mm) | 3 | 3 | 3 | 3 | 3 | 3 |
| Germ dewatering Washing Screen(mm) | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 |
| Filter Screen before 2nd Mill(mm) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Length(mm) | 800 | 800 | 800 | 1000 | 1200 | 1500 |
| Width(mm) | 400 | 600 | 800 | 800 | 800 | 800 |
Specifications and Parameters of Pressure Arc Screen
| Screen Width(mm) | 600, 800, 1000, 1200, 1800 |
| Wrap Angle | 120 |
| Mesh(mm) | 0.03-0.15 |
| Feeding Pressure(Mpa) | 0.02-0.04 |
| Fiber Dreg Content in Starch Slurry(g/l) | 0.08 |

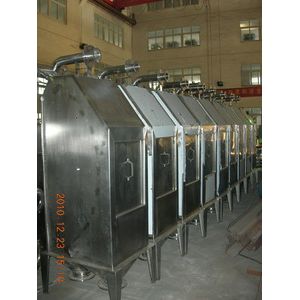

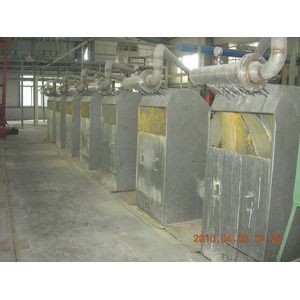

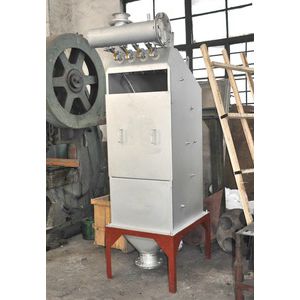

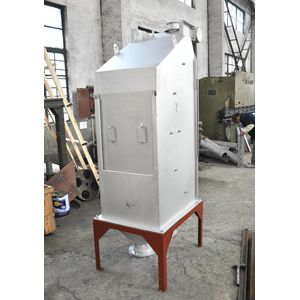

Photos
Our team
1.Strong and vigorous technological force member.
2.Abundant theory and practical experience.
3.The zealous service and fast reply.
4.The scientific management system.
Our team will offer specialized and kindly service for you from end to end.
Our culture
Keeping Integrity, Profession, Efficiency, and Win-Win as our spirit and making friends through business contacts as our goal, we are always ready to provide satisfactory services for our friends from all over the world.
WE ARE WHERE YOU ARE!
By choosing MecKey you are choosing the perfect long-term partner for your daily operations. Our service network can reach you wherever you are.
About Meckey
Meckey is a shareholding company in corn, wheat, potato, cassava, processing area, secialized in project engineering & construction, equipment manufacturing, technical support & sevices to customers worldwide.
Turnkey solutions
1. Corn grain to corn starch, gluten, germ/corn oil, fiber.
2. Wheat flour to vital gluten, A starch, B starch.
3. Potato(cassava) to potato(cassava) starch, cassava flour.
4. Starch to glucose, DMH, sorbitol, HFCS55.
5. Corn flour(rice) to glucose, DMH, sorbitol, HFCS55.
6. Modified starch, maltodextrin, potato flakes.
7. L-lysine, GSM.
Payment item
As a routine, 30% down payment, 70% by L/C at sight, 10% Bank guarantee supplied by Meckey. Workable details should be as per discussion based on the contract.
Delivery
Both your destination port or China port are available according to terms of contract. All exporting transactions can be on our duty.
Warranty
The warranty period of each item of equipment delivered shall be 12 months from the date of the signing ACCEPTANCE MEMO or 17 months from the date of shipment, whichever is earlier.
