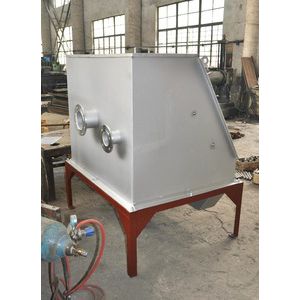

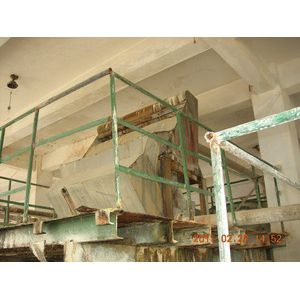

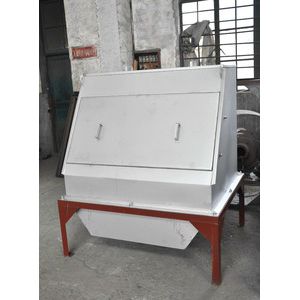

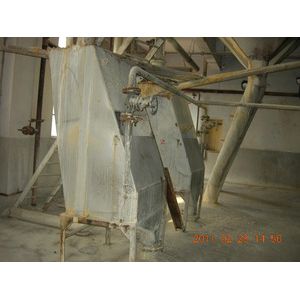

Gravity arc screen & Pressure curved screen
Gravity arc screen is applied on corn and germ dewatering while pressure arc screen is mainly used for fiber washing before starch refining. Arc screen is equipped with screens of different meshes on the basis of process requests. Moreover, it can be connected in series and parallel, which could not only improve the separation and washing effects but also increase the production capacity.
Specifications and parameters of Gravity Arc Screen
| MGS-400 | MGS-600 | MGS-800 | MGS-1000 | MGS-1200 | MGS-1500 | |
| Radian | 50 | 50 | 50 | 50 | 50 | 50 |
| Screen Area(m2) | 0.32 | 0.48 | 0.64 | 0.80 | 0.96 | 1.20 |
| Overflow Heitht(mm) | 520 | 520 | 520 | 520 | 520 | 520 |
| Corn dewatering Screen(mm) | 3 | 3 | 3 | 3 | 3 | 3 |
| Germ dewatering Washing Screen(mm) | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 | 0.7-1.5 |
| Filter Screen before 2nd Mill(mm) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Length(mm) | 800 | 800 | 800 | 1000 | 1200 | 1500 |
| Width(mm) | 400 | 600 | 800 | 800 | 800 | 800 |
Specifications and Parameters of Pressure Arc Screen
| Screen Width(mm) | 600, 800, 1000, 1200, 1800 |
| Wrap Angle | 120 |
| Mesh(mm) | 0.03-0.15 |
| Feeding Pressure(Mpa) | 0.02-0.04 |
| Fiber Dreg Content in Starch Slurry(g/l) | 0.08 |
