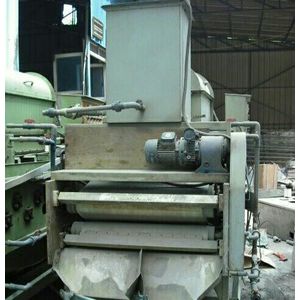

High quality disk vacuum rotary filter

Nowadays, advanced technology is the primary productive force and advanced technology will inevitably replace backward technology. Fiber rotary disk filter technology is the great work in the era of sewage treatment.Its operating costs are low and the filtered effluent quality is good and stable. Besides, the small footprint is the most notable characteristic. Fiber disk rotary filter is an advanced wastewater treatment device in the world. It is widely used in all kinds of industries.  E.HAO company has studied this field for many years and it owns the core technology. See more detailed information as following:

Main Features

1.The filtered effluent quality is good and stable, which reached the national standard.
2.The operation cost of the fiber rotary drum filter is very low.
3.The fiber rotary drum filter has a small footprint.
4.Fiber rotary drum filters are highly automated

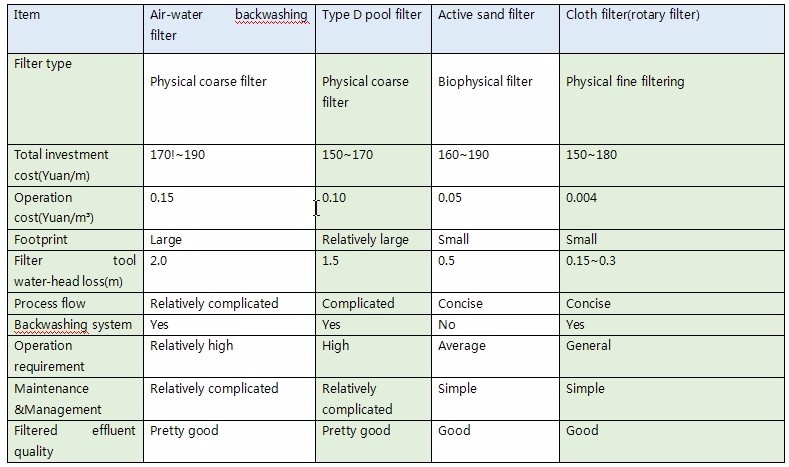

5.Compared with conventional filter, the fiber rotary drum filter eliminates the prechlorination, which reduces the operation cost and avoided the danger of manual operation.

Machine Parts

1.Deep treatment of waste water which aims to ensure that SS reaches the primary emission level.Combined with pumping and the strengthened reaction, the P, chroma and other stuff can be removed.
2.Advanced treatment of wastewater which can realize water reclamation.
Build New sewage treatment plants and reform the old plants, and the machine specially suitable for footprint restricted sites.
3.Combined with other technologies,purified surface water into cooling water.

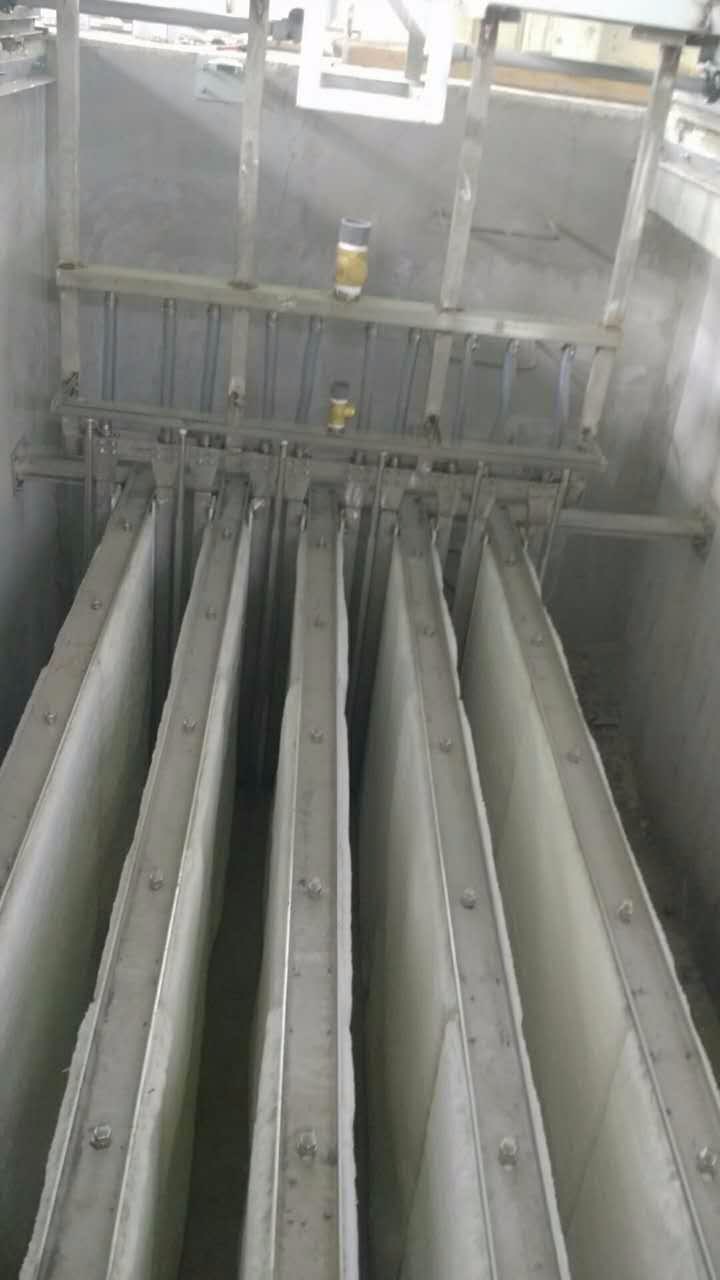

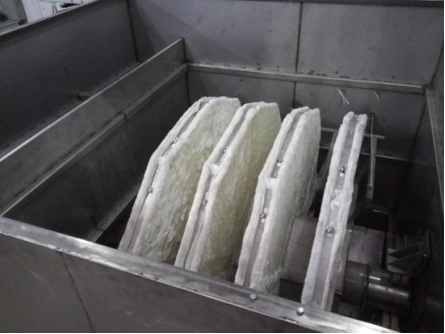

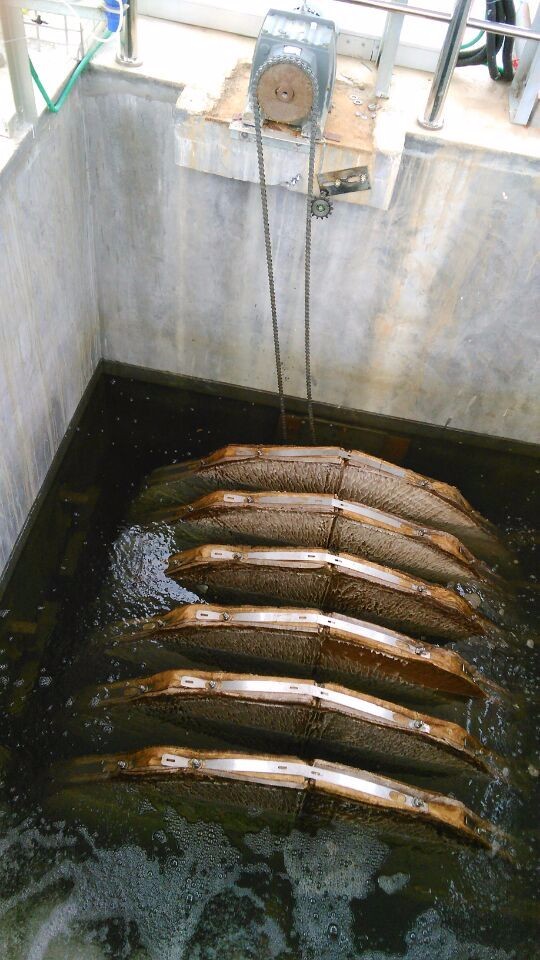

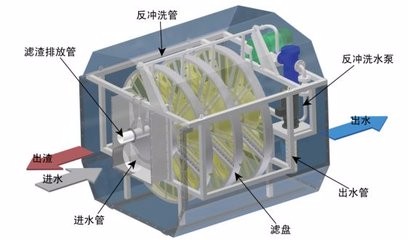

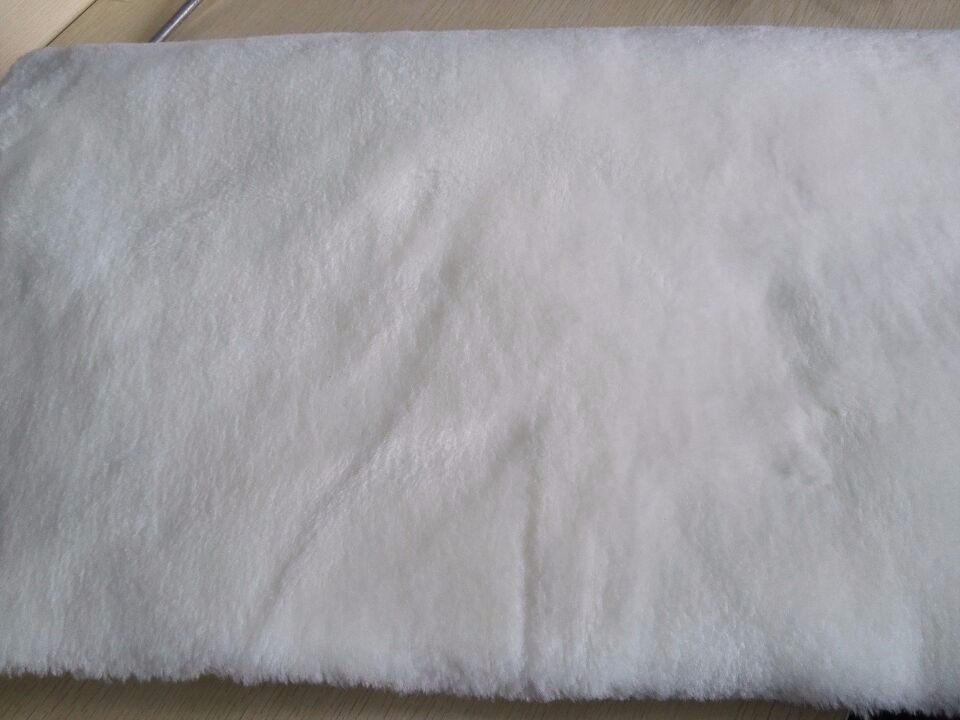

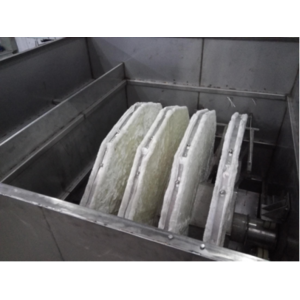

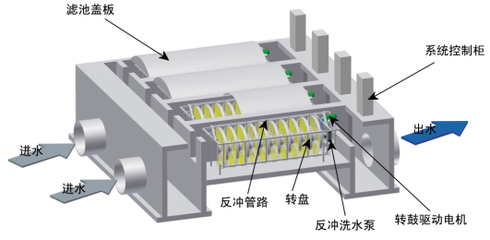

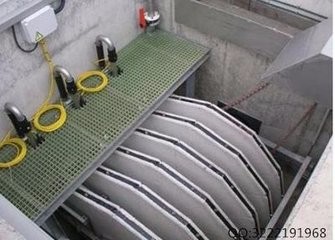

The sewage enters the filter under gravity or pressure, and the solid suspended material is left outside the filter cloth when the sewage goes through the filter cloth which is fixed on the disc shaped frame.Then the water is discharged through the central tube after filtration. The filter cloth is microporous 5~20µm, and the whole process is automatic and continuous. A part of suspended solids are settled at the bottom of the pool, which is irregularly discharged by the bottom drain pipe. The other part is attached to the filter cloth to raise the water level in the tank.When the water level rises to a predetermined value, start the counter device while the disc rotates slowly to fix the suspended solid and sludge outside the cloth filter then they are removed by the scraping suction device . The water in disc pumps from inside to the outside to clean sludge in the pores of the filter cloth.
