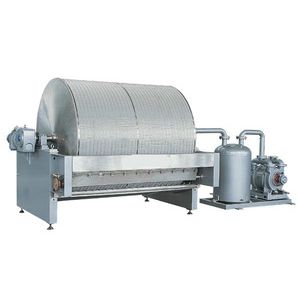

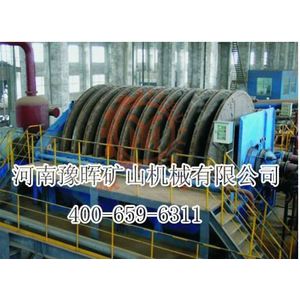

Henan rotary vacuum filter from professional manufacturer

5mm beneficiated ore, and dewatering clean coal, waste coal and other fine materials, disk vacuum filter can be also used for solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment.

Technical Feature

  • Henan, China (Mainland)
  • Yuhui
  • many types
  • Engineers available to service machinery overseas
  • GW-5
  • ISO9001
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$19~29

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Yuhui
Model Number
many types
After-sales Service Provided
Engineers available to service machinery overseas
type
GW-5
certificate
ISO9001
warranty
12 monthes
motor power
1.1kw
filter area
5
rotational speed
0.13-0.49r/min
spare parts
we supply whole life
testing
we supply
Machine Type
vacuum filter
Product Type
dewater

DETAIL DESCRIPTION

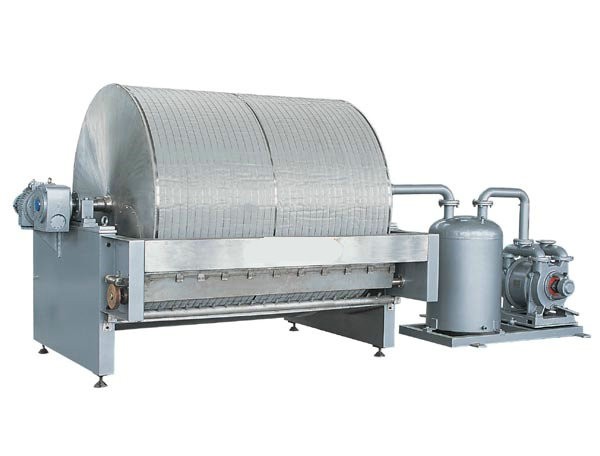

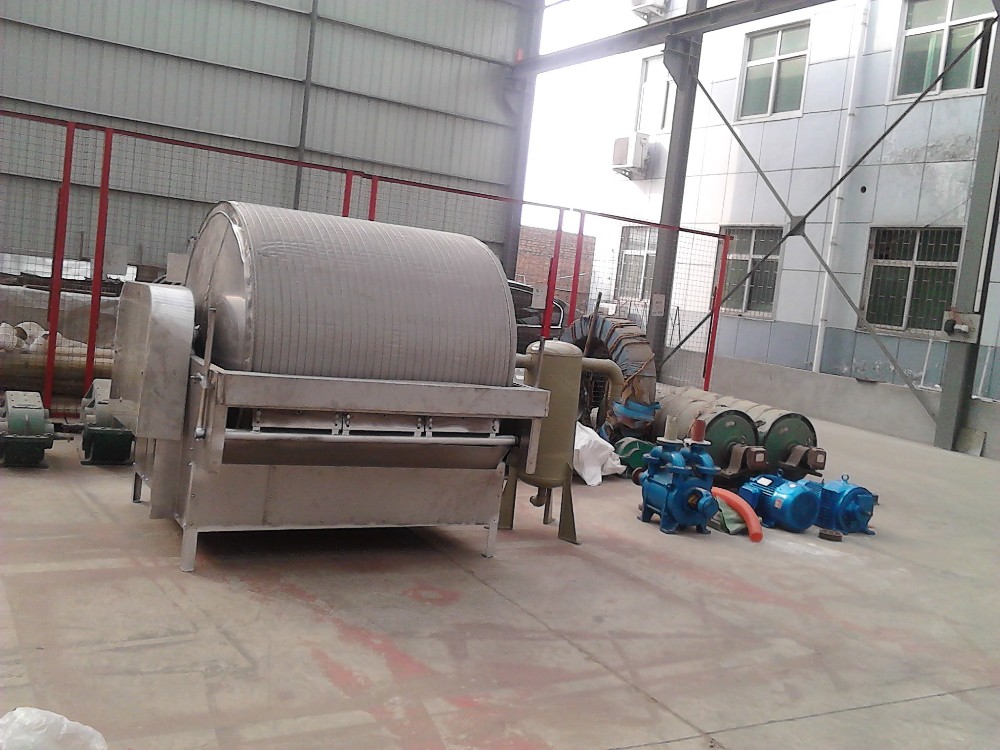

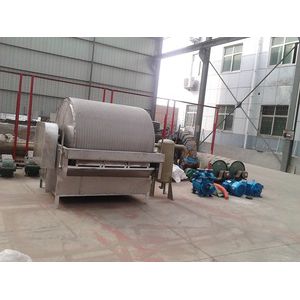

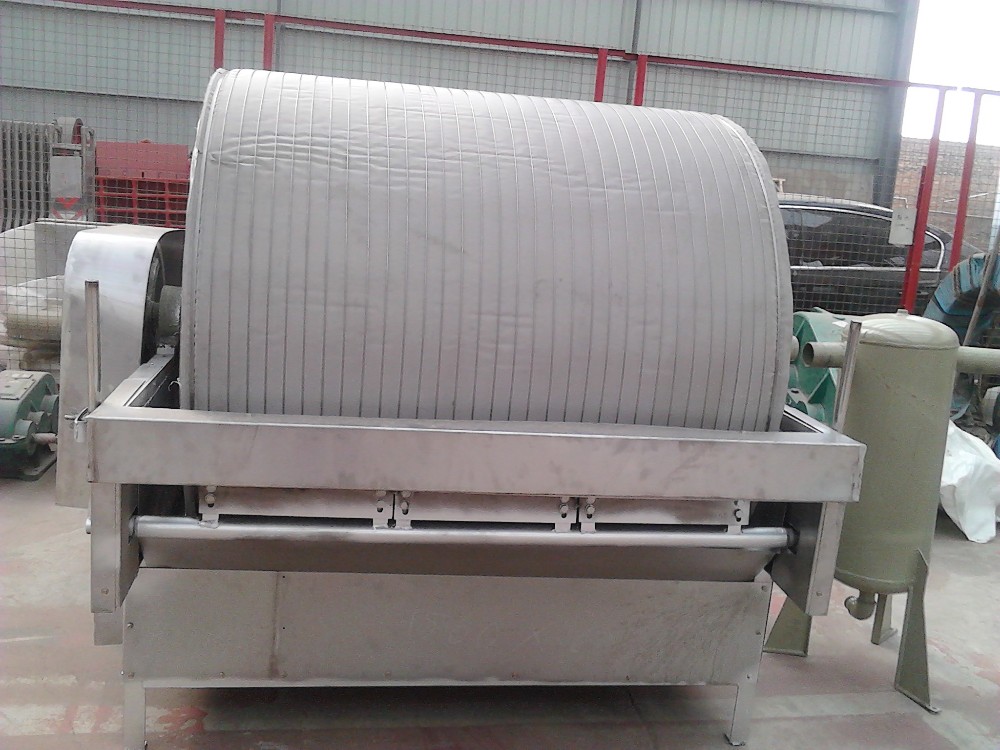

                           Henan rotary vacuum filter from professional manufacturer

1.  vacuum filter introduction:



 vacuum filter is mainly used for floating 0-0.5mm beneficiated ore, and dewatering clean coal, waste coal and other fine materials, disk vacuum filter can be also used for solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment. The acid-proof disk vacuum filter is used for solid-liquid separation of corrosiveness materials, with using stainless steel materials.

2.  vicuum filter rerrific features:

 vacuum filter has many features, for example, uniform thickness of filter cake,
high exhaustion rate, convenient filtrate drainage, low moistrue content of cake
wide range of motor speed, automatically controling liquid level, centralized
grease lubrication of oil pump, automatic washing of filter cloth, good
permeability, steady and reliable operation, low maintenance,etc..

 3. vacuum filter technical parameters:

Type

Filter
area
(m²)

Filter
plate
size
(mm)

Filter
plate
Rotation
speed
(rpm)

Motor
Power(kw)

Mixing
Motor Power
(kw)

Capacity
(Dry)
(t/h)

Filter
cake
moisture
 %

Dimensions
(mm)

Weight(t)

 Diameter(mm)

Quantity

PG18-4

18

1800

4

0.13-1.14

1.1

1.1

4.5-5.4

22-26

2833×2340×2295

3.5

PG27-6

27

1800

6

0.13-1.14

1.1

1.1

6.7-8.1

22-26

3820×2355×2295

4.36

PG39-4

39

2700

4

0.13-1.14

1.5

1.5

9.7-11.7

22-26

3820×2355×2295

5.65

PG58-6

58

2700

6

0.15-1.44

2.2

2.2

14-17.4

22-26

3930×3355×3275

8

PG78-8

78

2700

8

0.15-1.44

4

4

19-23.4

22-26

4730×3355×3275

8.98
