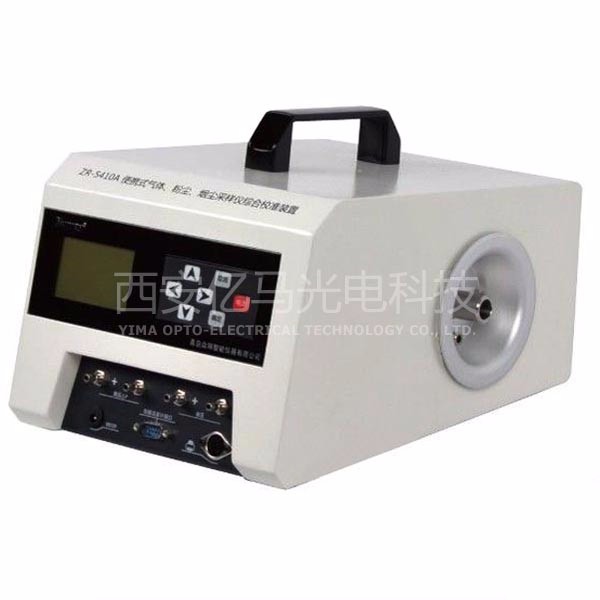

ZR - 5410 dust sampler comprehensive calibration device
Product introduction
ZR - 5410 is a type of portable gas, dust, smoke and dust sampler comprehensive calibration device set in the small flow rate, flow, flow pressure calibration. Calibration with high precision, easy to carry, can meet most of the gas sampling instrument calibration. Suitable for metrological verification, environmental monitoring, labor insurance and health, scientific research institutes and other need calibration gas flow.
Execution standard
JJG 586-2006 soap film meter verification procedures
HJ/T 368-2007 calibration of total suspended particulate matter sampling device orifice flow meter technical requirements and testing methods
Technical characteristics
Calibration certificate can provide national metrology department to ensure the accuracy of measurement;
Temperature, atmospheric pressure measurement can also be manually entered;
Built-in roots flowmeter, direct reading flow, automatic conversion of flow;
Ac/dc, built-in high-energy lithium-ion batteries;
The large capacity data storage, query, print function;
Rich in Wen Dian matrix LCD display screen, display interface;
Software parameter calibration.
Technical indicators
| Parameter range | sharpness of separation
| degree of accuracy |
soap-film flowmeter | (50~6000)mL/min | 0.1mL/min | ≥±1.0% |
roots meter | (10~260)L/min | 0.1L/min | ≥±1.0% |
Orifice flowmeter of the flow | (80~130)L/min | 0.1L/min | ≥±1.0% |
Large flow orifice flow meter | (800~1200)L/min | 1L | ≥±1.0% |
environmental temperature | (-40~99)℃ | 0.1℃ | ≥±1.0℃ |
| (0~3000)Pa | 1Pa | ≥±1% |
gauge pressure | (-50~50)kPa | 0.01kPa | ≥±2% |
ambient atmosphere pressure | (60~110)kPa | 0.01kPa | ≥±0.53kPa |
Flow detection repeatability | ±0.5% | ||
Battery Operating Time | >8h | ||
POWER ADAPTER | Input AC (100 ~ 240 V), 50/60 hz output DC12V 2 A | ||
Dimension-Main Unit | (length232×wide334×hight215)mm | ||
Weight | About 9kg | ||
The power consumption of the host | ≤10W |
| Packaging Details: | padded carton |
|---|---|
| Delivery Detail: | 3 business days |
