Industrial Drum Precision Filter For Electroplating Compressor Air Filter

This condition is certainly notdesirable for industrial applications and could directly or indirectlylead to the following situations.

Technical Feature

  • Zhejiang, China (Mainland)
  • RUIHONG
  • HANKISON
  • Precision Filter For Electroplating Compressor Air Filter
  • 0.4-6.0MPa
  • C, T grade < 80 ℃ A, H grade < 50 ℃
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~29

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
RUIHONG
Model Number
HANKISON
Name
Precision Filter For Electroplating Compressor Air Filter
Rated Working Pressure
0.4-6.0MPa
Inlet Temperature
C, T grade < 80 u2103 A, H grade < 50 u2103
Application
Dry Filter
Type
Tube
Performance
Precision Filter
Filter Material Type
Compressed Air
Size
108*340(mm)
Suitable Object
Air

DETAIL DESCRIPTION

Industrial Drum Precision Filter For Electroplating Compressor Air Filter

Product Description


Form

Model

Processing Flow

m3/min

Inlet & Outlet Diameters

Overall Dimensions

weight

(kg)

Filter Element

Tube Diameter

length

mm

height mm

Model * Quantity

Tube

Tooth

Style

RJL-001

1.5

G3/4"

φ70

85

250

1.1

001×1

RJL-002

2.5

G1.5"

φ89

105

320

1.6

002×1

RJL-004

4.0

G1.5"

φ89

105

320

1.7

004×1

RJL-007

7.0

G1.5"

φ89

105

450

2.2

007×1

RJL-010

11

G2.5"

φ133

150

550

8.6

010×1

RJL-015

17

G2.5"

φ133

150

920

11

015×1

RJL-022

22

G2.5"

φ133

150

920

11.1

022×1

Flange Form

RJL-026L

28

DN80

φ159

370

1090

39

026×1

RJL-030L

32

DN80

φ159

370

1090

40

030×1

RJL-040L

45

DN100

φ219

430

1320

89

022×2

RJL-050L

55

DN100

φ273

513

1130

115

015×3

RJL-060L

65

DN125

φ325

565

1235

133

015×4

RJL-080L

88

DN150

φ325

600

1405

148

015×5

RJL-100L

110

DN150

φ377

657

1436

183

022×5

RJL-120L

130

DN150

φ377

657

1436

185

022×6

RJL-150L

160

DN200

φ426

706

1655

216

022×8

RJL-200L

210

DN200

φ462

746

1366

208

022×11

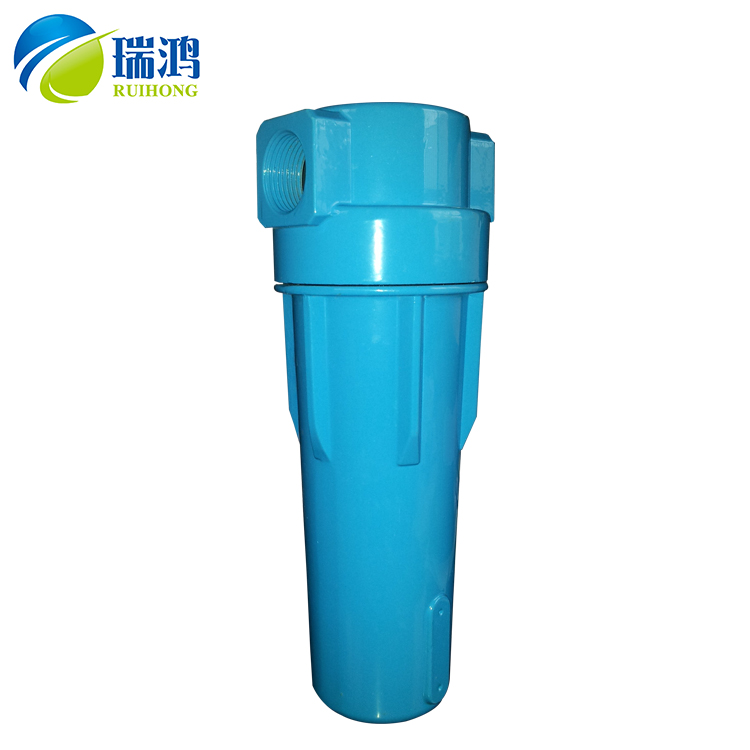

 Product Show







Packaging & Shipping

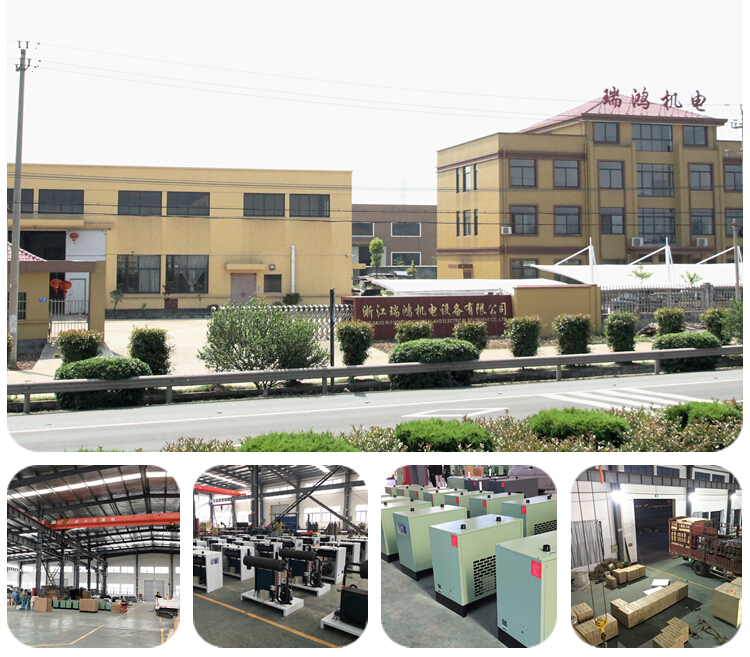

Company Information

 Zhejiang Ruihong Electro Mechanical Equipment co., LTD. Was founded in 2003, formerly known as Quzhou Ruipu Mechanical Equipment co., LTD.It is located in Quzhou, a famous historical and cultural city with four provinces.The company covers an area of more than 20 mu, and has a standard plant of 10,000 square meters.It is the research and development of compressed air purification and gas separation and purification equipment.Production, sales, service as one of the professional companies.

FAQ

 1. Why compressed air purification?

Compressor alone is not enough.In most cases,untreated compressed air is naturally dirty,oily and wet.This condition is certainly notdesirable for industrial applications and could directly or indirectlylead to the following situations.



• Reduction in efficiency of expensive pneumatic tools & machineries

• Frequent costly maintenance of pneumatic tools & machineries

• Lost of production hours with increased machines down time

• High rejection rate of products

• Inability to meet delivery deadlines

• Unsatisfied customers



Hence compressed air needs to be purified or treated before they can be efficiently utilised.With theincreasing popularity of compressed air as an alternative source of utility for today’s modern production facilities,it is essential that you select the most suitable compressed air treatment systems for your plant and budget this relatively small investment into your operations to avoid daily problems with untreated compressed air which could eventually lead to expensive additional operating expensesand loss businesses.



2. Why choose Ruihong compressed air purification?

We are professional compressed air purifing and drying system factory, founded in 2003.

There are more than 10 years of experience in OEM and ODM factory in Quzhou.

We could provide professional different scheme for different working conditions.
