drum filter for koi pond

Drum type micro filter is one of the pre-treatment method in waste water treatment.

Technical Feature

  • Jiangsu, China (Mainland)
  • RYDE
  • ZL SERIES
  • drum filter
  • drum screen
  • filter
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~3

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
RYDE
Model Number
ZL SERIES
Product name
drum filter
Name
drum screen
Application
filter
Material
Stainless Steel
Usage
wastewater treatment

DETAIL DESCRIPTION





1. Rotary Drum Screen is offered with apertures from 0.5 mm ,1mm, 1.5mm to 3 mm;

2. Passive filtration method maximizes solids removal;

3.Large treat capacity  , easy to set up with small foot print ;

4. Self-cleaning, easy to maintain, and the low running cost ;

5. Simple structure, operation simplicity, sturdiness;

7. Fine screenings.

MaterialSS304/316
CertificationSGS/CE/ISO 9001
Grid gap0.25mm~2.5mm
Operationautomatic
Processing technologylaser cutting, bending, welding

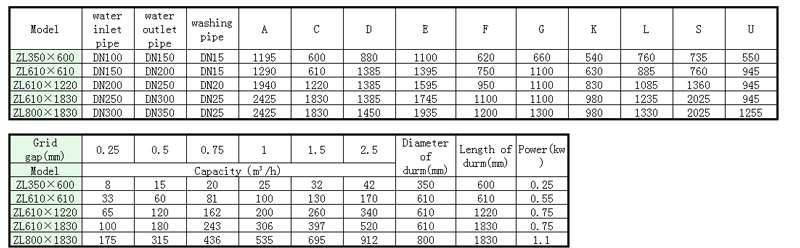

Capacity

33-170m3

/h

Drum diameter610mm
Drum length610mm
Power0.55kw
Electrical componenSchneider/Omron/Customize
Product Keywordsrotary drum bar screener,external rotary drum screener



      Drum type micro filter is one of the pre-treatment method in waste water treatment.  It removes the solid content in the wastewater, meanwhile, during the time of filtering, through the rotation of drum and the recoil force of water, the screen get continuous cleaned.
