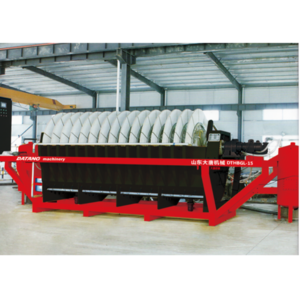

Vacuum Ceramic Disc Filter for Mining Slurry Separation
DT series sophisticated ceramic disc vacuum filter integrates all the electromechanics,microporous ceramics and ultrasound technologies together.The machine can separate solids from liquids by vacuum suction and capillary action.It is an energy-efficient new filter and widely used in mining,metallurgic industry,chemical industry,environmental protection,stone processing and so on.

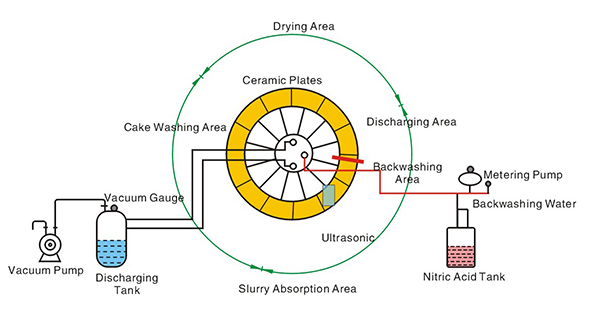

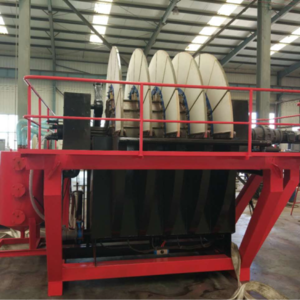

•Slime absorbing zone: Filter plate immersed in the slime while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate.
•Leaching zone:Filter cake coming out from slime hopper receives spray washing.
•Drying zone:Continuous dehydration for filter cake is conducted with the action of high vacuum force.
•Discharging Zone: Scraper will automaticly discharge materials once entering the vacuum-free condition.
•Back flushing:Service water or filtrate enters the ceramic plate through distributing valve and cleaning the blocked minihole entoectad. Cleaning with ultrasonic and low density acid after ceramic plate is used for one period to maintain the efficient service life of ceramic plate.
Technical Data
Name type | filter area(m2) | filter plate quantity | weight(t) | total power(kw) | filter plate speed(r/min) | length*width*height(m) |
DTHBGL-4-1 | 12 | 48 | 3.1 | 11.25 | 0.1-3 | 3.9*3.1*2.6 |
DTHBGL-4 | 20 | 48 | 3.8 | 11.4 | 0.1-3 | 3.9*3.3*3 |
DTHBGL-5 | 25 | 60 | 4.5 | 12.2 | 0.1-3 | 4.7*3.3*3 |
DTHBGL-6 | 30 | 72 | 5.1 | 12.2 | 0.1-3 | 5.0*3.3*3 |
DTHBGL-8 | 40 | 96 | 6.1 | 20 | 0.1-3 | 5.6*3.3*3 |
DTHBGL-10 | 50 | 120 | 8.2 | 20 | 0.1-3 | 6.2*3.3*3 |
DTHBGL-12 | 60 | 144 | 10.3 | 20 | 0.1-3 | 6.8*3.3*3 |
DTHBGL-15 | 75 | 180 | 12.5 | 27.5 | 0.1-3 | 7.7*3.3*3 |
DTHBGL-18 | 90 | 216 | 14.8 | 37 | 0.1-3 | 8.6*3.3*3 |
DTHBGL-20 | 100 | 240 | 16.5 | 37 | 0.1-3 | 9.2*3.3*3 |

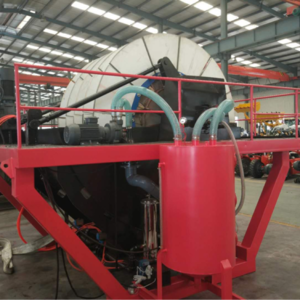

1.Energy saving and high efficiency: large processing capacity and obviously power saving effect.Processing capacity>200-1000kg/m2h,power consumption<0.5kWh/h.It can save more than 80% of energy concumption compared with the traditional filters.
2.Automatic control: automatic control,automatic feed and automatic cleaning of the high performance filters reduce the personnel requirements,,also decrease the intensity of labor.
3.Perfect automatic protection function:The machine has automatic alarm system,breakdown onscreen display function and high or low liquid level display function.The breakdown is eliminated automatically.Otherwise the machine will auto power-off and wait for manual handling.
4.Firm structure and long-lasting:The machine is optimized by computer,so it is reasonable in structure and reliable in work.The main transmission parts are designed as Maintenance-free,and the rate of failure on equipment operation has been decreased.The stainless steel construction of the stirring system ensures its service life can be up to 10 years.
5.Improve product quality and reduce transport costs:the moisture of the filter cake after filtration is very low,so it can greatly increased the market competition and reduce the transportation cost and loss.
6.The effect of environmental protection is obvious:the filtrate is clear to reuse to reduce the emissions,which is in line with the current environmental protection trend of clean production.
