Feature & Application

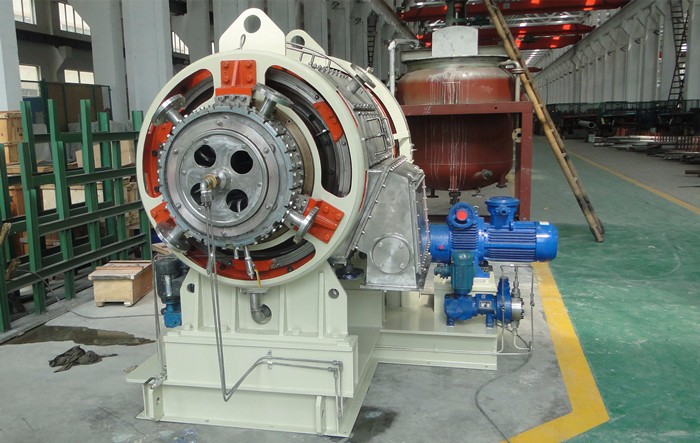

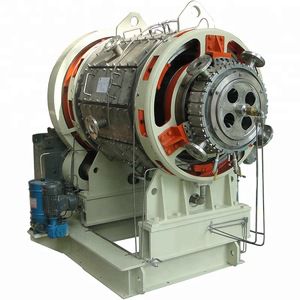

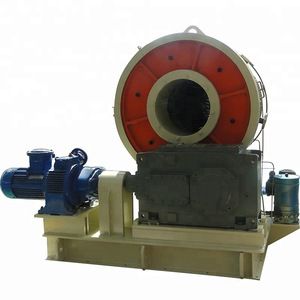

YZL Rotary Pressure Filter is a new shape solid-liquid separation equipment and integrating filtrate, washing, drying, auromatic discharging and continuous automatic cleaning.
The equipment with innovative structure and has following features:
1. Under the pressure or vacuum state, the equipment can achieve to continuous solid-liquid separation, several times washing the cake, drying the cake, automatic discharge the cake and cleaning the filtering medium.
2. The whole process will be operated hermetically, no environmental pollution.
3. The whole process can be operated variable speed control according to the material properties.
4. The filter cake thickness can be adjusted according to the process requirement.
5. With high production efficency and low use cost.
6. Occupy little area and simple operation.
7. Long service life and maintenance cycle of equipment, easy to repair.
8.The whole process can be automated.
| Model | Size(L*H*W)/ mm | Weight/ kg | Filtration area/㎡ |
| YZL12 | 1000*900*1600 | 1000 | 0.12 |
| YZL54 | 2000*2000*1900 | 3500 | 0.54 |
| YZL108 | 2300*2000*1900 | 5000 | 1.08 |
| YZL144 | 2500*2100*2200 | 6300 | 1.44 |
| YZL216 | 3000*2300*2200 | 8000 | 2.16 |
| YZL288 | 3600*2400*2500 | 9500 | 2.88 |
| YZL320 | 3100*2900*3200 | 12500 | 3.2 |
| YZL432 | 3700*3000*3200 | 15500 | 4.32 |
| YZL576 | 4000*3000*4000 | 19000 | 5.76 |
Main application
Filtering and washing the material which content solvents, volatile, flammable, explosive and toxic.
1) pharmaceutical industry
2) plastics industry
3) dyes industry
4) pigment industry
5) chemicals industry
6) food industry
7) environmental protection industries
Filter factory - Branch in Yixing.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |

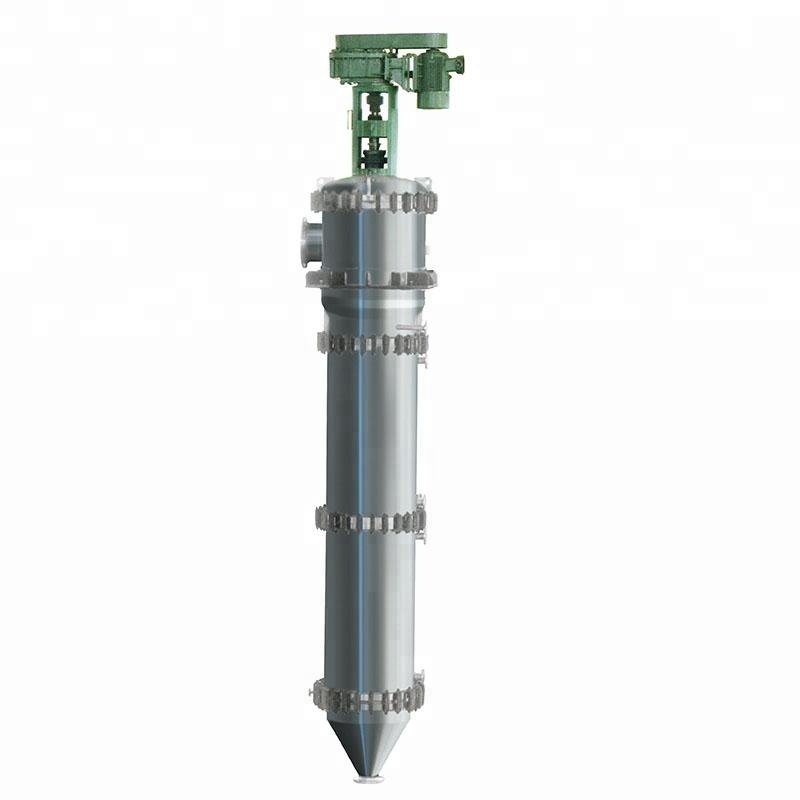

Thin-film Evaporator
91.8% Response Rate

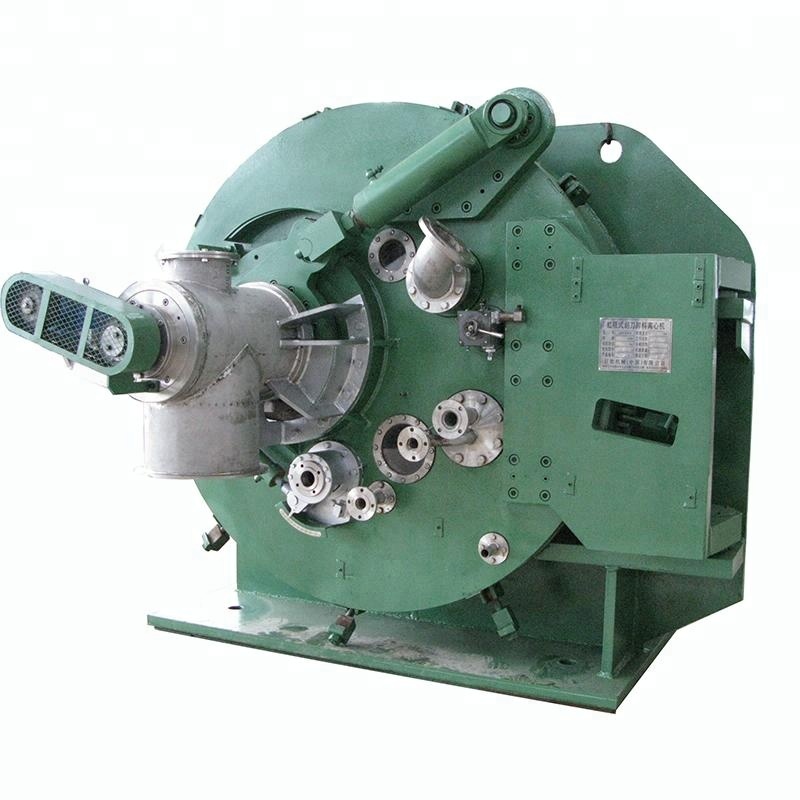

Scrape Centrifuge
