Vacuum driving rotary pressure filter

is a solid-liquid separation equipment, filtered power vacuum as the slurry liquid separation.

Technical Feature

  • Henan, China (Mainland)
  • Toper
  • ZGP10-2
  • Engineers available to service machinery overseas
  • Vacuum driving rotary pressure filter
  • 10m2
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~6

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Toper
Model Number
ZGP10-2
After-sales Service Provided
Engineers available to service machinery overseas
Description
Vacuum driving rotary pressure filter
Filter area
10m2
Disc filter quantity (pcs)
2
Capacity (t/h*m2)
0.7-1.0
Cake thickness (mm)
u226510
Cake water content (%)
u226410
Disc filter diameter (mm)
2000
Disc filter rotation speed(r/min)
0.3-1.2
Motor power
3kw
Tank volume (mu00b3)
0.86

DETAIL DESCRIPTION

                                               Vacuum driving rotary pressure filter

Product Description

Brief Introduction

Vacuum disc filter is a solid-liquid separation equipment, filtered power vacuum as the slurry liquid separation. The machine uses a filter plate guide frame-oriented, variable speed agitation, anti-hair unloading, automatic centralized lubrication advanced technology, is an excellent use of reliable dewatering equipment.



This machine is a new type of disc vacuum filter, designed especially for iron ore concentrate, non-ferrous metal concentrate dewatering is also suitable for beneficiation in the coal washing, non-metallic minerals, chemicals used in the environmental effects.

Structure And Components

Disc vacuum filter tank, filter shaft, main drive, filter plate, separated valve, slurry agitator, unloading equipment, filter cloth washing, centralized lubrication systems and electronic control systems and other components.

Feature

1.The aircraft sector plate with ultra high strength polypropylene molded, high strength, not easily deformed life increased by several times than fiberglass; the sector plate openings up to 30%, so it does not affect the filtering effect of clogging, and conducive to further increase production and reduce the cake moisture.



2. Each filter disc 20 fan-shaped plate, the strengthening of the control of the filtering process, the filter cake is relatively uniform.



3. The filtrate tube section the distribution head cavity volume, help to improve the ventilation rate and the filtrate emissions.



4. The use of anti-hair plus scraper discharge, in order to ensure the expulsion rate of cake.



5. Gear, inverter speed control, speed range, reliable operation.



6. Optimized design of the structure of the filtrate tube completely ruled out the original flange joints due to aging rubber air leaks. The filtrate pipe wall thickness also increased to 6mm and lined with ceramic tile.



7. Using dry oil pump centralized oil lubrication to ensure the normal operation of the equipment.



8. The characteristics of the cement industry, the use of pneumatic mixing system.



9. Siemens PLC and Mitsubishi inverter control system, and can be provided in the control and accept the various control signals.



Technical data

TypeZPG 10-2ZPG 15-3ZPG 20-4ZPG 25-5ZPG 30-6ZPG 35-7ZPG 40-8ZPG 60-5ZPG 72-6ZPG 120-10
Filter area (m2)101520253035406072120
Disc filter quantity (pcs)23456785610
Capacity (t/h*m2)>                                                        0.7-1.0
Cake thickness (mm)                                                          >=10
Cake water content (%)                                                          <=10
Disc filterDiameter (mm)                                                           2000             3100
Rotation speed (r/min)                                                        0.3-1.2
MotorRotation speed (r/min)                                                     Adjustable
Power (Kw)             3
MixerRotation speed (r/min)                                                        80-110
Motor reducerRotation speed (r/min)                                                        80-110
Power (Kw)                 3
Tank volume (m3)0.861.381.852.292.723.13.599.81114.5
Dimension L*W*H (mm)2450* 2820* 26652840* 2820* 26653230* 2820* 26653620* 2820* 26654010* 2820* 26654502* 2820* 26654892* 2820* 26654750* 4205* 37405250* 4205* 37407175* 4205* 3740

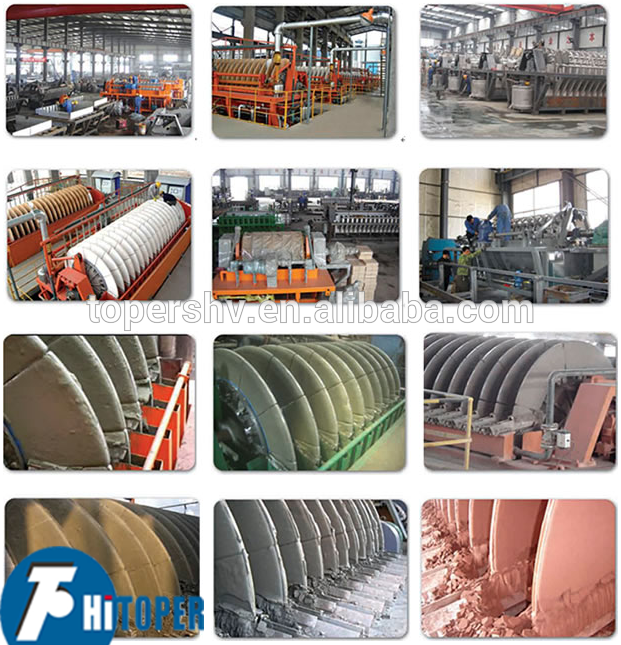

 Different type of Toper's Vacuum power drive disc fan type filter machine :

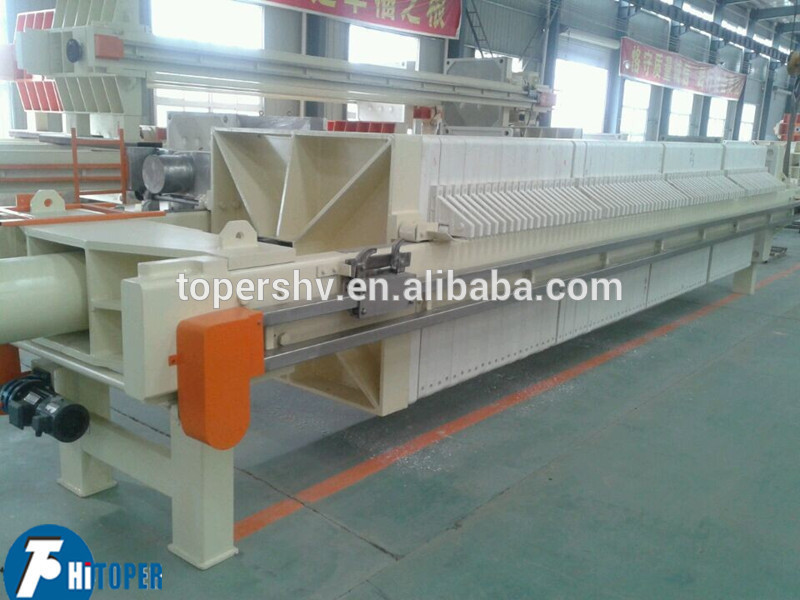

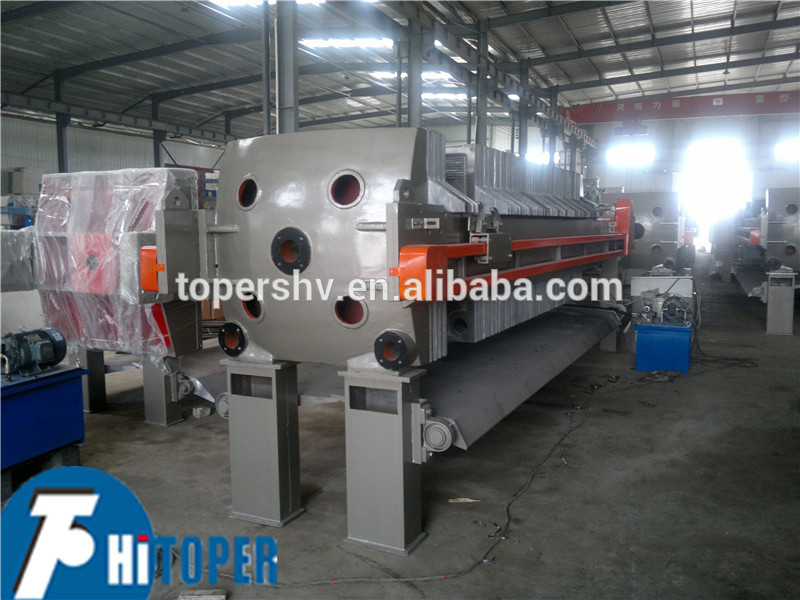

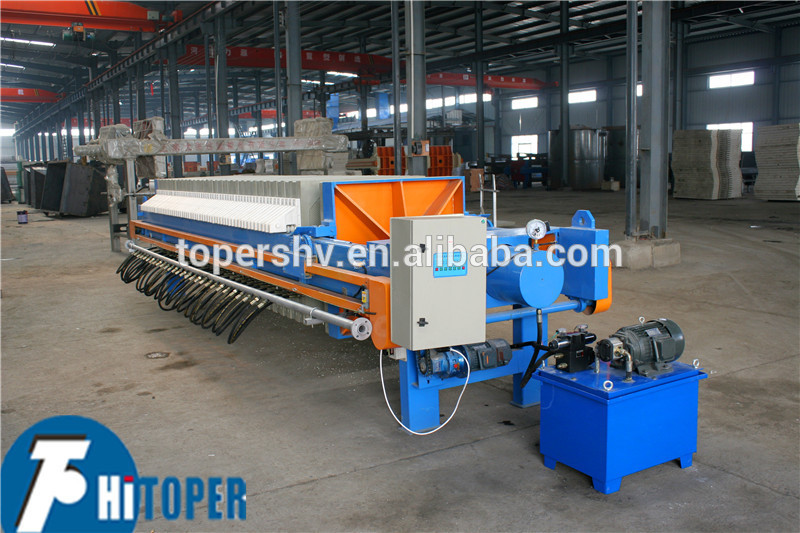

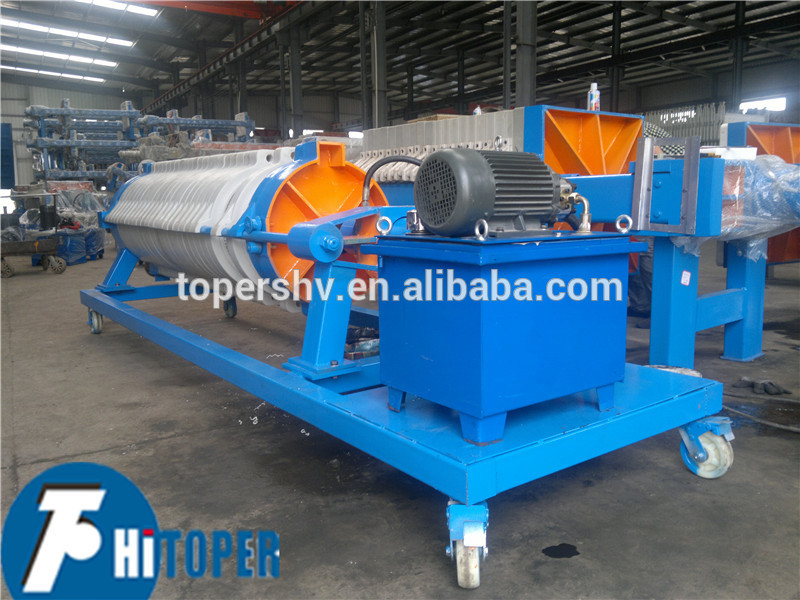

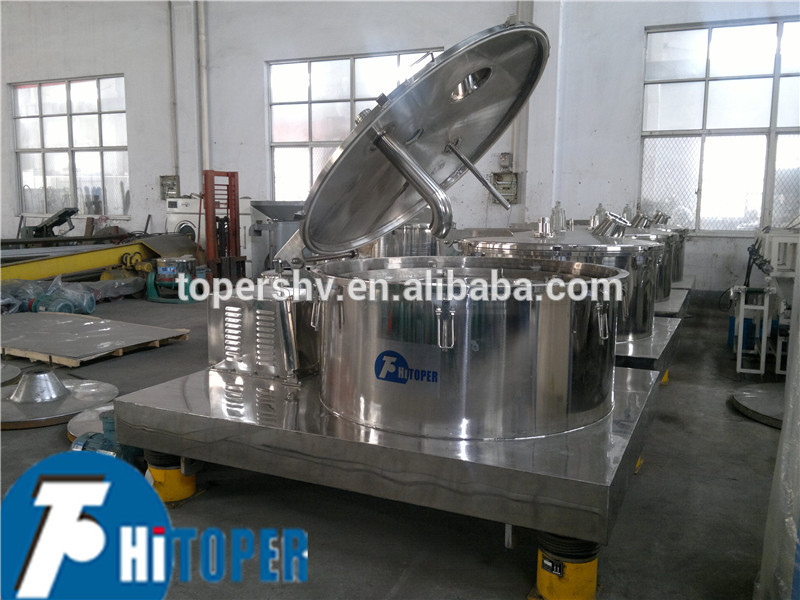

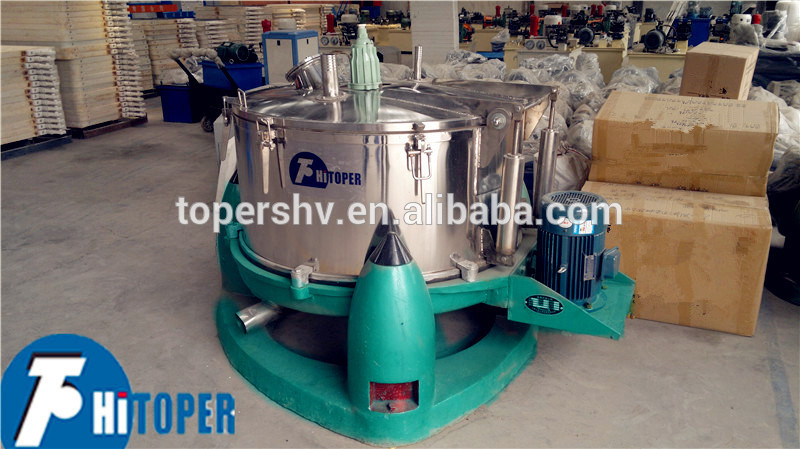

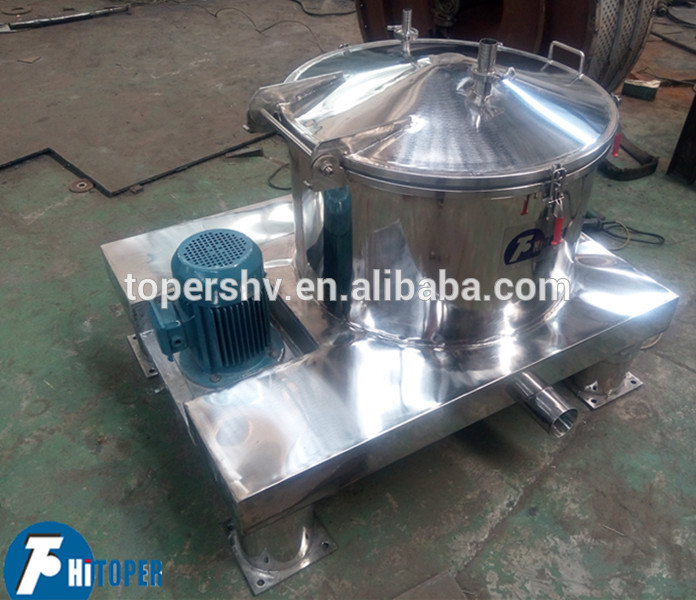

Other type of Toper's filter and separation equipment :



Packaging & Shipping

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.











Our Services



1.We have professional person on line to advise you the most suitable type of machie  according to your requirement.

2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3.Arrange the schedule if you pay a visit to our factory.

4.Our technical engineer can also to your country guide for the installation ,operation ,solve problems and so on if required.
