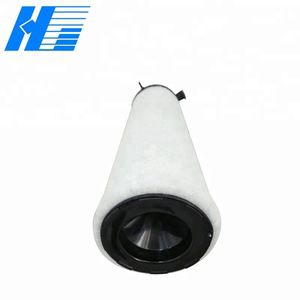

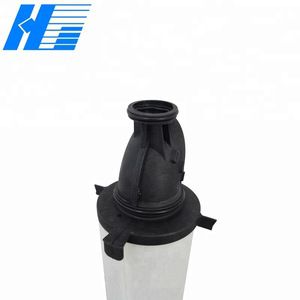

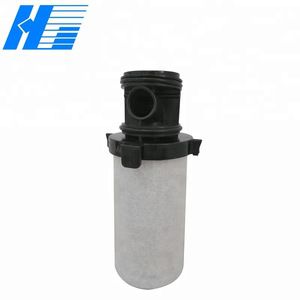

Air Filter vs Air Intake Dilter Element Types Color Customizable

re the manufacturer integrated with R&D, production and sales.

Technical Feature

  • New
  • high efficient coalescing filter
  • Cartridge Filter, inserted type
  • PF, AO, AA, AX, ACS, AR, AAR
  • needled felt, stainless steel screen
  • NO
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$7~115

PRIMARY PARAMETERS

Condition
New
Efficiency
high efficient coalescing filter
Construction
Cartridge Filter, inserted type
Filtration Grade
PF, AO, AA, AX, ACS, AR, AAR
Medium Material
needled felt, stainless steel screen
Porosity
NO
Place of Origin
Jiangsu, China (Mainland)
Brand Name
N/A
Model Number
015, 020, 025, 030, 040, 045, 050, 055
Dimension(L*W*H)
113.5*46 - 522*120
Weight
0.5-3kg
Certification
ISO 8573.1
Warranty
One month after shipment
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Air Filter vs Air Intake Dilter Element Types Color Customizable
Grade
DD, PD, QD
Flow rate
1.2~37.3Nm3/min
Operating temperature
65u2103
Operating pressure
16 bar
Filtration rating
0.01, 1, 25 micron
Residual oil content
0.001, 0.01, 1, 5 ppm
Color
white, customized
Material
needled felt, stainless steel screen

DETAIL DESCRIPTION

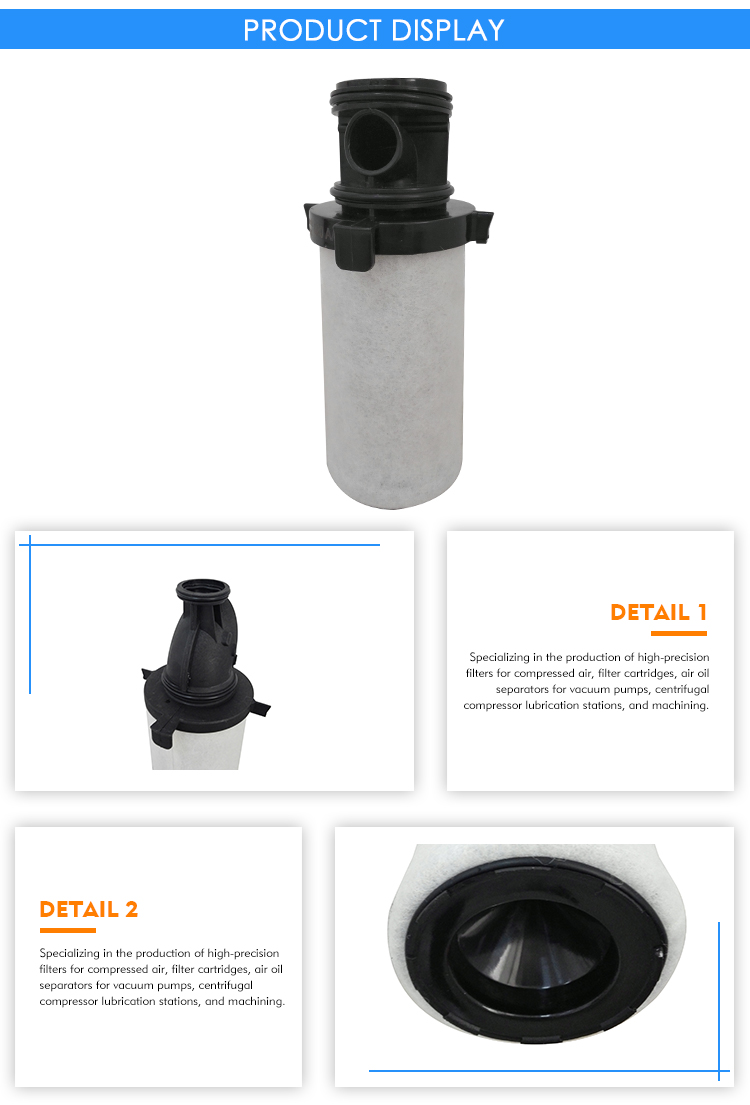

poster

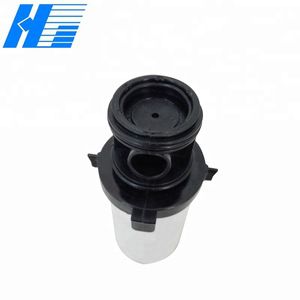

Air Filter vs Air Intake Dilter Element Types Color Customizable

Model015, 020, 025, 030, 040, 045, 050, 055
GradePF, AO, AA, AX, ACS, AR, AAR
Flow rate1.2~37.3Nm3/min.
Constructioninserted type
Operating temperature65℃
Operating pressure16 bar
Filtration rating0.01, 1, 25 micron
Residual oil content0.001, 0.01, 1, 5 ppm
Colorwhite, customized
Materialneedled felt, stainless steel screen
Filter mediaglassfibers, imported
Functionhigh efficient coalescing filter
Applicationremove liquid, particles, oil in the compressed air
Quality classISO 8573.1



Model No.Flow Rate (NM3/Min.)
015*1.2
020*1.8
025*3.6
030*6.6
035*9.6
040*13.2
045*19.8
050*25.9
055*37.3



GradeFiltration Rating (micron)Residual Oil Content (ppm)
PF255
AO11
AA0.010.01
AX0.010.001
ACS (activated carbon) 0.01 0.001
 AR (dust removal) 1 /
AAR (dust removal)0.01/
Product Categories
Product Categorie
Company Information
Packaging & Shipping



FAQ

Q1. What kind of your company is it?

Were the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?

Complete process documents and equipments, mass production.

Q3. What is the delivery time?

Delivery time depends on the order quantity, normally is 1-30 working days after 100% payment.

Q4. Do you have a warranty?

Yes, for filters, it is 1 year and for elements, it is 8000 hours at least.

Q5. Can you supply customized product?

Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
