Sanitary stainless steel rotary drum filter

Titanium rod filter made of 316L or 304 stainless steel material.

Technical Feature

  • Shanghai, China (Mainland)
  • GORUN for High quality rotary drum filter
  • GRHZ for High quality rotary drum filter
  • Engineers available to service machinery overseas
  • High quality liquid filter
  • 8421299090
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$300~5

PRIMARY PARAMETERS

Place of Origin
Shanghai, China (Mainland)
Brand Name
GORUN for High quality rotary drum filter
Model Number
GRHZ for High quality rotary drum filter
After-sales Service Provided
Engineers available to service machinery overseas
High quality rotary drum filter
High quality liquid filter
HS CODE
8421299090
Feature 1
Customized
Feature 2
Mechanical Polishing
Material
SUS304/316L
Structure
Rotary Filter
Filter cartridge
Titanium rod filter cartridge
Type
Liquid Filter
Certificate
ISO FDA CE SGS TUV CE
Application
Liquid filtration

DETAIL DESCRIPTION

Product Description

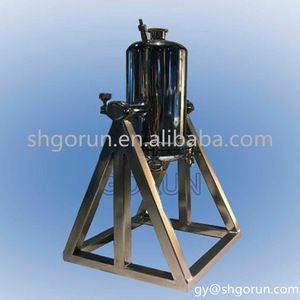

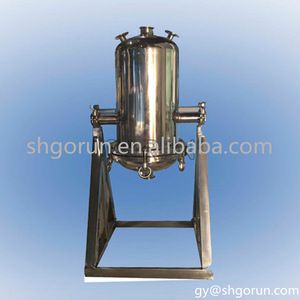

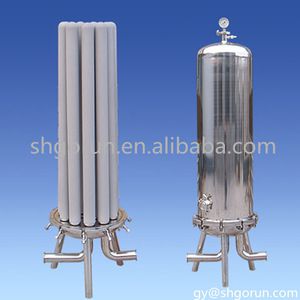

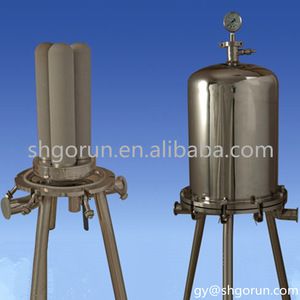

Sanitary stainless steel rotary drum filter


Titanium rod filter made of 316L or 304 stainless steel material. filter cartridge with light texture, high temperature resistant and anti-corrosion resistance.


Feature:

Has a compact structure and beatufial shape;

Design according to GMP standards;

Tube connection using international standards quick connector, easy cleaning.


Material: High quality stainless steel 304 or 316L

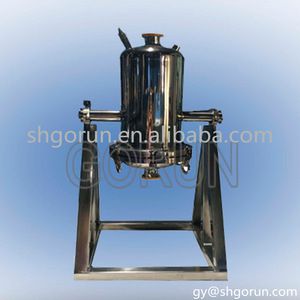

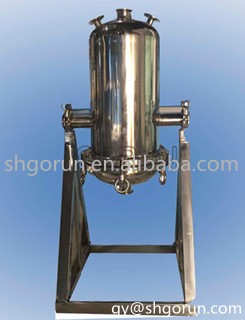

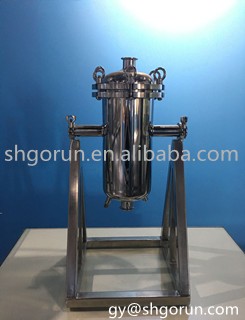

Structure: The filter shell can turn 180°;

Finish type: Mechnical polishing;

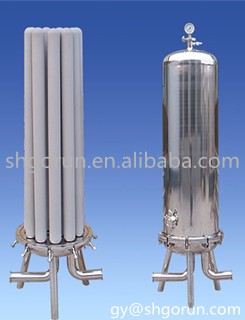

Filter cartridge: Titanium sintered filter cartridge;

Cartridge material: Sintered titanium;

Cartridge Quantity: 3, 5, 7, 9, 10, 11, 12, 15, 19;

Cartridge Length: 10" 20"

Advantages


(1) Adopting titanium powder sintered filter core, usually used for pre filtration;
(2) This filter core has high precision, high mechanical intensity and is high-temperature resistant and anti-corrosion, which is widely applied to medicine liquids decarburization and gas filter.
(3) It can also replace sand core filter that is commonly used on large liquid infusion production lines.


Application

It is widely used in food, beverage, pharmaceutical, chemical and other industries liquid-solid separation, especially for infusion and injection production line decarbonization filtration in the pharmaceutical industry.

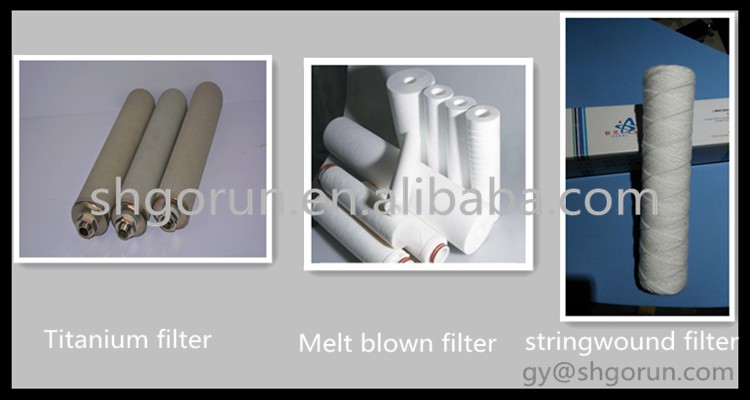

Related Products
Parameter/
Name
Titanium filter cartridge
Melt Blown filter cartridge
String wound filter cartridge
Filter Material
 high pure titanium metal
polypropylene fiber
polypropylene

Length
20/30/50/60/70/90/125mm
10/20/30/40 inch
10/20/30/40/60inch

 Precision
0.5/1/5/10/20/50/75/100  micron
 0.5/1/5/10/30/50/75/100 micron
0.1/1/5/10/30/50/75/100 micron




Feature
Very good chemical stability;

Excellent pressure, high temperature, corrosion resistance

High mechanical strength, not damaged
Excellent Chemical compatibility, low cost;

Large pollutant carrying capacity and long service life;

High mechanical strength, fiber is not easy to fall off;
High mechanical strength, fiber is not easy to fall off;
Low cost, economic operation;

Excellent chemical stability, High dirt holding capacity and  long life;

Our Company

Shanghai Gorun machinery technology Co., Ltd is derived from Shanghai GEshi Fluid Equipment Technology Co., Ltd which is founded in 1993.

Which combines research&development, design, manufacturing and Marketing.

Main products: Filtration equipment, Filter series, Water treatment system, CIP cleaning and sterilization equipment, Stainless steel tank series, Sanitary pumps and Various sanitary accessories.

Products are widely applied to the industry of dairy, food, beer, beverage, pharmaceutical, chemical etc.


The Exhibition hall

Office Area
Our Customers
Packing & Delivery
FAQ
1: What about the packaging?
Wooden case or as per customer's requirements.

2: Where are the main markets for your products?
Our products have been exported to all over the world, especially in Northern Europe Western Europe, Eastern Europe North American, South American, Middle East, South Asia, Eastern Asia, African and etc.

3: How about the delivery time?
The delivery time will be15-35 days after we receive your payment.

4: Are you a manufacture or a factory?
We are a factory and we can design and manufacturing the products according to your requirements.

5: What's the payment terms?
Usually is T/T, L/C, or Western Union. We also accept Money Gram, PayPal and other payment terms.
