MK Advanced Technology Pre-coating Rotary Drum Vacuum Filter

MPF pre-coating rotary-drum filter is developed and manufactured by absorbing European advanced technology.

Technical Feature

  • New
  • Automatic
  • Customized
  • Tianjin, China (Mainland)
  • MecKey
  • MKPF
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$25~5

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
Customized
Place of Origin
Tianjin, China (Mainland)
Brand Name
MecKey
Model Number
MKPF
Warranty
1 year warranty
After-sales Service Provided
Engineers available to service machinery overseas
Item
Stainless Steel Rotary Drum Vacuum Filter
Filtration Area
10~60+ m2
Vacuum
0.04~0.06 MPa
Power
1.5~2.2 kw
DS
30~35%
Capacity
5~30 m3/h
Design
Customized
Material
Stainless Steel
Control
Manual/Automatic/Semi-automatic
More Info
Special design based on customer's requirement

DETAIL DESCRIPTION

MK Advanced Technology Pre-coating Rotary Drum Vacuum Filter,

Rotary Drum Filter



 Brief Introduction



MPF pre-coating rotary-drum filter is developed and manufactured by absorbing European advanced technology. The professional manufacturing technique and advanced design idea make it be widely used in pharmacy industy, foodstuff industry and starch glucose making industry. It is suitable for the process which needs filtration and doesn't need filter residue.



 Product Advantanges



  • It is designed based on customers' different requests.
  • Structure is advanced and reasonable while appearance is neat and beautiful.
  • Processing devices are in series while installation is simple.
  • Due to applying advanced pre-coating technology, filtrate is with high clarity, low solid content and can be easily re-used.
  • It employs automatic peeler discharge, which is of high efficiency.



 Working Process



At first, on the surface of drum, a layer of pre-coat of filter aid like bergmeal or perlite should be formed evenly. Processing material is filtered into the bottom basin of the equipment. Under the function of vacuum, filter liquid goes through subsequently the pre-coat layer, filter cloth, imbibing tube, filter liquid collection pipe, and vapor liquid separator then enters into next processing section. Meanwhile the solid powder or other foreign impurities in the material is counterchecked by the pre-coat then removed by movable peeler continuously. When the thickness of the residual pre-coat is less than 10mm, it needs pre-coating again.



Specifications and Parameters



 MKPF-10MKPF-15MKPF-20MKPF-25MKPF-30MKPF-35MKPF-40MKPF-45MKPF-50MKPF-60
Filtering area(m2)10       152025303540455060
Capacity (m3/h)57.51012.51517.52022.52530
Discharge glucose syrup(DS)30-35%30-35%30-35%30-35%30-35%30-35%30-35%30-35% 30-35%30-35%
Vacuum (MPa)0.04-0.060.04-0.060.04-0.060.04-0.060.04-0.060.04-0.060.04-0.060.04-0.060.04-0.060.04-0.06
Power (kw)1.51.51.51.52.22.22.22.22.22.2
Length (mm)3410342543254775532550755580572565107570
Width (mm)300328032803280328039254175437248004800
Height (mm)2070275027502750275033653980364239803980
Weight (kg)52005850655071308125956011050129801468015780

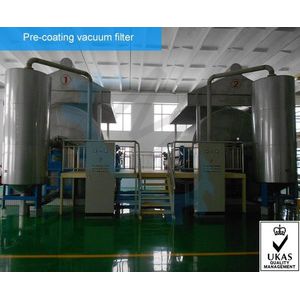

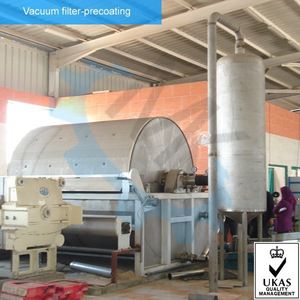

 Product Showcase









More info pls feel freely to contact with our team!
