Rotary Vacuum Filters Made In China

Manufacturing according to the ISO9001:2008 quality control system guidelines.

Technical Feature

  • Jiangxi, China (Mainland)
  • Jiangxi WALKER
  • DL-5C
  • New
  • Engineers available to service machinery overseas
  • 380V or customized
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~4

PRIMARY PARAMETERS

Place of Origin
Jiangxi, China (Mainland)
Brand Name
Jiangxi WALKER
Model Number
DL-5C
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Voltage
380V or customized
Power
1.5kw
Dimention
1038*420*970mm
Certificate
CE&SGS&ISO
Weight
160kg
Lab disk vacuum filter usage
mineral filter, college teaching
Lab disk vacuum filter disk capacity
Big disk 4.2L, small disk 2.5L.
Lab disk vacuum filter feeding size
0.5mm
Lab disk vacuum filter feeding density
10%-30%
Warranty
1 year warranty for Rotary Vacuum Filters

DETAIL DESCRIPTION


Company Information
Jiangxi Walker Machinery--- Specialized in Lab Mining Equipment
1), Rich experiences in a full set of LAB Mining Equipment production and development.



2), Manufacturing according to the ISO9001:2008 quality control system guidelines.



3), Our products are widely recognized and trusted by users, sell well all over the world especially to Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.



4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!



Our laboratory series mining equipment are mainly include:

Lab crusher,

Lab ball mill,

Lab grinder miller,

Lab sampling pulveriser,

Lab flotation cell,

Lab shaking table,

Lab spiral chute,

Lab magnetic separator,

Lab screener and classifier,

Lab crusher divider,

Lab disk vacuum filter


Product Description



--- Rotary Vacuum Filters Made In China

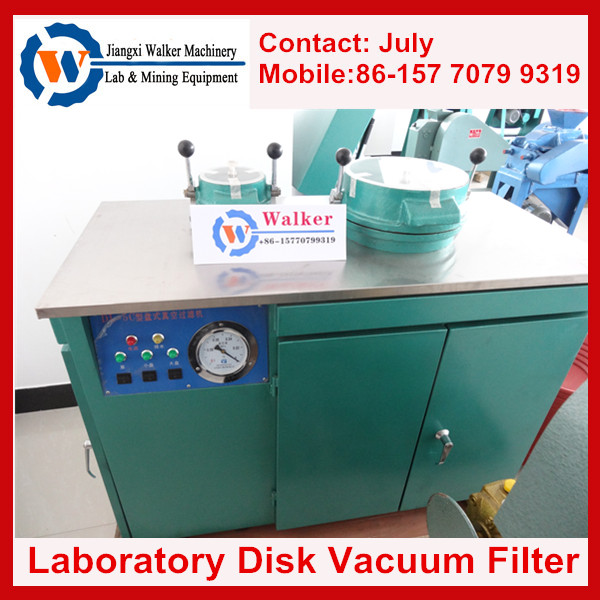

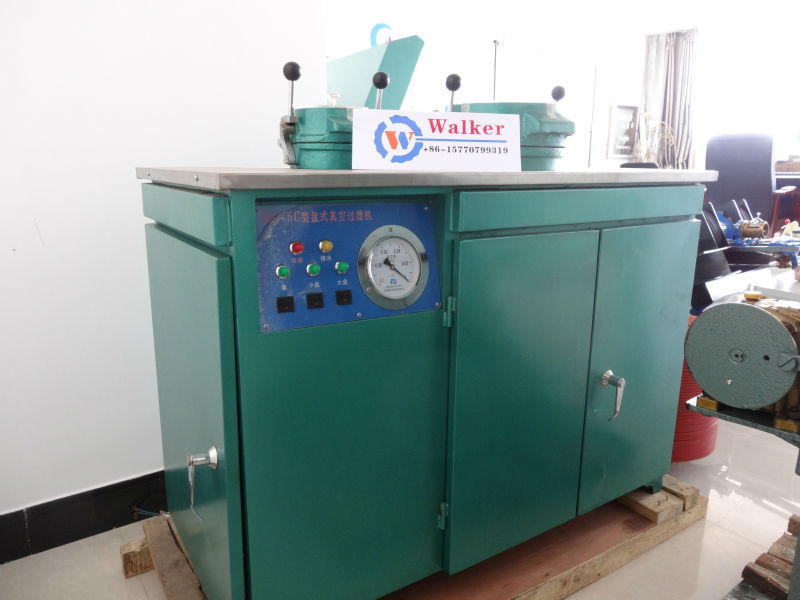

Lab disk vacuum filter Description:

Multifunctional Disk Vacuum Filter is applicable to geological, metallurgical, building material, mining and other industries for mineral dewatering after flotation, gravity concentration, magnetic separation and other operations in tests on mineral separability and separation of solid-liquid in sample testing. It mainly comprises vacuum pump, moisture air filter, vacuum negative pressure tank and two filter trays with automatic drainage device to be provided to separate solids from liquids.



The device is a kind of filter can be intermittent or continuous laboratory-type filtration equipment can be used as product dehydration, the use of solid-liquid separation, simple structure, operation, convenient maintenance, filtering effects of high adaptability, for difficult to filter and concentration of minerals lower pulp filtration, the effect is most remarkable.

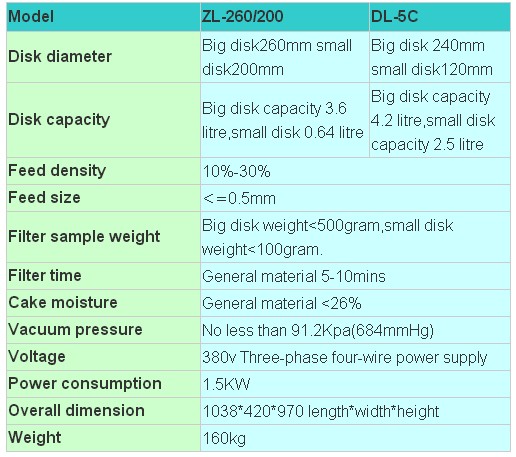

Lab disk vacuum filter Specifications:

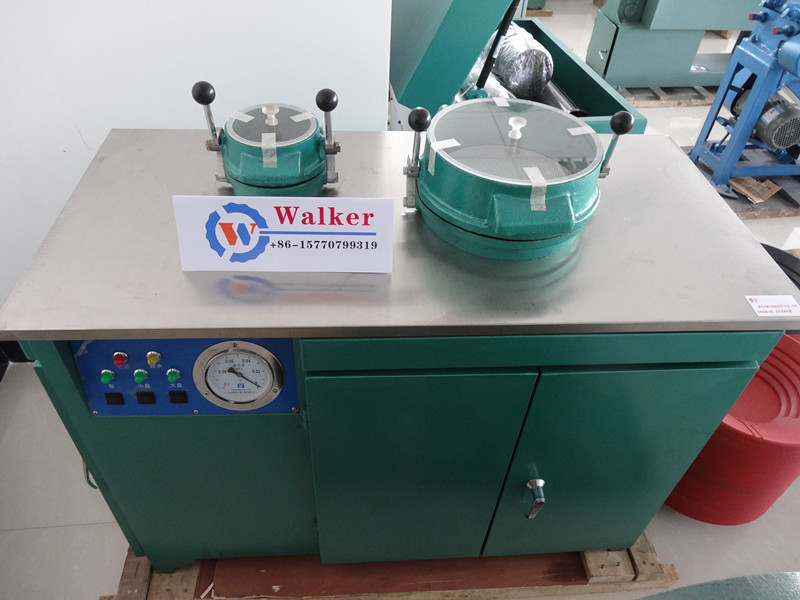

Lab disk vacuum filter Structure:

ZL-260/200 disk vacuum filter has two filter disks with different capacities. slurry of different amount can be directly fed into the disk with corresponding capacity for dewatering. the vacuum system is mainly composed of rotary vane vacuum pump, water-separating gas filter, vacuum negative pressure jar, electromagnetic valve, and vacuum duct.

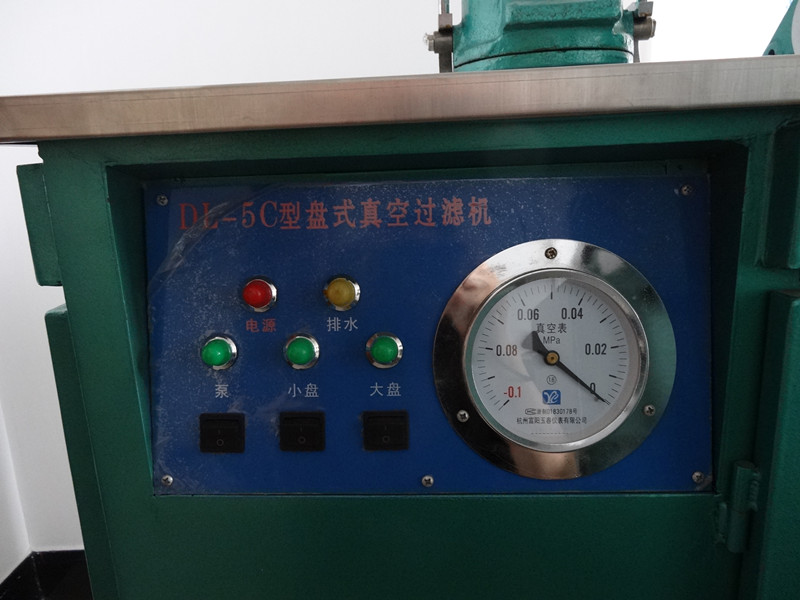

The electric control system is composed of control panel, relay, and other components. please refer to the drawing for the structure.



(1). filter disk , diamter 120mm, (2). filter disk diameter 240mm, (3. 5,7,9) electromagnetic valve, (4)vacuum meter, 6 hydraulic control assembly and vacuum negative pressure jar, (8)automatic drain valve, (9)water-separating gas filter, (10) vacuum pump, (11) motor

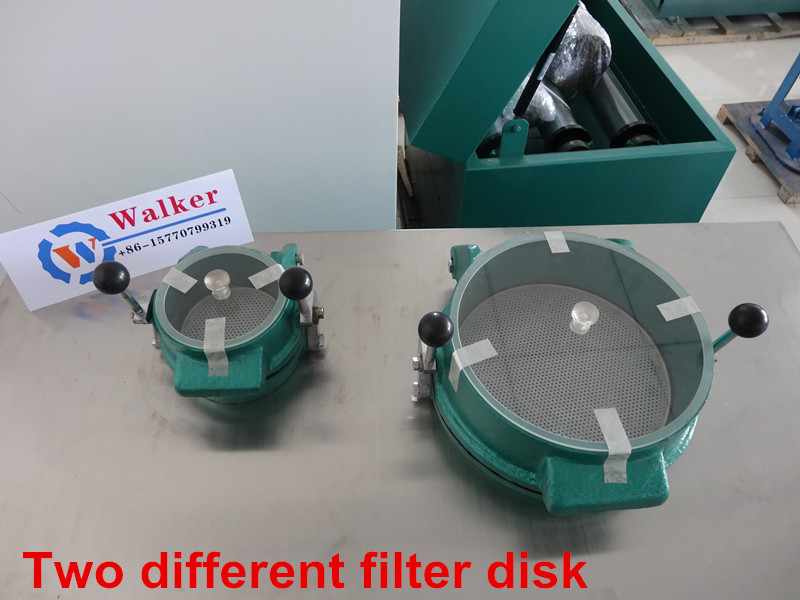

There are two different filter disk with different capacities in the disk accumbent filter.

Slurry of different amount can be directly fed into the disk corresponding disk for dewatering operation.



Lab disk vacumm filter Working Principle:

Within around 10s after the vacuum pump is started, make a vacuum capacity with the pressure of not lower than 91.2kpa (684mm mercury column) in the vacuum negative pressure jar. then connect the electromagnetic valves 3 and 5. under the action of pressure difference, the liquid in the filter disk permeates into the filter paper very quickly, so that the purpose of the dewatering can be served.



Jiangxi WALKER lab disk vacumm filter Features and Advantages:

this equipment has simple and compact structure, reliable operation of vacuum system, and high vacuum degree.

to prevent the liquid in the vacuum negative pressure jar from entering the vacuum pump, upper and lower connection points are designed for this machine. when the liquid reach the preset height, the vacuum pump stops working automactically. at the same time , open the air-release valve. it starts up automatically after the liquid is discharged.


Packaging & Shipping

For package of our Lab Equipment, we will use the Wooden Box packing to ensure its safety and stability during international transportation.

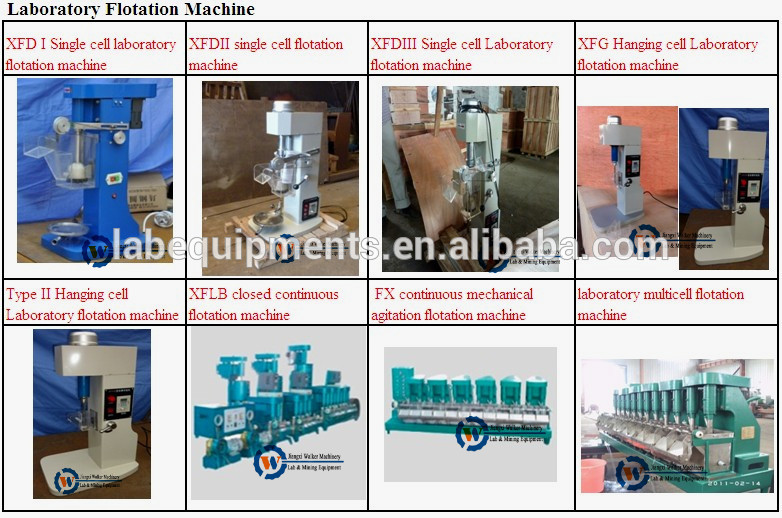

Jiangxi WALKER other hot selling Laboratory Mining Equipment for your choice:



If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me, you are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
