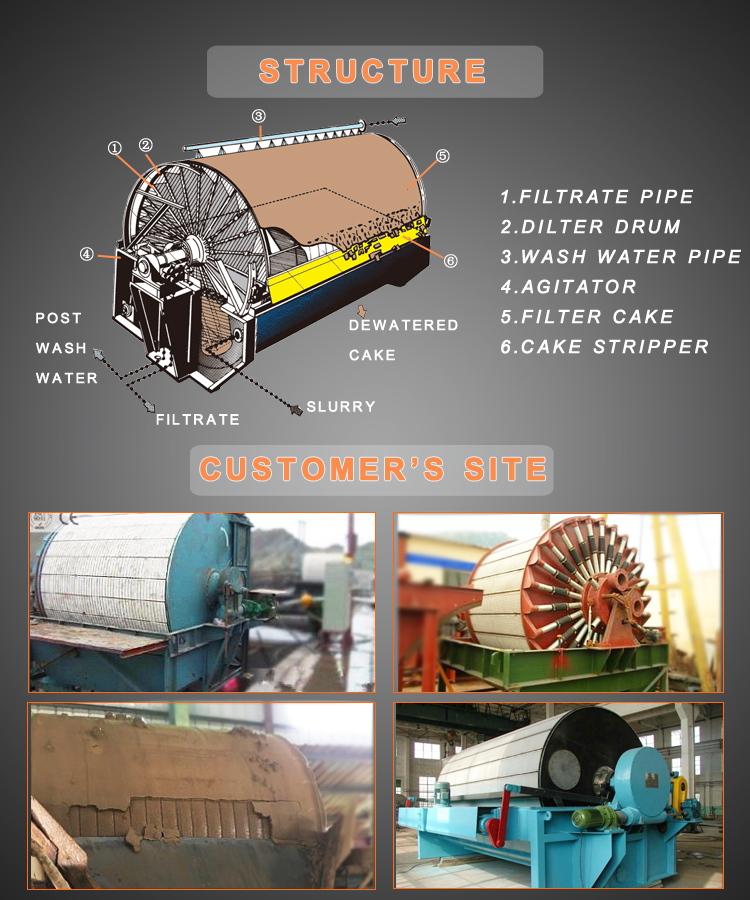

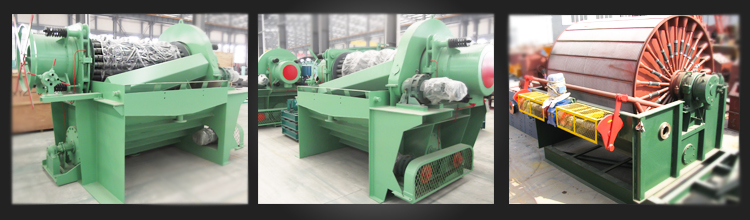

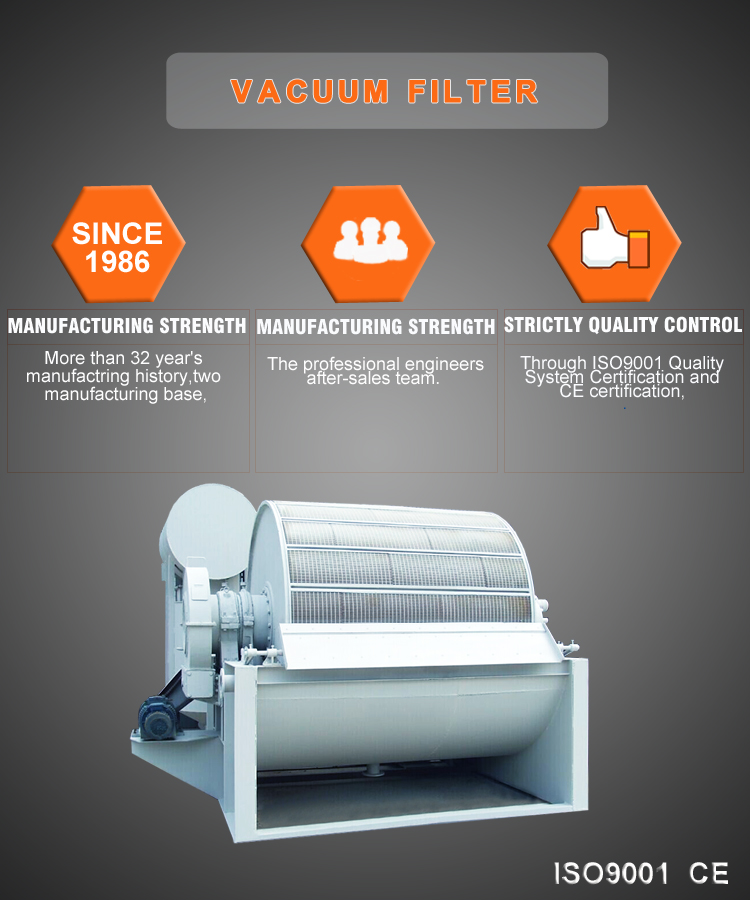

Operating principle of Vacuum Filter: The machine is mainly composed of drum, distributing head, slurry trough, mixer, drum transmission, mixer transmission, bobbin winder, discharge device and so on. At the effect of vacuum pump, the filter cause the pressure difference from the inside and outside of the filtering chamber, which makes the filter cloth on the surface of filter chamber be zone of negative pressure. The solid particle of the slurry inside the trough are absorbed on the surface of filter cloth and forms filter cake under the negative pressure, and the liquid is discharged by the vacuum pump along with gas. As the filter drum turns, the filter cake leaves liquid and the moisture continues being absorbed by the vacuum pump. When the filter cake turns to the discharge area, the pressure wind sucks it forming crack and then be scraped away. The filter cloth revives after being scraped filter cake because of the pressure wind. Then another circulation starts, entering the filter area, absorbing particle and forming filter cake. |
| Filter area
| GW-20m² | GW-12m² | GW-10m² | GW-8m² | GW-5m² | GW-3m² |
Drum Specification(mm)
| Φ2500×2640 | Φ2000×2000 | Φ2000×1850 | Φ2000×1400 | Φ1600×1060 | Φ1068×1060 |
Drum rotary speed( r/min)
| 0.19-0.93 | 0.1-0.6 | 0.18-0.37 | 0.13-0.26 | 0.13-0.49 | 0.066-0.6 |
Feed capacity
| 3-8T/H | 1.4.8tT/H | 1-4T/H | 0.7-3.8T/H | 0.5-2T/H | 0.3-1.2T/H |
Main transmission power kw
| 5.5 | 3 | 3 | 3 | 1.1 | 1.1 |
Mixing power kw
| 2.2 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Weight(kg)
| 10600 | 5910 | 5200 | 5000 | 2756 | 2500 |
