High quality aquaculture fish farming system RAS water treatment 100t/hour rotary drum filter

Drum filters with stainless steel tank series has been development independently with proprietary intellectual property by DHTED.

Technical Feature

  • Liaoning, China (Mainland)
  • Huixin
  • HXGLXS802H
  • SS316L
  • 90micron
  • Dia.792mm*839mm
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Liaoning, China (Mainland)
Brand Name
Huixin
Model Number
HXGLXS802H
Material
SS316L
Screen mesh
90micron
Drum size
Dia.792mm*839mm
Rinsing nozzle power
0.8Mpa
Size
1569mm*1030mm*1077mm
Color
Silver

DETAIL DESCRIPTION

Product Description

1. Description
Drum filters with stainless steel tank series has been development independently with proprietary intellectual property by DHTED. The main part of this machine is made of 316L Stainless steel and it is suitable for freshwater or seawater.The drum filters with tank are mechanical filters with max. filter particles filter openings more than the filter cloth.(for fish excreta, feeds residue and organic detritus.) It can be used in aquaculture industry RAS, culture plant drainage and industrial sewage treatment.


2. Drum Filter charactors:
1).Flow rate is around 39l/s at 90 micron max.25mg/l SS.
2).Made of SS316L, it is unsensitive to the corrosion
3).0.37kw motor drive

4).Drum operate at 7.7rpm
5).A rising system optimized so as to make water saving
6).A machine with a simple design and robust construction
7).Free maintenance solution

Model
HXGLXS802
Drum size
φ792×839mm
Reducer motor
0.37kw
Back washing pump
1.5kw
Rinsing nozzle power
 0.8Mpa
Inlet&Outlet
φ200mm Flange
Drain Outlet
G2" Thread

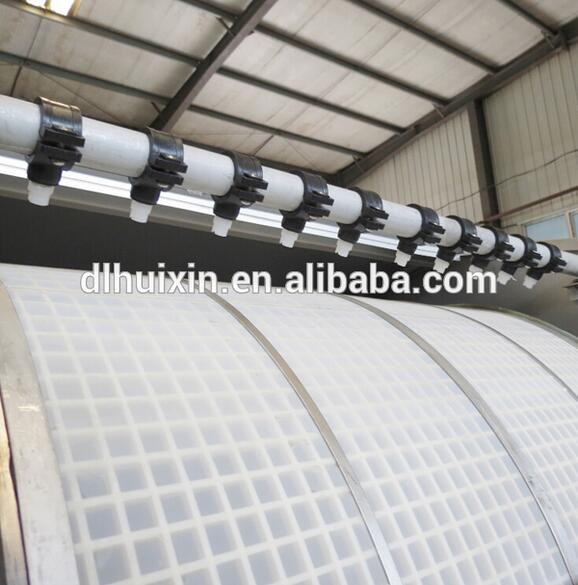

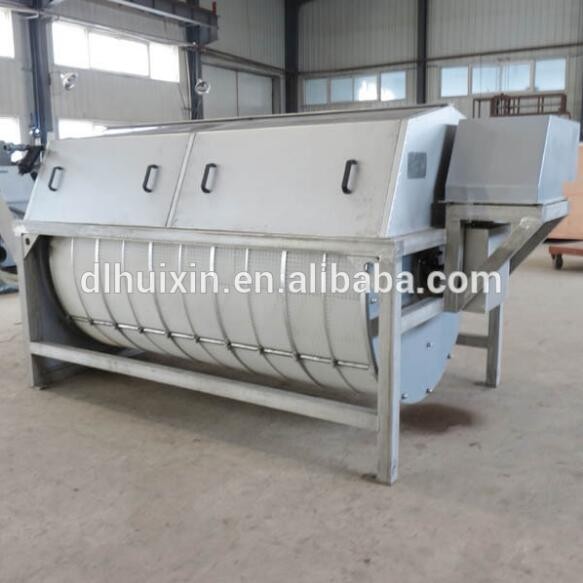

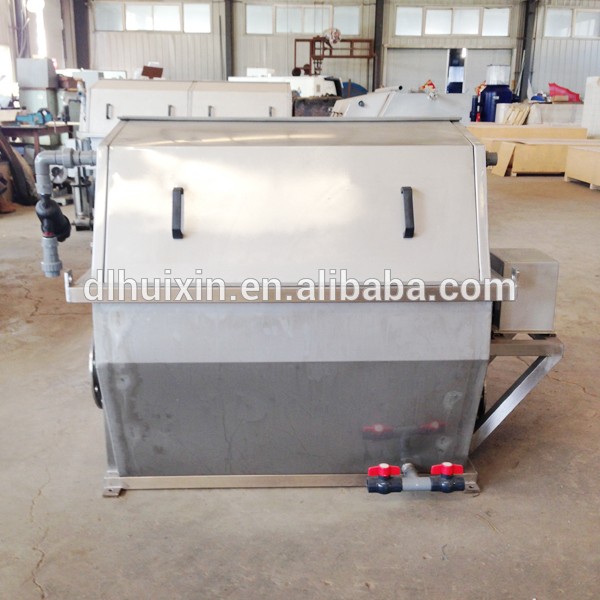

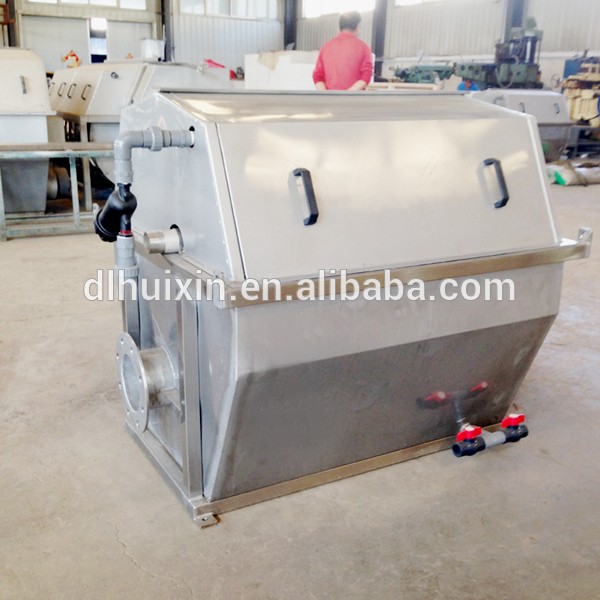

Detailed Images

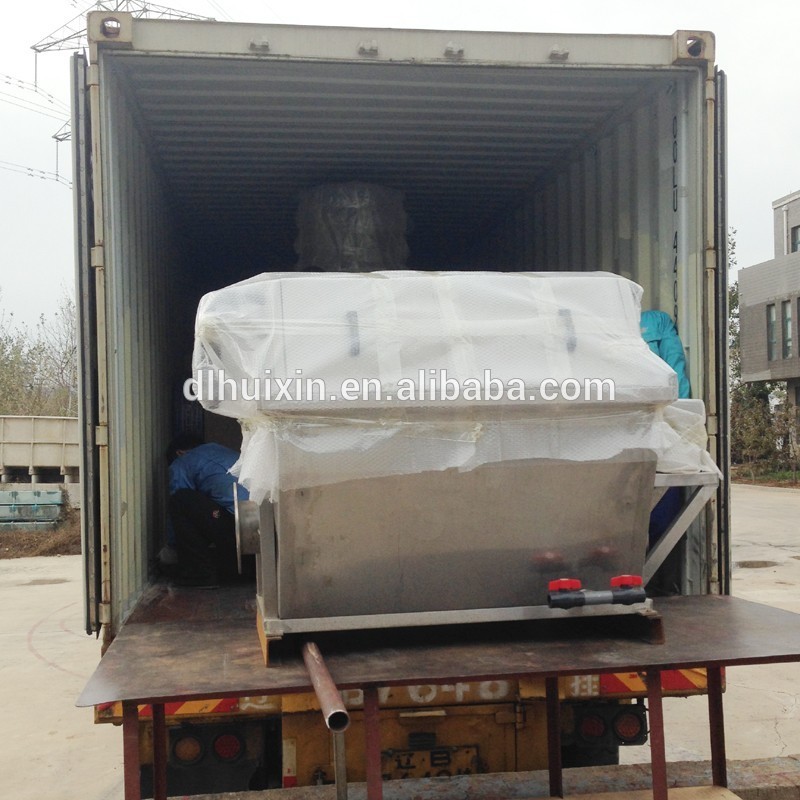

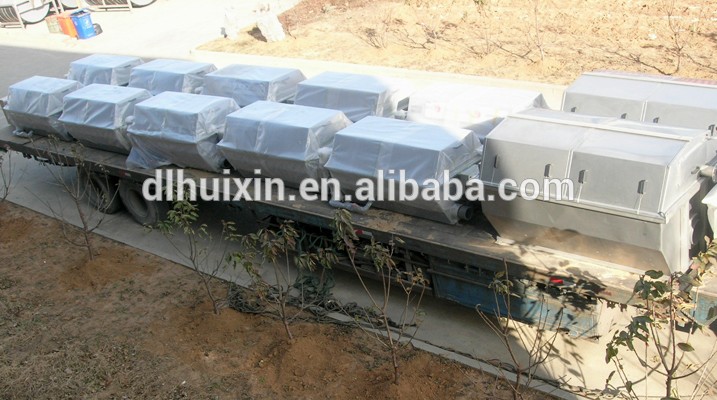

Packing & Delivery

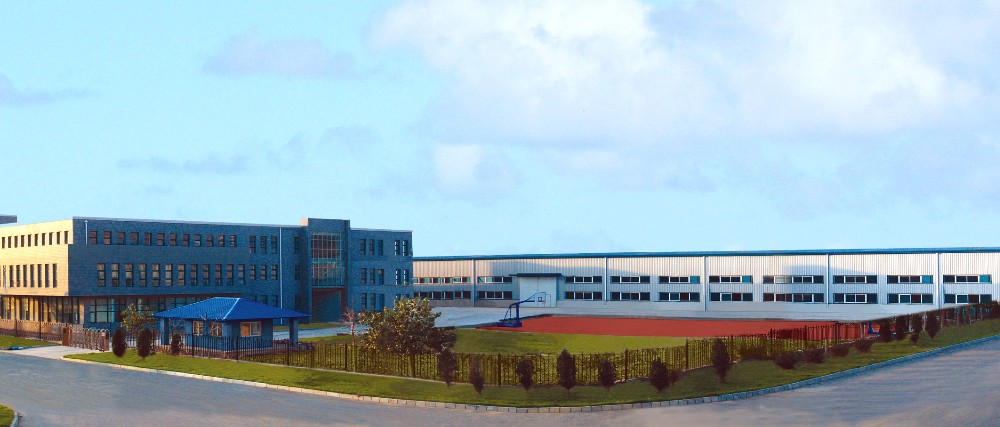

Our Company

Dalian Huixin Titanium Equipment Dev. Co., Ltd founded in 1993, is a leading industrial aquaculture facility manufacture in China. It is also the enterprise of engineering technique research center in Liaoning area. Our company had been certificated with ISO9001-2008, named as National High-Tech Enterprise. It is also the member of Chinese Society for Ocean Enterprise Science, China Society of fisheries, Chinese Society of Agricultural Engineering. It had been honored with “Abiding by Contract and Being Trustworthy”, “Environment Protection and Resources Saving Growing Private Enterprise in Dalian”, “Top 10 Technological Enterprise in Dalian”, “Excellent Invention” etc.



35 patents, including 16 invention patents.

Certifications
Related Products

Fish farm drum filter, drum filter for the recirculating aquaculture system,fish farm system

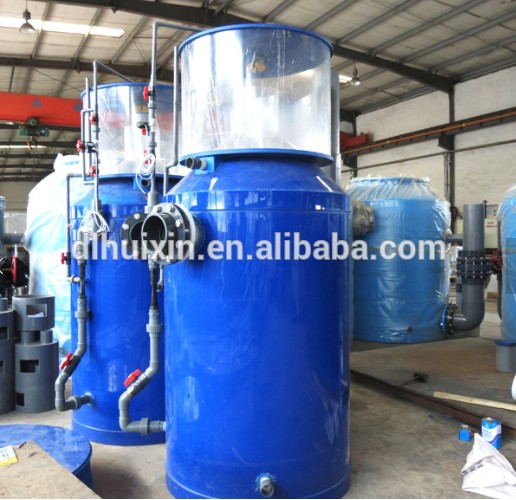

20 tons/hr protein skimmer, foam fractionator separator
