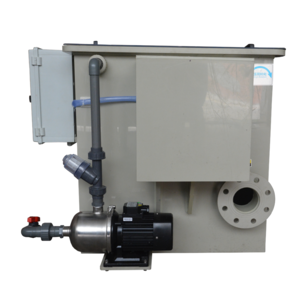

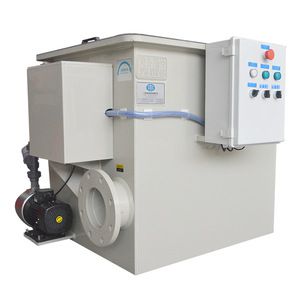

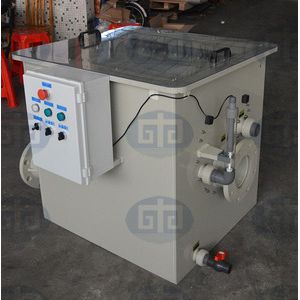

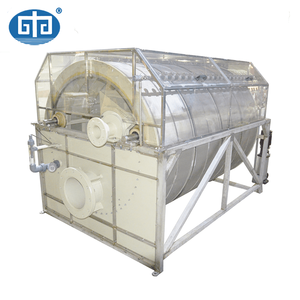

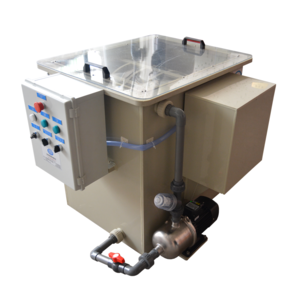

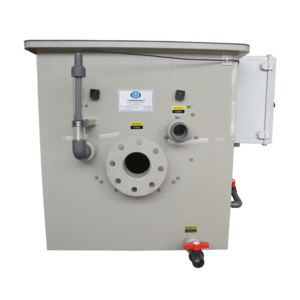

Rotary Drum Filter is a pre-filter of solid-liquid separation in seawater and freshwater aquaculture. It can widely use in various occasions that need solid-liquid separation. ZH-PM20 was made of food grade PP and 316L stainless steel, it has the flowrate of 20M3/H, suitable for water volume 10-60M3.
Specification
Model No. | Dimensions | Voltage | Power | Flow Rate | Inlet/Outlet | Filter Precision |
ZH-PM-20 | 920*1050*800 mm | 380V 50/60 Hz | 0.73KW | 20 M3/H | Dia.110/Dia.110 mm | Optional: 20 microns 40 microns 80 microns |
ZH-PM-40 | 1160*1070*800 mm | 380V 50/60 Hz | 0.93KW | 40 M3/H | Dia.140/Dia.140 mm | |
ZH-PM-60 | 1400*1090*800 mm | 380V 50/60 Hz | 1.12KW | 60 M3/H | Dia.160/Dia.160 mm | |
ZH-PM-80 | 1300*1530*1250 mm | 380V 50/60 Hz | 1.3KW | 80 M3/H | Dia.160/Dia.160 mm | |
ZH-PM-100 | 1520*1550*1250 mm | 380V 50/60 Hz | 1.65KW | 100 M3/H | Dia.200/Dia.200 mm | Optional: 40microns 80 microns |
ZH-PM-150 | 2000*1570*1250 mm | 380V 50/60 Hz | 1.85KW | 150 M3/H | Dia.200/Dia.200 mm | |
ZH-PM-200 | 2250*1850*1550 mm | 380V 50/60 Hz | 1.85KW | 200M3/H | Dia.250/Dia.250 mm |
Working Principle
When waste water flow into the drum first, and go through the stainless steel mesh (SS mesh). Solids in the water will be filtered by the SS mesh, and clear water flow down to the bottom chamber and flow out at outlet. When solids on the SS mesh accumulate to block the SS mesh, water can not fall down to bottom chamber. Water level in drum chamber will be rising to a pre-set highest water level, then trigger the backwashing system to work. Backwashing pump and drum motor work simultaneously, water pump output high pressures water to rinse the running drum, solids on SS mesh will be rinse out and flow to sewage collection trough then flow out the drum filter. After clean the SS mesh, water can go through the SS mesh again, and water level in drum chamber will be dropped to a pre-set lowest water level, backwashing system will be turned off automatically.

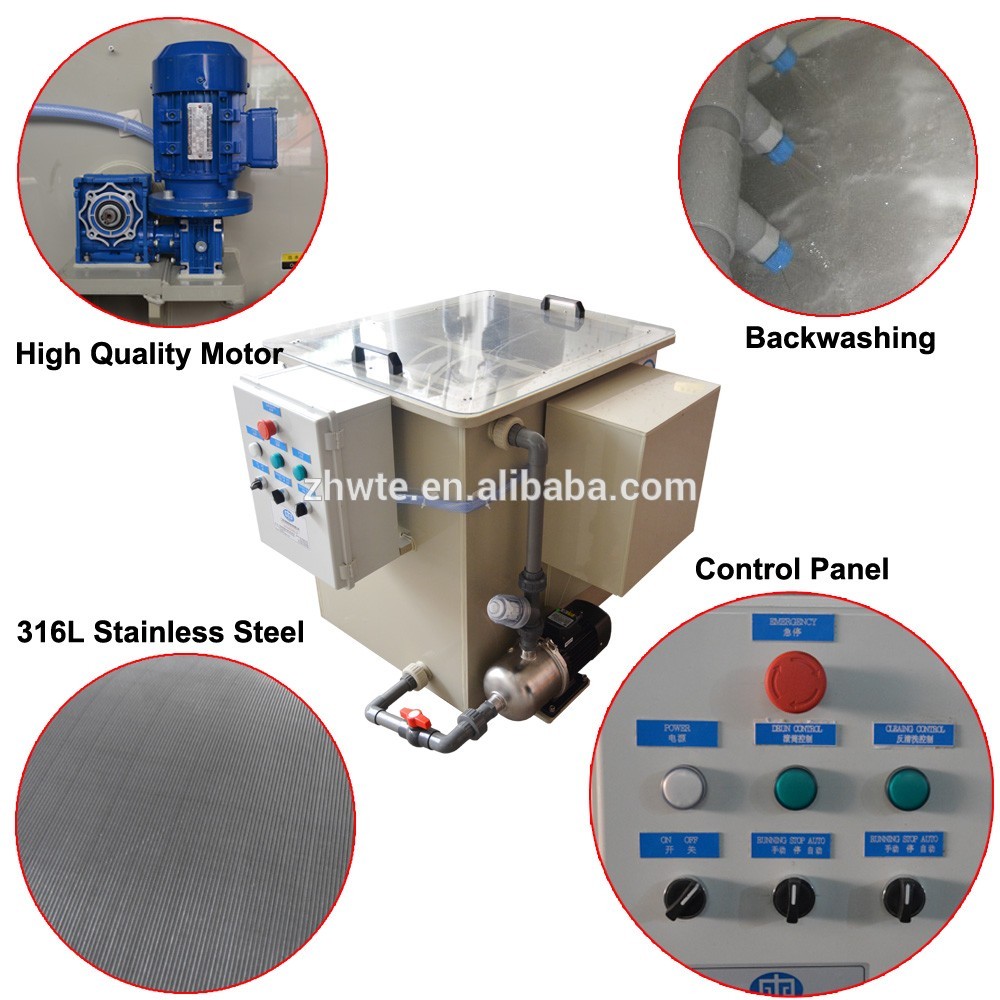

Features
1. Made of high quality PP material, strong corrosion-resistance and durable
2.Energy-efficient and environmental. Zero energy consumption when screen is not blocked
3. Use high quality and special woven stainless steel filter screen. Small aperture, low resistance, strong flow capacity.
4. The equipment has a backwashing system

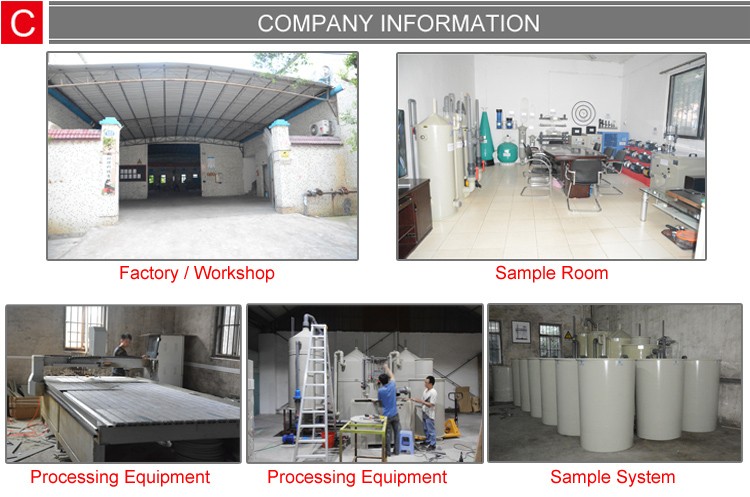

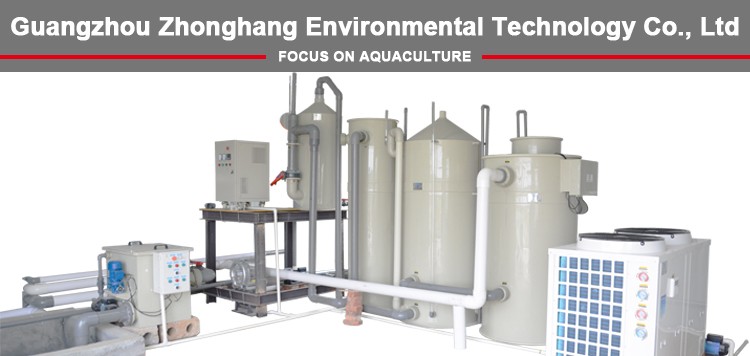

Guangzhou Zhonghang Environmental Technology Co., Ltd is specializing in Recirculating Aquaculture System (RAS), Aquarium and Raw Water Treatment System. We have developed into an integrated water treatment company which combined R&D, manufacture, installation, maintenance and sales together. And we have a group of capable technical personnel in the field of mechanical, electrical, automatic control, water quality monitoring, and aquaculture
technology and so on.
Based on our professional and environmental concept, we will always to design the most economic solution to you, make the largest profits with the smallest investment, and win the wonderful future with you!
PP Fish Tank, Rotary Drum Filter, Protein Skimmer, Biological Filter, UV Sterilizer, Residual Ozone Remover, Degassing&UV Sterilizer Device, Oxygen Generator, Ozone Generator, Sand Filter, Water Pump, Water Monitoring System etc.
