800 Series Automatic Membrane PP Filter Press

 800 Series Automatic Plastic Filter Press 1. Automatic hydraulic compressing, automatic maintaining pressure2. Relay control3. Electric controlling cabinet is combined with hydraulic station4  Max.Filter temperature 120 centi degree5. Automatic

Technical Feature

  • New
  • Automatic
  • Model
  • Zhejiang, China (Mainland)
  • Longyuan
  • 800 Series Automatic Membrane PP Filter Press
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$25~50

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
Model
Place of Origin
Zhejiang, China (Mainland)
Brand Name
Longyuan
Model Number
800 Series Automatic Membrane PP Filter Press
Voltage
3ph/380V50HZ.3ph/415V/50HZ
Power(W)
Depand
Weight
Depand
Dimension(L*W*H)
Depand
Certification
CE, ISO9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Material of Main Frame
Welded Steel Structure
Mode of Shifting
Automatic
Form of Discharging
Open Discharge
Cake Washing
Can be customized
Material of Plate
Reinforced Polypropylene
Plate Size
800*800*60mm
Thickness of Cake
30mm
Filter Temperature
-10u2103 to 80u2103
Filter Pressure
0.6-1.6MPa
Thickness of plate
60mm

DETAIL DESCRIPTION

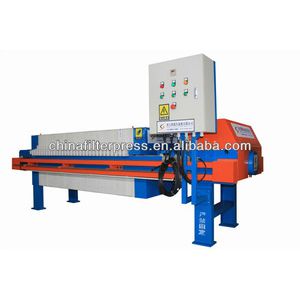

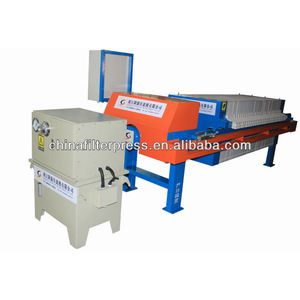

 800 Series Automatic Plastic Filter Press

1. Automatic hydraulic compressing, automatic maintaining pressure

2. Relay control

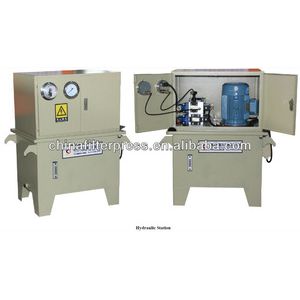

3. Electric controlling cabinet is combined with hydraulic station

4  Max.Filter temperature 120 centi degree

5. Automatic shifting and discharging

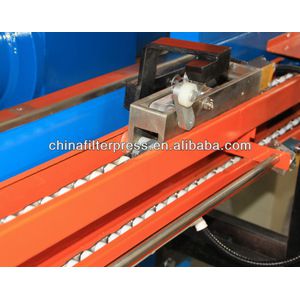

6. SUS slide way

7. Welded steel structure

8. Raw reinforced polypropylene filter plate

9. The side bar is made from Q235-A solid steel plate

10. ISO9001:2008 quality management system, ISO14001:2004 environmental management system and CE certified

11. Warranty period 1 year



Technical parameter(The " * " signal means midship mounting)

Filter Area(m2)

30

40

60

70

80

90

100

120*

140*

160*

Thickness of cake(mm)

30

30

30

30

30

30

30

30

30

30

Number of plates(piece)

10/9

13/12

19/18

22/21

25/24

28/27

31/30

37/36

43/42

49/48



 Outsourcing components

Item No.

Description

Manufacturer

1

Motor of hydraulic station

ABB

2

Major electric components

Schneider

3

Hydraulic valve, Germany Rexroth Series

Beijing Huade

4

Filter cloth

Southwest filter cloth







Applicable field



1) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

2)Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

4) Pharmacy
Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood

5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Metallurgy, coal
Gold, silver, copper, zinc ore mineral powder, etc

7) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc



About us





We are Zhejiang Longyuan Filter Press Co., Ltd., the leading filter press manufacturer in China, specialized in chamber filter press, membrane filter press and automatic filter press. Our company has obtained ISO9001:2008 certificate of quality management system and ISO14001:2004 certificate of environment management system.

The filter press machine has been exported to America, Italy, Australia, Poland, Russian, Thailand, Philippine, Vietnam and etc…



Zhejiang Longyuan Filter Press Co., Ltd. is one of the leading filter press manufacturers in China, specializing in chamber filter presses, membrane filter presses, automatic filter presses and other related accessories.
In recent years, our company has developed rapidly. We have 140 employees, including 35 technicians. We have foundation property of RMB 10, 000,000 and cover an area of 26000 square meters. We had the sales sum over RMB 100 million in 2010 including exporting value USD2.5 million.

Our company has firstclass domestic industry production and processing equipment, such as large hydraulic machines, CNC automatic cutting machines and CNC machines. The top filter press we produce is very large and high complexity. We can provide users with filter presses with the features of materials testing and selection and other related products. We also offer equipment installation, user training, technical support and after-sales services to our customers.





Guarantee and After Sales Service

One year guarantee for the machine

24 hours technical support by e-mail

Calling and paid door to door service

Use friendly English user manual
