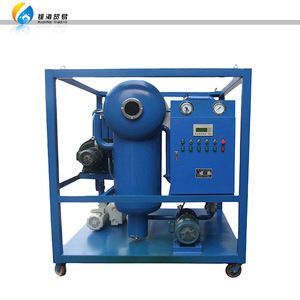

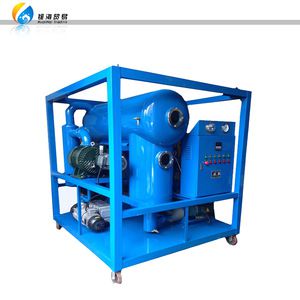

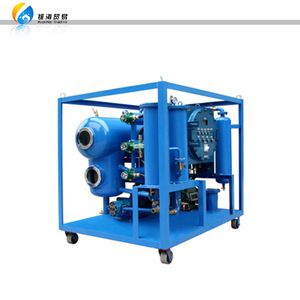

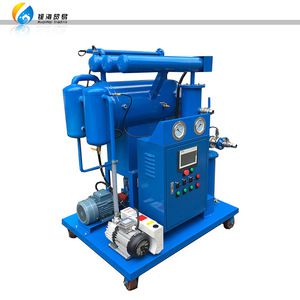

low price china supplier portable used vacuum transformer oil filter
1.FUNCTION
The main function of DZL Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
2.TECHNICAL FEATURES
l Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.
l Adoption of American fine filter element, fineness: 5μm, ß≥1000
l Low noise and long life of the oil transport system
l Adoption of American heating technique with the way of thermal radiation, constant temperature control.
l The use of float valve and photoelectric oil level control, eliminates supervision
l Adoption of French de-foaming technique to avoid oil leaking
l Controlled digitally and automatically by PLC
l Major electric apparatus are imported from America, so the controlling system safe and reliable
3.Specification
Product | Single | 5 | 10 | 20 | 30 | 50 | 70 | 100 | Proposed to use double stage to deal with 100L/min. capacity | |||
Double | 5 | 10A | 20A | 30A | 50A | 70A | 100A | 150A | 200A | 250A | 300A | |
Flow rate | L/min | 5 | 10 | 20 | 30 | 50 | 70 | 100 | 150 | 200 | 250 | 300 |
Total power | KW | 5 | 15 | 24 | 24 | 30 | 48 | 60 | 108 | 108 | 144 | 144 |
Pipe diameter | DN mm | 25/16 | 25/16 | 32/25 | 32/25 | 44/32 | 44/32 | 50/44 | 50/44 | 50/44 | 65/50 | 65/50 |
Gross weight | KG | 100 | 180 | 240 | 320 | 420 | 700 | 750 | 1500 | 1860 | 2100 | 2200 |
Overall dimension mm | Length | 700 | 1200 | 1200 | 1300 | 1300 | 1600 | 1600 | 1600 | 1600 | 2000 | 2000 |
Width | 500 | 800 | 1000 | 1000 | 1000 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 | |
Height | 800 | 1200 | 1400 | 1450 | 1500 | 1800 | 1800 | 1800 | 1800 | 2250 | 2250 |
Heibei Huanhai Import & Export Trading Co.,Ltd is a powerful company in electric area. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam , Nicaragua,Thailand and so on.
Our main products are capacitors,insulation resistance tester,DC high voltage generator,testing transformer,insulating oil tester, like transformer oil dielectric tester (BDV tester), transformer loss tester, transformer oil acid tester, flash point tester and so on. The products Huanhai supplied as follows:
Transformer tester, High voltage generator, Relay test kit,Power quality analyzer, insulating oil tester,High voltage tester, Insulation tester, Earth resistance tester and so on.
