Factory direct price good quality plate and frame filter press machine
 |  | |
 |  |  |

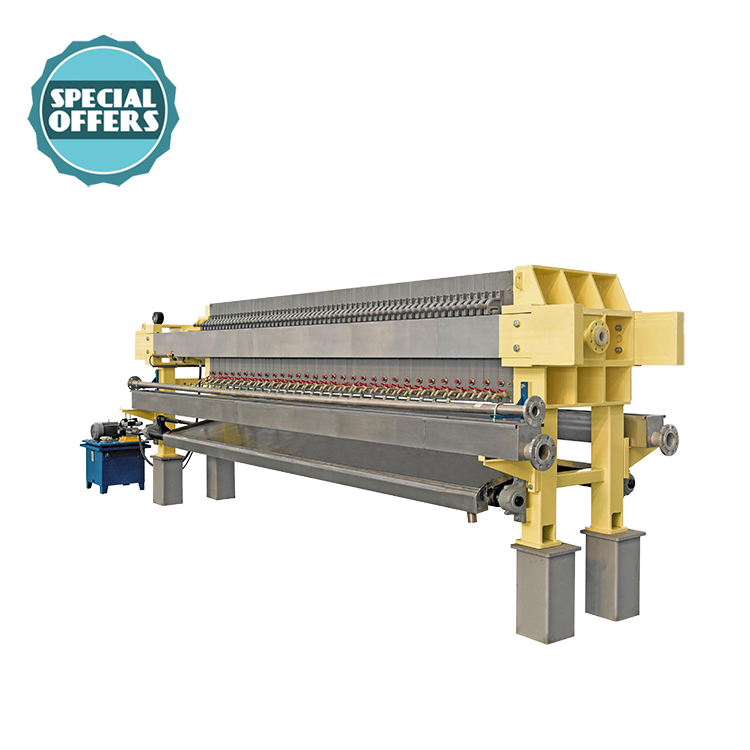

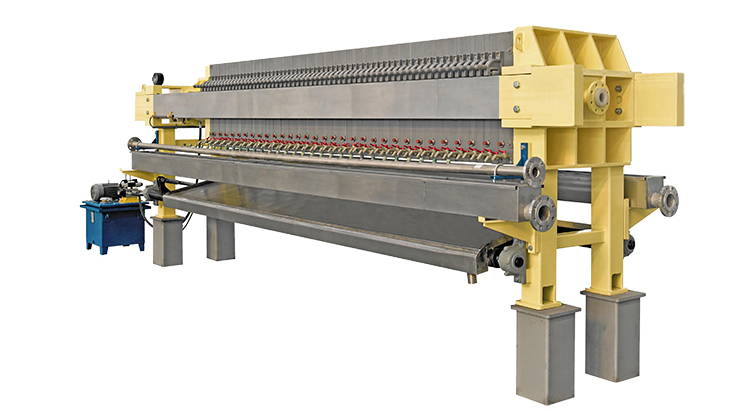

Plate and frame filter press machine description
| Filter press is a kind of dewatering equipment |  |
| working in batches, applicable to various solid-liquid | |
| separation. Filter press is effective , easy to use , | |
| suitable for large filtration plants that requires a | |
| high degree of automation or centralized | |
| control.The whole machine s designed with | |
| integration of machine, electricity and liquid,can | |
| realize automatic pressing, filtering, draining, | |
| squeezing, loosening, drawing board, and so on, | |
| with a high degree of automation, large production |
capacity, low liquid content in filter cake, high unit output, requiring only very limited area for installation&operation. Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing,water treatment and sewage treatment and so on all kinds of solid-liquid separation is required.
Automatic filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.
Plate and frame filter press machine applications:
Plate and frame filter press machine techinal parameters
Factory direct price good quality plate and frame filter press machine | ||||||||
| Modle | XMAZ 1500-U-40 Program Controlled Auto Chamber Filter Press | |||||||
| U-Plastic Plate(Thickness 75,Filter Cloth1mm/Plate) | ||||||||
| Filter area(m²) | Number of filter plate | Filter cake thickness(mm) | Filter chamber volume(m³) | Weight(kg) | Anchor center(mm) | DimensionsL*W*H(mm) | ||
| 200 | 57 | 40 | 4.48 | 17148 | 6400 | 7905 | 2470 | 1830 |
| 250 | 65 | 5.10 | 18321 | 7020 | 8525 | |||
| 300 | 77 | 6.03 | 20022 | 7940 | 9445 | |||
| 350 | 91 | 7.11 | 22010 | 9020 | 10252 | |||
| 400 | 103 | 8.04 | 23701 | 9940 | 11445 | |||
| 450 | 117 | 9.12 | 25687 | 11020 | 12525 | |||
| 500 | 129 | 10.05 | 27390 | 11945 | 13450 |
| U-Plastic Plate(Thickness 80,Filter Cloth1mm/Plate) | ||||||||
| Filter area(m²) | Number of filter plate | Filter cake thickness(mm) | Filter chamber volume(m³) | Weight(kg) | Anchor center(mm) | DimensionsL*W*H(mm) | ||
| 200 | 57 | 40 | 4.48 | 17339 | 6700 | 8205 | 2470 | 1830 |
| 250 | 65 | 5.10 | 18616 | 7350 | 8855 | |||
| 300 | 77 | 6.03 | 20539 | 8340 | 9845 | |||
| 350 | 91 | 7.11 | 22775 | 9480 | 10985 | |||
| 400 | 103 | 8.04 | 26148 | 10470 | 11975 | |||
| 450 | 117 | 9.12 | 28388 | 11620 | 13125 | |||
| 500 | 129 | 10.05 | 30306 | 12600 | 14105 |
Jing County Jin Wang Filter Press Co., Ltd., is committed to technology transfer and new product development, is a professional manufacturing enterprise separation equipment, collection development, design, manufacture, service into an organic whole, have professional production technology, advanced production technology, sophisticated manufacturing equipment, perfect detection means.
Company can provide customized services, according to your specific production process, through the scientific and reasonable results, for you choose reasonable filtration equipment, to meet your production needs, to maximize your productivity. In order to meet the needs of different users, we continuously develop and perfect the product technology and quality, and improve the automation and after-sales service quality of the products.
Pre-sale Serive
Our technical support team which have the professional knowledge level will help you to solve the problems that you meet in the using process of the solid-liquid equipments.
Services during the sale
In the process of the clients buying the products, we will provide clients the satisfactory and considerate service through a series of rigorous service style. We respect clients and always devote ourselves to improving the total of clients: help clients to draft solving plans.
After-sales service
Jing County Jin Wang Filter Press Co., Ltd. insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. Our mission is woking through professional consulation, exquisite thchnical support and standard solution in order to constantly meet your neds, and finally achieve satisfactory results.
Technological support
Jing County Jin Wang Filter Press Co., Ltd. has been largely adopting new technologies, new techniques and high-tech equipments. And Jing County Jin Wang Filter Press Co., Ltd. also has strict and effective quality control system. We have obtained Iso9001 quality system certificate.
Q1.Can I visit your factory?
Yes, Many domestic and international customers visit our factory every year.
Q2.Do you supply spare parts and after-sale service?
Yes, we supply and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q3.Do you provide us the detailed drawing?
Yes. Our experienced engineers are specialized in designing process flow for various requirement.
Q4.Can you test our samples?
Yes. You can send your samples to us for test and analysis.
Q5: How about the delivery time?
Normally 10-20 working days after prepayment, and we promise we will make the delivery as soon as we can.
China
