BASY type plate and frame filter press machine

If you are interested in our machines ,please let us know your capacity and your material.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Jiangsu, China (Mainland)
  • ELITE
  • customized
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~3

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Jiangsu, China (Mainland)
Brand Name
ELITE
Weight
customized
Dimension(L*W*H)
customized
Certification
CE Certificate
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
layers
10-50
filter area
0.06-8u33a1
filter plate size
100-400mm
filter medium
0.8u03bcm
fiter pressure
0.1Mpa
water discharge
0.8-24t/h
Properties
Other

DETAIL DESCRIPTION

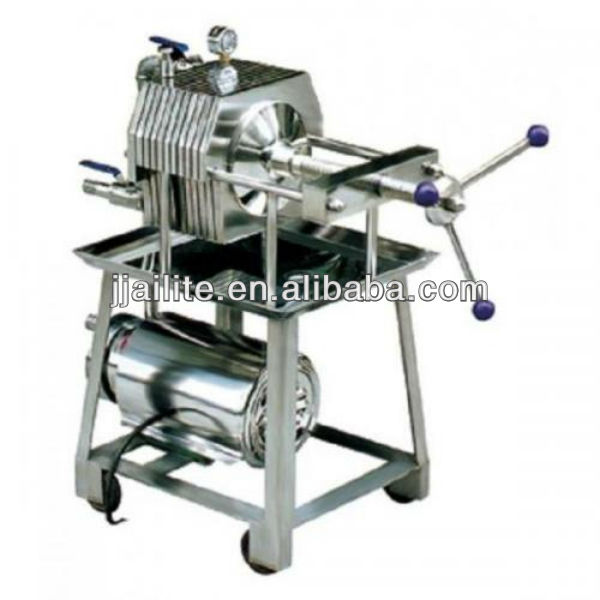

 BASY type plate and frame filter press machine

This equipment is stainless steel multilayer frame filter press for concentrations <50% low viscosity liquid with a smaller amount of slag as a closed filter to achieve purification, sterilization, clarification fine filter, semi-fine filter requirements direct selection of microporous membrane, may, without microporous membrane filter directly to the sterile filtration purposes.

Type

layers

Filter area

(m²)

Filter plate

size(mm)

Filter medium(μm)

Pressure

(mpa)

Water

discharge

(T/h)

Power

(kw)

BASY 100-N-UA

10

0.06

Ø100

0.8

0.1

0.8

0.75

BASY 150-N-UA

10

0.15

Ø150

0.8

0.1

1.5

1.1

BASY 200-N-UA

10

0.27

Ø200

0.8

0.1

2

1.1

BASY 250-N-UA

10

0.4

Ø250

0.8

0.1

3

1.1

BASY 300-N-UA

10

0.62

Ø300

0.8

0.1

4

1.1

BASY 400-N-UA

10

1

Ø400

0.8

0.1

6

1.1

BASY 400-N-UA

20

2

Ø400

0.8

0.1

10

1.5

BASY 400-N-UA

30

3

Ø400

0.8

0.1

12

2.2

BASY 200-N-UB

10

0.4

190*190

0.8

0.1

3

1.1

BASY 300-N-UB

10

09

290*290

0.8

0.1

6

1.1

BASY 400-N-UB

12

2

390*390

0.8

0.1

10

1.1

BASY 400-N-UB

20

3

390*390

0.8

0.1

12

1.5

BASY 400-N-UB

26

4

390*390

0.8

0.1

15

2.2

BASY 400-N-UB

32

5

390*390

0.8

0.1

18

2.2

BASY 400-N-UB

38

6

390*390

0.8

0.1

21

2.2

BASY 400-N-UB

50

8

390*390

0.8

0.1

24

2.2



If you are interested in our machines ,please let us know your capacity and your material.

then we can give you the factory price .Fine quality ,Fast delivery time ,

if you have bulk order ,please choose us .thanks.
Hearty service:
1.Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operating video & instruction will be sent to clients, to help them better use the machine
3.Any problems occur while using, professional advice will be given by us.
4.All kinds of frequently used parts are supplied from us all the year round.
