Plate and frame membrane filter press cooking olive oil machine
Plate and frame filter is a device that reaches the aim of solid and liquid separation in industrial production, which is used in the industries of chemical, ceramics, petroleum, medicine, food, smelting and others.
It also applies to industrial filtration sewage treatment; hydraulic oil filter is the machine that electicity and liquid are in one machine. The use of liquid equipment pressure tight, manual mechanical locking pressure.
Easy to operate and maintain, safe and reliable to operate.
Working principle of Plate and frame filter press:
It is used for solid and liquid separation. The filter cake after filter press has a higher solid content and excellent separation effect. The basic principle of solid-liquid separation is: The mixture flows through the filter medium (filter cloth), solid stay in the filter cloth, and gradually stacked on the filter cloth to form a filter cake. And the filtrate portion is permeated through the filter cloth to become a solid-free liquid.
Technical parameters:
| Type | Plate and frame oil filter press machine |
| Filtering pressure | 0.5 Mpa |
| Quantity of filter plates | 14 pieces |
| Thickness of filter cake | 30 mm |
| Cubage of chamber | 90 L |
| Materials for other filter plates | Polypropylene |
| Size of filter plate | 520*520 mm |
| Filter area | 6 m2 |
| Model | BMAY6/520-30U |
| Pressing way | Hydraulic press(hydraulic oil station)
|
| Size |
2200*830*850 mm |
| Weight |
660 kg |

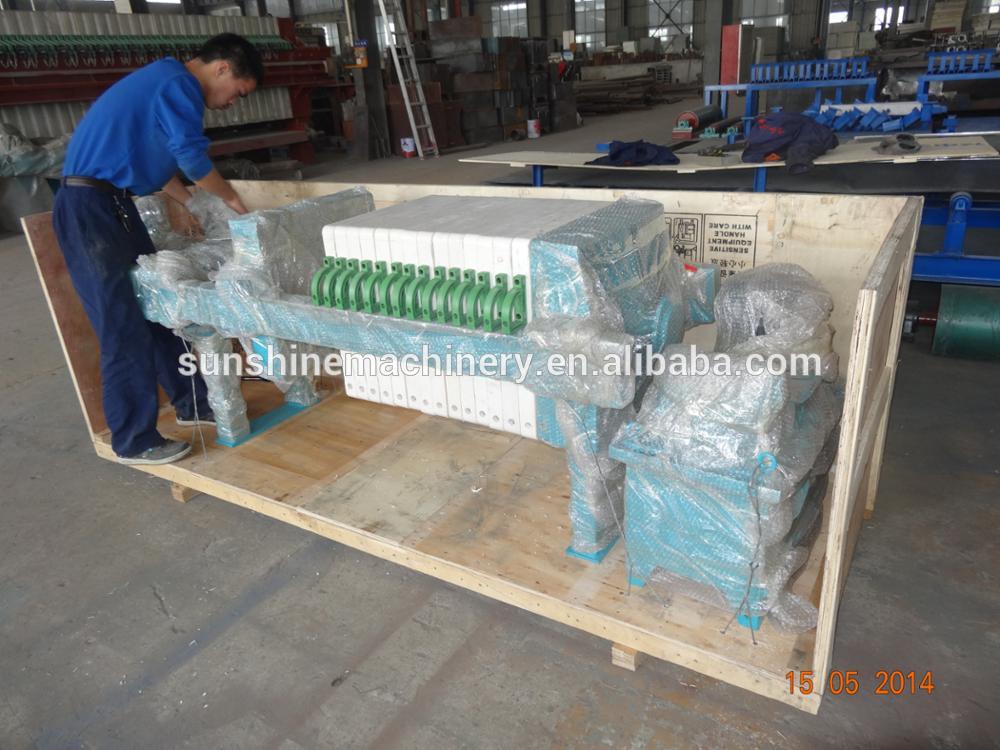

| Package | Wooden case package |
| Function | Remove impurties from oil and other liquid |
| Production time | 10 days |
China
