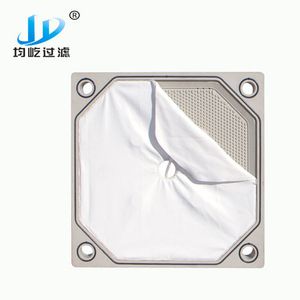

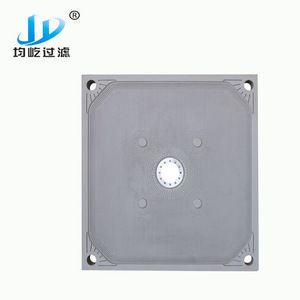

1300X1300mm Chamber /Membrane Filter Press Plate with Ears for Suger filtration

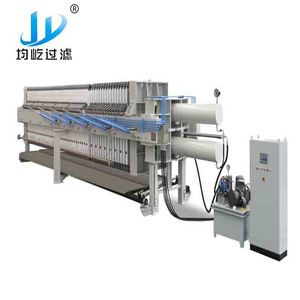

Filter plate is the core part of the filter press.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Shanghai, China (Mainland)
  • Junyi
  • 870*870/1250*1250/1500*1500
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~500

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Shanghai, China (Mainland)
Brand Name
Junyi
Model Number
870*870/1250*1250/1500*1500
Voltage
Customer Requirement
Power(W)
2.2kw
Weight
Depand
Dimension(L*W*H)
Customized
Certification
ISO9001
Warranty
12 Months
After-sales Service Provided
Overseas third-party support available
Max Feeding Pressure
0.6MPa
Squeezing Pressure
0.8MPa
Max Tempresure
80 Degrees
Thickness of Plate
Various
OEM
Accept

DETAIL DESCRIPTION



Description of Filter Plate
Filter plate is the core part of the filter press. Different materials, models and qualities will affect the whole machine's filtration performance directly. Its feeding hole, filter points distribution (filter channel) and water discharge channels have different designs according to different materials.

Fetures of  Filter Plate

 High Temperature
 High pressure resistance
 Excellent sealing and cake washing
 Anti-corrosions
 Short filtration period
 Lower cake moisture


Material of Filter Plate
It can be made of cast iron, steel Q235, cast steel, stainless steel, cast copper, aluminum alloy, PP, TPE elastomer, EPDM, NBR and etc.

Feeding Mode of Filter Plate
1. Middle feeding
2. Corner feeding
3. Upper middle feeding.



Technical Parameter of Filter Plate
1. Working temperature:80C
2. Filtration pressure:0.6Mpa-0.8Mpa
3. Squeezing pressure:1.0-1.3Mpa


Some Size for Your Reference
1500x1500mm
1250x1250mm
1000x1000mm
870x870mm
800x800mm
700x700mm
500x500mm
380x380mm

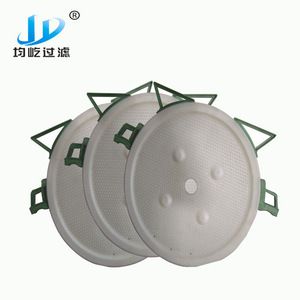

Round 800mm

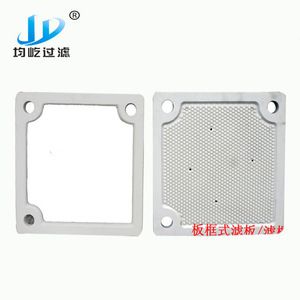

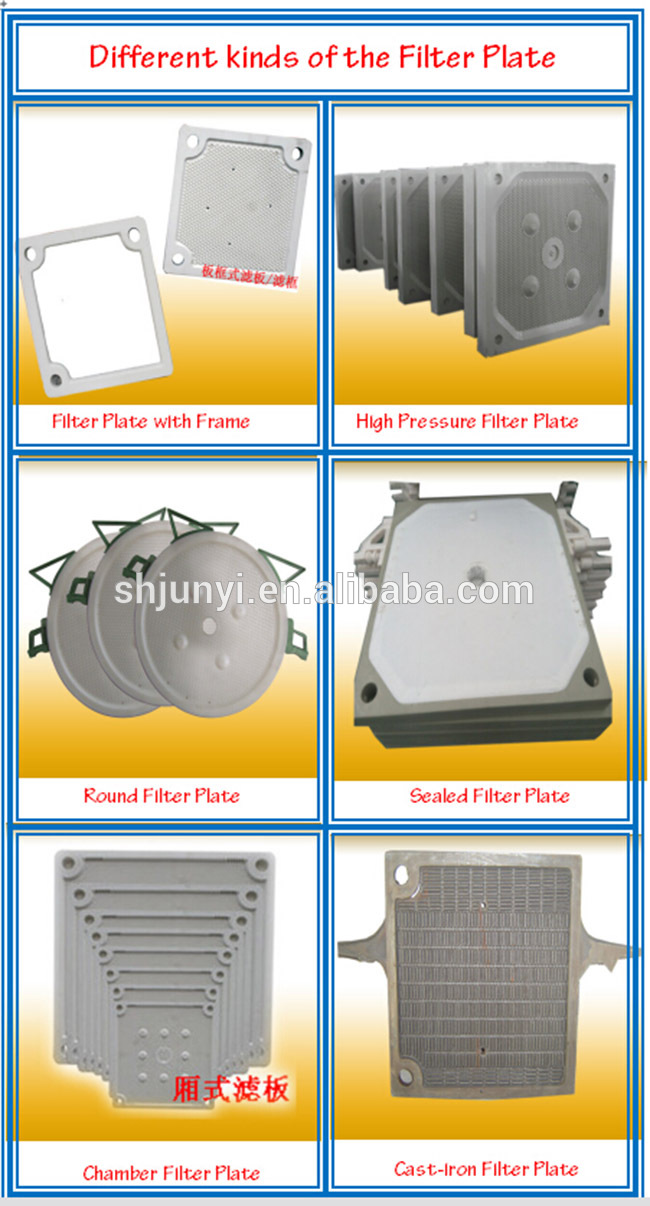

Different Kinds of the Filter Plate for Your Choice

The filter cake after processed by the filter press

Package and Shippment

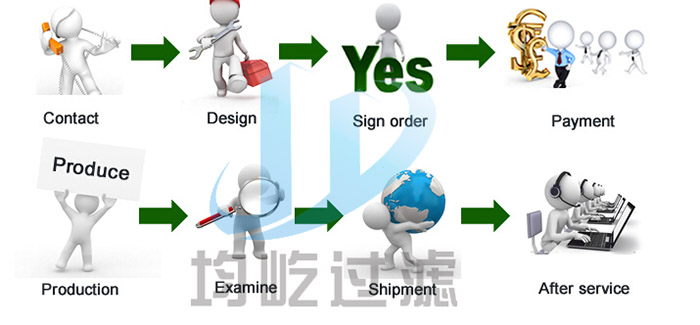

How to order the filter plate
